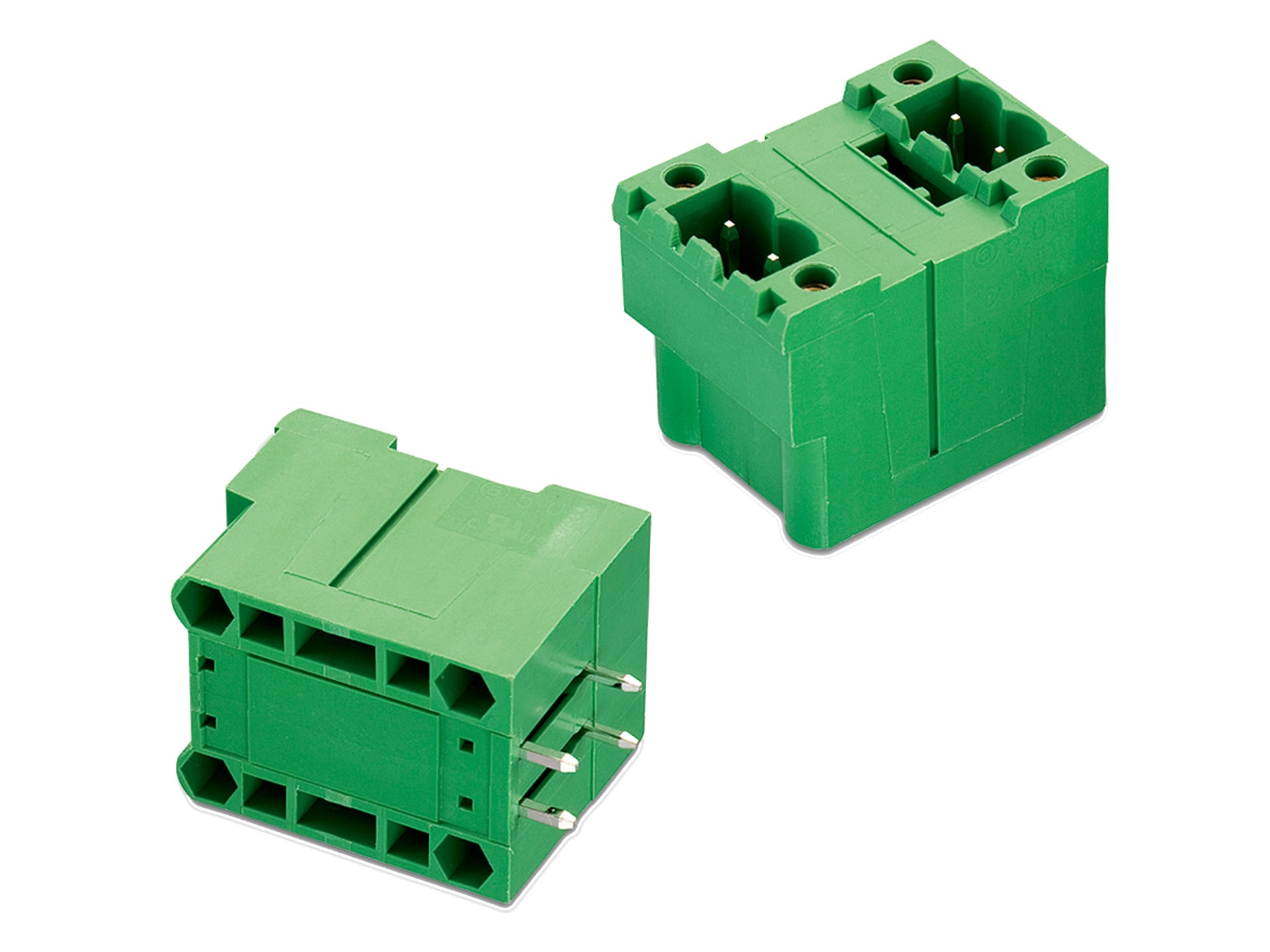

WR-TBL Series 3325 - 5.08 mm Double Level Horizontal Male PCB Header with Flanges & Nut Type | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show catalog.filterBar.article in 0 product lines

catalog.filterBar.article in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691332510004	SPEC4, Pluggable, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691332510004_1 (rev1).pdf \| 250.1 KB IGS 691332510004 (rev1).igs \| 2.3 MB STP 691332510004 (rev1).stp \| 910.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	ApplicationPluggable	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	–Check availability
	691332510006	SPEC6, Pluggable, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691332510006_1 (rev1).pdf \| 312.9 KB IGS 691332510006 (rev1).igs \| 3 MB STP 691332510006 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	ApplicationPluggable	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	–Check availability
	691332510008	SPEC8, Pluggable, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691332510008_1 (rev1).pdf \| 370.4 KB IGS 691332510008 (rev1).igs \| 3.7 MB STP 691332510008 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	ApplicationPluggable	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	–Check availability
	691332510010	SPEC10, Pluggable, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691332510010_1 (rev1).pdf \| 424.9 KB IGS 691332510010 (rev1).igs \| 4.4 MB STP 691332510010 (rev1).stp \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	ApplicationPluggable	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	–Check availability
	691332510012	SPEC12, Pluggable, PCB	Availability –	Downloads8 files ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691332510012_1 (rev1).pdf \| 485.9 KB IGS 691332510012 (rev1).iges \| 5.1 MB IGS 691332510012 (rev1).igs \| 5.1 MB STP 691332510012 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	ApplicationPluggable	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	–Check availability
	691332510016	SPEC16, Pluggable, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691332510016_1 (rev1).pdf \| 607 KB IGS 691332510016 (rev1).igs \| 6.5 MB STP 691332510016 (rev1).stp \| 2.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	ApplicationPluggable	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

WR-TBL Pluggable Types

Würth Elektronik pluggable type terminal blocks are available in different pitches and pincounts and offer large and modular terminal block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.

Learn more PDF
