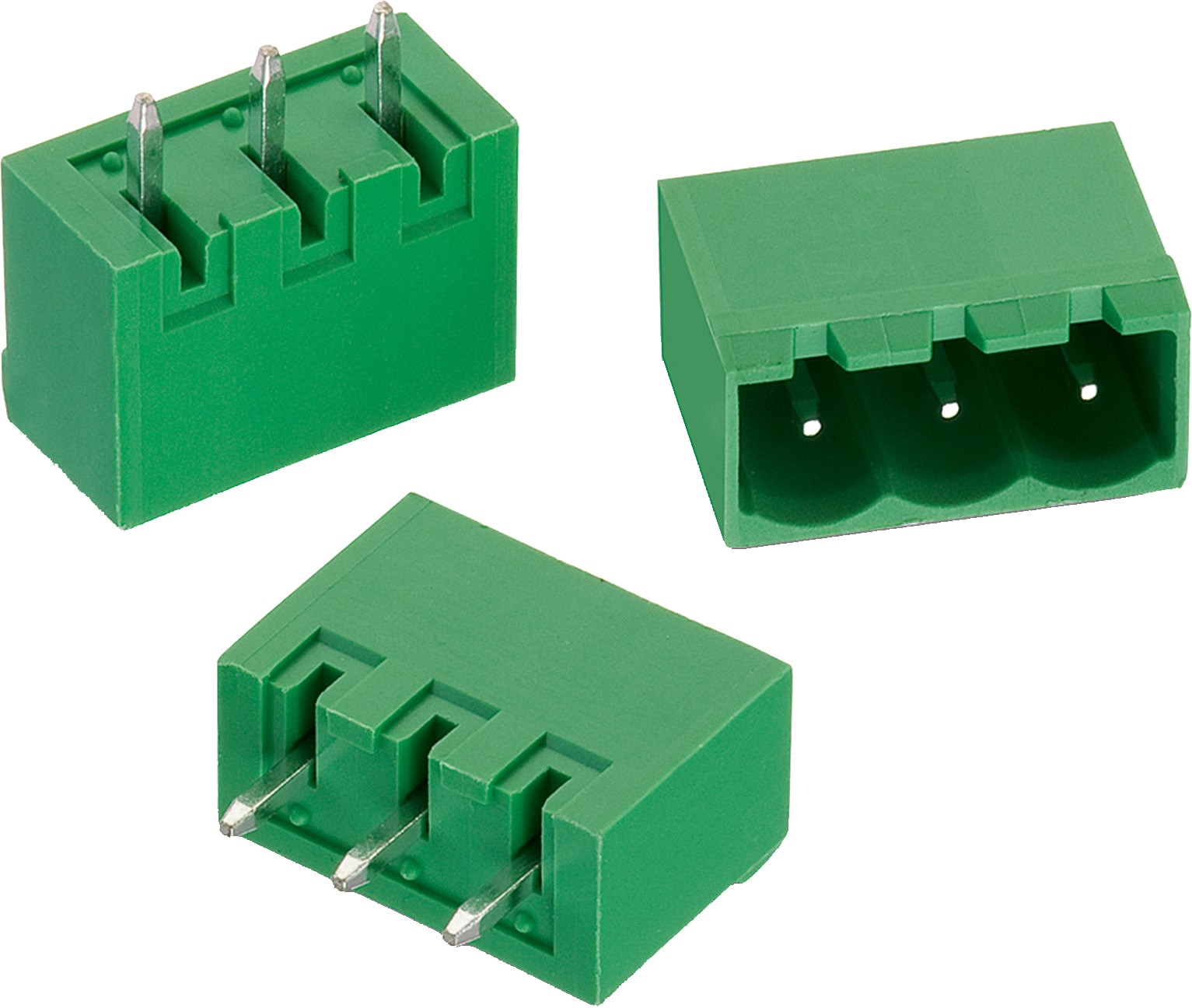

WR-TBL Series 311 - 5.08 mm Close Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66; PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A; 20 A
I_R[cULus]	15 A; 20 A
I_R[VDE]	15 A; 20 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC); 300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691311500102	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500102_1 (rev1).pdf \| 70 KB IGS 691311500102 (rev1).igs \| 569.7 KB STP 691311500102 (rev1).stp \| 218.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical	612690 691002
691311500103	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500103_1 (rev1).pdf \| 89 KB IGS 691311500103 (rev1).igs \| 778.8 KB STP 691311500103 (rev1).stp \| 296.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500104	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500104_1 (rev1).pdf \| 109.6 KB IGS 691311500104 (rev1).igs \| 990.6 KB STP 691311500104 (rev1).stp \| 374.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500105	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500105_1 (rev1).pdf \| 129.5 KB IGS 691311500105 (rev1).igs \| 1.2 MB STP 691311500105 (rev1).stp \| 452.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500106	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500106_1 (rev1).pdf \| 141.4 KB IGS 691311500106 (rev1).igs \| 1.4 MB STP 691311500106 (rev1).stp \| 530.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500107	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500107_1 (rev1).pdf \| 161.5 KB IGS 691311500107 (rev1).iges \| 1.6 MB IGS 691311500107 (rev1).igs \| 1.6 MB STP 691311500107 (rev1).stp \| 609.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500108	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500108_1 (rev1).pdf \| 177.9 KB IGS 691311500108 (rev1).igs \| 1.8 MB STP 691311500108 (rev1).stp \| 689.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500109	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500109_1 (rev1).pdf \| 190.2 KB IGS 691311500109 (rev1).igs \| 2 MB STP 691311500109 (rev1).stp \| 770.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500110	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500110_1 (rev1).pdf \| 210.2 KB IGS 691311500110 (rev1).igs \| 2.2 MB STP 691311500110 (rev1).stp \| 851 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500111	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500111_1 (rev1).pdf \| 230.1 KB IGS 691311500111 (rev1).igs \| 2.4 MB STP 691311500111 (rev1).stp \| 932.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500112	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500112_1 (rev1).pdf \| 272.3 KB IGS 691311500112 (rev1).iges \| 2.7 MB IGS 691311500112 (rev1).igs \| 2.7 MB STP 691311500112 (rev1).stp \| 1013.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500113	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500113_1 (rev1).pdf \| 291.6 KB IGS 691311500113 (rev1).igs \| 2.9 MB STP 691311500113 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	13	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500114	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500114_1 (rev1).pdf \| 303.6 KB IGS 691311500114 (rev1).igs \| 3.1 MB STP 691311500114 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500115	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500115_1 (rev1).pdf \| 324.7 KB IGS 691311500115 (rev1).igs \| 3.3 MB STP 691311500115 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500116	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500116_1 (rev1).pdf \| 331.1 KB IGS 691311500116 (rev1).igs \| 3.5 MB STP 691311500116 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500117	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500117_1 (rev1).pdf \| 351.4 KB IGS 691311500117 (rev1).igs \| 3.7 MB STP 691311500117 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	17	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500118	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500118_1 (rev1).pdf \| 371.8 KB IGS 691311500118 (rev1).igs \| 4 MB STP 691311500118 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500119	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500119_1 (rev1).pdf \| 392 KB IGS 691311500119 (rev1).igs \| 4.2 MB STP 691311500119 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	19	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500120	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500120_1 (rev1).pdf \| 412.8 KB IGS 691311500120 (rev1).igs \| 4.4 MB STP 691311500120 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500121	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500121_1 (rev1).pdf \| 428.3 KB IGS 691311500121 (rev1).igs \| 4.6 MB STP 691311500121 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	21	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500122_1 (rev1).pdf \| 448.5 KB IGS 691311500122 (rev1).igs \| 4.8 MB STP 691311500122 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500123	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500123_1 (rev1).pdf \| 467.9 KB IGS 691311500123 (rev1).igs \| 5 MB STP 691311500123 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	23	PCB Header	PCB	No	Closed Vertical Plug entry	–
691311500124	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500124_1 (rev1).pdf \| 488.8 KB IGS 691311500124 (rev1).igs \| 5.3 MB STP 691311500124 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	PCB Header	PCB	No	Closed Vertical Plug entry	–

Order Code	Datasheet
691311500102	SPEC
691311500103	SPEC
691311500104	SPEC
691311500105	SPEC
691311500106	SPEC
691311500107	SPEC
691311500108	SPEC
691311500109	SPEC
691311500110	SPEC
691311500111	SPEC
691311500112	SPEC
691311500113	SPEC
691311500114	SPEC
691311500115	SPEC
691311500116	SPEC
691311500117	SPEC
691311500118	SPEC
691311500119	SPEC
691311500120	SPEC
691311500121	SPEC
691311500122	SPEC
691311500123	SPEC
691311500124	SPEC
