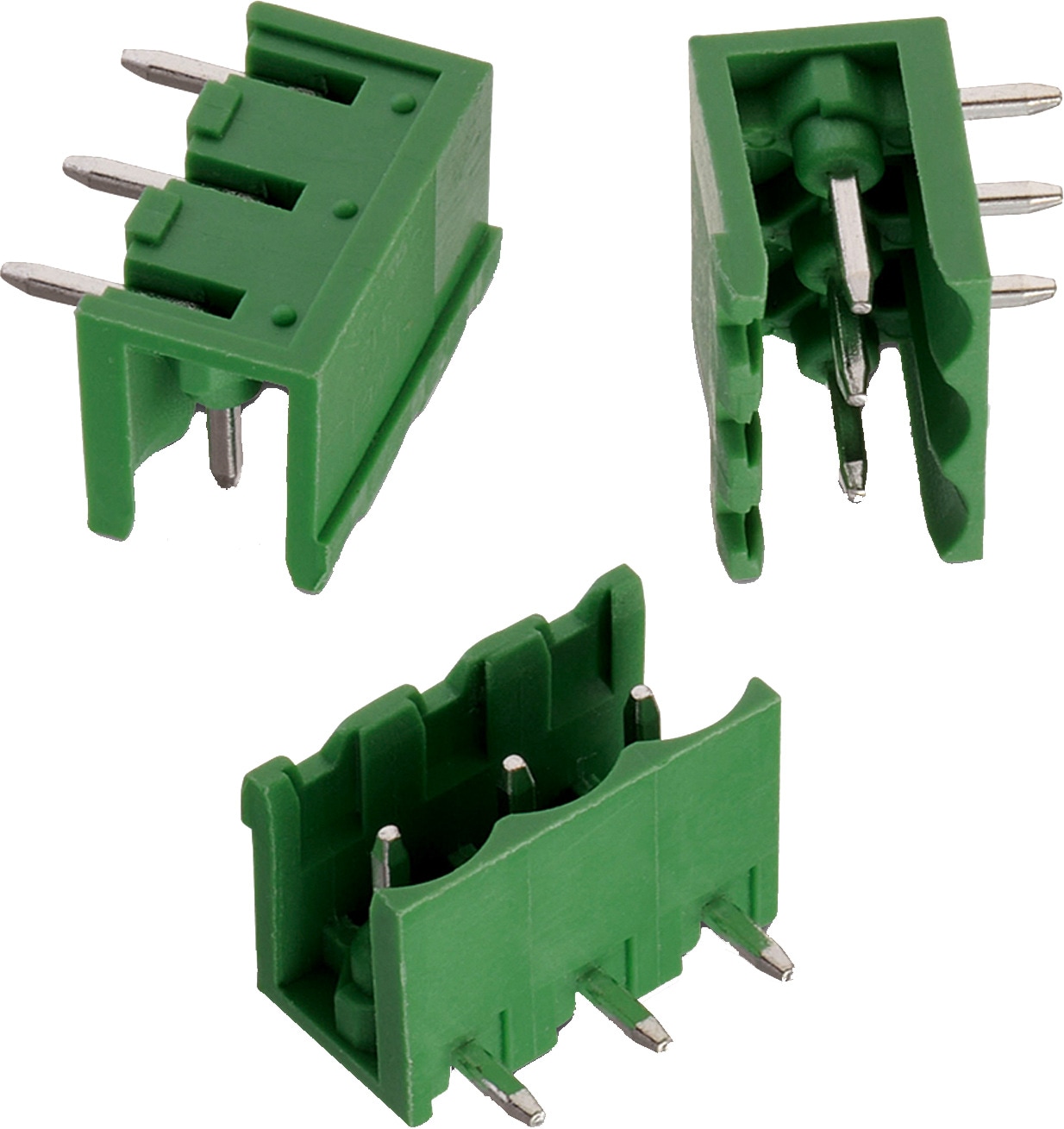

WR-TBL Series 312 - 5.08 mm Open Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
I_R[VDE]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691312510002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510002_1 (rev1).pdf \| 72.8 KB IGS 691312510002 (rev1).igs \| 588 KB STP 691312510002 (rev1).stp \| 225.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Horizontal	–
691312510003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510003_1 (rev1).pdf \| 92.7 KB IGS 691312510003 (rev1).igs \| 797 KB STP 691312510003 (rev1).stp \| 303.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Horizontal	691002
691312510004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510004_1 (rev1).pdf \| 114.4 KB IGS 691312510004 (rev1).igs \| 1008.9 KB STP 691312510004 (rev1).stp \| 381.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal	–
691312510005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510005_1 (rev1).pdf \| 131.8 KB IGS 691312510005 (rev1).igs \| 1.2 MB STP 691312510005 (rev1).stp \| 459.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Horizontal	–
691312510006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510006_1 (rev1).pdf \| 151.4 KB IGS 691312510006 (rev1).igs \| 1.4 MB STP 691312510006 (rev1).stp \| 537.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal	–
691312510007	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510007_1 (rev1).pdf \| 180 KB IGS 691312510007 (rev1).iges \| 1.6 MB IGS 691312510007 (rev1).igs \| 1.6 MB STP 691312510007 (rev1).stp \| 617.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Horizontal	–
691312510008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510008_1 (rev1).pdf \| 193.9 KB IGS 691312510008 (rev1).igs \| 1.8 MB STP 691312510008 (rev1).stp \| 697.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal	–
691312510009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510009_1 (rev1).pdf \| 208.7 KB IGS 691312510009 (rev1).igs \| 2 MB STP 691312510009 (rev1).stp \| 777.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	PCB	No	Horizontal	–
691312510010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510010_1 (rev1).pdf \| 230.4 KB IGS 691312510010 (rev1).igs \| 2.2 MB STP 691312510010 (rev1).stp \| 858.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Horizontal	–
691312510011	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510011_1 (rev1).pdf \| 252.4 KB IGS 691312510011 (rev1).igs \| 2.5 MB STP 691312510011 (rev1).stp \| 939.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	Pluggable	PCB	No	Horizontal	–
691312510012	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510012_1 (rev1).pdf \| 300.3 KB IGS 691312510012 (rev1).iges \| 2.7 MB IGS 691312510012 (rev1).igs \| 2.7 MB STP 691312510012 (rev1).stp \| 1021.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal	–
691312510013	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510013_1 (rev1).pdf \| 321.7 KB IGS 691312510013 (rev1).igs \| 2.9 MB STP 691312510013 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	13	Pluggable	PCB	No	Horizontal	–
691312510014	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510014_1 (rev1).pdf \| 333.6 KB IGS 691312510014 (rev1).igs \| 3.1 MB STP 691312510014 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	Pluggable	PCB	No	Horizontal	–
691312510015	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510015_1 (rev1).pdf \| 356.8 KB IGS 691312510015 (rev1).igs \| 3.3 MB STP 691312510015 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Pluggable	PCB	No	Horizontal	–
691312510016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510016_1 (rev1).pdf \| 380.2 KB IGS 691312510016 (rev1).igs \| 3.5 MB STP 691312510016 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Horizontal	–
691312510017	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510017_1 (rev1).pdf \| 385 KB IGS 691312510017 (rev1).igs \| 3.8 MB STP 691312510017 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	17	Pluggable	PCB	No	Horizontal	–
691312510018	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510018_1 (rev1).pdf \| 407.2 KB IGS 691312510018 (rev1).igs \| 4 MB STP 691312510018 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	Pluggable	PCB	No	Horizontal	–
691312510019	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510019_1 (rev1).pdf \| 427.3 KB IGS 691312510019 (rev1).igs \| 4.2 MB STP 691312510019 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	19	Pluggable	PCB	No	Horizontal	–
691312510020	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510020_1 (rev1).pdf \| 451.3 KB IGS 691312510020 (rev1).igs \| 4.4 MB STP 691312510020 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	Pluggable	PCB	No	Horizontal	–
691312510021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510021_1 (rev1).pdf \| 471.5 KB IGS 691312510021 (rev1).igs \| 4.6 MB STP 691312510021 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	21	Pluggable	PCB	No	Horizontal	–
691312510022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510022_1 (rev1).pdf \| 491 KB IGS 691312510022 (rev1).igs \| 4.8 MB STP 691312510022 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	Pluggable	PCB	No	Horizontal	–
691312510023	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510023_1 (rev1).pdf \| 510.8 KB IGS 691312510023 (rev1).igs \| 5.1 MB STP 691312510023 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	23	Pluggable	PCB	No	Horizontal	–
691312510024	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691312510024_1 (rev1).pdf \| 535.5 KB IGS 691312510024 (rev1).igs \| 5.3 MB STP 691312510024 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	Pluggable	PCB	No	Horizontal	–

Order Code	Datasheet
691312510002	SPEC
691312510003	SPEC
691312510004	SPEC
691312510005	SPEC
691312510006	SPEC
691312510007	SPEC
691312510008	SPEC
691312510009	SPEC
691312510010	SPEC
691312510011	SPEC
691312510012	SPEC
691312510013	SPEC
691312510014	SPEC
691312510015	SPEC
691312510016	SPEC
691312510017	SPEC
691312510018	SPEC
691312510019	SPEC
691312510020	SPEC
691312510021	SPEC
691312510022	SPEC
691312510023	SPEC
691312510024	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
