WEcabin Display i12

WEcabin Display i12

Versatile Main Display

Robust, reliable and individually configurable: The WEcabin Display i12 is a 12-inch display that leaves nothing to be desired. Its high-performance processor and extensive memory capacity make it the most powerful, intelligent HMI solution for mobile machines on the market.

Working the multitouch 12,1 inch screen, no buttons will be missed. Present in any case are: WiFi, Bluetooth, built-in light sensors, and acceleration and temperature sensors.



Open data sheet

Added to this is its great optical performance in all lighting conditions. You can easily configure your graphical user interface (GUI) individually using WEcabin Designer.

And thanks to plug-in expansion options for additional functions, the WEcabin Display i12 also scores with its flexibility and high connectivity.

Data and Facts About the WEcabin Display i12

Main Features

Operating voltage 8 – 32 V
Environmental conditions Operating temperature: -30 °C to +70 °C
Storage temperature: -40 °C to +85 °C
Ingress protection: IP66
Dimensions max. 300 x 220,5 x 52 mm
Weight 2,0 kg
Connectors

AMP SUPERSEAL 34 Way connector, 60 pins connector for  Expansion Module

Display Specifications

Display

12,1“ TFT LCD

Resolution 1280 x 800 WVGA
125 PPI
Aspect ratio 16:9
Color 24 bit
Backlight LED
Brightness 500 cd/m²
Light sensor Included
ON/OFF LED Included
Contrast 600:1
Orientation

Landscape or portrait programmable mode

Cover glass

3.2 mm thickness temperate glass

Operation Touch
TFT installation Optical Bonding

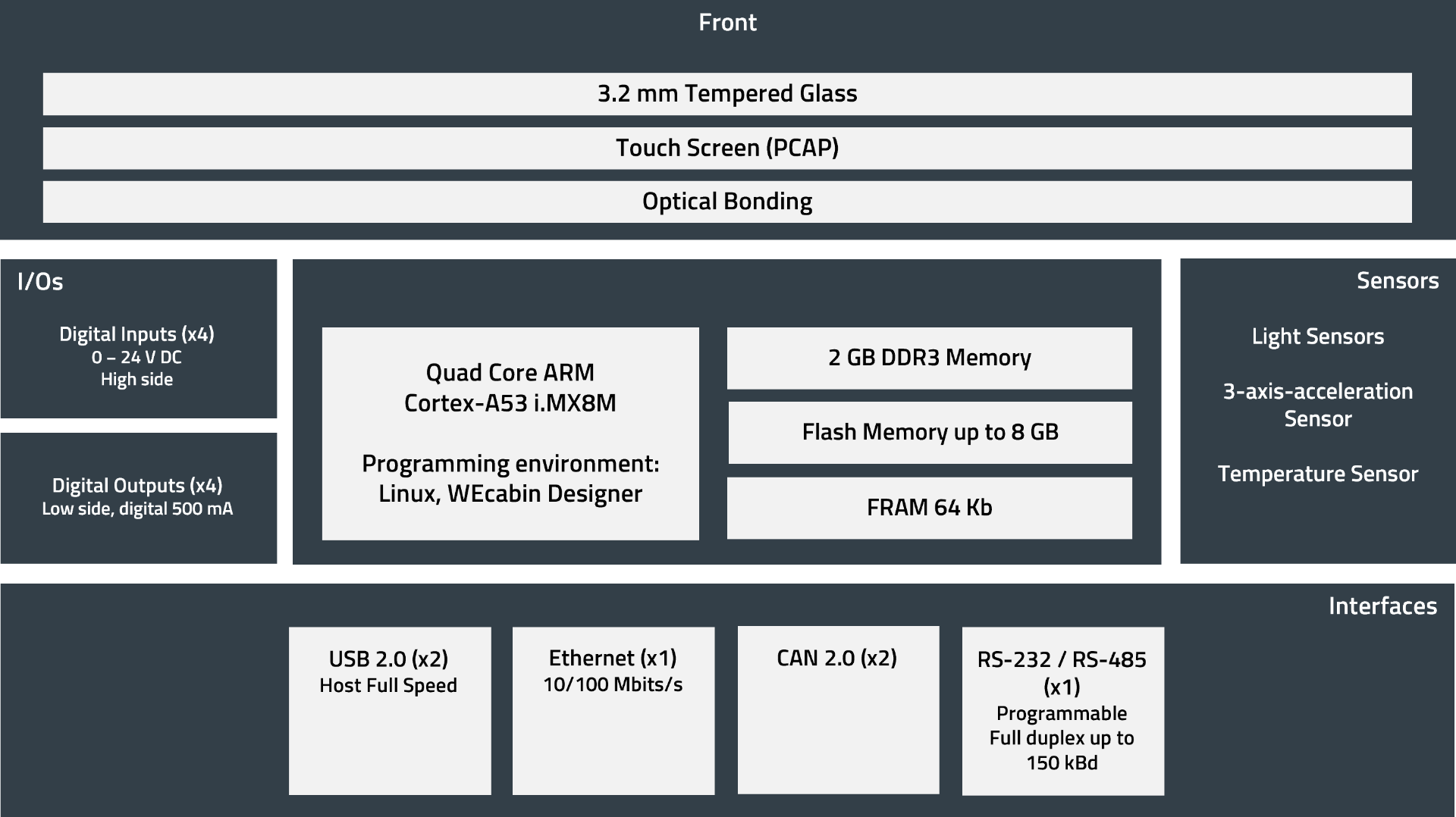

Hardware Map of the 12 inch HMI display

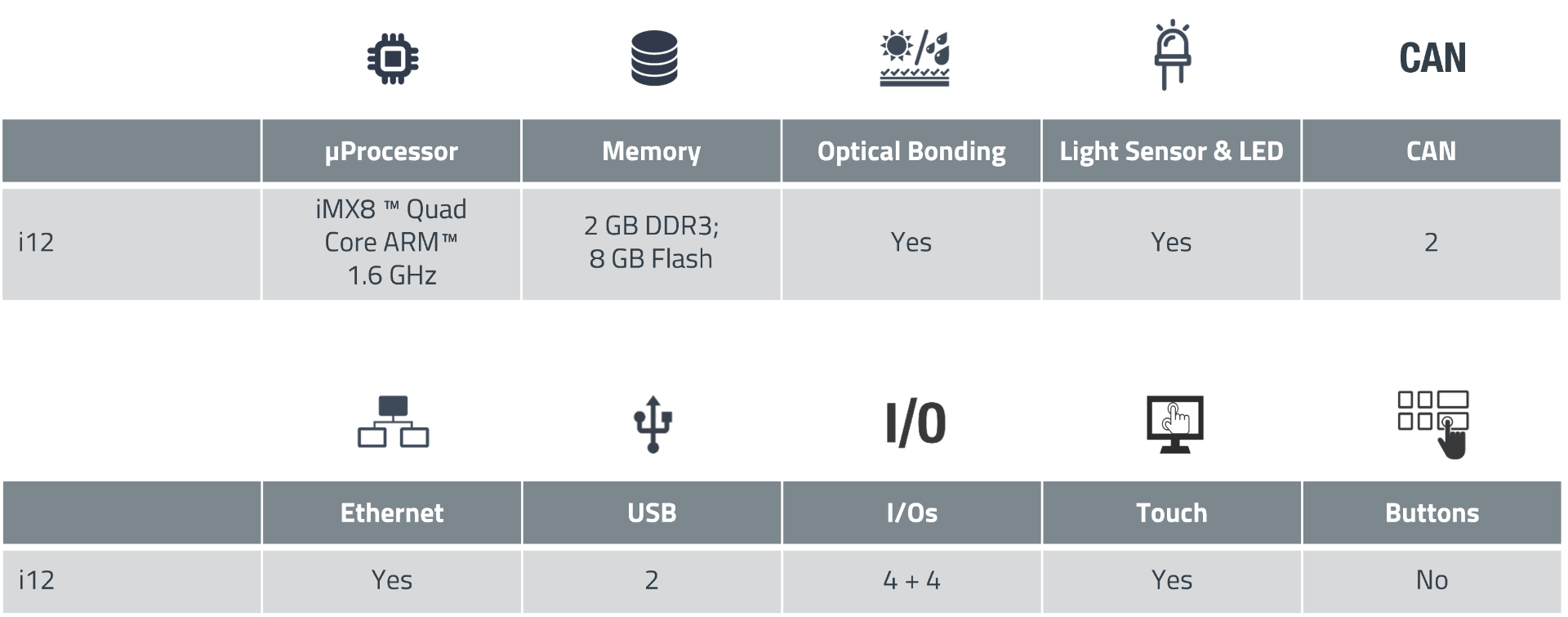

Table with the available variants of the 12-inch HMI display

Functions of our WEcabin Displays

  • Visualization, monitoring and control of all commands and status information
  • Advanced features such as PDF reader, web browser or user management
  • Remote access via smartphones, tablets or desktop PCs over a network connection
  • Direct connection of digital IP cameras
Product picture of the expansion module for the HMI displays

Expansion Module

The Expansion Module is a pluggable module for the WEcabin displays and extends them with additional functionalities.

Two expansion modules can be connected via two slots on the back of the WEcabin Display i12.

Are you interested? Ask us about the available modules.

Our Service for You

All-Round Carefree Package by Experienced Experts

We offer you:

  • Technical advice and support from our sales engineers
  • Programming support from our Field Application Engineers
  • Software training for easy programming with WEcabin Designer
  • Try & Buy Kit "WEcabin Display“ for independent programming
  • After sales service
