WEcabin Display i10

WEcabin Display i10

Powerful With the Most Modern Processor

With its high-performance Quad Core ARM Cortex-A53 i.MX8M processor, the 10-inch display is more powerful than any comparable HMI solution for mobile machines on the market. It has two slots for the expansion modules and can be extended by additional functions.



Open data sheet

The WEcabin Display i10 is available as a version with and without buttons. WiFi and Bluetooth as well as built-in light, acceleration and temperature sensors are included as standard. Like all WEcabin displays, the i10s are characterised by high optical performance and connectivity.

Data and Facts About the WEcabin Display i10

Main Features

Operating voltage 8 – 32 V
Environmental conditions

Operating temperature: -30 °C to +70 °C

Storage temperature: -40 °C to +85 °C

Ingress protection: IP66

Dimensions max.

255 x 193 x 51 mm (without buttons)

300 x 220,5 x 52 mm (with buttons)

Weight

1,5 kg (without buttons)

1,9 kg (with buttons)

Connectors

AMP SUPERSEAL 34 Way connector, 60 pins connector for Expansion Module

Display Specifications

Display

10,1“ TFT LCD

Resolution

1280 x 800 WVGA
149 PPI
Aspect ratio 16:9
Color 24 bit
Backlight LED
Brightness 500 cd/m²
Light sensor

Included

ON/OFF LED

Included

Contrast 600:1

Orientation

Landscape or portrait programmable mode

Cover glass

3.2 mm thickness temperate glass

Operation Touch
Buttons optional
TFT Installation Optical Bonding

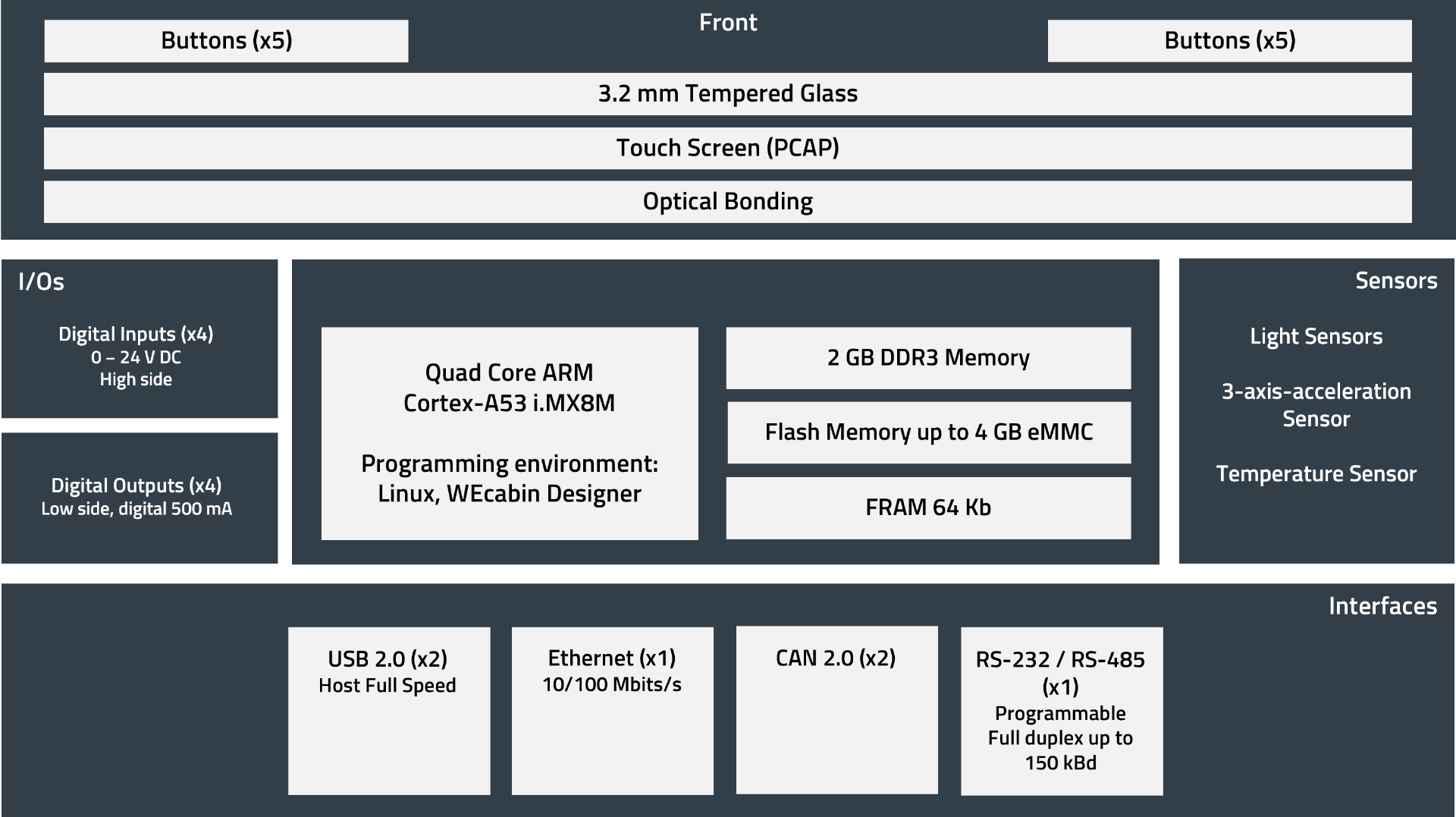

Hardware Map of the 10 inch HMI display

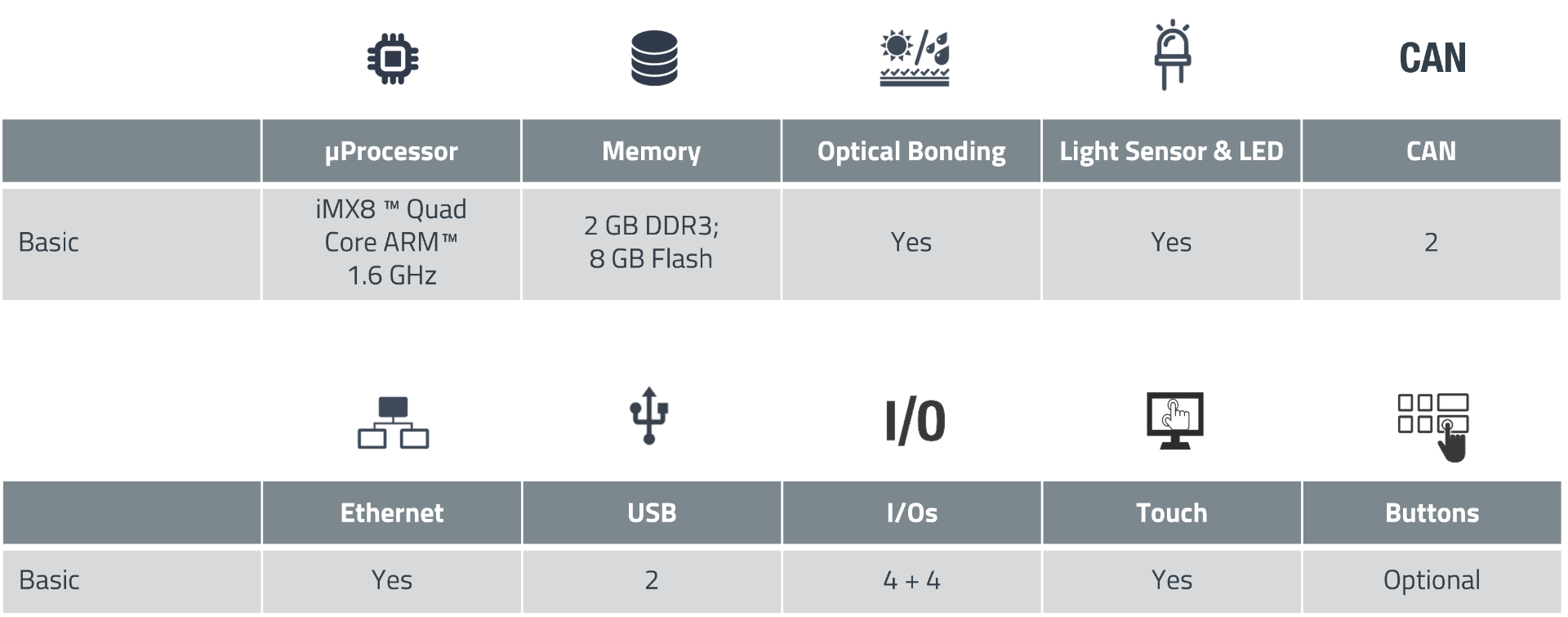

Table with the available variants of the 10-inch HMI display

Functions of our WEcabin Displays

  • Visualization, monitoring and control of all commands and status information
  • Advanced features such as PDF reader, web browser or user management
  • Remote access via smartphones, tablets or desktop PCs over a network connection
  • Direct connection of digital IP cameras
Product picture of the expansion module for the HMI displays

Expansion Module

The Expansion Module is a pluggable module for the WEcabin displays and extends them with additional functionalities.

Two expansion modules can be connected via two slots on the back of the WEcabin Display i10.

Are you interested? Ask us about the available modules.
