WEcabin Display i5

WEcabin Display i5

Ideal Additional Display

The compact 5-inch display is one of the most powerful displays on the market in terms of computing power and quality. No wonder, since it has 1 GB of DDR3 RAM and 8 GB of flash memory.

Ideal as an auxiliary display, it can alternatively be used as the main display in small machines.


Open data sheet

Optionally available are i5 displays with:

  • Buttons
  • WiFi and Bluetooth
  • Built-in acceleration and temperature sensors
  • Plug-in expansion module for connecting a camera

Data and Facts About the WEcabin Display i5

Main features

Operating voltage

8 – 32 V
Environmental conditions

Operating temperature: -30 °C to +70 °C

Storage temperature: -40 °C to +85 °C

Ingress protection: IP66; for the version without buttons on the front IP69K

Dimensions 142 x 108 x 49.7 mm
Weight 470 g (with buttons)

AMP SUPERSEAL 34 Way connector,  60 pins connector for Expansion Module

Display Specifications

Display 5’’ TFT LCD

800 x 480 WVGA
187 PPI

Aspect ratio 15:9
Color 24 bit
Backlight LED
Brightness 500 cd/m²
Light sensor optional
ON/OFF LED Option for Plus variant
Contrast 600:1

Landscape or portrait programmable mode

Cover glass 3,2 mm thickness temperate glass
Operation Touch (only for Standard & Plus version)

Buttons optional

TFT installation Optical Bonding

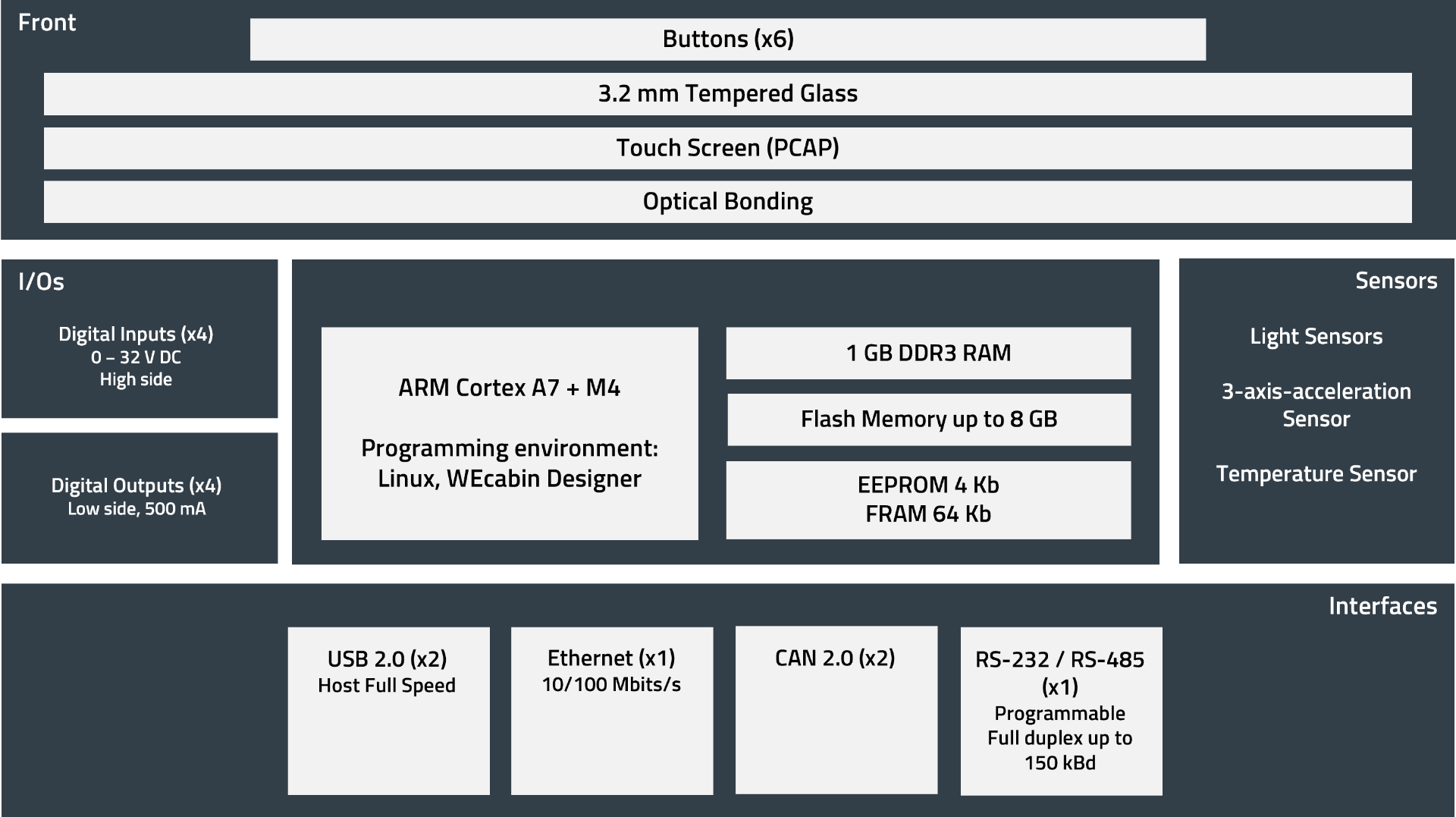

Hardware Map of the 5 inch HMI display

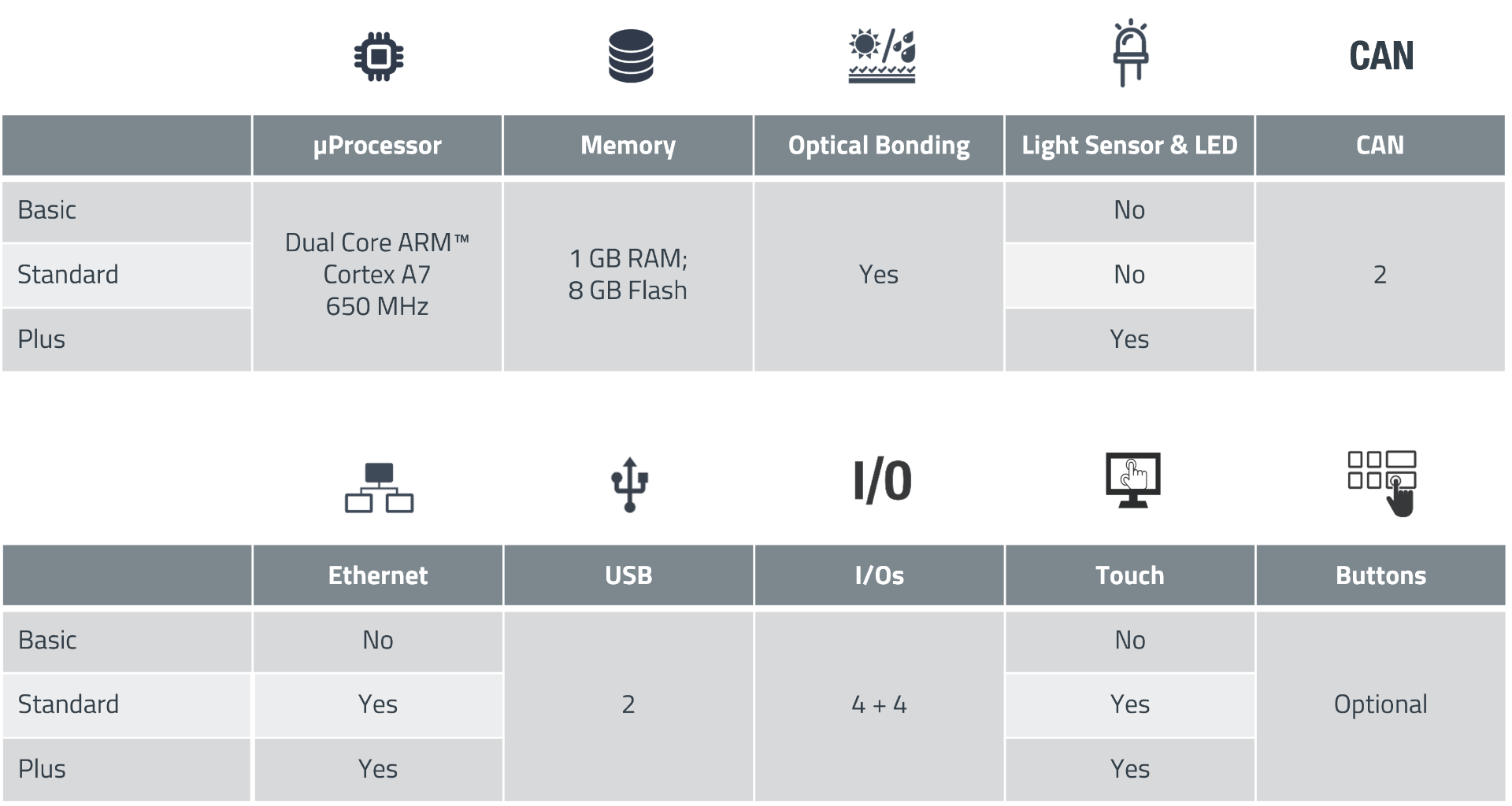

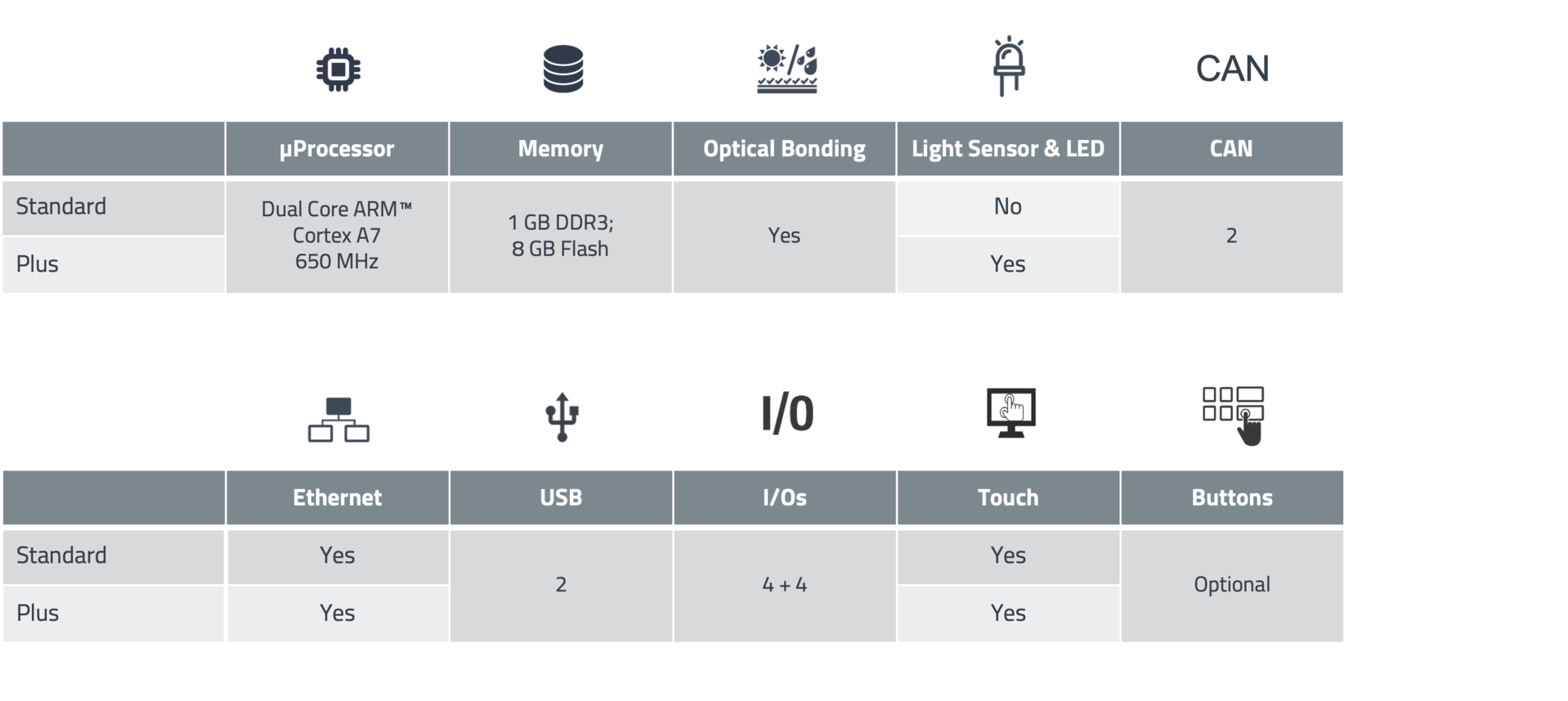

Table with the available variants of the 5-inch HMI display

Functions of our WEcabin Displays

  • Visualization, monitoring and control of all commands and status information
  • Advanced features such as PDF reader, web browser or user management
  • Remote access via smartphones, tablets or desktop PCs over a network connection
  • Direct connection of digital IP cameras
Product picture of the expansion module for the HMI displays

Expansion Module

The Expansion Module is a pluggable module for the WEcabin displays and extends them with additional functionalities.

An expansion module can be connected via a slot on the back of the WEcabin Display i5.

Are you interested? Ask us about the available modules.
