6 Way Symbol Cluster

6 Way Symbol Cluster

Display Module With 6 Individually Configurable LED Symbols

The 6 Way Symbol Cluster - a display module with individually configurable front design - is available in two versions:

  • Basic version: simple LED indicators
  • Filter version: compliant with main ‘lamp check‘ protocols

Error check compatibility is possible thanks to an integrated filter.

Customized symbols and colors can be easily implemented. Sealing between the symbol display and instrument panel is also possible.

We will be happy to advise you on your individual projects

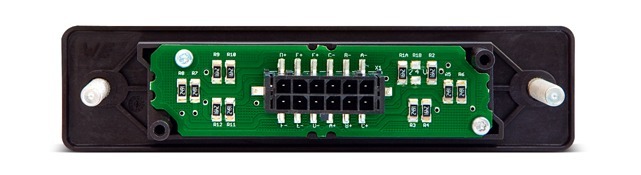

Product picture LED symbol cluster (back view)

Data and Facts About the 6 Way Symbol Cluster

General information

Connectors

 Micro Fit 6 Ways MPC3
Dimensions max. 24 x 97 x 20 mm
Operating temperature -30 °C to 80 °C
Storage temperature -40 °C to 85 °C
Ingress protection Front face IP54/rear IP00
Operating voltage 12 V or 24 V
Pre-fusing 1 A (recommended)
Current consumption

All LEDs off: 25 mA

All LEDs on: 100 mA
Controller type Automotive

Variants
Available variants

Order number WE ICS
6 Way Symbol Cluster 12 V – Demo Version ICS-100545
6 Way Symbol Cluster 24 V – Demo Version ICS-101963
