6 Way Symbol Cluster CAN

6 Way Symbol Cluster CAN

Can-based Symbol Display With 6 Individual LED Symbols

The 6 Way Symbol Cluster CAN is a cluster with individually configurable front-end-design developed by Würth Elektronik ICS. This product offers 6 LED indicators being controlled by CAN bus. In addition, the module offers a digital input and a digital low-active output, which are both also controllable via the CAN bus. The application-specific symbols and colors are realized via an individually printed polyester foil.

The CAN-based 6 Way Symbol Cluster can be configured with the WE Flasher Tool.

Open data sheet

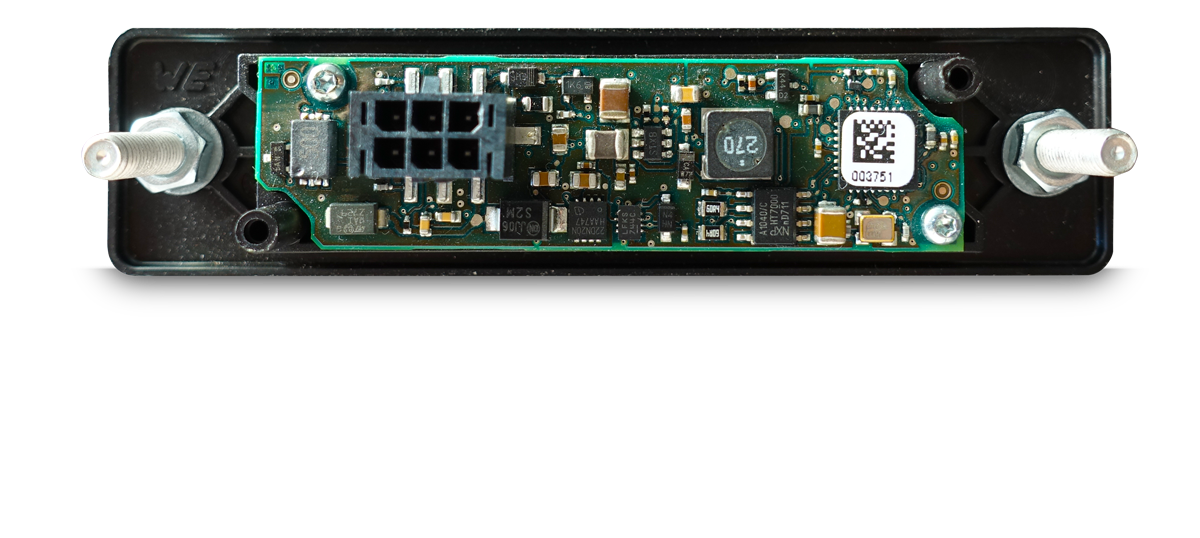

Product picture  LED symbol cluster CAN (back view)

Data and Facts About the 6 Way Symbol Cluster CAN

General information


Micro Fit 6 Ways MPC3
Dimensions 24 x 97 x 20 mm
Weight 21 g
Operating temperature -30 °C to 80 °C
Storage temperature -40 °C to 85 °C
Ingress protection Front face IP54/rear IP00
Operating voltage 8 V to 32 VDC
Pre-fusing 1 A (recommended)
Current consumption

All LEDs off: 25 mA

All LEDs on: 100 mA

Controller type Automotive

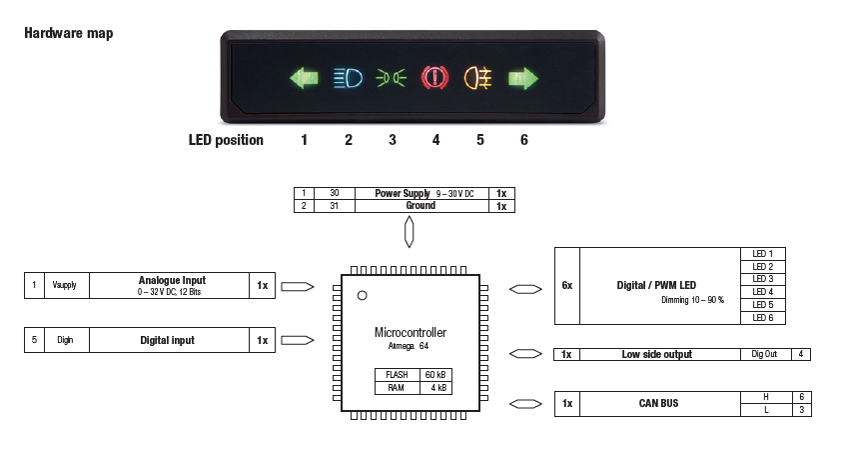

Hardware Map 6 Way Symbol Cluster CAN


Available references

Order number WE ICS

6 Way Symbol Cluster CAN - Demo Version F80838
