| Material Properties | |
|---|---|

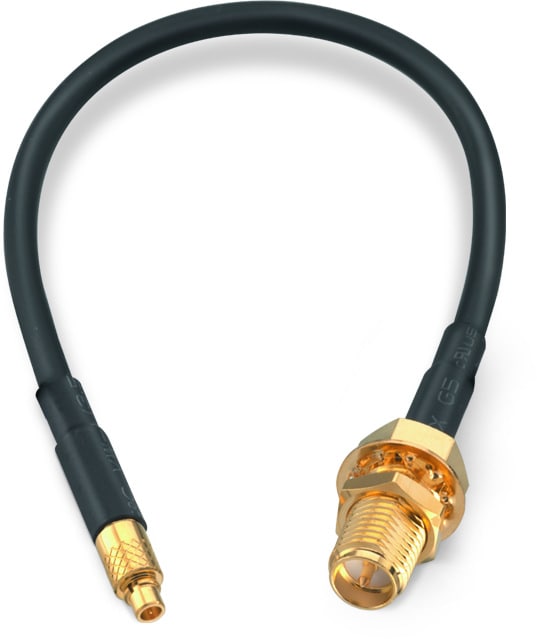

| Cable | RG-174/U |
| General Information | |
|---|---|
| Operating Temperature | -20 °C up to +80 °C |
| Cable Type | Flexible |
| Cable Shielding | Braid |
| Connector Type 1 | RP SMA |
| Connector Type 2 | MMCX |
| Gender 1 | Jack |
| Gender 2 | Plug |
| Orientation Type 1 | Straight |
| Orientation Type 2 | Straight |
| Mechanical Properties | |
|---|---|
| Min. Bend Radius | 30 mm |
Products
Coax Cable Properties Overview
Typical Coaxial Cable Structure
Jacket:
Provide environmental protection for cable
Shielding:
Prevent and minimize RF leakage with braided wires or metal foil
Dielectric:
Main path for signal transmission
Insulating matrial that could separate cable center conductor and the shielding
Center Conductor:
Composed by multiple strands of twisted copper wire or a solid copper wire
Custom connectivity at the push of a button.
The coaxial cable configurator
Your cable, your way.
Custom connectivity at the push of a button.
The coaxial cable configurator
Your cable, your way.
With our Coaxial Cable Configurator, you can create your custom coaxial cable in just a few steps. Select the cable type, define the required length, and choose the right connectors for both ends. Whether for prototypes, series production, or special applications – fast, precise, and tailored to your needs.
