| Material Properties | |
|---|---|

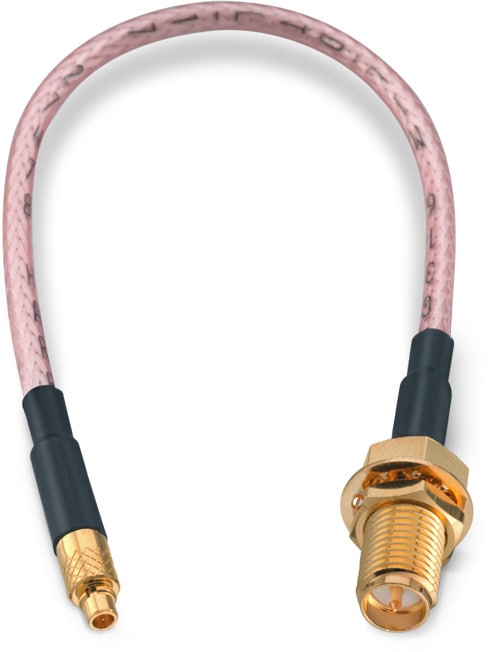

| Cable | RG-316/U |
| General Information | |
|---|---|
| Operating Temperature | -55 °C up to +155 °C |
| Cable Type | Flexible |
| Cable Shielding | Braid |
| Connector Type 1 | RP SMA |
| Connector Type 2 | MMCX |
| Gender 1 | Jack |
| Gender 2 | Plug |
| Orientation Type 1 | Straight |
| Orientation Type 2 | Straight |
| Mechanical Properties | |
|---|---|
| Min. Bend Radius | 12.7 mm |
Products
| Order Code | Datasheet | Downloads | Status | f | Samples |
|---|---|---|---|---|---|
| 65530260515305 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 3 files | Active i| Production is active. Expected lifetime: >10 years. | DC~6 GHz |
| Order Code | Datasheet |
|---|---|
| 65530260515305 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | f | Samples |
|---|
Coax Cable Properties Overview
Typical Coaxial Cable Structure
Jacket:
Provide environmental protection for cable
Shielding:
Prevent and minimize RF leakage with braided wires or metal foil
Dielectric:
Main path for signal transmission
Insulating matrial that could separate cable center conductor and the shielding
Center Conductor:
Composed by multiple strands of twisted copper wire or a solid copper wire
