| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | ||
|---|---|---|---|---|---|---|---|

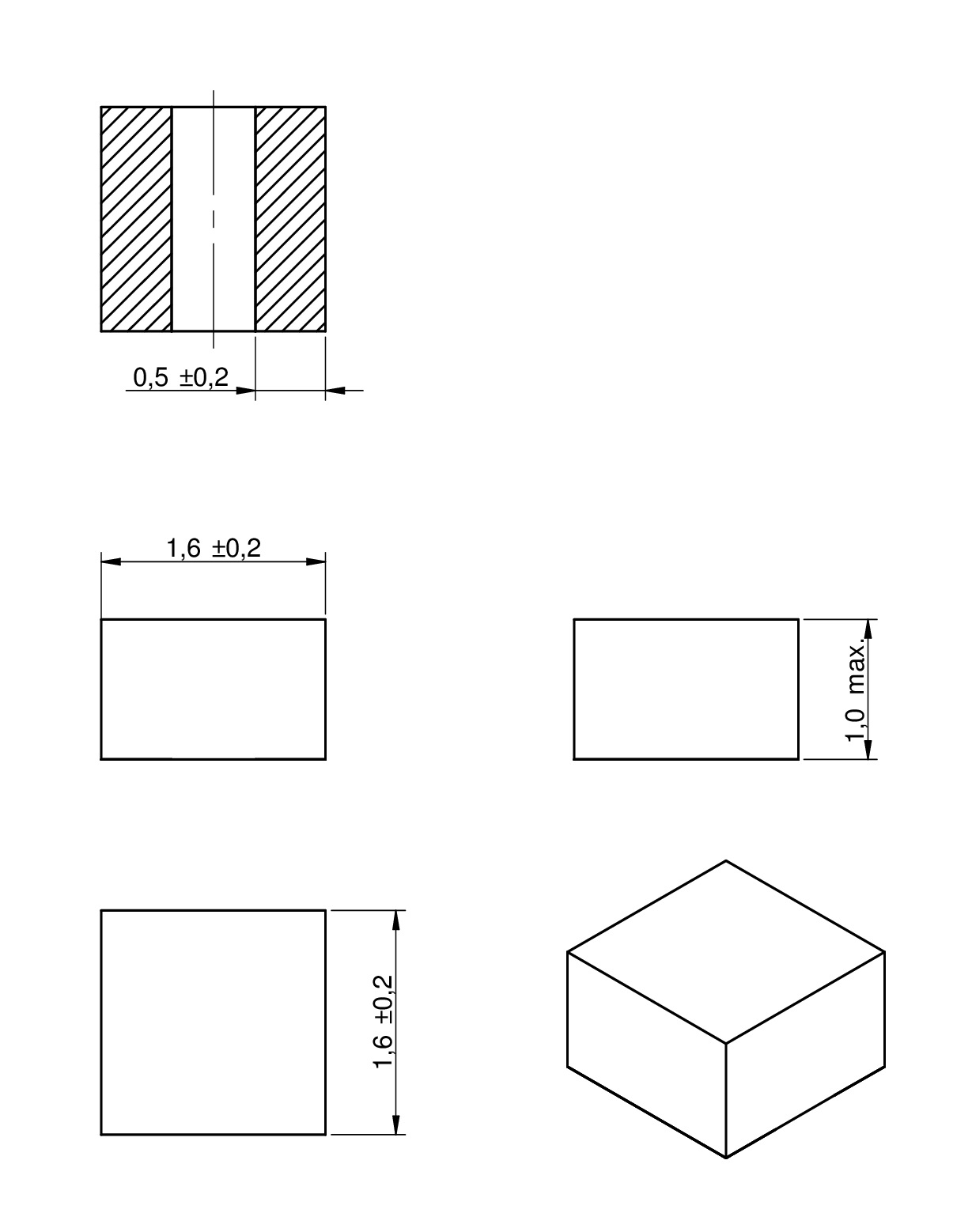

| 1610 | 1.6 | 1.6 | 1 | SMT | |||
| 2010 | 2 | 1.6 | 1 | SMT | |||
| 2506 | 2.5 | 2 | 0.6 | SMT | |||
| 2508 | 2.5 | 2 | 0.8 | SMT | |||
| 2510 | 2.5 | 2 | 1 | SMT | |||
| 2512 | 2.5 | 2 | 1.2 | SMT | |||
| EXT. | 2512 HT | 2.7 | 2.2 | 1.2 | SMT | ||
| 3010 | 3 | 3 | 1 | SMT | |||
| 3012 | 3 | 3 | 1.2 | SMT | |||
| 3015 | 3 | 3 | 1.5 | SMT | |||
| EXT. | 3015 HT | 3.2 | 3.2 | 1.5 | SMT | ||

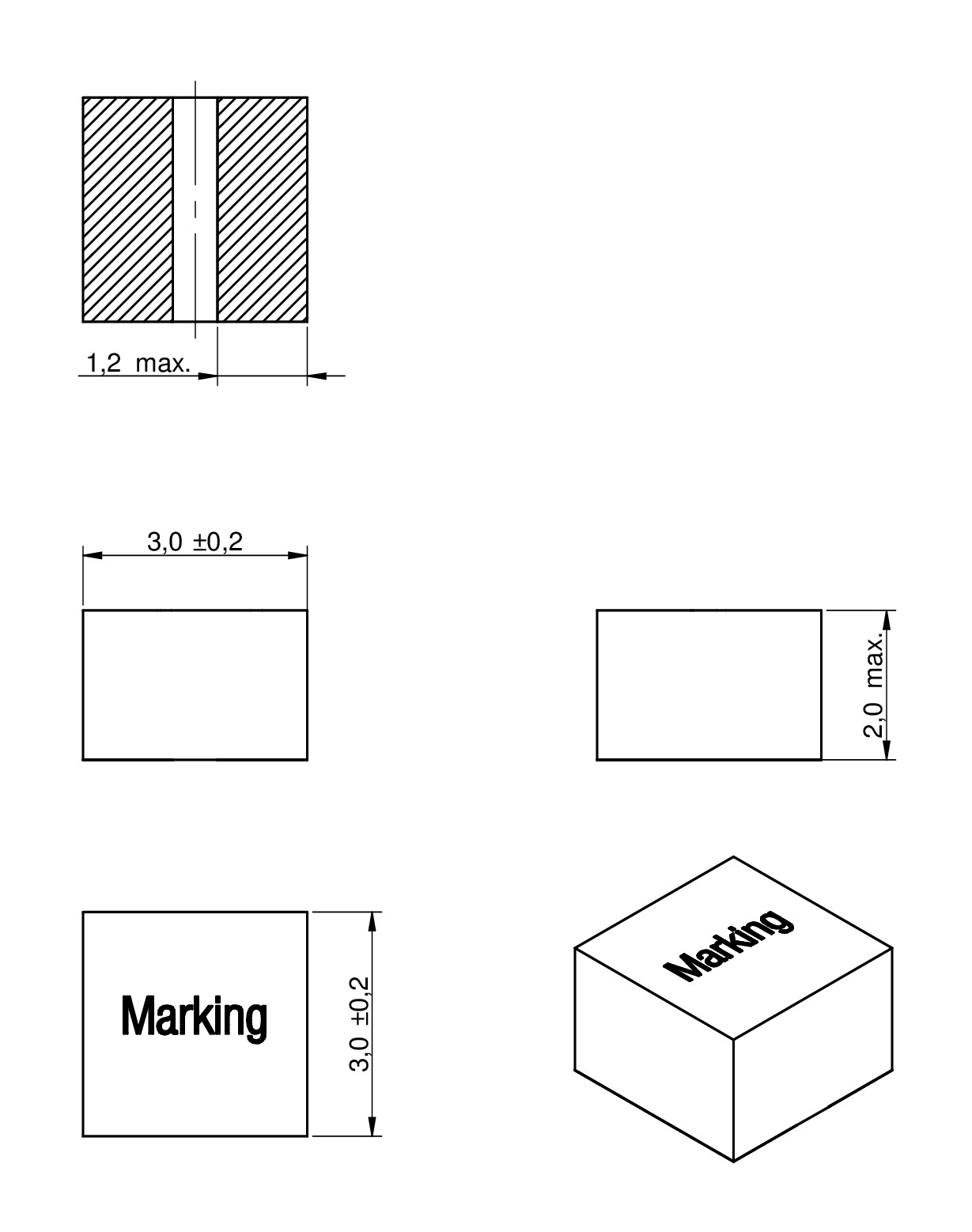

| 3020 | 3 | 3 | 2 | SMT | |||
| EXT. | 3020 HT | 3.2 | 3.2 | 2 | SMT | ||

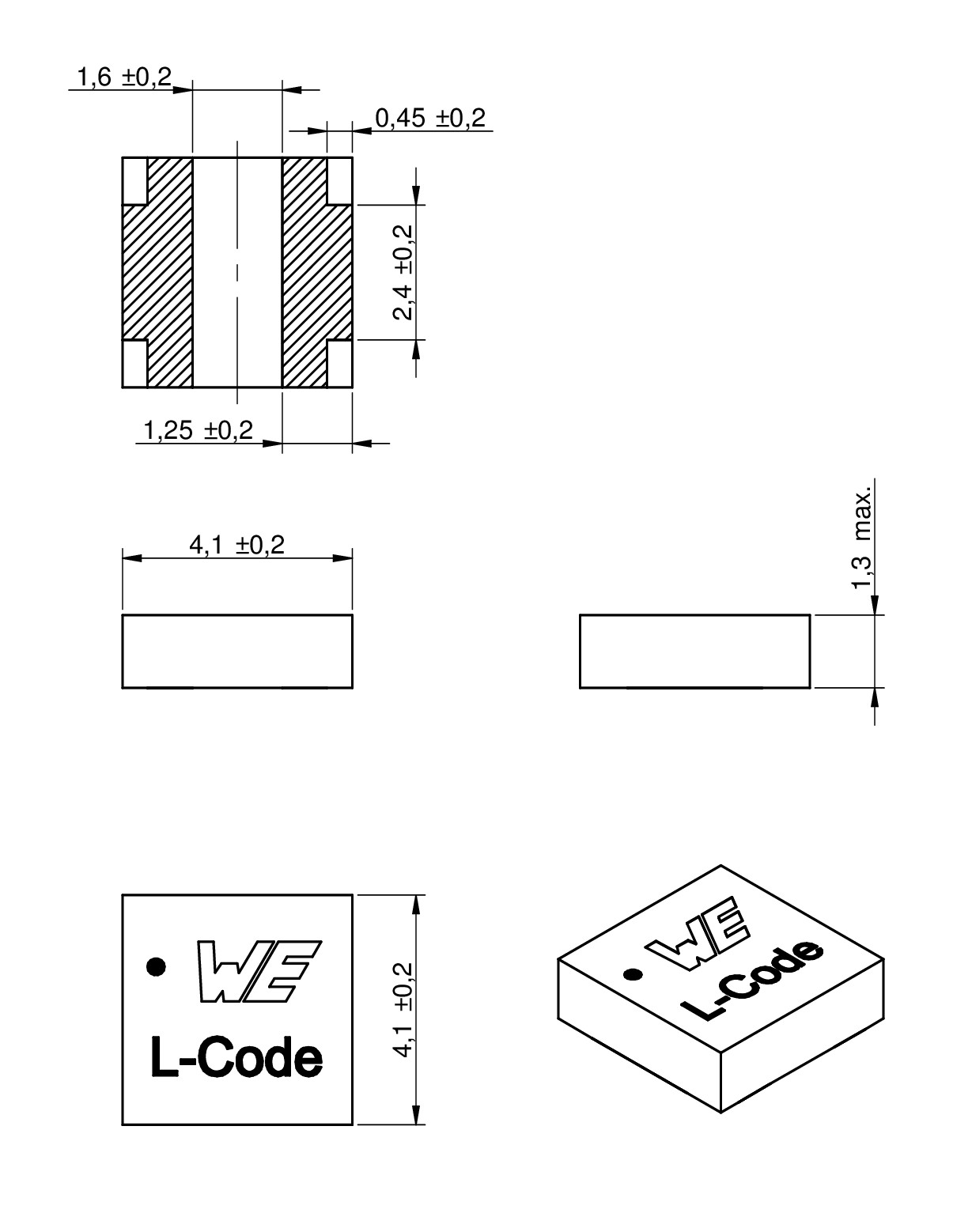

| EXT. | 4012 | 4.3 | 4.3 | 1.2 | SMT | ||

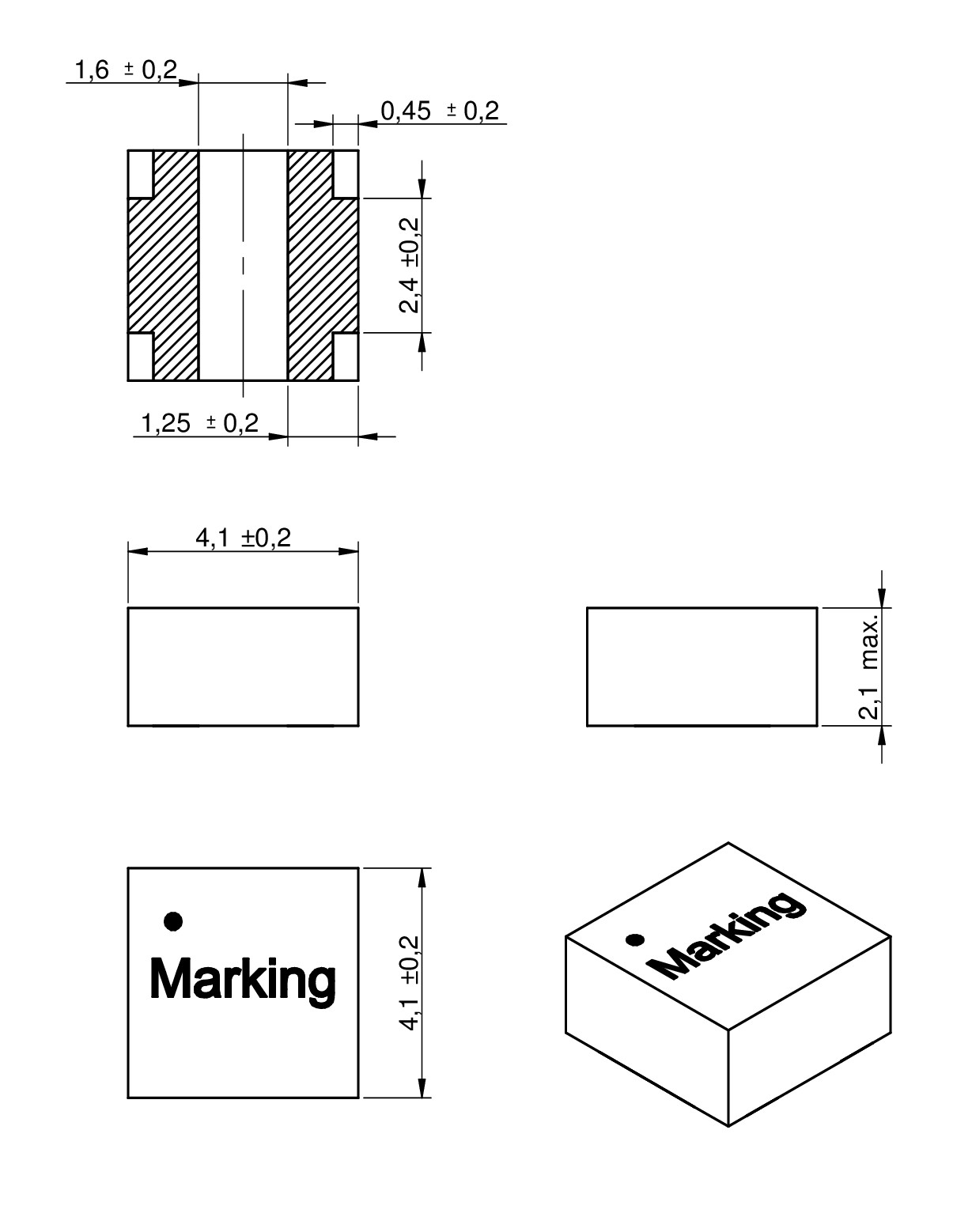

| 4020HT | 4 | 4 | 2 | SMT | |||
| 4020 | 4 | 4 | 2 | SMT | |||
| EXT. | 4030 | 4.3 | 4.3 | 3.1 | SMT | ||
| EXT. | 5020 | 5.6 | 5.6 | 2.1 | SMT | ||
| EXT. | 5030 | 5.6 | 5.6 | 3.1 | SMT | ||
| NEW | 6030 | 6.8 | 6.8 | 3.1 | SMT | ||
| NEW | 6030 HT | 6.8 | 6.8 | 3.1 | SMT |
LTSpice files
Characteristics
- Magnetic iron alloy allows high rated currents
- Compact design
- Magnetically shielded
- High current capability and handles high transient current spikes
- Low acoustic noise and low leakage flux noise
- AEC-Q 200 qualified
- Operating temperature: –40 °C to 125 °C
WE-MAPI High Temperature Series
- High Temperature Series with operating temperature from -55 °C to +150 °C
Applications
- DC/DC-converter for high current power supplies
- DC/DC-converter for Field Programmable Gate Array (FPGA)
- POL-converters
- Portable power like PDA, digital camera
- Mainboards/graphic cards
- Battery powered devices
- Wireless communication devices
- Power supplies for smartphones, tablet PCs and other mobile devices
Application Notes
- ANP007 Effective USB 3.1 filtering and protection
- ANP019 Inductor Current Rating
- ANP029 Accurate Inductor Loss Determination using REDEXPERT
- ANP031 Determination of the Ideal Power Inductor for Energy-efficient Applications
- ANP036 Voids in Bottom Termination Components (BTC)
- ANP044 Impact of the layout, components, and filters on the EMC of modern DC/DC switching controllers
- ANP118 Acoustic noise & Coil whine effect
- ANP126 Voltage specification for molded inductors
- ANP128 Introduction to thermal aging in molded power inductors
- ANP135 The SEPIC with coupled and uncoupled inductors
- ANP138 Custom Rated Current Calculator
