Filter Stick USB 3.1 Type C 100W EMC

Characteristics

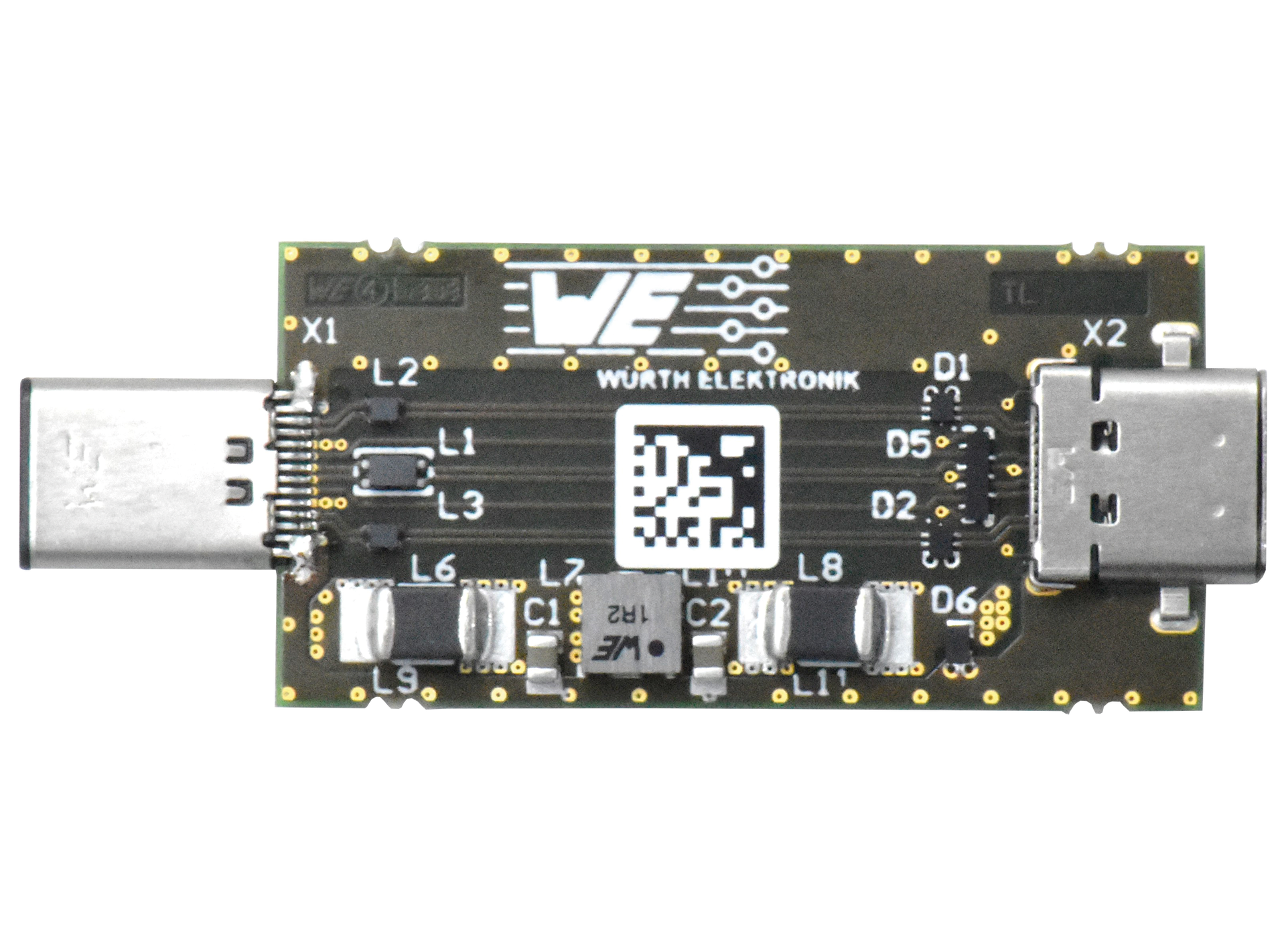

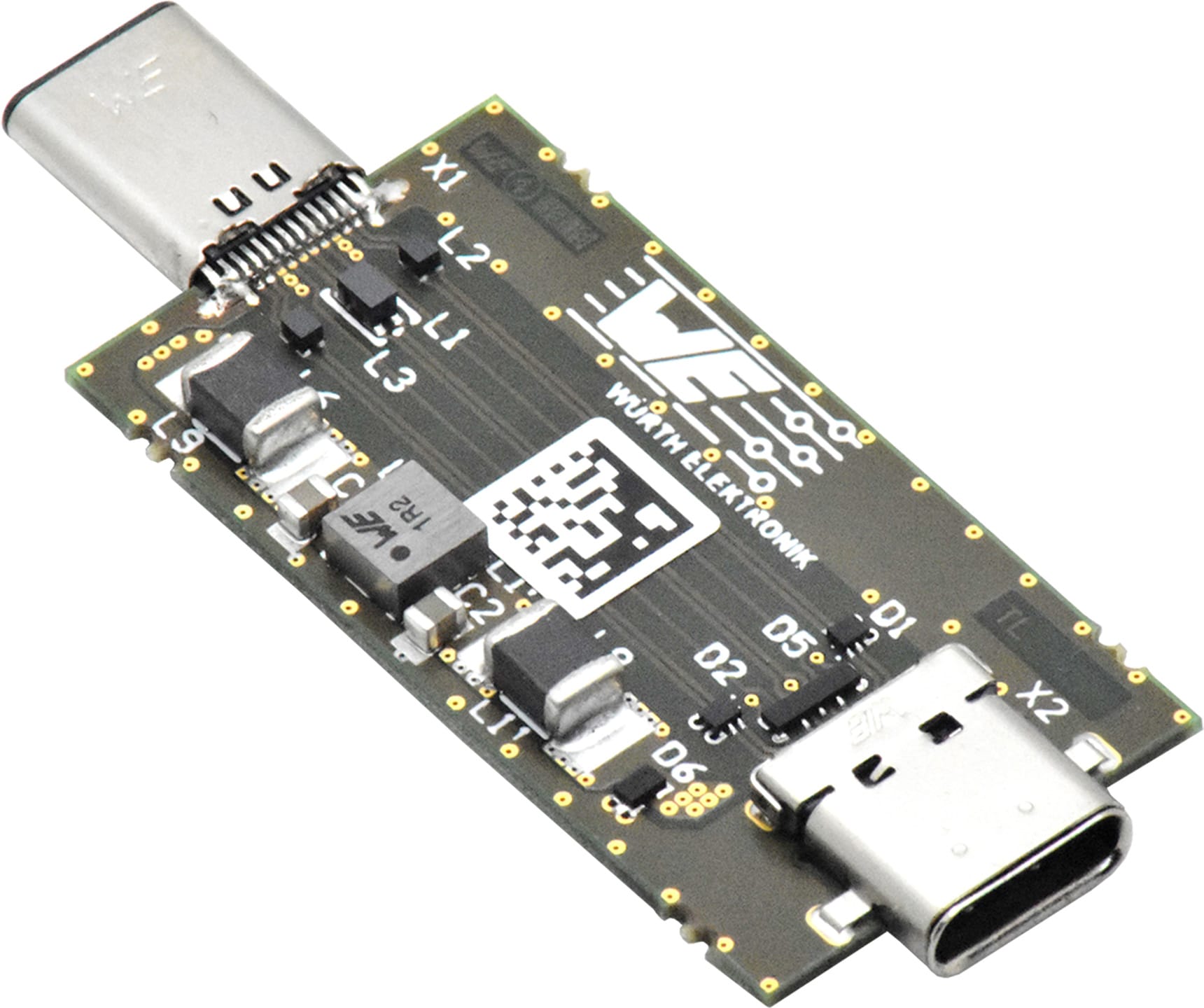

Ready fabricated and populated USB 3.1 filter stick for test purposes
Fast testing of the filter effect on the system under test
Straightforward design implementation through BOM and layout files
Prevention of negative influence on the operating behavior due to interference emissions, electrostatic discharges (ESD) and fast transients (burst)

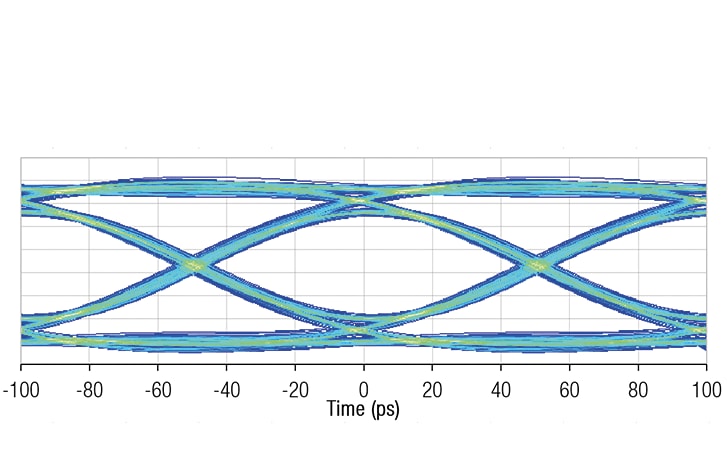

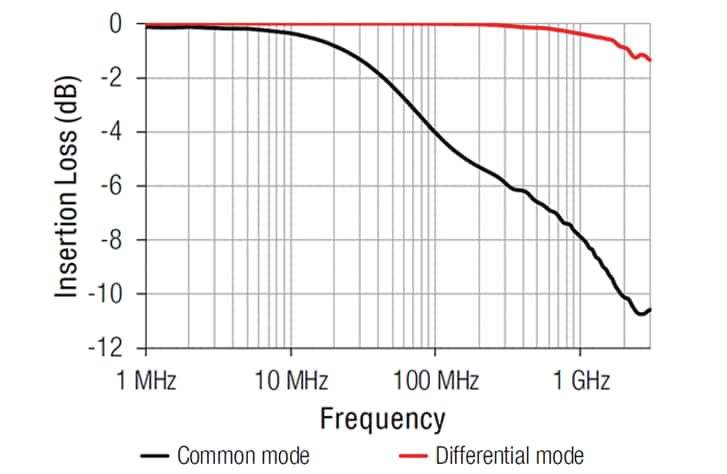

Data rate up to 10 Gbps

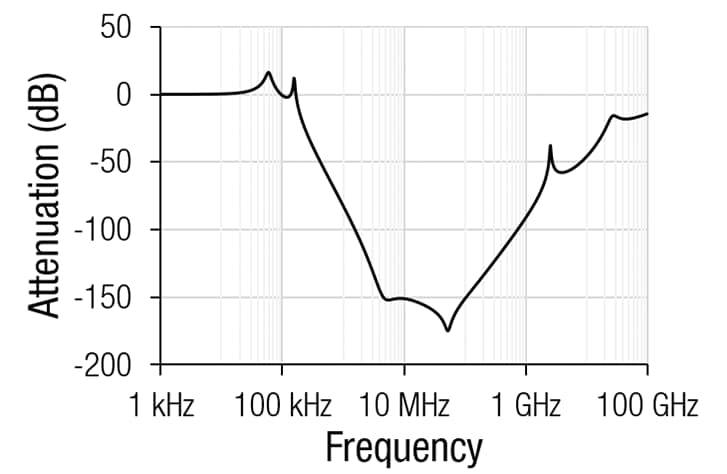

Up to 100 W
Filtering directly at the interface

Applications

Universal Serial Bus (USB) 3.1 Type C 100W application

Application Notes

PCB layout files

The USB 3.1 EMC and ESD solution can be easily integrated into designs. PCB layout files (Gerber) can be downloaded here.

Download Gerber File here

Products

Order Code	Datasheet	Simulation	Downloads	Status	Product series
74279226101	SPEC		10 files EDA models: Components ZIP ALT WE-MPSB (rev22c).IntLib \| 139 KB ZUK Cadstar_WE-MPSB (rev19a).zip \| 8.6 KB CDS Cadence_WE-MPSB (rev22a).zip \| 487.9 KB EAG Eagle_WE-MPSB (rev19a).lbr \| 50.1 KB KIC KiCad_WE-MPSB (rev25a).zip \| 195.6 KB CAD files ZIP IGS 74279226101 (rev1).igs \| 77 KB STP 74279226101 (rev1).stp \| 62.5 KB Electric models ZIP ADS ADS_WE-MPSB (rev24a).zip \| 1.4 MB S S-PARAMETER_WE-MPSB (rev21a).zip \| 3.8 MB PSP PSpice_WE-MPSB (rev24a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-MPSB EMI Multilayer Power Suppression Bead
744231091	SPEC		9 files EDA models: Components ZIP ALT WE-CNSW (rev25a).IntLib \| 664.5 KB ZUK Cadstar_WE-CNSW (rev19a).zip \| 7.4 KB CDS Cadence_WE-CNSW (rev25a).zip \| 5.9 MB EAG Eagle_WE-CNSW (rev25a).lbr \| 47.9 KB KIC KiCad_WE-CNSW (rev25a).zip \| 1.7 MB CAD files ZIP IGS WE-CNSW_0805_CNSW (rev1).igs \| 1.6 MB STP WE-CNSW_0805_CNSW (rev1).stp \| 197.7 KB Electric models ZIP S S-Parameter_WE-CNSW (rev25a).zip \| 2.8 MB PSP PSpice_WE-CNSW (rev25a).zip \| 12.4 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-CNSW SMT Common Mode Line Filter
7442335600	SPEC		10 files EDA models: Components ZIP ALT WE-CNSW_HF (rev22a).IntLib \| 101.5 KB ZUK Cadstar_WE-CNSW-HF (rev19a).zip \| 5.6 KB CDS Cadence_WE-CNSW_HF (rev20a).zip \| 619.4 KB EAG Eagle_WE-CNSW HF (rev19a).lbr \| 19.3 KB CAD files ZIP 3D 3D_7442335xxx (rev1).pdf \| 391.8 KB IGS WE-CNSW_HF_0504 (rev1).igs \| 1.2 MB STP WE-CNSW_HF_0504 (rev1).stp \| 267.8 KB Electric models ZIP ADS ADS_WE-CNSW-HF (rev24a).zip \| 1.7 MB S S-PARAMETER_WE-CNSW_HF (rev19a).zip \| 460.8 KB PSP PSpice_WE-CNSW_HF (rev22a).zip \| 5.1 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-CNSW HF SMT Common Mode Line Filter
74438356012	SPEC		10 files EDA models: Components ZIP ALT WE-MAPI (rev25a).IntLib \| 599.5 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev25a).zip \| 2.3 MB EAG Eagle_WE-MAPI (rev25a).lbr \| 200.3 KB KIC KiCad_WE-MAPI (rev25a).zip \| 743.2 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-4020_3D (rev1).pdf \| 93.9 KB IGS Download_IGS_WE-MAPI_4020 (rev1).igs \| 337.9 KB STP Download_STP_WE-MAPI_4020 (rev1).stp \| 325.7 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev24a).mod \| 41 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-MAPI SMT Power Inductor
885012208094	SPEC		9 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24c).IntLib \| 904 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24d).lbr \| 1.1 MB KIC KiCad_WCAP-CSGP (rev25a).zip \| 272.5 KB CAD files ZIP 3D 3D_WCAP-CSGP_1206_3.2x1.6x1.6x0 (rev1).pdf \| 12.3 KB IGS IGS_WCAP-CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52.3 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24b).zip \| 331.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSGP MLCCs 50 V(DC)
632712000011	SPEC	–	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev24e).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev25a).zip \| 61.6 MB EAG Eagle_WR-USB (rev24c).lbr \| 451.8 KB CAD files ZIP 3D 3D_632712000011 (rev1).pdf \| 557.1 KB IGS Download_IGES_632712000011 (rev1).iges \| 8.4 MB STP Download_STP_632712000011 (rev1).stp \| 2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WR-COM USB 3.1 Type C Plug Horizontal SMT 0.8 mm
824014885	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN3810-9L (rev1).igs \| 1.3 MB STP Download_STP_WE-TVS-DFN3810-9L (rev1).stp \| 563.7 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TVS TVS Diode – Super Speed Series
824012823	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1210-6L (rev1).igs \| 998.9 KB STP Download_STP_WE-TVS-DFN1210-6L (rev1).stp \| 476.1 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TVS TVS Diode – Super Speed Series
824045810	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TVS TVS Diode – Standard Series
632723130112	SPEC	–	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev24e).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev25a).zip \| 61.6 MB EAG Eagle_WR-USB (rev24c).lbr \| 451.8 KB CAD files ZIP 3D 3D_632723130112 (rev1).pdf \| 863.4 KB IGS Download_IGES_632723130112 (rev1).iges \| 11.3 MB STP Download_STEP_632723130112 (rev1).stp \| 2.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WR-COM USB 3.1 Type C Receptacle Horizontal Mid-Mount THR / SMT 1.6 mm

Order Code	Datasheet	Simulation
74279226101	SPEC
744231091	SPEC
7442335600	SPEC
74438356012	SPEC
885012208094	SPEC
632712000011	SPEC	–
824014885	SPEC
824012823	SPEC
824045810	SPEC
632723130112	SPEC	–

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Product series	Samples

Plug and Play!

To avoid reduced integrity of the data transfer due to interference and to pass EMC tests, components matched to the data lines are necessary.

For simplified implementation, the adapter stick was designed, which contains a complete filter circuit for the selected application. The filter stick is plugged into the corresponding interface for test purposes. If the test is passed with the filter stick plugged in, the filter circuit can be integrated into the system.
