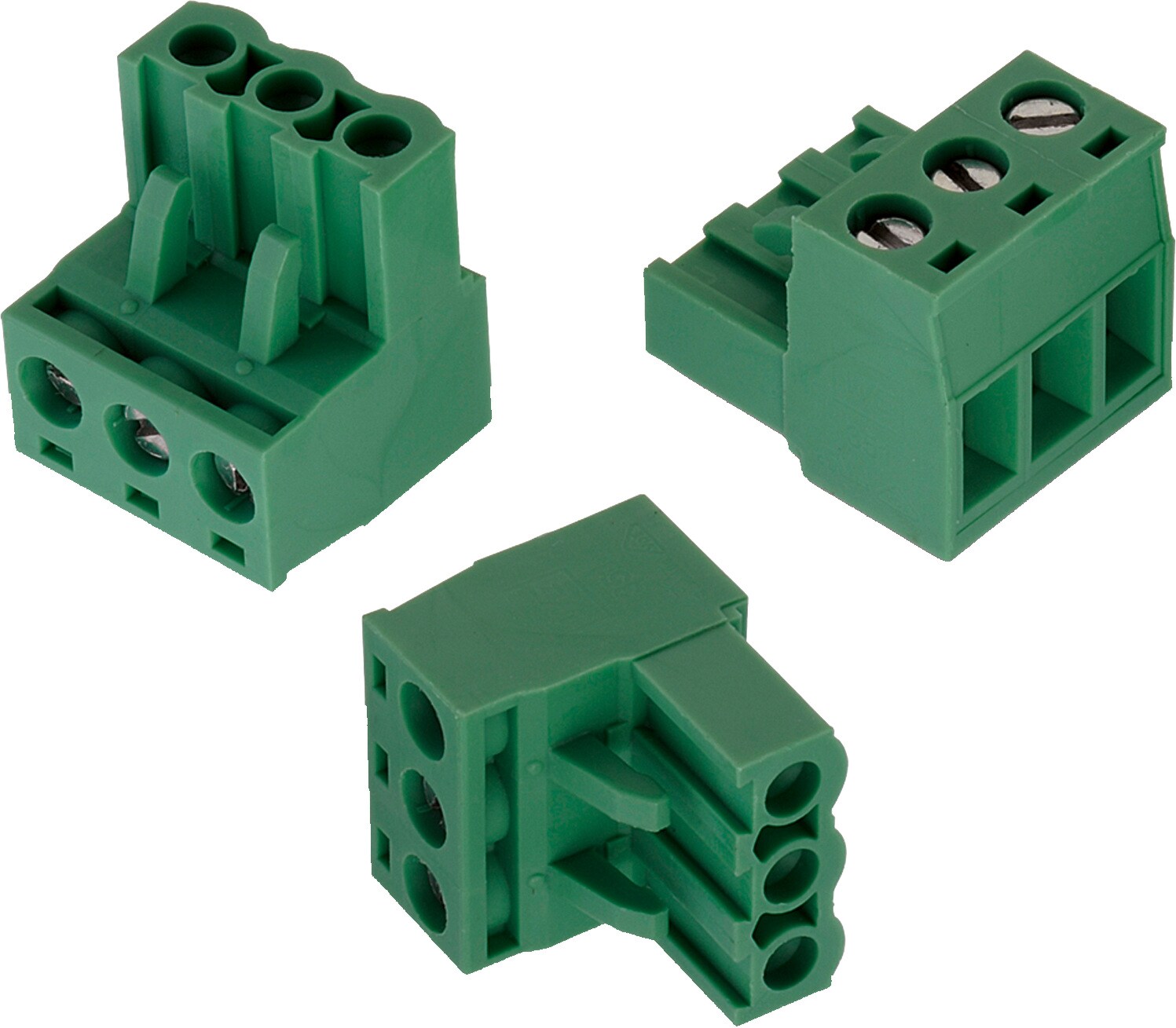

WR-TBL Series 351 - 5.08 mm Vertical

Kind Properties
Pitch5.08 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus20 A
IR VDE20 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length7 up to 8 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023195

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691351500002SPEC
3 files 2 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)612690
691001
691351500003SPEC
3 files 3 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500004SPEC
3 files 4 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500005SPEC
3 files 5 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500006SPEC
3 files 6 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500007SPEC
4 files 7 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500008SPEC
3 files 8 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500009SPEC
3 files 9 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500010SPEC
3 files 10 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500011SPEC
3 files 11 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500012SPEC
4 files 12 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500013SPEC
3 files 13 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500014SPEC
3 files 14 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500015SPEC
3 files 15 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500016SPEC
3 files 16 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500017SPEC
3 files 17 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500018SPEC
3 files 18 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500019SPEC
3 files 19 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500020SPEC
3 files 20 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500021SPEC
3 files 21 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500022SPEC
3 files 22 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500023SPEC
3 files 23 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691351500024SPEC
3 files 24 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
Order Code Data­sheet
691351500002SPEC
691351500003SPEC
691351500004SPEC
691351500005SPEC
691351500006SPEC
691351500007SPEC
691351500008SPEC
691351500009SPEC
691351500010SPEC
691351500011SPEC
691351500012SPEC
691351500013SPEC
691351500014SPEC
691351500015SPEC
691351500016SPEC
691351500017SPEC
691351500018SPEC
691351500019SPEC
691351500020SPEC
691351500021SPEC
691351500022SPEC
691351500023SPEC
691351500024SPEC
