ePDM 70-150

Electronic Power Distribution for the Vehicle Electrics

The ePDM 70-150 is an electronic power distribution controller that can control a variety of loads. It has a large number of outputs up to 35 A. The controller is designed to meet the requirements of a modern vehicle and, in addition to powering the loads, allows also the integration of numerous diagnostic functions. With ePDM 70-150, different wake-up scenarios can be implemented. The „Always-ON“ outputs provide power to modules, such as a telematics module, even when the ePDM is switched off.

The controller communicates via CAN bus and is fully programmable. The WEcontrol Designer provides a powerful programming environment. For system protection, e.g. against open load or overcurrent, you can implement diagnostic functions and configure the outputs using “fuse-like” function blocks.

Open Data Sheet

Functions and Features

Main power distribution, allowing the complete shutdown of the vehicle sections
Power supply to the majority of simple loads, some larger loads or groups of loads
Powering telematics or access control devices via „Always ON“ outputs, which also supply power in sleep mode
Handling of vehicle wake-up scenarios
Communication possible over its two CAN interfaces
Freely programmable using WEcontrol Designer, logic processing of vehicle functions based on IEC 61131-3 programming environment

At a Glance: Your Advantages with ePDM 70-150 from Würth Electronics ICS

Harness Gauge	Development Costs	Control	Diagnostic Options	Integration	Software Update

Harness gauge optimization through precise current control	Development costs usually limited to software creation	Load reduction on other ECUs by taking over control of multiple loads	Simplification of service work due to available diagnostic options	Easy integration, no hardware access required	Easy software update using the UDS protocol

Data and Facts to ePDM 70-150

General information
Operating Temperature	-30° C to +85°C
Operating Range	9 to 16 V
Processor	NXP S32K Cortex M4 32 bit
Max. Current @70° C	150 A nominal, 200 A short term
Clock Frequency	80 MHz
Flash Memory	2 MB
RAM	256 kB
FRAM	2 kB
Ingress Protection	IP67 / IP69K
Dimensions	240 x 180 x 50 mm

**Interfaces, Inputs and Outputs**
Amount	Type	Description
1	Reference Voltage 5 V	max. 200 mA / Switchable
3	Analogue Inputs	0 − 5 V
2	Analogue Inputs	0 − 20 mA / 0 − 10 V
4	Analogue Inputs	0 − 16 V
2	CAN Interface	CAN 2.0 High Speed
7	Digital Inputs High Active	2 x Wake Up High Active
3	Digital Inputs Low Active	2 x Wake Up Low Active
3	Frequency Input	or Digital Input, Up to 20 KHz
4	Digital Outputs «Always ON»	max. load 2 x 3 A, 2 x 6 A Always ON
2	Digital Outputs	sinking outputs (LSD)
10	Digital Outputs	max. Load 3 A
10	Digital Outputs	max. Load 6 A
8	Digital Outputs	max. Load 9 A
3	Digital Outputs	max. Load 35 A
1	Full Bridge	max. Load 4 A

Order Information
Description	Order Number
ICS-103592	ePDM 70-150

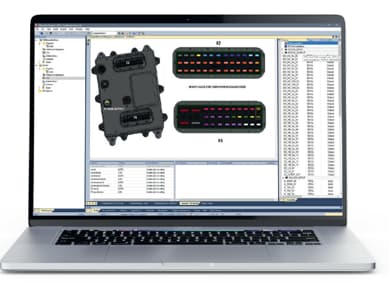

Programming With the WEcontrol Designer

WEcontrol Designer is the new advanced programming environment from Würth Elektronik ICS. The set of powerful text and graphic editors for IEC-61131-3 languages supports the following programming types:

Sequential Flow Chart (SFC)
Function Block Diagram (FBD)
Ladder Diagram (LD)
Structured Text (ST)

The WEcontrol Designer additionally offers a wide range of functions such as:

Safe and optimized application creation
Simulation and online data access / modification over CAN bus
Automated language conversion
User Defined Function Blocks (UDFB) for specific / repetitive functions
Graphical I/O mapping and configuration
Automated HTML documentation of project
Import of CAN communication database from Vector and Peak systems
Easy creation of graphical debug interfaces (based on the application)

Our product support ticketing system is available for your support requests. Our FAEs will respond to your request as soon as possible.

You need a password to download the WEcontrol Designer software. To obtain this, pleasecontact us.

Download the WEcontrol Designer

Service

Independent Programming

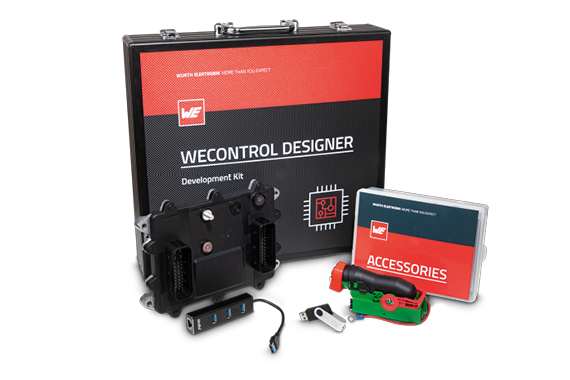

Program your desired functions independently with the help of our software development tool WEcontrol Designer and Try & Buy kit.

Request your Try & Buy kit here.

Worker shows CAN Box 8FR6 on mobile device

FAE support

Our specialists support you in programming, software development, training of your employees and after-sales service. In the series production phase, we can deliver the ePDM 70-150 programmed with the desired functions.

Arrange a personal consultation appointment now.
