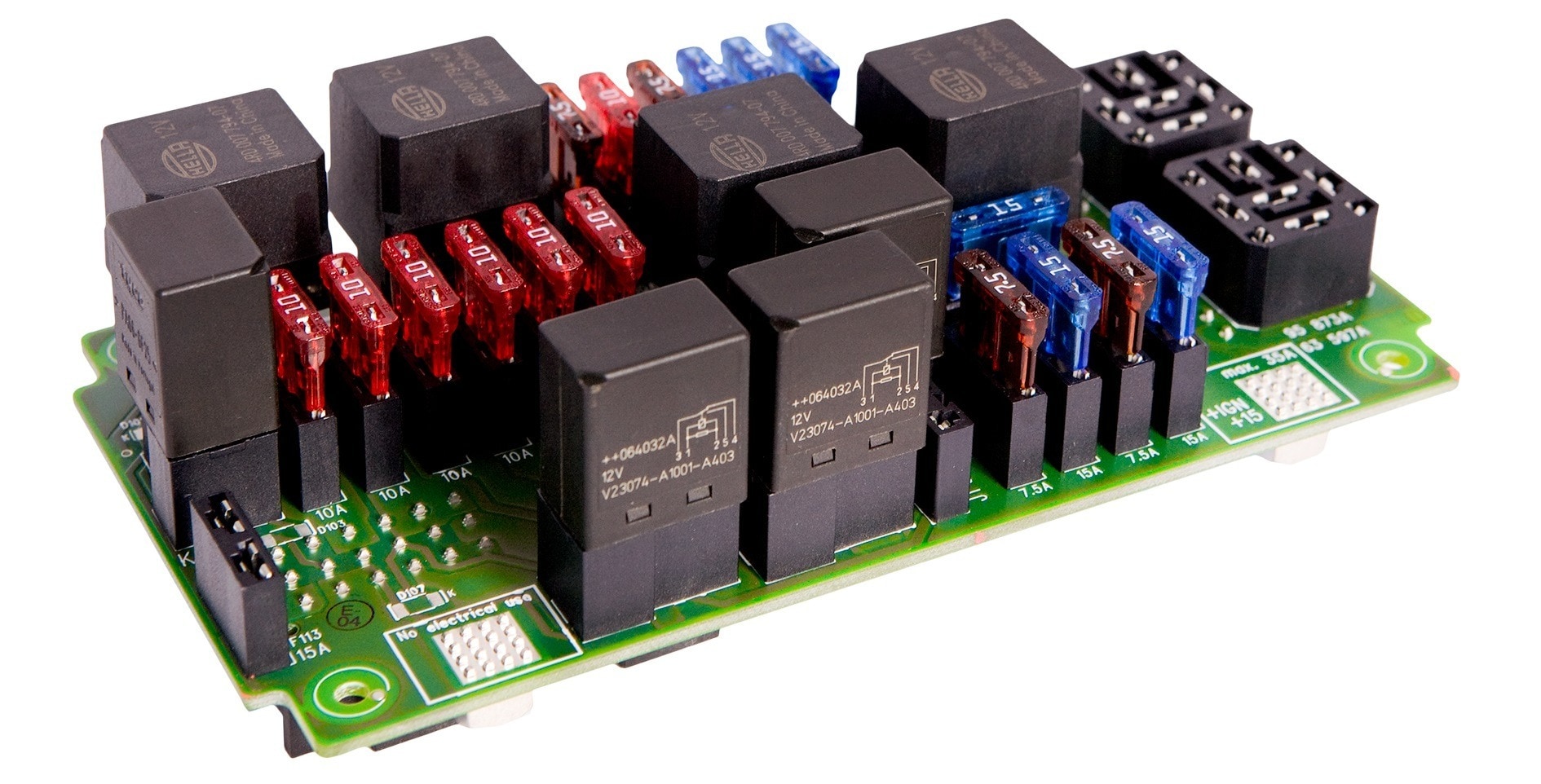

Product picture REDline Central Electrical Unit

REDline Central electrical Unit

Standard Modules for Power Supply

Compact and Economical Solutions

REDline Central Electrical Units are compact standard modules for power supply or protection of consumers in vehicles. They are based on a modular concept. The core is a basic module, the so-called Traffic Regulation Module. This is supplemented by several additional modules that can be combined as required. In this way, an individual modular system is created from several standard products.

You benefit from advantages such as:

  • Installation in the smallest possible space thanks to compact size
  • High reliability and service life
  • Fast delivery
  • Ease of maintenance
Product picture REDline Central Electrical Unit
Banner with REDline Central Electrical Unit

REDLINE CENTRAL ELECTRICAL UNIT

REDLINE CENTRAL ELECTRICAL UNIT

Tell us your requirements and receive a proposal including a placement suggestion within the shortest possible time.

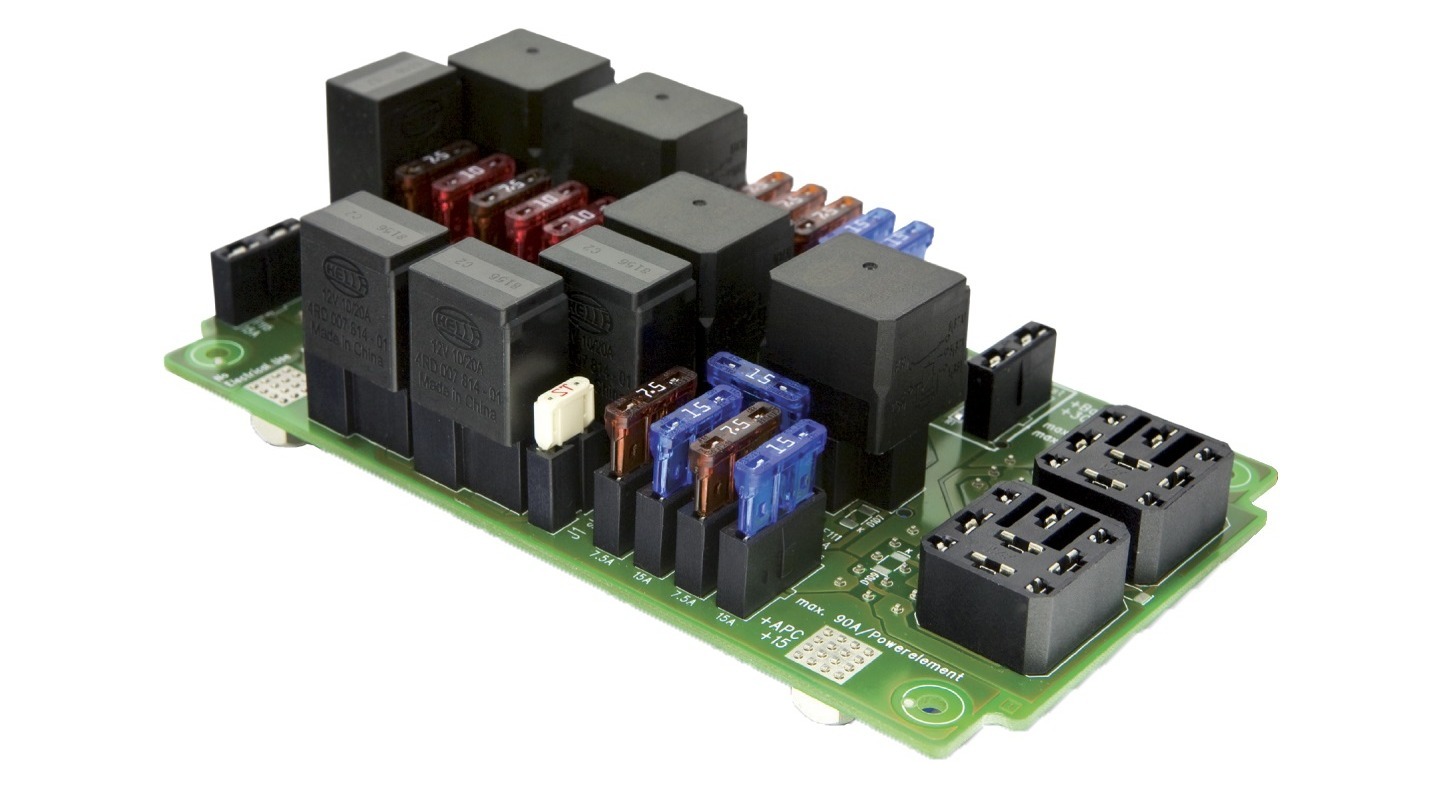

Product picture REDline Central Electrical Unit Traffic Regulation Modul
Traffic Regulation Module

An all-round basic module

Open data sheet

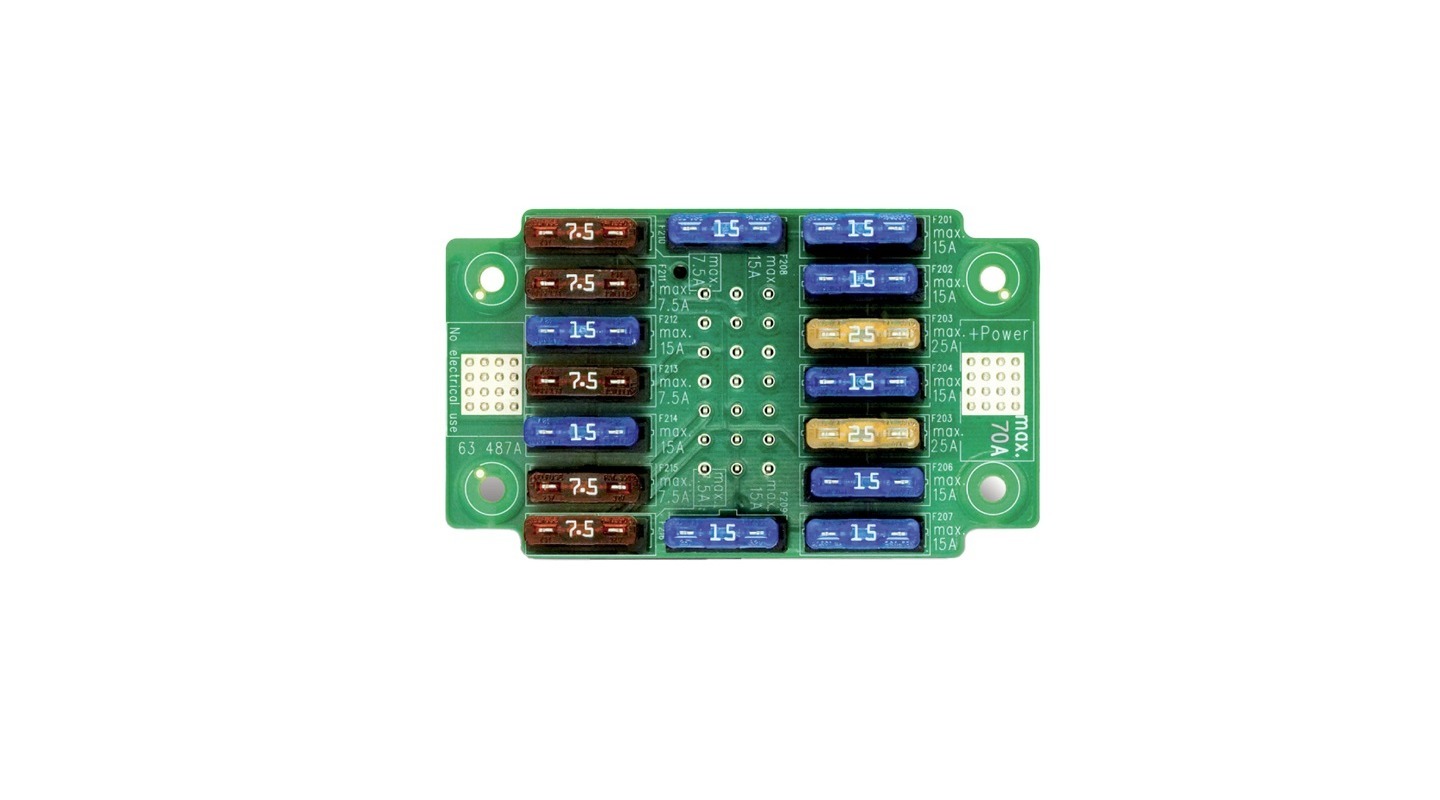

Product picture 16-0 modul
16-0 Module

A module for more function protection

Open data sheet

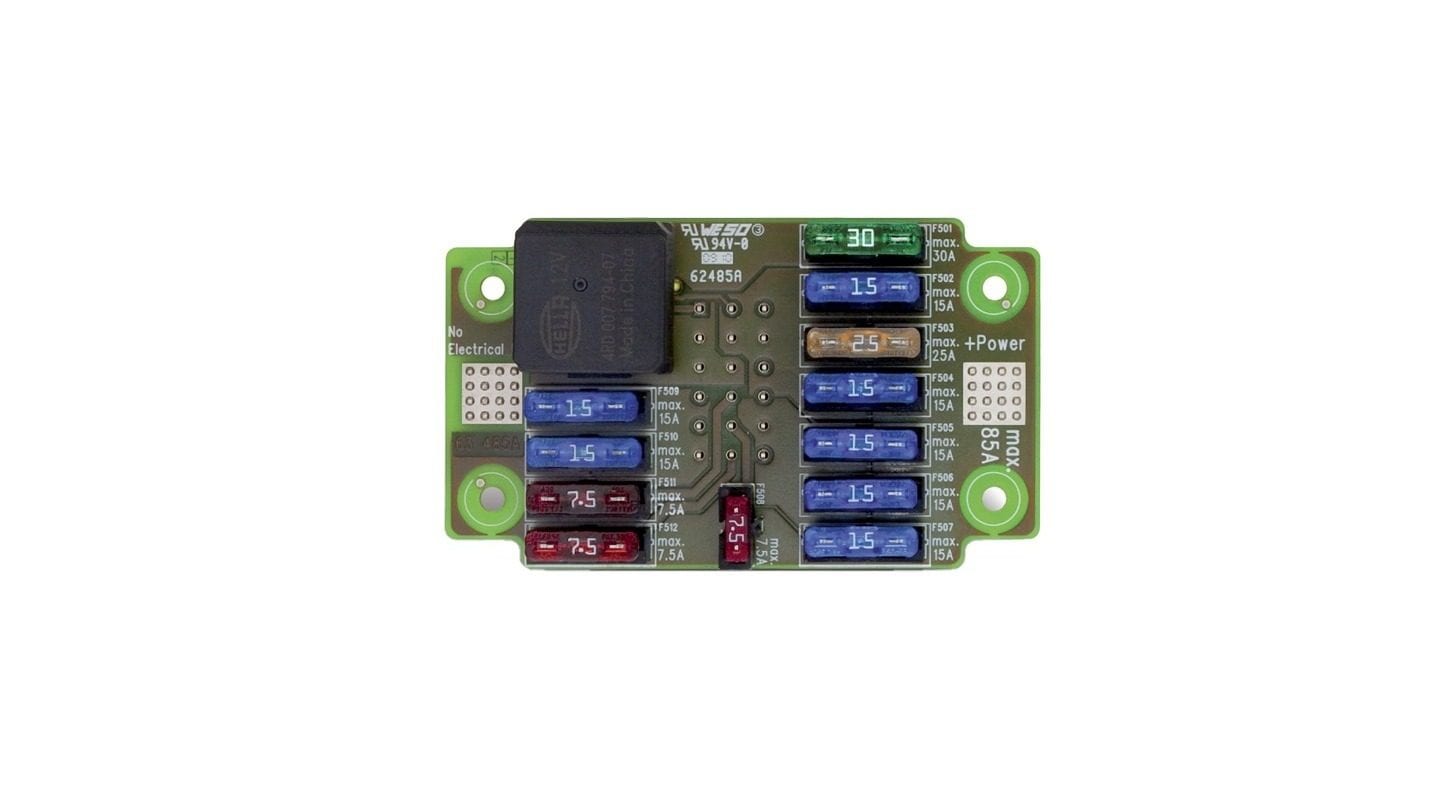

Product picture 12-1 modul
12-1 Module

A module for additional functions

Open data sheet

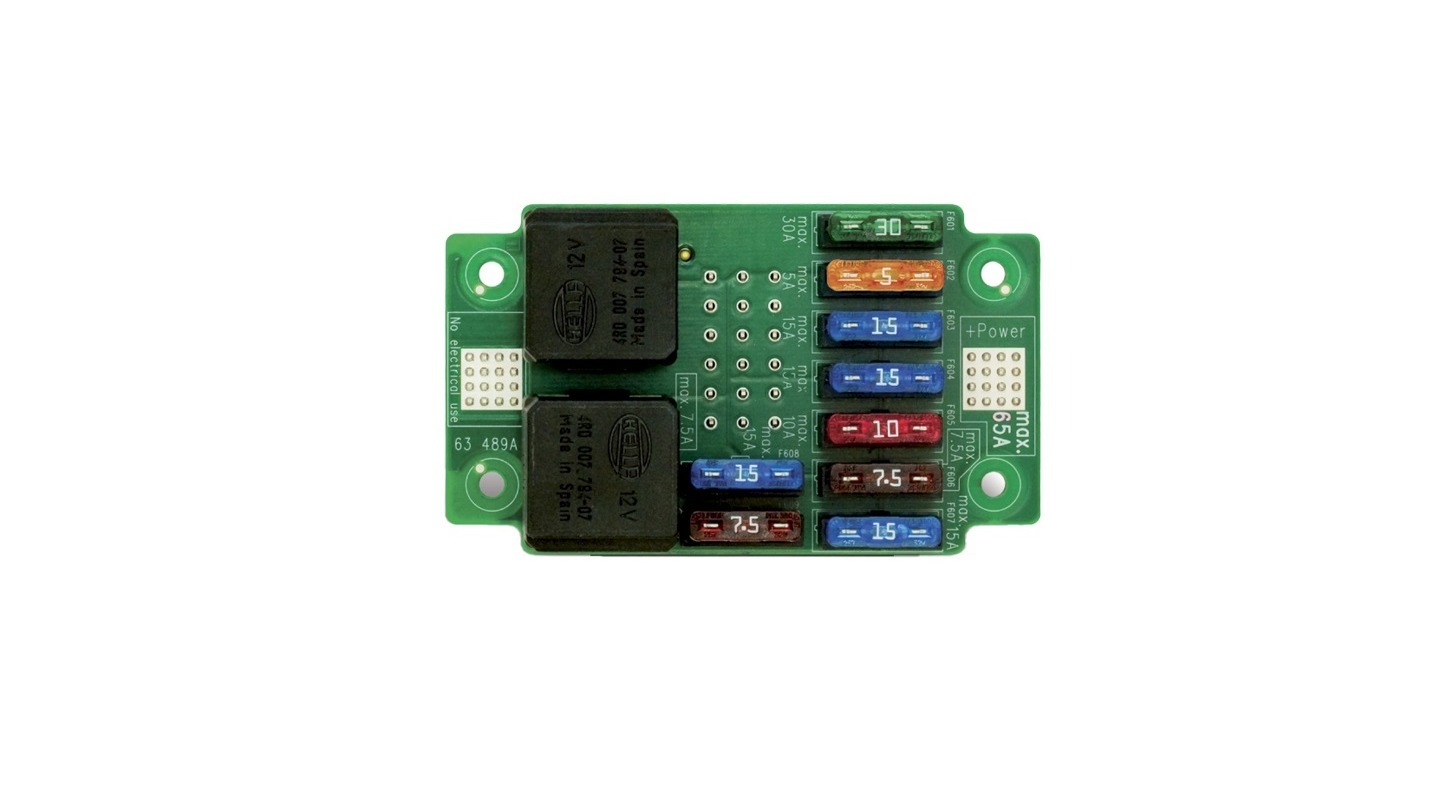

Product picture 9-2 modul
9-2 Module

A module for more flexibility

Open data sheet

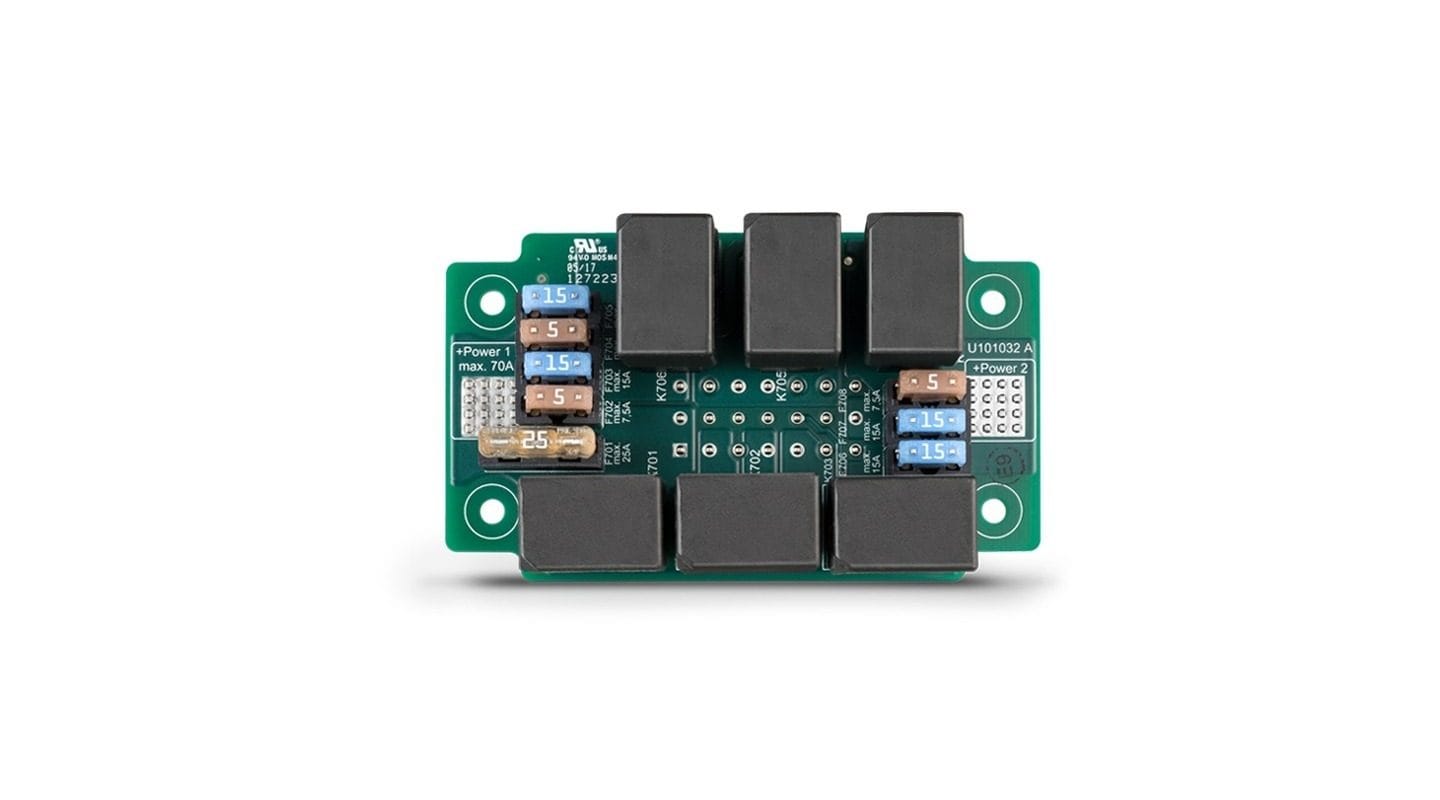

Product picture 8F-R6 modul
8F-6R Module

A module for even more additional functions and flexibility

Open data sheet

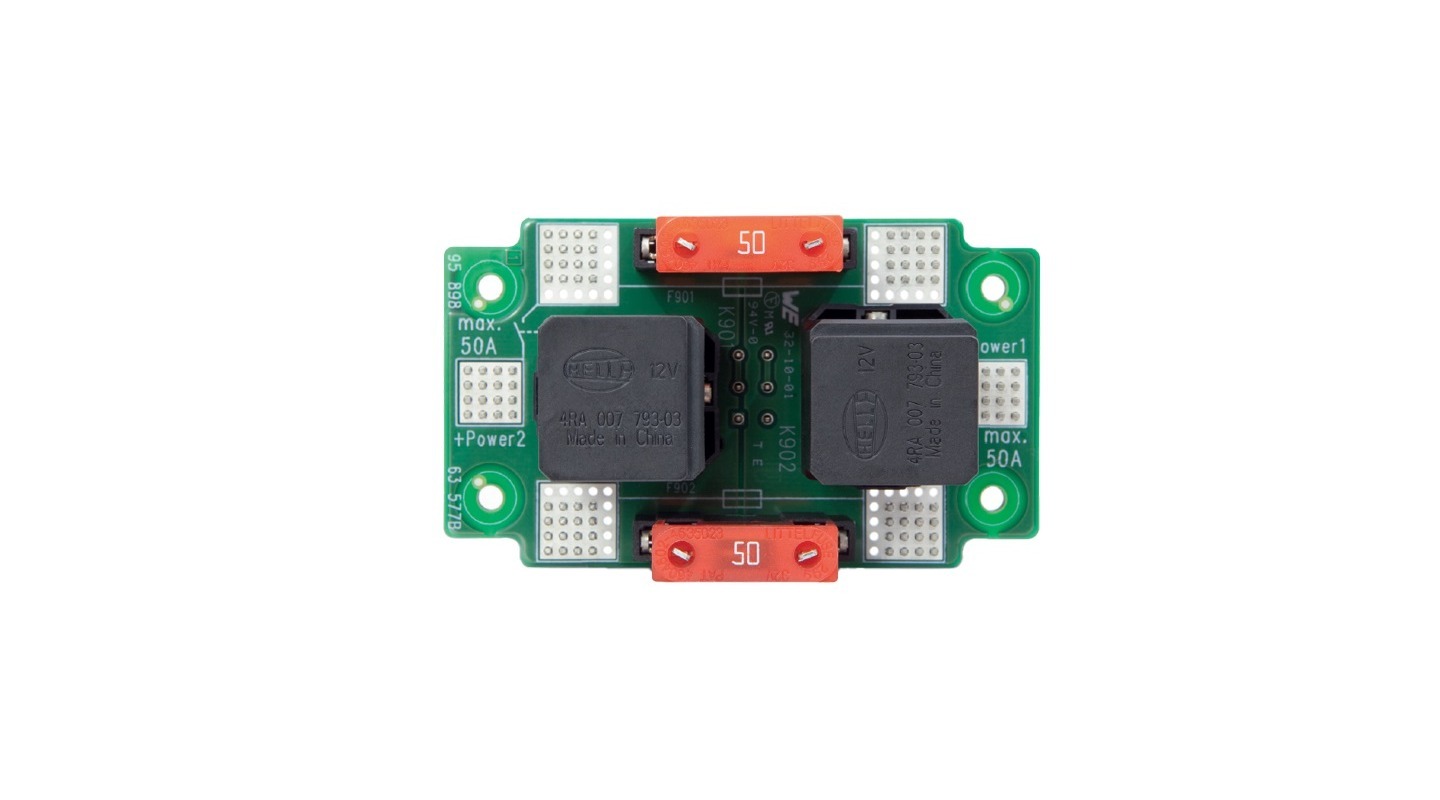

Product picture 2MF-2PR modul
2MF-2PR Module

A module for high power applications

Open data sheet

Product picture Power Logic Modul
Power Logic Module

A module for logical functions

Open data sheet

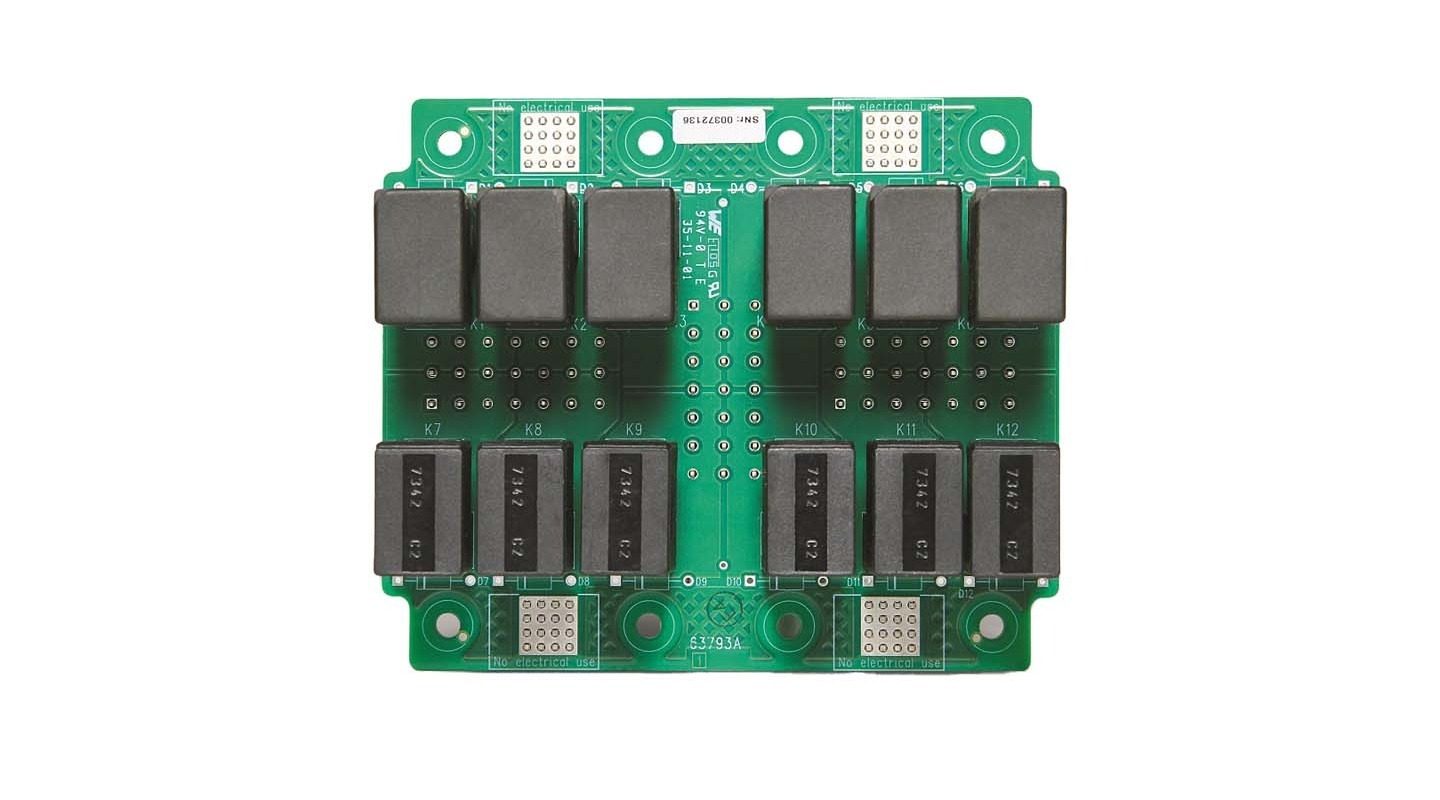

Product picture 0F-12μR modul
0F-12μR Module

A module for maximum flexibility in relay connection

Open data sheet
