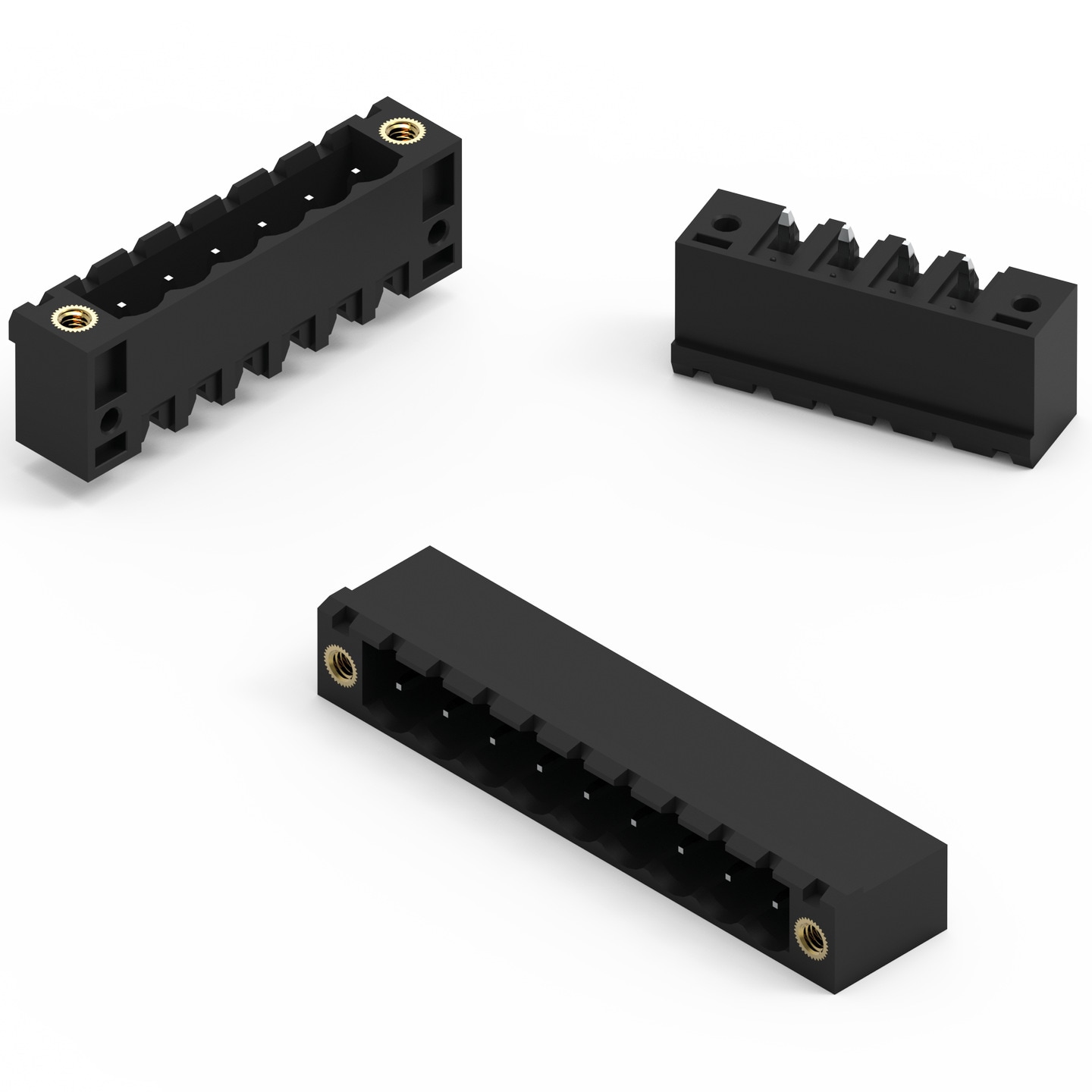

WR-TBL Terminal Blocks - PCB Header - 5mm pitch - THR | Electromechanical Components

	Size	Mount
EXT.	Closed Horizontal	THR
EXT.	Closed Vertical	THR
EXT.	Open Horizontal	THR
EXT.	Open Vertical	THR
EXT.	Horizontal w/ flanges	THR
EXT.	Vertical w/ flanges	THR

Characteristics

Rated Current: 15A
Working Voltage: 300V
Operating temperature: -40°C up to +130°C
UL approval: E315414
UL 94-V0

Applications

Industrial

Application Notes

Other polarities, plastic housing color and printings are possible. Please contact your local sales contact if you are interested in this variant.
