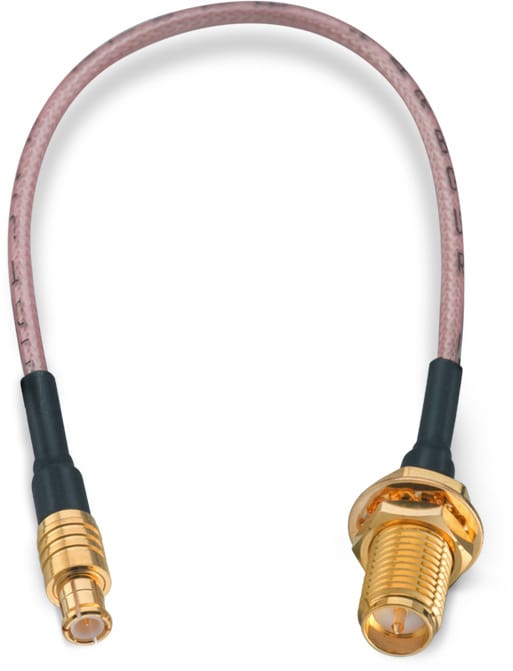

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length
Material Properties
Cable RG-178/U
General Information
Operating Temperature -55 °C up to +155 °C
Cable Type Flexible
Cable Shielding Braid
Connector Type 1 RP SMA
Connector Type 2 MCX
Gender 1 Jack
Gender 2 Plug
Orientation Type 1 Straight
Orientation Type 2 Straight
Mechanical Properties
Min. Bend Radius 10.2 mm

Didn't find the right cable? Configure and request directly

Products

Filter article data
Filter by
Delete all
 show   article  in  0 product lines
 article  in  0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Connector Type 2
Cable
Nominal Cable Length (mm)
f
Z (Ω)
Ingress Protection Code
Design Kit
Samples
65530206515304
Downloads 3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Active i | Production is active. Expected lifetime: >10 years.
Connector Type 1 RP SMA
Connector Type 2 MCX
Cable RG-178/U
Nominal Cable Length 152.4 mm
Frequency Range DC~3 GHz
Impedance 50 Ω
Ingress Protection Code None
Design Kit
630690

Mates with

WR-MCX Panel Connectors
