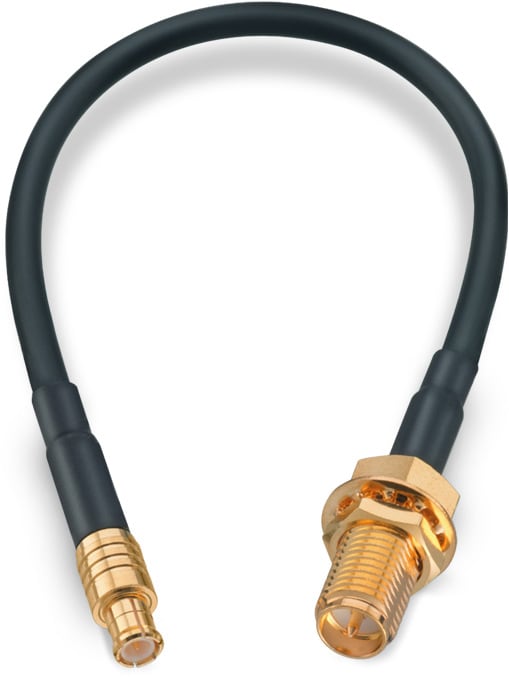

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length
Material Properties
CableRG-174/U
General Information
Operating Temperature-20 °C up to +80 °C
Cable TypeFlexible
Cable ShieldingBraid
Connector Type 1RP SMA
Connector Type 2MCX
Gender 1Jack
Gender 2Plug
Orientation Type 1Straight
Orientation Type 2Straight
Mechanical Properties
Min. Bend Radius30 mm
