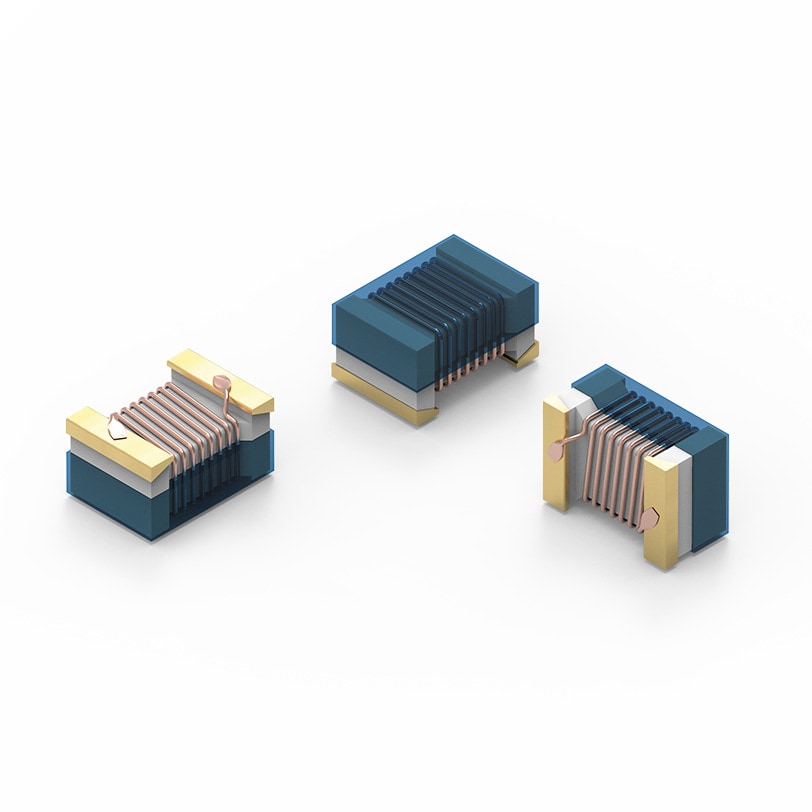

WE-KI SMT Wire Wound Ceramic Inductor
| Size | Dimensions | 3D | L (mm) | W (mm) | H (mm) | Mount | |
|---|---|---|---|---|---|---|---|

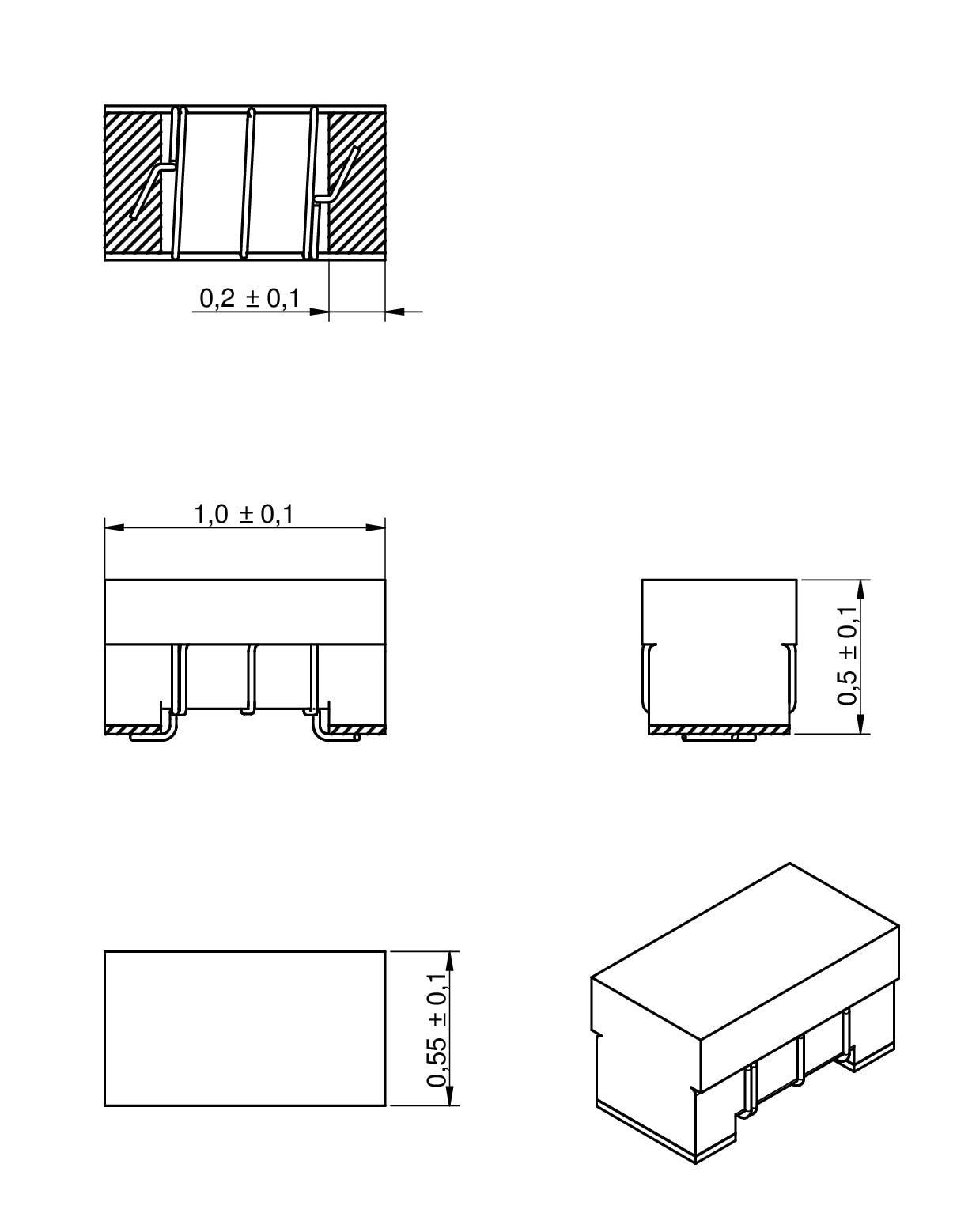

0402 | 1 | 0.55 | 0.5 | SMT | |||

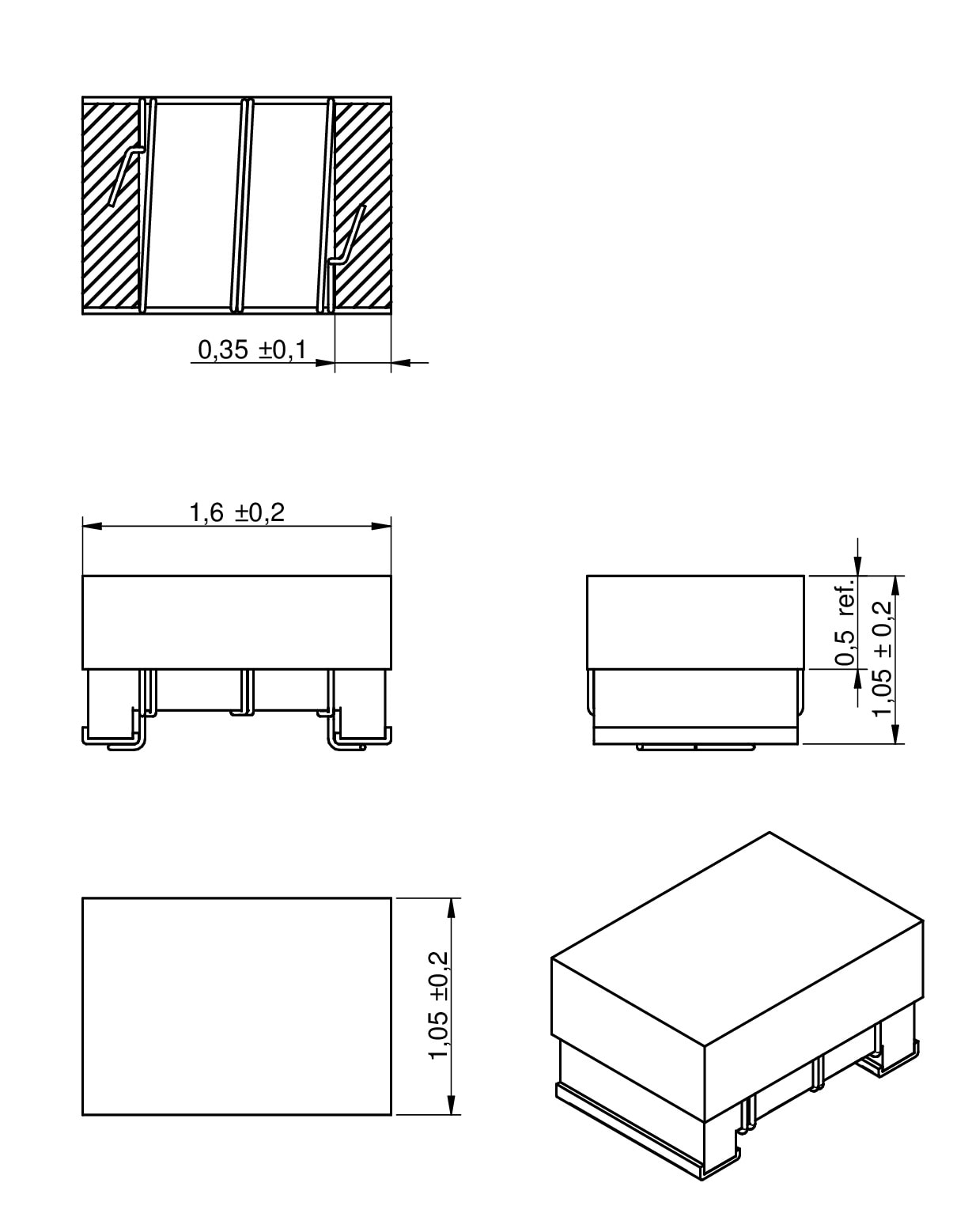

0603 | 1.6 | 1.05 | 1.05 | SMT | |||

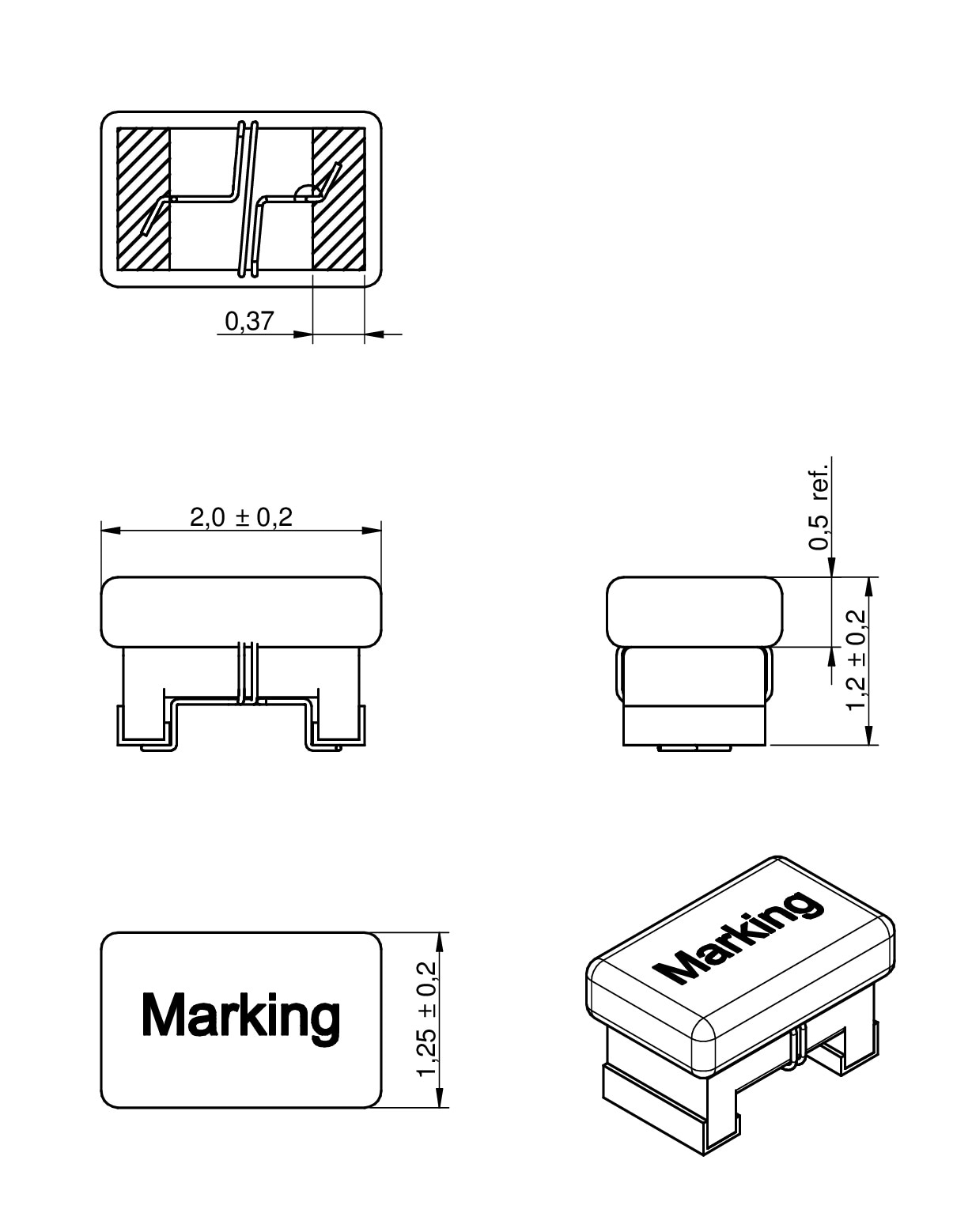

0805 | 2 | 1.25 | 1.2 | SMT | |||

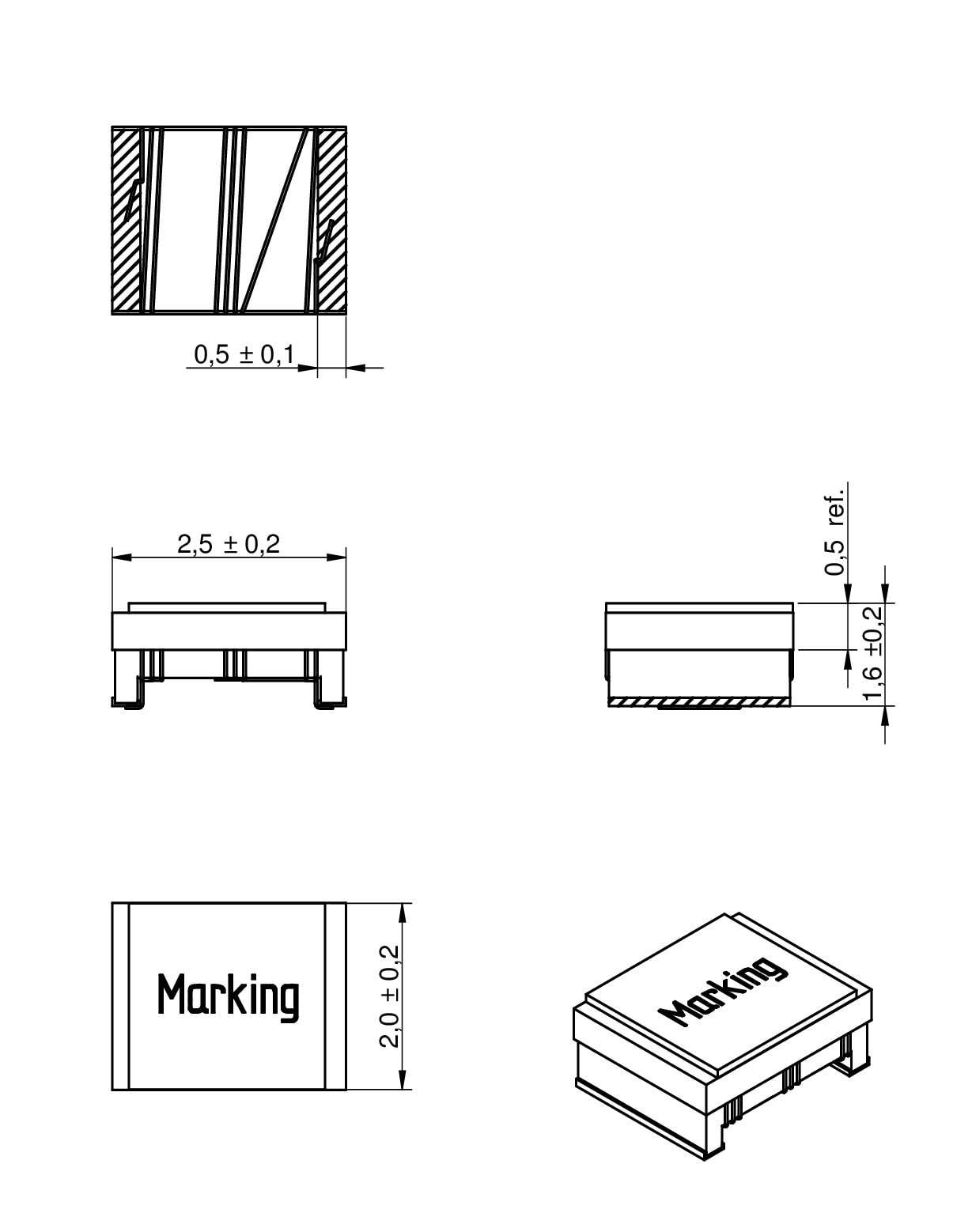

1008 | 2.5 | 2 | 1.6 | SMT |
LTSpice files
Characteristics
- WE-KI series offers you an excellent Q factor and highest possible self resonant frequencies up to 12.5 GHz
- High quality
- Inductance tolerances: 2% and 5%
- High thermal stability
- Recommended soldering: Reflow
- Operating temperature: –40°C to +125°C
- Custom designs on request
Applications
- Especially developed for high frequency applications
- RF transceiver/communications
- SAT-Receiver
- Set Top Box
- Broadband signal transmission
- Bluetooth
- Wireless LAN
Products
All
0402
0603
0805
1008
Filter by
show in
article in 4 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | L(nH) | Tol. L | Test Condition L | Qmin. | Test Condition Q | RDC max.(Ω) | IR(mA) | fres(MHz) | Design Kit | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
744765010A | SPEC1 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor13 | Q-Factor250 MHz | DC Resistance0.045 Ω | Rated Current1360 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744761016A | SPEC1.6 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.6 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.03 Ω | Rated Current700 mA | Self Resonant Frequency12500 MHz | –Check availability | |||
744761018A | SPEC1.8 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.8 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.05 Ω | Rated Current700 mA | Self Resonant Frequency12500 MHz | –Check availability | |||
744765019A | SPEC1.9 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.9 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.07 Ω | Rated Current1040 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744765020A | SPEC2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.07 Ω | Rated Current1040 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744761020A | SPEC2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.08 Ω | Rated Current700 mA | Self Resonant Frequency6900 MHz | –Check availability | |||
744765022A | SPEC2.2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor18 | Q-Factor250 MHz | DC Resistance0.07 Ω | Rated Current960 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744760022A | SPEC2.2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current800 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744765024A | SPEC2.4 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.4 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.068 Ω | Rated Current790 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744765027A | SPEC2.7 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.7 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.12 Ω | Rated Current640 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744760027A | SPEC2.7 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.7 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor35 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current800 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744765033A | SPEC3.3 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 nH | Inductance±5% | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.066 Ω | Rated Current840 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744761033A | SPEC3.3 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor22 | Q-Factor250 MHz | DC Resistance0.06 Ω | Rated Current700 mA | Self Resonant Frequency5800 MHz | –Check availability | |||
744760033A | SPEC3.3 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current800 mA | Self Resonant Frequency6000 MHz | –Check availability | |||
744762033A | SPEC3.3 nH, ±0.3nH, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 nH | Inductance±0.3nH | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current1000 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744765036A | SPEC3.6 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.6 nH | Inductance±5% | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.066 Ω | Rated Current840 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744761036A | SPEC3.6 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.6 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor22 | Q-Factor250 MHz | DC Resistance0.06 Ω | Rated Current700 mA | Self Resonant Frequency5900 MHz | –Check availability | |||
744765039A | SPEC3.9 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 nH | Inductance±5% | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.066 Ω | Rated Current840 mA | Self Resonant Frequency5800 MHz | Design Kit – | –Check availability | ||
744760039A | SPEC3.9 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current600 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744761039A | SPEC3.9 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor22 | Q-Factor250 MHz | DC Resistance0.08 Ω | Rated Current700 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744762039A | SPEC3.9 nH, ±0.3nH, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 nH | Inductance±0.3nH | Inductance100 MHz | Q-Factor38 | Q-Factor1000 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency5500 MHz | Design Kit – | –Check availability | ||
744765043A | SPEC4.3 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.3 nH | Inductance±5% | Inductance250 MHz | Q-Factor18 | Q-Factor250 MHz | DC Resistance0.091 Ω | Rated Current700 mA | Self Resonant Frequency6000 MHz | Design Kit – | –Check availability | ||
744761043A | SPEC4.3 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.3 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor22 | Q-Factor250 MHz | DC Resistance0.08 Ω | Rated Current700 mA | Self Resonant Frequency5900 MHz | Design Kit – | –Check availability | ||
744765047A | SPEC4.7 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 nH | Inductance±5% | Inductance250 MHz | Q-Factor15 | Q-Factor250 MHz | DC Resistance0.13 Ω | Rated Current640 mA | Self Resonant Frequency4775 MHz | –Check availability | |||
744760047A | SPEC4.7 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current600 mA | Self Resonant Frequency5800 MHz | Design Kit – | –Check availability | ||
744761047A | SPEC4.7 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.13 Ω | Rated Current700 mA | Self Resonant Frequency5800 MHz | –Check availability | |||
744765051A | SPEC5.1 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.1 nH | Inductance±5% | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current800 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744761051A | SPEC5.1 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.1 nH | Inductance±5% | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.14 Ω | Rated Current700 mA | Self Resonant Frequency5700 MHz | Design Kit – | –Check availability | ||
744761051GA | SPEC5.1 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.1 nH | Inductance±2% | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.14 Ω | Rated Current700 mA | Self Resonant Frequency5700 MHz | Design Kit – | –Check availability | ||
744765051GA | SPEC5.1 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.1 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current800 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744760051A | SPEC5.1 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.1 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency5800 MHz | Design Kit – | –Check availability | ||
744765056A | SPEC5.6 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 nH | Inductance±5% | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current760 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744761056A | SPEC5.6 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 nH | Inductance±5% | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.15 Ω | Rated Current700 mA | Self Resonant Frequency5500 MHz | Design Kit | –Check availability | ||
744761056GA | SPEC5.6 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 nH | Inductance±2% | Inductance250 MHz | Q-Factor16 | Q-Factor250 MHz | DC Resistance0.15 Ω | Rated Current700 mA | Self Resonant Frequency5500 MHz | Design Kit | –Check availability | ||
744765056GA | SPEC5.6 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current760 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744760056A | SPEC5.6 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744760056GA | SPEC5.6 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744765062A | SPEC6.2 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.2 nH | Inductance±5% | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current760 mA | Self Resonant Frequency5800 MHz | Design Kit – | –Check availability | ||
744765062GA | SPEC6.2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current750 mA | Self Resonant Frequency5800 MHz | Design Kit – | –Check availability | ||
744765068A | SPEC6.8 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±5% | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current680 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744761068A | SPEC6.8 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±5% | Inductance250 MHz | Q-Factor30 | Q-Factor250 MHz | DC Resistance0.11 Ω | Rated Current700 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744762068A | SPEC6.8 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±5% | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current1000 mA | Self Resonant Frequency5500 MHz | Design Kit | –Check availability | ||
744765068GA | SPEC6.8 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor20 | Q-Factor250 MHz | DC Resistance0.083 Ω | Rated Current680 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744761068GA | SPEC6.8 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±2% | Inductance250 MHz | Q-Factor30 | Q-Factor250 MHz | DC Resistance0.11 Ω | Rated Current700 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744760068A | SPEC6.8 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current600 mA | Self Resonant Frequency5600 MHz | Design Kit – | –Check availability | ||
744760068GA | SPEC6.8 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current600 mA | Self Resonant Frequency5600 MHz | Design Kit – | –Check availability | ||
744762068GA | SPEC6.8 nH, ±0.2nH, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 nH | Inductance±0.2nH | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current1000 mA | Self Resonant Frequency5500 MHz | Design Kit | –Check availability | ||
744765075A | SPEC7.5 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance7.5 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.104 Ω | Rated Current680 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744761075A | SPEC7.5 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance7.5 nH | Inductance±5% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.11 Ω | Rated Current700 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744765075GA | SPEC7.5 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance7.5 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.104 Ω | Rated Current680 mA | Self Resonant Frequency5800 MHz | Design Kit | –Check availability | ||
744761075GA | SPEC7.5 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance7.5 nH | Inductance±2% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.106 Ω | Rated Current700 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744765082A | SPEC8.2 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.104 Ω | Rated Current680 mA | Self Resonant Frequency4400 MHz | Design Kit | –Check availability | ||
744760082A | SPEC8.2 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current600 mA | Self Resonant Frequency5500 MHz | Design Kit | –Check availability | ||
744762082A | SPEC8.2 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±5% | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current1000 mA | Self Resonant Frequency5500 MHz | Design Kit – | –Check availability | ||
744765082GA | SPEC8.2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.104 Ω | Rated Current680 mA | Self Resonant Frequency4400 MHz | Design Kit | –Check availability | ||
744761082A | SPEC8.2 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±5% | Inductance250 MHz | Q-Factor30 | Q-Factor250 MHz | DC Resistance0.1 Ω | Rated Current700 mA | Self Resonant Frequency4600 MHz | Design Kit | –Check availability | ||
744761082GA | SPEC8.2 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±2% | Inductance250 MHz | Q-Factor30 | Q-Factor250 MHz | DC Resistance0.1 Ω | Rated Current700 mA | Self Resonant Frequency4600 MHz | Design Kit | –Check availability | ||
744760082GA | SPEC8.2 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor60 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current600 mA | Self Resonant Frequency5500 MHz | Design Kit | –Check availability | ||
744762082GA | SPEC8.2 nH, ±0.2nH, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 nH | Inductance±0.2nH | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.06 Ω | Rated Current1000 mA | Self Resonant Frequency5500 MHz | Design Kit – | –Check availability | ||
744765087A | SPEC8.7 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.7 nH | Inductance±5% | Inductance250 MHz | Q-Factor18 | Q-Factor250 MHz | DC Resistance0.2 Ω | Rated Current480 mA | Self Resonant Frequency4100 MHz | Design Kit – | –Check availability | ||
744761087GA | SPEC8.7 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.7 nH | Inductance±2% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.109 Ω | Rated Current700 mA | Self Resonant Frequency4600 MHz | Design Kit – | –Check availability | ||
744761087A | SPEC8.7 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.7 nH | Inductance±5% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.109 Ω | Rated Current700 mA | Self Resonant Frequency4600 MHz | Design Kit – | –Check availability | ||
744765090A | SPEC9 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.104 Ω | Rated Current680 mA | Self Resonant Frequency4160 MHz | Design Kit | –Check availability | ||
744765090GA | SPEC9 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.104 Ω | Rated Current680 mA | Self Resonant Frequency4160 MHz | Design Kit | –Check availability | ||
744761091A | SPEC9.1 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9.1 nH | Inductance±5% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.135 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit – | –Check availability | ||
744761091GA | SPEC9.1 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9.1 nH | Inductance±2% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.135 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit – | –Check availability | ||
744765095A | SPEC9.5 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9.5 nH | Inductance±5% | Inductance250 MHz | Q-Factor18 | Q-Factor250 MHz | DC Resistance0.2 Ω | Rated Current680 mA | Self Resonant Frequency4000 MHz | Design Kit – | –Check availability | ||
744761095A | SPEC9.5 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9.5 nH | Inductance±5% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.135 Ω | Rated Current700 mA | Self Resonant Frequency4500 MHz | Design Kit – | –Check availability | ||
744761095GA | SPEC9.5 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9.5 nH | Inductance±2% | Inductance250 MHz | Q-Factor28 | Q-Factor250 MHz | DC Resistance0.135 Ω | Rated Current700 mA | Self Resonant Frequency4500 MHz | Design Kit – | –Check availability | ||
744765095GA | SPEC9.5 nH, ±0.2nH, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance9.5 nH | Inductance±0.2nH | Inductance250 MHz | Q-Factor18 | Q-Factor250 MHz | DC Resistance0.2 Ω | Rated Current680 mA | Self Resonant Frequency4000 MHz | Design Kit – | –Check availability | ||
744765110A | SPEC10 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±5% | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.195 Ω | Rated Current480 mA | Self Resonant Frequency3900 MHz | Design Kit | –Check availability | ||
744761110A | SPEC10 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±5% | Inductance250 MHz | Q-Factor30 | Q-Factor250 MHz | DC Resistance0.13 Ω | Rated Current700 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744760110A | SPEC10 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744762110A | SPEC10 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±5% | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current1000 mA | Self Resonant Frequency4300 MHz | Design Kit | –Check availability | ||
744765110GA | SPEC10 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±2% | Inductance250 MHz | Q-Factor23 | Q-Factor250 MHz | DC Resistance0.195 Ω | Rated Current480 mA | Self Resonant Frequency3900 MHz | Design Kit | –Check availability | ||
744761110GA | SPEC10 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±2% | Inductance250 MHz | Q-Factor30 | Q-Factor250 MHz | DC Resistance0.13 Ω | Rated Current700 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744760110GA | SPEC10 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency4800 MHz | Design Kit | –Check availability | ||
744762110GA | SPEC10 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 nH | Inductance±2% | Inductance100 MHz | Q-Factor50 | Q-Factor1000 MHz | DC Resistance0.08 Ω | Rated Current1000 mA | Self Resonant Frequency4300 MHz | Design Kit | –Check availability | ||
744765111A | SPEC11 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance11 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.12 Ω | Rated Current640 mA | Self Resonant Frequency3680 MHz | Design Kit – | –Check availability | ||
744765111GA | SPEC11 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance11 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.12 Ω | Rated Current640 mA | Self Resonant Frequency3680 MHz | Design Kit – | –Check availability | ||
744761111A | SPEC11 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance11 nH | Inductance±5% | Inductance250 MHz | Q-Factor33 | Q-Factor250 MHz | DC Resistance0.09 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit | –Check availability | ||
744761111GA | SPEC11 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance11 nH | Inductance±2% | Inductance250 MHz | Q-Factor33 | Q-Factor250 MHz | DC Resistance0.09 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit | –Check availability | ||
744765112A | SPEC12 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.12 Ω | Rated Current640 mA | Self Resonant Frequency3600 MHz | Design Kit | –Check availability | ||
744761112A | SPEC12 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±5% | Inductance250 MHz | Q-Factor35 | Q-Factor250 MHz | DC Resistance0.13 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit | –Check availability | ||
744762112A | SPEC12 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current1000 mA | Self Resonant Frequency3600 MHz | Design Kit – | –Check availability | ||
744765112GA | SPEC12 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.12 Ω | Rated Current640 mA | Self Resonant Frequency3600 MHz | Design Kit | –Check availability | ||
744761112GA | SPEC12 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±2% | Inductance250 MHz | Q-Factor35 | Q-Factor250 MHz | DC Resistance0.13 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit | –Check availability | ||
744760112A | SPEC12 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency4100 MHz | Design Kit | –Check availability | ||
744760112GA | SPEC12 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency4100 MHz | Design Kit | –Check availability | ||
744762112GA | SPEC12 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current1000 mA | Self Resonant Frequency3600 MHz | Design Kit – | –Check availability | ||
744765113A | SPEC13 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance13 nH | Inductance±5% | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.21 Ω | Rated Current560 mA | Self Resonant Frequency3450 MHz | Design Kit | –Check availability | ||
744765113GA | SPEC13 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance13 nH | Inductance±2% | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.21 Ω | Rated Current560 mA | Self Resonant Frequency3450 MHz | Design Kit | –Check availability | ||
744761113A | SPEC13 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance13 nH | Inductance±5% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.106 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit – | –Check availability | ||
744761113GA | SPEC13 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance13 nH | Inductance±2% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.106 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit – | –Check availability | ||
744765115A | SPEC15 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.172 Ω | Rated Current560 mA | Self Resonant Frequency3280 MHz | Design Kit | –Check availability | ||
744761115A | SPEC15 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±5% | Inductance250 MHz | Q-Factor35 | Q-Factor250 MHz | DC Resistance0.17 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit | –Check availability | ||
744762115A | SPEC15 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current1000 mA | Self Resonant Frequency2700 MHz | Design Kit | –Check availability | ||
744765115GA | SPEC15 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.172 Ω | Rated Current560 mA | Self Resonant Frequency3280 MHz | Design Kit | –Check availability | ||
744761115GA | SPEC15 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±2% | Inductance250 MHz | Q-Factor35 | Q-Factor250 MHz | DC Resistance0.17 Ω | Rated Current700 mA | Self Resonant Frequency4000 MHz | Design Kit | –Check availability | ||
744760115A | SPEC15 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency3600 MHz | Design Kit | –Check availability | ||
744760115GA | SPEC15 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency3600 MHz | Design Kit | –Check availability | ||
744762115GA | SPEC15 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current1000 mA | Self Resonant Frequency2700 MHz | Design Kit | –Check availability | ||
744765116A | SPEC16 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance16 nH | Inductance±5% | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current560 mA | Self Resonant Frequency3100 MHz | Design Kit – | –Check availability | ||
744761116A | SPEC16 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance16 nH | Inductance±5% | Inductance250 MHz | Q-Factor34 | Q-Factor250 MHz | DC Resistance0.17 Ω | Rated Current700 mA | Self Resonant Frequency3300 MHz | Design Kit | –Check availability | ||
744765116GA | SPEC16 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance16 nH | Inductance±2% | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current460 mA | Self Resonant Frequency3100 MHz | Design Kit – | –Check availability | ||
744761116GA | SPEC16 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance16 nH | Inductance±2% | Inductance250 MHz | Q-Factor34 | Q-Factor250 MHz | DC Resistance0.17 Ω | Rated Current700 mA | Self Resonant Frequency3300 MHz | Design Kit | –Check availability | ||
744765118A | SPEC18 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.23 Ω | Rated Current420 mA | Self Resonant Frequency3100 MHz | Design Kit | –Check availability | ||
744762118A | SPEC18 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency2700 MHz | Design Kit | –Check availability | ||
744765118GA | SPEC18 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.23 Ω | Rated Current420 mA | Self Resonant Frequency3100 MHz | Design Kit | –Check availability | ||
744761118A | SPEC18 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±5% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.17 Ω | Rated Current700 mA | Self Resonant Frequency3100 MHz | Design Kit | –Check availability | ||
744761118GA | SPEC18 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±2% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.17 Ω | Rated Current700 mA | Self Resonant Frequency3100 MHz | Design Kit | –Check availability | ||
744760118A | SPEC18 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency3400 MHz | Design Kit – | –Check availability | ||
744760118GA | SPEC18 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.08 Ω | Rated Current600 mA | Self Resonant Frequency3400 MHz | Design Kit – | –Check availability | ||
744762118GA | SPEC18 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency2700 MHz | Design Kit | –Check availability | ||
744765119A | SPEC19 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance19 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.202 Ω | Rated Current480 mA | Self Resonant Frequency3040 MHz | Design Kit | –Check availability | ||
744765119GA | SPEC19 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance19 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.202 Ω | Rated Current480 mA | Self Resonant Frequency3040 MHz | Design Kit | –Check availability | ||
744765120A | SPEC20 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance20 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.25 Ω | Rated Current420 mA | Self Resonant Frequency3000 MHz | Design Kit | –Check availability | ||
744761120A | SPEC20 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance20 nH | Inductance±5% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current700 mA | Self Resonant Frequency3000 MHz | Design Kit | –Check availability | ||
744761120GA | SPEC20 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance20 nH | Inductance±2% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current700 mA | Self Resonant Frequency3000 MHz | Design Kit | –Check availability | ||
744765120GA | SPEC20 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance20 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.25 Ω | Rated Current420 mA | Self Resonant Frequency3000 MHz | Design Kit | –Check availability | ||
744765122A | SPEC22 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.3 Ω | Rated Current400 mA | Self Resonant Frequency2800 MHz | Design Kit | –Check availability | ||
744761122A | SPEC22 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±5% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current700 mA | Self Resonant Frequency3000 MHz | Design Kit | –Check availability | ||
744760122A | SPEC22 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.1 Ω | Rated Current600 mA | Self Resonant Frequency3300 MHz | Design Kit | –Check availability | ||
744762122A | SPEC22 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency2500 MHz | Design Kit – | –Check availability | ||
744765122GA | SPEC22 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.3 Ω | Rated Current400 mA | Self Resonant Frequency2800 MHz | Design Kit | –Check availability | ||
744761122GA | SPEC22 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±2% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current700 mA | Self Resonant Frequency3000 MHz | Design Kit | –Check availability | ||
744760122GA | SPEC22 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.1 Ω | Rated Current600 mA | Self Resonant Frequency3300 MHz | Design Kit | –Check availability | ||
744762122GA | SPEC22 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency2500 MHz | Design Kit – | –Check availability | ||
744765123A | SPEC23 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance23 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.214 Ω | Rated Current400 mA | Self Resonant Frequency2720 MHz | Design Kit – | –Check availability | ||
744765123GA | SPEC23 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance23 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.214 Ω | Rated Current400 mA | Self Resonant Frequency2720 MHz | Design Kit – | –Check availability | ||
744765124A | SPEC24 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance24 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.3 Ω | Rated Current400 mA | Self Resonant Frequency2700 MHz | Design Kit | –Check availability | ||
744761124GA | SPEC24 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance24 nH | Inductance±2% | Inductance250 MHz | Q-Factor37 | Q-Factor250 MHz | DC Resistance0.14 Ω | Rated Current700 mA | Self Resonant Frequency2650 MHz | Design Kit – | –Check availability | ||
744765124GA | SPEC24 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance24 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.3 Ω | Rated Current400 mA | Self Resonant Frequency2700 MHz | Design Kit | –Check availability | ||
744761124A | SPEC24 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance24 nH | Inductance±5% | Inductance250 MHz | Q-Factor37 | Q-Factor250 MHz | DC Resistance0.14 Ω | Rated Current700 mA | Self Resonant Frequency2650 MHz | Design Kit – | –Check availability | ||
744765127A | SPEC27 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.298 Ω | Rated Current400 mA | Self Resonant Frequency2480 MHz | Design Kit | –Check availability | ||
744761127A | SPEC27 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±5% | Inductance250 MHz | Q-Factor40 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2800 MHz | Design Kit | –Check availability | ||
744760127A | SPEC27 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.12 Ω | Rated Current600 mA | Self Resonant Frequency2600 MHz | Design Kit – | –Check availability | ||
744762127A | SPEC27 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1800 MHz | Design Kit | –Check availability | ||
744765127GA | SPEC27 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.298 Ω | Rated Current400 mA | Self Resonant Frequency2480 MHz | Design Kit | –Check availability | ||
744761127GA | SPEC27 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±2% | Inductance250 MHz | Q-Factor40 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2800 MHz | Design Kit | –Check availability | ||
744760127GA | SPEC27 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.12 Ω | Rated Current600 mA | Self Resonant Frequency2600 MHz | Design Kit – | –Check availability | ||
744762127GA | SPEC27 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance27 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1800 MHz | Design Kit | –Check availability | ||
744765130A | SPEC30 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance30 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.3 Ω | Rated Current400 mA | Self Resonant Frequency2350 MHz | Design Kit | –Check availability | ||
744761130A | SPEC30 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance30 nH | Inductance±5% | Inductance250 MHz | Q-Factor40 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2500 MHz | Design Kit | –Check availability | ||
744761130GA | SPEC30 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance30 nH | Inductance±2% | Inductance250 MHz | Q-Factor40 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2500 MHz | Design Kit | –Check availability | ||
744765130GA | SPEC30 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance30 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.3 Ω | Rated Current400 mA | Self Resonant Frequency2350 MHz | Design Kit | –Check availability | ||
744765133A | SPEC33 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±5% | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.35 Ω | Rated Current400 mA | Self Resonant Frequency2350 MHz | Design Kit | –Check availability | ||
744760133A | SPEC33 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.15 Ω | Rated Current500 mA | Self Resonant Frequency2400 MHz | Design Kit | –Check availability | ||
744762133A | SPEC33 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744765133GA | SPEC33 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±2% | Inductance250 MHz | Q-Factor24 | Q-Factor250 MHz | DC Resistance0.35 Ω | Rated Current400 mA | Self Resonant Frequency2350 MHz | Design Kit | –Check availability | ||
744761133A | SPEC33 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±5% | Inductance250 MHz | Q-Factor43 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2300 MHz | Design Kit | –Check availability | ||
744761133GA | SPEC33 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±2% | Inductance250 MHz | Q-Factor43 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2300 MHz | Design Kit | –Check availability | ||
744760133GA | SPEC33 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.15 Ω | Rated Current500 mA | Self Resonant Frequency2400 MHz | Design Kit | –Check availability | ||
744762133GA | SPEC33 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744765136A | SPEC36 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance36 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.403 Ω | Rated Current320 mA | Self Resonant Frequency2320 MHz | Design Kit | –Check availability | ||
744760136A | SPEC36 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance36 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.18 Ω | Rated Current500 mA | Self Resonant Frequency2000 MHz | Design Kit – | –Check availability | ||
744765136GA | SPEC36 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance36 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.403 Ω | Rated Current320 mA | Self Resonant Frequency2320 MHz | Design Kit | –Check availability | ||
744761136GA | SPEC36 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance36 nH | Inductance±2% | Inductance250 MHz | Q-Factor36 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2300 MHz | Design Kit – | –Check availability | ||
744761136A | SPEC36 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance36 nH | Inductance±5% | Inductance250 MHz | Q-Factor36 | Q-Factor250 MHz | DC Resistance0.22 Ω | Rated Current600 mA | Self Resonant Frequency2300 MHz | Design Kit – | –Check availability | ||
744760136GA | SPEC36 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance36 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.18 Ω | Rated Current500 mA | Self Resonant Frequency2000 MHz | Design Kit – | –Check availability | ||
744765139A | SPEC39 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.55 Ω | Rated Current320 mA | Self Resonant Frequency2100 MHz | Design Kit | –Check availability | ||
744762139A | SPEC39 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1500 MHz | Design Kit | –Check availability | ||
744761139A | SPEC39 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±5% | Inductance250 MHz | Q-Factor43 | Q-Factor250 MHz | DC Resistance0.25 Ω | Rated Current600 mA | Self Resonant Frequency2200 MHz | Design Kit | –Check availability | ||
744761139GA | SPEC39 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±2% | Inductance250 MHz | Q-Factor43 | Q-Factor250 MHz | DC Resistance0.25 Ω | Rated Current600 mA | Self Resonant Frequency2200 MHz | Design Kit | –Check availability | ||
744765139GA | SPEC39 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.55 Ω | Rated Current320 mA | Self Resonant Frequency2100 MHz | Design Kit | –Check availability | ||
744760139A | SPEC39 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.18 Ω | Rated Current500 mA | Self Resonant Frequency2100 MHz | Design Kit | –Check availability | ||
744760139GA | SPEC39 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±2% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.18 Ω | Rated Current500 mA | Self Resonant Frequency2100 MHz | Design Kit | –Check availability | ||
744762139GA | SPEC39 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance39 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1500 MHz | Design Kit | –Check availability | ||
744765140A | SPEC40 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance40 nH | Inductance±5% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.438 Ω | Rated Current320 mA | Self Resonant Frequency2240 MHz | Design Kit – | –Check availability | ||
744765140GA | SPEC40 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance40 nH | Inductance±2% | Inductance250 MHz | Q-Factor26 | Q-Factor250 MHz | DC Resistance0.438 Ω | Rated Current320 mA | Self Resonant Frequency2240 MHz | Design Kit – | –Check availability | ||
744765143A | SPEC43 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance43 nH | Inductance±5% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.81 Ω | Rated Current100 mA | Self Resonant Frequency2030 MHz | Design Kit | –Check availability | ||
744761143GA | SPEC43 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance43 nH | Inductance±2% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.28 Ω | Rated Current600 mA | Self Resonant Frequency2000 MHz | Design Kit – | –Check availability | ||
744765143GA | SPEC43 nH, ±2%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance43 nH | Inductance±2% | Inductance250 MHz | Q-Factor25 | Q-Factor250 MHz | DC Resistance0.81 Ω | Rated Current100 mA | Self Resonant Frequency2030 MHz | Design Kit | –Check availability | ||
744761143A | SPEC43 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance43 nH | Inductance±5% | Inductance250 MHz | Q-Factor38 | Q-Factor250 MHz | DC Resistance0.28 Ω | Rated Current600 mA | Self Resonant Frequency2000 MHz | Design Kit – | –Check availability | ||
744760143A | SPEC43 nH, ±5%, 250 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance43 nH | Inductance±5% | Inductance250 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.18 Ω | Rated Current500 mA | Self Resonant Frequency1800 MHz | Design Kit – | –Check availability | ||
744760143GA | SPEC43 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance43 nH | Inductance±2% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.18 Ω | Rated Current500 mA | Self Resonant Frequency1800 MHz | Design Kit – | –Check availability | ||
744765147A | SPEC47 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±5% | Inductance200 MHz | Q-Factor26 | Q-Factor200 MHz | DC Resistance0.83 Ω | Rated Current100 mA | Self Resonant Frequency2100 MHz | Design Kit | –Check availability | ||
744760147A | SPEC47 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±5% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.15 Ω | Rated Current500 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744762147A | SPEC47 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1500 MHz | Design Kit – | –Check availability | ||
744761147A | SPEC47 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±5% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.28 Ω | Rated Current600 mA | Self Resonant Frequency2000 MHz | Design Kit | –Check availability | ||
744761147GA | SPEC47 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±2% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.28 Ω | Rated Current600 mA | Self Resonant Frequency2000 MHz | Design Kit | –Check availability | ||
744765147GA | SPEC47 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±2% | Inductance200 MHz | Q-Factor26 | Q-Factor200 MHz | DC Resistance0.83 Ω | Rated Current100 mA | Self Resonant Frequency2100 MHz | Design Kit | –Check availability | ||
744760147GA | SPEC47 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±2% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.15 Ω | Rated Current500 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744762147GA | SPEC47 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.1 Ω | Rated Current1000 mA | Self Resonant Frequency1500 MHz | Design Kit – | –Check availability | ||
744765151A | SPEC51 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance51 nH | Inductance±5% | Inductance200 MHz | Q-Factor25 | Q-Factor200 MHz | DC Resistance0.82 Ω | Rated Current100 mA | Self Resonant Frequency1750 MHz | Design Kit | –Check availability | ||
744761151GA | SPEC51 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance51 nH | Inductance±2% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.31 Ω | Rated Current600 mA | Self Resonant Frequency1900 MHz | Design Kit | –Check availability | ||
744765151GA | SPEC51 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance51 nH | Inductance±2% | Inductance200 MHz | Q-Factor25 | Q-Factor200 MHz | DC Resistance0.82 Ω | Rated Current100 mA | Self Resonant Frequency1750 MHz | Design Kit | –Check availability | ||
744761151A | SPEC51 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance51 nH | Inductance±5% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.31 Ω | Rated Current600 mA | Self Resonant Frequency1900 MHz | Design Kit | –Check availability | ||
744765156A | SPEC56 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±5% | Inductance200 MHz | Q-Factor22 | Q-Factor200 MHz | DC Resistance0.97 Ω | Rated Current100 mA | Self Resonant Frequency1760 MHz | Design Kit | –Check availability | ||
744760156A | SPEC56 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±5% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.25 Ω | Rated Current500 mA | Self Resonant Frequency1600 MHz | Design Kit – | –Check availability | ||
744762156A | SPEC56 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.12 Ω | Rated Current1000 mA | Self Resonant Frequency1350 MHz | Design Kit | –Check availability | ||
744765156GA | SPEC56 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±2% | Inductance200 MHz | Q-Factor22 | Q-Factor200 MHz | DC Resistance0.97 Ω | Rated Current100 mA | Self Resonant Frequency1760 MHz | Design Kit | –Check availability | ||
744761156A | SPEC56 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±5% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.31 Ω | Rated Current600 mA | Self Resonant Frequency1900 MHz | Design Kit | –Check availability | ||
744761156GA | SPEC56 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±2% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.31 Ω | Rated Current600 mA | Self Resonant Frequency1900 MHz | Design Kit | –Check availability | ||
744760156GA | SPEC56 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±2% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.25 Ω | Rated Current500 mA | Self Resonant Frequency1600 MHz | Design Kit – | –Check availability | ||
744762156GA | SPEC56 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.12 Ω | Rated Current1000 mA | Self Resonant Frequency1350 MHz | Design Kit | –Check availability | ||
744761162A | SPEC62 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance62 nH | Inductance±5% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.34 Ω | Rated Current600 mA | Self Resonant Frequency1700 MHz | Design Kit – | –Check availability | ||
744761162GA | SPEC62 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance62 nH | Inductance±2% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.34 Ω | Rated Current600 mA | Self Resonant Frequency1700 MHz | Design Kit – | –Check availability | ||
744765168A | SPEC68 nH, ±5%, 200 MHz | Availability – | Status NRNDi| Production is active. Product is not recommended for new design. Expected lifetime: 2-5 years. | Inductance68 nH | Inductance±5% | Inductance200 MHz | Q-Factor22 | Q-Factor200 MHz | DC Resistance1.12 Ω | Rated Current100 mA | Self Resonant Frequency1620 MHz | Design Kit | –Check availability | ||
744761168A | SPEC68 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±5% | Inductance200 MHz | Q-Factor40 | Q-Factor250 MHz | DC Resistance0.34 Ω | Rated Current600 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744762168A | SPEC68 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.15 Ω | Rated Current1000 mA | Self Resonant Frequency1300 MHz | Design Kit – | –Check availability | ||
744765168GA | SPEC68 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±2% | Inductance200 MHz | Q-Factor22 | Q-Factor200 MHz | DC Resistance1.12 Ω | Rated Current100 mA | Self Resonant Frequency1620 MHz | Design Kit | –Check availability | ||
744761168GA | SPEC68 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±2% | Inductance200 MHz | Q-Factor40 | Q-Factor200 MHz | DC Resistance0.34 Ω | Rated Current600 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744760168A | SPEC68 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±5% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.27 Ω | Rated Current500 mA | Self Resonant Frequency1450 MHz | Design Kit | –Check availability | ||
744760168GA | SPEC68 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±2% | Inductance200 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.27 Ω | Rated Current500 mA | Self Resonant Frequency1450 MHz | Design Kit | –Check availability | ||
744762168GA | SPEC68 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.15 Ω | Rated Current1000 mA | Self Resonant Frequency1300 MHz | Design Kit – | –Check availability | ||
744761172A | SPEC72 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance72 nH | Inductance±5% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.49 Ω | Rated Current400 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744761172GA | SPEC72 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance72 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.49 Ω | Rated Current400 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744765175A | SPEC75 nH, ±5%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance75 nH | Inductance±5% | Inductance200 MHz | Q-Factor20 | Q-Factor200 MHz | DC Resistance1.2 Ω | Rated Current160 mA | Self Resonant Frequency1550 MHz | Design Kit | –Check availability | ||
744765175GA | SPEC75 nH, ±2%, 200 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance75 nH | Inductance±2% | Inductance200 MHz | Q-Factor20 | Q-Factor200 MHz | DC Resistance1.2 Ω | Rated Current160 mA | Self Resonant Frequency1550 MHz | Design Kit | –Check availability | ||
744760182A | SPEC82 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±5% | Inductance150 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.32 Ω | Rated Current500 mA | Self Resonant Frequency1350 MHz | Design Kit | –Check availability | ||
744762182A | SPEC82 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±5% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.18 Ω | Rated Current1000 mA | Self Resonant Frequency1100 MHz | Design Kit | –Check availability | ||
744765182A | SPEC82 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±5% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance1.25 Ω | Rated Current100 mA | Self Resonant Frequency1500 MHz | Design Kit | –Check availability | ||
744761182A | SPEC82 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±5% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.54 Ω | Rated Current400 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744761182GA | SPEC82 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.54 Ω | Rated Current400 mA | Self Resonant Frequency1700 MHz | Design Kit | –Check availability | ||
744765182GA | SPEC82 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±2% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance1.25 Ω | Rated Current100 mA | Self Resonant Frequency1500 MHz | Design Kit | –Check availability | ||
744760182GA | SPEC82 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±2% | Inductance150 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.32 Ω | Rated Current500 mA | Self Resonant Frequency1350 MHz | Design Kit | –Check availability | ||
744762182GA | SPEC82 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.18 Ω | Rated Current1000 mA | Self Resonant Frequency1100 MHz | Design Kit | –Check availability | ||
744761190A | SPEC90 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance90 nH | Inductance±5% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.54 Ω | Rated Current400 mA | Self Resonant Frequency1700 MHz | Design Kit – | –Check availability | ||
744761190GA | SPEC90 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance90 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.54 Ω | Rated Current400 mA | Self Resonant Frequency1700 MHz | Design Kit – | –Check availability | ||
744765191A | SPEC91 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance91 nH | Inductance±5% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance2.3 Ω | Rated Current120 mA | Self Resonant Frequency1350 MHz | Design Kit | –Check availability | ||
744765191GA | SPEC91 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance91 nH | Inductance±2% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance2.3 Ω | Rated Current120 mA | Self Resonant Frequency1350 MHz | Design Kit | –Check availability | ||
744760191A | SPEC91 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance91 nH | Inductance±5% | Inductance150 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.35 Ω | Rated Current500 mA | Self Resonant Frequency1200 MHz | Design Kit – | –Check availability | ||
744760191GA | SPEC91 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance91 nH | Inductance±2% | Inductance150 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.35 Ω | Rated Current500 mA | Self Resonant Frequency1200 MHz | Design Kit – | –Check availability | ||
744765210A | SPEC100 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±5% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance2.52 Ω | Rated Current100 mA | Self Resonant Frequency1300 MHz | Design Kit | –Check availability | ||
744761210A | SPEC100 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±5% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.63 Ω | Rated Current400 mA | Self Resonant Frequency1400 MHz | Design Kit | –Check availability | ||
744762210A | SPEC100 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±5% | Inductance25 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.18 Ω | Rated Current1000 mA | Self Resonant Frequency1100 MHz | Design Kit | –Check availability | ||
744765210GA | SPEC100 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±2% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance2.52 Ω | Rated Current100 mA | Self Resonant Frequency1300 MHz | Design Kit | –Check availability | ||
744761210GA | SPEC100 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.63 Ω | Rated Current400 mA | Self Resonant Frequency1400 MHz | Design Kit | –Check availability | ||
744760210A | SPEC100 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±5% | Inductance150 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.43 Ω | Rated Current500 mA | Self Resonant Frequency1200 MHz | Design Kit – | –Check availability | ||
744760210GA | SPEC100 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±2% | Inductance150 MHz | Q-Factor60 | Q-Factor500 MHz | DC Resistance0.43 Ω | Rated Current500 mA | Self Resonant Frequency1200 MHz | Design Kit | –Check availability | ||
744762210GA | SPEC100 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 nH | Inductance±2% | Inductance100 MHz | Q-Factor60 | Q-Factor350 MHz | DC Resistance0.18 Ω | Rated Current1000 mA | Self Resonant Frequency1100 MHz | Design Kit | –Check availability | ||
744761211GA | SPEC110 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance110 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.63 Ω | Rated Current400 mA | Self Resonant Frequency1400 MHz | Design Kit – | –Check availability | ||
744761211A | SPEC110 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance110 nH | Inductance±5% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.63 Ω | Rated Current400 mA | Self Resonant Frequency1400 MHz | Design Kit – | –Check availability | ||
744762212A | SPEC120 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.2 Ω | Rated Current800 mA | Self Resonant Frequency950 MHz | Design Kit | –Check availability | ||
744761212A | SPEC120 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±5% | Inductance100 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.65 Ω | Rated Current300 mA | Self Resonant Frequency1300 MHz | Design Kit | –Check availability | ||
744765212A | SPEC120 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±5% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance2.66 Ω | Rated Current100 mA | Self Resonant Frequency1100 MHz | Design Kit | –Check availability | ||
744765212GA | SPEC120 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±2% | Inductance150 MHz | Q-Factor20 | Q-Factor150 MHz | DC Resistance2.66 Ω | Rated Current100 mA | Self Resonant Frequency1100 MHz | Design Kit | –Check availability | ||
744761212GA | SPEC120 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.65 Ω | Rated Current300 mA | Self Resonant Frequency1300 MHz | Design Kit | –Check availability | ||
744760212A | SPEC120 nH, ±5%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±5% | Inductance150 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance0.48 Ω | Rated Current500 mA | Self Resonant Frequency1100 MHz | Design Kit – | –Check availability | ||
744760212GA | SPEC120 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±2% | Inductance150 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance0.48 Ω | Rated Current500 mA | Self Resonant Frequency1100 MHz | Design Kit – | –Check availability | ||
744762212GA | SPEC120 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.2 Ω | Rated Current800 mA | Self Resonant Frequency950 MHz | Design Kit | –Check availability | ||
744761215A | SPEC150 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 nH | Inductance±5% | Inductance100 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.92 Ω | Rated Current280 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744762215A | SPEC150 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.22 Ω | Rated Current800 mA | Self Resonant Frequency880 MHz | Design Kit – | –Check availability | ||
744761215GA | SPEC150 nH, ±2%, 150 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 nH | Inductance±2% | Inductance150 MHz | Q-Factor35 | Q-Factor150 MHz | DC Resistance0.92 Ω | Rated Current280 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744760215A | SPEC150 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 nH | Inductance±5% | Inductance100 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance0.56 Ω | Rated Current400 mA | Self Resonant Frequency950 MHz | Design Kit | –Check availability | ||
744760215GA | SPEC150 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 nH | Inductance±2% | Inductance100 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance0.56 Ω | Rated Current400 mA | Self Resonant Frequency950 MHz | Design Kit | –Check availability | ||
744762215GA | SPEC150 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.22 Ω | Rated Current800 mA | Self Resonant Frequency880 MHz | Design Kit – | –Check availability | ||
744761216A | SPEC160 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance160 nH | Inductance±5% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1 Ω | Rated Current250 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744761216GA | SPEC160 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance160 nH | Inductance±2% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1 Ω | Rated Current250 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744760218A | SPEC180 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance180 nH | Inductance±5% | Inductance100 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance0.78 Ω | Rated Current400 mA | Self Resonant Frequency900 MHz | Design Kit | –Check availability | ||
744762218A | SPEC180 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance180 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.33 Ω | Rated Current800 mA | Self Resonant Frequency800 MHz | Design Kit | –Check availability | ||
744761218A | SPEC180 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance180 nH | Inductance±5% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.25 Ω | Rated Current240 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744761218GA | SPEC180 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance180 nH | Inductance±2% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.25 Ω | Rated Current240 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744760218GA | SPEC180 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance180 nH | Inductance±2% | Inductance100 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance0.78 Ω | Rated Current400 mA | Self Resonant Frequency900 MHz | Design Kit | –Check availability | ||
744762218GA | SPEC180 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance180 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.33 Ω | Rated Current800 mA | Self Resonant Frequency800 MHz | Design Kit | –Check availability | ||
744761220A | SPEC200 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance200 nH | Inductance±5% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.25 Ω | Rated Current240 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744761220GA | SPEC200 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance200 nH | Inductance±2% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.25 Ω | Rated Current240 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744761221A | SPEC210 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance210 nH | Inductance±5% | Inductance100 MHz | Q-Factor27 | Q-Factor100 MHz | DC Resistance1.7 Ω | Rated Current200 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744761221GA | SPEC210 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance210 nH | Inductance±2% | Inductance100 MHz | Q-Factor27 | Q-Factor100 MHz | DC Resistance1.7 Ω | Rated Current200 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744760222A | SPEC220 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 nH | Inductance±5% | Inductance100 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance1 Ω | Rated Current400 mA | Self Resonant Frequency860 MHz | Design Kit – | –Check availability | ||
744762222A | SPEC220 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.45 Ω | Rated Current800 mA | Self Resonant Frequency730 MHz | Design Kit | –Check availability | ||
744762222GA | SPEC220 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.45 Ω | Rated Current800 mA | Self Resonant Frequency730 MHz | Design Kit | –Check availability | ||
744761222A | SPEC220 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 nH | Inductance±5% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.7 Ω | Rated Current200 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744761222GA | SPEC220 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 nH | Inductance±2% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.7 Ω | Rated Current200 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744760222GA | SPEC220 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 nH | Inductance±2% | Inductance100 MHz | Q-Factor50 | Q-Factor250 MHz | DC Resistance1 Ω | Rated Current400 mA | Self Resonant Frequency860 MHz | Design Kit – | –Check availability | ||
744761224A | SPEC240 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance240 nH | Inductance±5% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.7 Ω | Rated Current200 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744761224GA | SPEC240 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance240 nH | Inductance±2% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.7 Ω | Rated Current200 mA | Self Resonant Frequency1000 MHz | Design Kit – | –Check availability | ||
744761227A | SPEC270 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance270 nH | Inductance±5% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.8 Ω | Rated Current170 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744762227A | SPEC270 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance270 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.75 Ω | Rated Current600 mA | Self Resonant Frequency650 MHz | Design Kit – | –Check availability | ||
744761227GA | SPEC270 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance270 nH | Inductance±2% | Inductance100 MHz | Q-Factor30 | Q-Factor100 MHz | DC Resistance1.8 Ω | Rated Current170 mA | Self Resonant Frequency1000 MHz | Design Kit | –Check availability | ||
744760227A | SPEC270 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance270 nH | Inductance±5% | Inductance100 MHz | Q-Factor45 | Q-Factor250 MHz | DC Resistance1.46 Ω | Rated Current350 mA | Self Resonant Frequency850 MHz | Design Kit | –Check availability | ||
744760227GA | SPEC270 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance270 nH | Inductance±2% | Inductance100 MHz | Q-Factor45 | Q-Factor250 MHz | DC Resistance1.46 Ω | Rated Current350 mA | Self Resonant Frequency850 MHz | Design Kit | –Check availability | ||
744762227GA | SPEC270 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance270 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.75 Ω | Rated Current600 mA | Self Resonant Frequency650 MHz | Design Kit – | –Check availability | ||
744761233A | SPEC330 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 nH | Inductance±5% | Inductance100 MHz | Q-Factor25 | Q-Factor100 MHz | DC Resistance2 Ω | Rated Current150 mA | Self Resonant Frequency450 MHz | Design Kit | –Check availability | ||
744760233A | SPEC330 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 nH | Inductance±5% | Inductance100 MHz | Q-Factor45 | Q-Factor250 MHz | DC Resistance1.65 Ω | Rated Current300 mA | Self Resonant Frequency800 MHz | Design Kit – | –Check availability | ||
744762233A | SPEC330 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.9 Ω | Rated Current500 mA | Self Resonant Frequency570 MHz | Design Kit | –Check availability | ||
744762233GA | SPEC330 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance0.9 Ω | Rated Current500 mA | Self Resonant Frequency570 MHz | Design Kit | –Check availability | ||
744761233GA | SPEC330 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 nH | Inductance±2% | Inductance100 MHz | Q-Factor25 | Q-Factor100 MHz | DC Resistance2 Ω | Rated Current150 mA | Self Resonant Frequency450 MHz | Design Kit | –Check availability | ||
744760233GA | SPEC330 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 nH | Inductance±2% | Inductance100 MHz | Q-Factor45 | Q-Factor250 MHz | DC Resistance1.65 Ω | Rated Current300 mA | Self Resonant Frequency800 MHz | Design Kit – | –Check availability | ||
744761239A | SPEC390 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 nH | Inductance±5% | Inductance100 MHz | Q-Factor20 | Q-Factor100 MHz | DC Resistance2 Ω | Rated Current170 mA | Self Resonant Frequency350 MHz | Design Kit | –Check availability | ||
744760239A | SPEC390 nH, ±5%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 nH | Inductance±5% | Inductance100 MHz | Q-Factor45 | Q-Factor250 MHz | DC Resistance2.2 Ω | Rated Current210 mA | Self Resonant Frequency780 MHz | Design Kit | –Check availability | ||
744762239A | SPEC390 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance1.06 Ω | Rated Current470 mA | Self Resonant Frequency530 MHz | Design Kit – | –Check availability | ||
744761239GA | SPEC390 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 nH | Inductance±2% | Inductance100 MHz | Q-Factor20 | Q-Factor100 MHz | DC Resistance2 Ω | Rated Current170 mA | Self Resonant Frequency350 MHz | Design Kit | –Check availability | ||
744760239GA | SPEC390 nH, ±2%, 100 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 nH | Inductance±2% | Inductance100 MHz | Q-Factor45 | Q-Factor250 MHz | DC Resistance2.2 Ω | Rated Current210 mA | Self Resonant Frequency780 MHz | Design Kit | –Check availability | ||
744762239GA | SPEC390 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance1.06 Ω | Rated Current470 mA | Self Resonant Frequency530 MHz | Design Kit – | –Check availability | ||
744762247A | SPEC470 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance470 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance1.17 Ω | Rated Current420 mA | Self Resonant Frequency480 MHz | Design Kit – | –Check availability | ||
744762247GA | SPEC470 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance470 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance1.17 Ω | Rated Current420 mA | Self Resonant Frequency480 MHz | Design Kit – | –Check availability | ||
744761247A | SPEC470 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance470 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor25 MHz | DC Resistance2.1 Ω | Rated Current170 mA | Self Resonant Frequency250 MHz | Design Kit – | –Check availability | ||
7447602470A | SPEC470 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance470 nH | Inductance±5% | Inductance25 MHz | Q-Factor25 | Q-Factor100 MHz | DC Resistance1.05 Ω | Rated Current210 mA | Self Resonant Frequency350 MHz | Design Kit – | –Check availability | ||
744762256A | SPEC560 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance560 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance1.5 Ω | Rated Current310 mA | Self Resonant Frequency430 MHz | Design Kit | –Check availability | ||
744762256GA | SPEC560 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance560 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance1.5 Ω | Rated Current310 mA | Self Resonant Frequency430 MHz | Design Kit | –Check availability | ||
744761256A | SPEC560 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance560 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor25 MHz | DC Resistance2.5 Ω | Rated Current120 mA | Self Resonant Frequency220 MHz | Design Kit – | –Check availability | ||
7447602560A | SPEC560 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance560 nH | Inductance±5% | Inductance25 MHz | Q-Factor18 | Q-Factor100 MHz | DC Resistance1.1 Ω | Rated Current230 mA | Self Resonant Frequency250 MHz | Design Kit – | –Check availability | ||
7447602620A | SPEC620 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance620 nH | Inductance±5% | Inductance25 MHz | Q-Factor18 | Q-Factor100 MHz | DC Resistance1.2 Ω | Rated Current230 mA | Self Resonant Frequency250 MHz | Design Kit – | –Check availability | ||
744761268A | SPEC680 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance680 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor25 MHz | DC Resistance2.9 Ω | Rated Current120 mA | Self Resonant Frequency200 MHz | Design Kit – | –Check availability | ||
744762268A | SPEC680 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance680 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance2.06 Ω | Rated Current230 mA | Self Resonant Frequency380 MHz | Design Kit | –Check availability | ||
744762268GA | SPEC680 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance680 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance2.06 Ω | Rated Current230 mA | Self Resonant Frequency380 MHz | Design Kit | –Check availability | ||
7447602680A | SPEC680 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance680 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor100 MHz | DC Resistance1.2 Ω | Rated Current400 mA | Self Resonant Frequency188 MHz | Design Kit – | –Check availability | ||
744762275A | SPEC750 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance750 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance2.2 Ω | Rated Current200 mA | Self Resonant Frequency360 MHz | Design Kit – | –Check availability | ||
744762275GA | SPEC750 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance750 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance2.2 Ω | Rated Current200 mA | Self Resonant Frequency360 MHz | Design Kit – | –Check availability | ||
744762282A | SPEC820 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance820 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance2.3 Ω | Rated Current180 mA | Self Resonant Frequency350 MHz | Design Kit | –Check availability | ||
744762282GA | SPEC820 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance820 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance2.3 Ω | Rated Current180 mA | Self Resonant Frequency350 MHz | Design Kit | –Check availability | ||
744761282A | SPEC820 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance820 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor25 MHz | DC Resistance3.2 Ω | Rated Current120 mA | Self Resonant Frequency200 MHz | Design Kit – | –Check availability | ||
7447602820A | SPEC820 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance820 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor100 MHz | DC Resistance1.5 Ω | Rated Current300 mA | Self Resonant Frequency215 MHz | Design Kit – | –Check availability | ||
744762291A | SPEC910 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance910 nH | Inductance±5% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance3.18 Ω | Rated Current150 mA | Self Resonant Frequency330 MHz | Design Kit – | –Check availability | ||
744762291GA | SPEC910 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance910 nH | Inductance±2% | Inductance25 MHz | Q-Factor45 | Q-Factor100 MHz | DC Resistance3.18 Ω | Rated Current150 mA | Self Resonant Frequency330 MHz | Design Kit – | –Check availability | ||
744762310A | SPEC1000 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1000 nH | Inductance±5% | Inductance25 MHz | Q-Factor35 | Q-Factor50 MHz | DC Resistance3.3 Ω | Rated Current120 mA | Self Resonant Frequency310 MHz | Design Kit | –Check availability | ||
744761310A | SPEC1000 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1000 nH | Inductance±5% | Inductance25 MHz | Q-Factor15 | Q-Factor25 MHz | DC Resistance3.5 Ω | Rated Current120 mA | Self Resonant Frequency200 MHz | Design Kit – | –Check availability | ||
744762310GA | SPEC1000 nH, ±2%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1000 nH | Inductance±2% | Inductance25 MHz | Q-Factor35 | Q-Factor50 MHz | DC Resistance3.3 Ω | Rated Current120 mA | Self Resonant Frequency310 MHz | Design Kit | –Check availability | ||
7447603100A | SPEC1000 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1000 nH | Inductance±5% | Inductance25 MHz | Q-Factor20 | Q-Factor50 MHz | DC Resistance2.8 Ω | Rated Current180 mA | Self Resonant Frequency250 MHz | Design Kit – | –Check availability | ||
7447603120A | SPEC1200 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1200 nH | Inductance±5% | Inductance25 MHz | Q-Factor18 | Q-Factor50 MHz | DC Resistance3.2 Ω | Rated Current200 mA | Self Resonant Frequency190 MHz | Design Kit – | –Check availability | ||
7447603150A | SPEC1500 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1500 nH | Inductance±5% | Inductance25 MHz | Q-Factor18 | Q-Factor50 MHz | DC Resistance5.88 Ω | Rated Current160 mA | Self Resonant Frequency210 MHz | Design Kit – | –Check availability | ||
7447603180A | SPEC1800 nH, ±5%, 25 MHz | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1800 nH | Inductance±5% | Inductance25 MHz | Q-Factor18 | Q-Factor50 MHz | DC Resistance6.26 Ω | Rated Current140 mA | Self Resonant Frequency210 MHz | Design Kit – | –Check availability |
Availability Forecast
WE item number Packaging unitsLead time
––– weeks
| Expected Availability | Opening inventory | Quantity |
|---|---|---|
| Current Availability | – | – |
There is no forecast for this quantity request.
Does it just not fit? Please contact us.Simply contact our service team for special orders and bulk quantities.Contact us
Würth Elektronik offers several product series with different construction technology
RF Inductors selection guide
WE-KI SMT Wire Wound Ceramic Inductor
- Inductance values from 1nH up to 1800nH
- High Q factor
- Up to 12.5GHz self resonant frequency
- Up to ± 2% inductance tolerance
- High thermal stability
- Design Kits available for the different sizes
WE-KI High Current Wire Wound Ceramic Inductor
- Inductance values from 1nH up to 390nH
- Excellent Q factor
- High current up to 2.3 A
- ± 2% Inductance Tolerance
- High thermal stability
- Design Kit available
WE-MK Multilayer Ceramic Inductor
- Inductance values from 1nH up to 470nH
- Extremly small size (up to 0201)
- Up to ±2% (or ±0.1nH) inductance tolerance
- Robust structure
- Polarity marking available
- Design Kits available for the different sizes
- High thermal stability
WE-CAIR Air Core Inductor
- Inductance values from 1.65nH up to 538nH
- Extremly high Q factor (Q>100)
- Very high current up to 4 A
- High self resonant frequency
- Design Kit available
- High thermal stability
WE-TCI Thin Film Inductor
- Inductance values from 1nH up to 27nH
- High self resonant frequency
- Tight tolerance of 2 % (1% on request) or ± 0.1
- Very small size (up to 0201)
WE-RFI Wire Wound ferrite inductor
- High inductance values available from 20 nH up to 47 µH
- Operating temperature:–40 °C to +85 °C
- Size: 0402 to 1008
- Design Kit available
What is the Quality Factor Q?
What is the Quality Factor Q?
The quality factor Q is an essential characteristic parameter and one of the first creterias that every RF engineer should take into account. The Q factor is given either as minimum or as typical value at a defined frequency point. In the case of Würth Elektronik, the Q factor is given as the minimum value in order to guarantee customers a reliable minimum level.
Basically, the Q factor is the ratio between the inductive reactance XL and the losses RS and is an indicator of how ideal an inductor is. For inductors with air or ceramic cores, the resistance RS is mainly due to the resistivity of the conductor in the inductor device. A higher Q factor means less losses in the component.
Self Resonant Frequency
Self Resonant Frequency
Because the winding structure of any coil of wire will exhibit some capacitance, the inductor will serve as a parallel resonant tank circuit with an associated self-resonance frequency (SRF). As with conventional inductors, SRF indicates up to which frequency the inductor behaves as an inductor.
Exactly at the SRF the inductor with its parasitic capacitance behaves as a resonance circuit with an almost infinite high impedance, only circuit losses limit the high value of the impedance. Beyond the SRF the “inductor” behaves like a capacitor
Increasing the inductance and/or the parasitic capacitance lowers the SRF, and vice versa. This is the reason why the higher the inductance value, the lower the SRF.
In case of choke applications in which inductors are used, the best signal blocking occurs shortly below the SRF, where the impedance is very high and thus the attenuation reaches its maximum. For filter or impedance-matching applications, it is more important to have constant inductance in the relevant frequency range, which means the SRF of the inductor should be well above the operating frequency of the circuit.
Rated Current in high frequency application
Rated Current in high frequency application
The rated current is specified as the maximum DC current (A or mA) that causes a defined temperature rise (i.e. ΔT = 40 K). The temperature rise plus the ambient temperature must not exceed the maximum operating temperature. For high current applications, please select the specific air core inductors: WE-KI HC, WE-ACHC and WE-CAIR.
RF inductors and Antenna Matching
How Antenna Matching works
RF inductors and Antenna Matching
How Antenna Matching works
With the help of the Smith chart, the complex antenna feed point impedance, consisting of resistive and reactive values, can be represented graphically. In a matched antenna, the impedance at the operating frequency is close to the middle of the Smith chart and therefore close to the impedance of 50 Ω. This can be achieved by using RF inductors and RF capacitors. A pi matching network is particularly useful for this purpose, since it can be used flexibly for antenna matching from almost any other impedance. In practice, antenna matching works through iterative steps.
In addition to the WE-MCA Antennas, we offer our customers a development-accompanying antenna service. We support from the antenna selection over the antenna placement up to the antenna matching.
Website: www.we-online.com/antennamatching
E-Mail: antenna.matching@we-online.com
We are also offering an Antenna Matching Design Kit that contains all the components needed for your antenna matching. This Design Kit with order code 748001, contains chip antennas WE-MCA, multilayer ceramic inductors WE-MK size 0402, high frequency chip capacitors WCAP-CSRF in size 0402 and RF coaxial cables WR-CXARY working up to 18 GHz
Suitable for
Assortments
Articles from this product series can be found in the following assortments:
Design Kit WE-KI SMT Wire Wound Ceramic Inductor 0603 - ±5% Tol.
Design Kit WE-KI SMT Wire Wound Ceramic Inductor 0805/1008 - ±5% Tol.
Design Kit WE-KI SMT Wire Wound Ceramic Inductor 0402 - ±5% Tol.
Design Kit WE-KI SMT Wire Wound Ceramic Inductor 0402 - ±2% Tol.
Design Kit WE-KI SMT Wire Wound Ceramic Inductor 0603 - ±2% Tol.
Design Kit WE-KI SMT Wire Wound Ceramic Inductor 0805/1008 - ±2% Tol.
