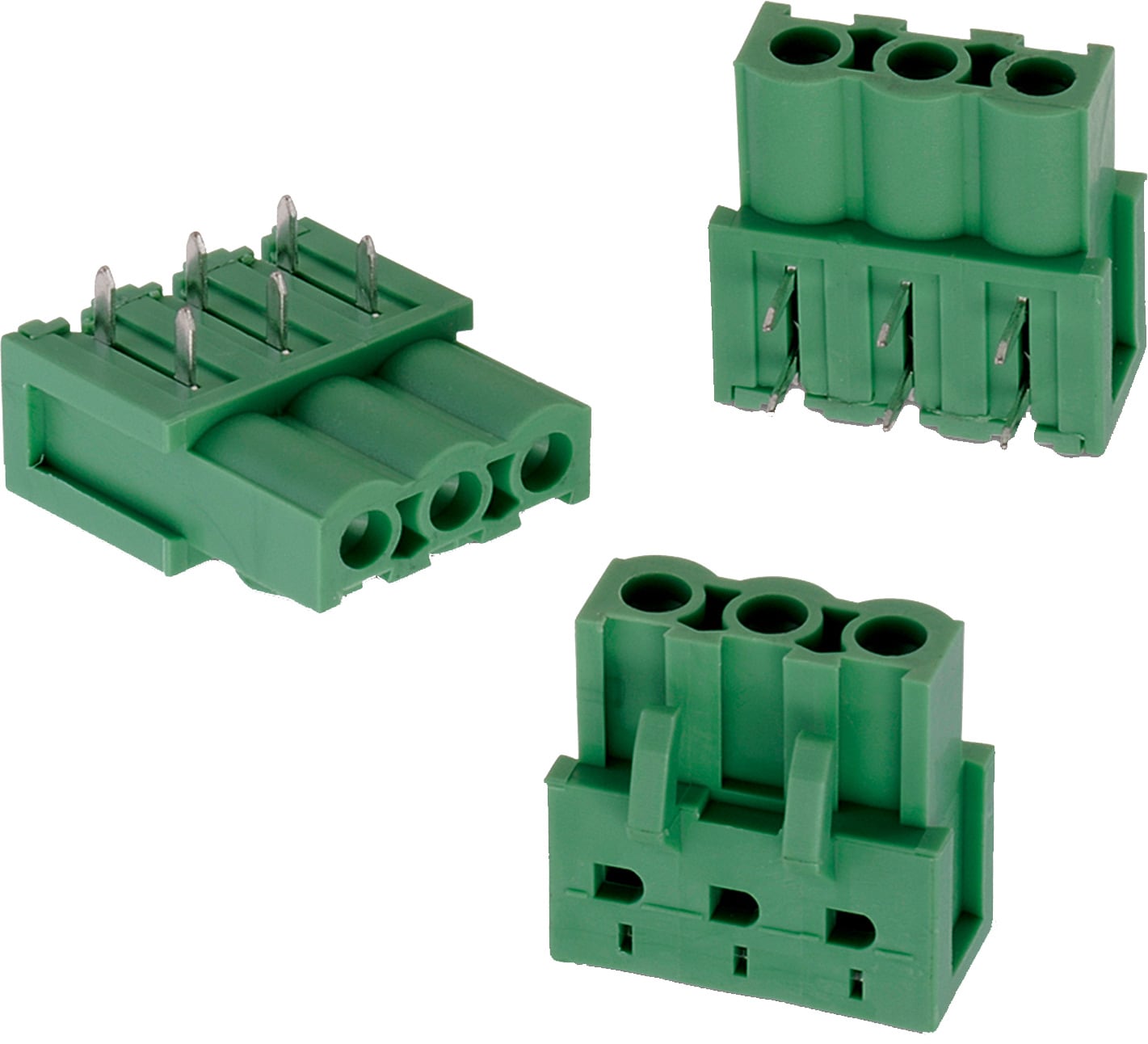

WR-TBL Series 3095 - 5.08 mm Reversed Gender Horizontal PCB Header | Electromechanical Components

Kind Properties
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

General Information
Operating Temperature	-40 up to +105 °C
Compliance	RoHS

Electrical Properties
I_{R cULus}	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type
691309510002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 691309510002_1 (rev1).pdf \| 197.4 KB IGS 691309510002 (rev1).igs \| 1.7 MB STP 691309510002 (rev1).stp \| 650.1 KB	2	Pluggable	PCB	No	Horizontal
691309510003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 691309510003_1 (rev1).pdf \| 263.2 KB IGS 691309510003 (rev1).igs \| 2.3 MB STP 691309510003 (rev1).stp \| 868.8 KB	3	Pluggable	PCB	No	Horizontal
691309510004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 691309510004_1 (rev1).pdf \| 307.4 KB IGS 691309510004 (rev1).igs \| 2.8 MB STP 691309510004 (rev1).stp \| 1 MB	4	Pluggable	PCB	No	Horizontal
691309510005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 691309510005_1 (rev1).pdf \| 352.1 KB IGS 691309510005 (rev1).igs \| 3.3 MB STP 691309510005 (rev1).stp \| 1.2 MB	5	Pluggable	PCB	No	Horizontal
691309510006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 691309510006_1 (rev1).pdf \| 405.6 KB IGS 691309510006 (rev1).igs \| 3.7 MB STP 691309510006 (rev1).stp \| 1.4 MB	6	Pluggable	PCB	No	Horizontal
691309510007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 3D_691309510007 (rev1).pdf \| 492.7 KB IGS Downloads_IGES_691309510007 (rev1).iges \| 4.2 MB STP Downloads_STP_691309510007 (rev1).stp \| 1.6 MB	7	Pluggable	PCB	No	Horizontal
691309510008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 691309510008_1 (rev1).pdf \| 543.8 KB IGS 691309510008 (rev1).igs \| 4.7 MB STP 691309510008 (rev1).stp \| 1.8 MB	8	Pluggable	PCB	No	Horizontal
691309510012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23a).IntLib \| 154.2 MB CDS Cadence_WR-TBL (rev22b).zip \| 231.7 MB EAG Eagle_WR-TBL Pluggable Connector (rev21a).lbr \| 3.7 MB CAD files ZIP 3D 3D_691309510012 (rev1).pdf \| 739.2 KB IGS Downloads_IGES_691309510012 (rev1).iges \| 6.6 MB STP Downloads_STP_691309510012 (rev1).stp \| 2.5 MB	12	Pluggable	PCB	No	Horizontal

Order Code	Datasheet
691309510002	SPEC
691309510003	SPEC
691309510004	SPEC
691309510005	SPEC
691309510006	SPEC
691309510007	SPEC
691309510008	SPEC
691309510012	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
