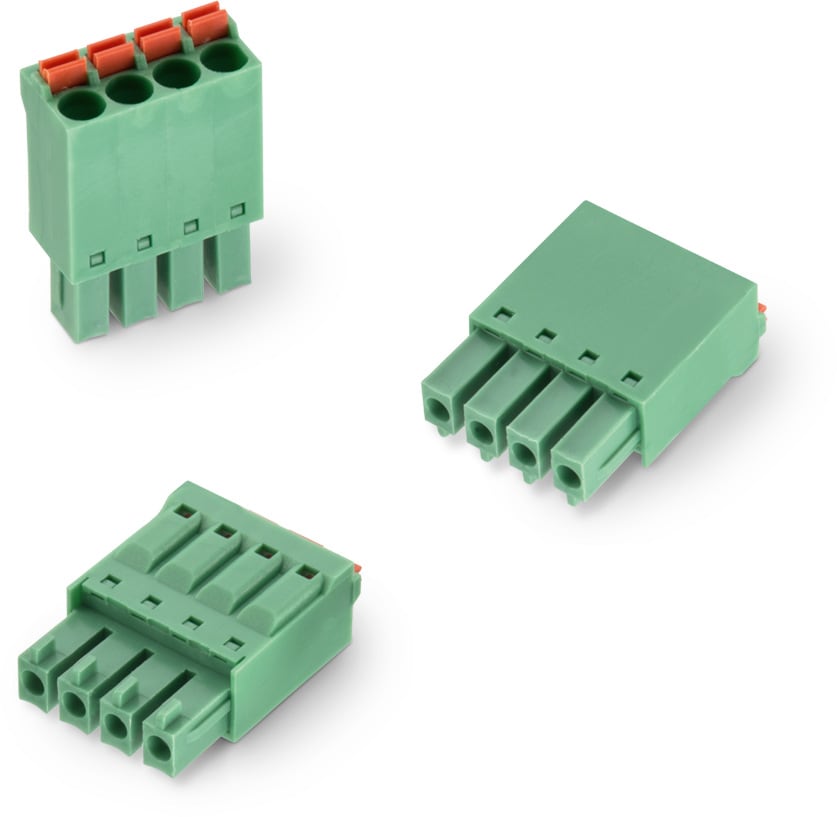

WR-TBL Series 3043 - 3.81 mm Screwless Plug Vertical Entry Low Profile | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green/Orange
Contact Material	Copper Alloy
Contact Plating	Tin
Terminal Material	Copper Alloy
Terminal Plating	Tin-plated surface
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
I_R[cULus]	12 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	16 to 24 (AWG)
Solid Wire Section (Metric)	1.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	16 to 24 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.205 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	SamplesAvailability & Sample
691304300002	SPEC2, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300002 (rev1).pdf \| 209.7 KB IGS Download_IGES_691304300002 (rev1).iges \| 2.9 MB STP Download_STEP_691304300002 (rev1).stp \| 645.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit 612690 691002	–Check availability
691304300003	SPEC3, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300003 (rev1).pdf \| 266.5 KB IGS Download_IGES_691304300003 (rev1).iges \| 3.8 MB STP Download_STEP_691304300003 (rev1).stp \| 844.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300004	SPEC4, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300004 (rev1).pdf \| 325.5 KB IGS Download_IGES_691304300004 (rev1).iges \| 4.7 MB STP Download_STEP_691304300004 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300005	SPEC5, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300005 (rev1).pdf \| 386.5 KB IGS Download_IGES_691304300005 (rev1).iges \| 5.6 MB STP Download_STEP_691304300005 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300006	SPEC6, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_6911304300006 (rev1).pdf \| 454.7 KB IGS Download_IGES_691304300006 (rev1).iges \| 6.5 MB STP Download_STEP_691304300006 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300007	SPEC7, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300007 (rev1).pdf \| 513.7 KB IGS Download_IGES_691304300007 (rev1).iges \| 7.4 MB STP Download_STEP_691304300007 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300008	SPEC8, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300008 (rev1).pdf \| 574.5 KB IGS Download_IGES_691304300008 (rev1).iges \| 8.4 MB STP Download_STEP_691304300008 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300009	SPEC9, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300009 (rev1).pdf \| 625.5 KB IGS Download_IGES_691304300009 (rev1).iges \| 9.3 MB STP Download_STP_691304300009 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
691304300010	SPEC10, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 3D_691304300010 (rev1).pdf \| 683.5 KB IGS Download_IGES_691304300010 (rev1).iges \| 10.2 MB STP Download_STP_691304300010 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 24 (AWG) 1.31 to 0.205 (mm²)	Design Kit –	–Check availability
