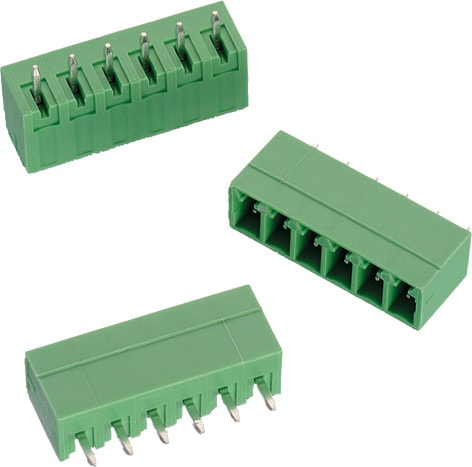

WR-TBL Series 321 - 3.81 mm Vertical PCB Header. | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	10 A; 10.5 A
I_R[cULus]	10 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
UL Approval	E315414
VDE Approval	40023195
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691321300002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300002_1 (rev1).pdf \| 75.9 KB IGS 691321300002 (rev1).igs \| 728.5 KB STP 691321300002 (rev1).stp \| 285.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	PCB Header	Cable	No	PCB Header	612690
691321300003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300003_1 (rev1).pdf \| 101.4 KB IGS 691321300003 (rev1).igs \| 979.3 KB STP 691321300003 (rev1).stp \| 385.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	Cable	No	PCB Header	691002
691321300004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300004_1 (rev1).pdf \| 115.7 KB IGS 691321300004 (rev1).igs \| 1.2 MB STP 691321300004 (rev1).stp \| 485.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	Cable	No	PCB Header	–
691321300005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300005_1 (rev1).pdf \| 141.3 KB IGS 691321300005 (rev1).igs \| 1.5 MB STP 691321300005 (rev1).stp \| 586.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	Cable	No	PCB Header	–
691321300006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300006_1 (rev1).pdf \| 157.5 KB IGS 691321300006 (rev1).igs \| 1.7 MB STP 691321300006 (rev1).stp \| 689.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	Cable	No	PCB Header	–
691321300007	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300007_1 (rev1).pdf \| 179.4 KB IGS 691321300007 (rev1).iges \| 2 MB IGS 691321300007 (rev1).igs \| 2 MB STP 691321300007 (rev1).stp \| 793.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	PCB Header	Cable	No	PCB Header	–
691321300008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300008_1 (rev1).pdf \| 195.3 KB IGS 691321300008 (rev1).igs \| 2.2 MB STP 691321300008 (rev1).stp \| 897.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	PCB Header	Cable	No	PCB Header	–
691321300009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300009_1 (rev1).pdf \| 220 KB IGS 691321300009 (rev1).igs \| 2.5 MB STP 691321300009 (rev1).stp \| 1002 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	PCB Header	Cable	No	PCB Header	–
691321300010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300010_1 (rev1).pdf \| 229.6 KB IGS 691321300010 (rev1).igs \| 2.7 MB STP 691321300010 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	PCB Header	Cable	No	PCB Header	–
691321300011	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300011_1 (rev1).pdf \| 247.3 KB IGS 691321300011 (rev1).igs \| 3 MB STP 691321300011 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	11	PCB Header	Cable	No	PCB Header	–
691321300012	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300012_1 (rev1).pdf \| 297.1 KB IGS 691321300012 (rev1).iges \| 3.2 MB IGS 691321300012 (rev1).igs \| 3.2 MB STP 691321300012 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	PCB Header	Cable	No	PCB Header	–
691321300013	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300013_1 (rev1).pdf \| 317.5 KB IGS 691321300013 (rev1).igs \| 3.5 MB STP 691321300013 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	13	PCB Header	Cable	No	PCB Header	–
691321300014	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300014_1 (rev1).pdf \| 335.7 KB IGS 691321300014 (rev1).igs \| 3.7 MB STP 691321300014 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	PCB Header	Cable	No	PCB Header	–
691321300015	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300015_1 (rev1).pdf \| 353.2 KB IGS 691321300015 (rev1).igs \| 4 MB STP 691321300015 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	PCB Header	Cable	No	PCB Header	–
691321300016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300016_1 (rev1).pdf \| 373.9 KB IGS 691321300016 (rev1).igs \| 4.2 MB STP 691321300016 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	PCB Header	Cable	No	PCB Header	–
691321300017	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300017_1 (rev1).pdf \| 385.9 KB IGS 691321300017 (rev1).igs \| 4.5 MB STP 691321300017 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	17	PCB Header	Cable	No	PCB Header	–
691321300018	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300018_1 (rev1).pdf \| 402.1 KB IGS 691321300018 (rev1).igs \| 4.8 MB STP 691321300018 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	PCB Header	Cable	No	PCB Header	–
691321300019	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300019_1 (rev1).pdf \| 426.6 KB IGS 691321300019 (rev1).igs \| 5 MB STP 691321300019 (rev1).stp \| 2 MB	Active i\| Production is active. Expected lifetime: >10 years.	19	PCB Header	Cable	No	PCB Header	–
691321300020	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300020_1 (rev1).pdf \| 434.6 KB IGS 691321300020 (rev1).igs \| 5.3 MB STP 691321300020 (rev1).stp \| 2.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	PCB Header	Cable	No	PCB Header	–
691321300021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300021_1 (rev1).pdf \| 457.3 KB IGS 691321300021 (rev1).igs \| 5.5 MB STP 691321300021 (rev1).stp \| 2.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	21	PCB Header	Cable	No	PCB Header	–
691321300022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300022_1 (rev1).pdf \| 476.8 KB IGS 691321300022 (rev1).igs \| 5.8 MB STP 691321300022 (rev1).stp \| 2.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	PCB Header	Cable	No	PCB Header	–
691321300023	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300023_1 (rev1).pdf \| 494.3 KB IGS 691321300023 (rev1).igs \| 6 MB STP 691321300023 (rev1).stp \| 2.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	23	PCB Header	Cable	No	PCB Header	–
691321300024	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691321300024_1 (rev1).pdf \| 513.6 KB IGS 691321300024 (rev1).igs \| 6.3 MB STP 691321300024 (rev1).stp \| 2.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	PCB Header	Cable	No	PCB Header	–

Order Code	Datasheet
691321300002	SPEC
691321300003	SPEC
691321300004	SPEC
691321300005	SPEC
691321300006	SPEC
691321300007	SPEC
691321300008	SPEC
691321300009	SPEC
691321300010	SPEC
691321300011	SPEC
691321300012	SPEC
691321300013	SPEC
691321300014	SPEC
691321300015	SPEC
691321300016	SPEC
691321300017	SPEC
691321300018	SPEC
691321300019	SPEC
691321300020	SPEC
691321300021	SPEC
691321300022	SPEC
691321300023	SPEC
691321300024	SPEC
