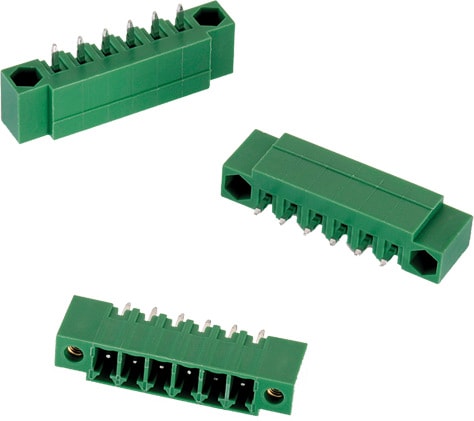

WR-TBL Series 3233 - 3.81 mm Vertical PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	10 A; 10.5 A
I_R[cULus]	10 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
UL Approval	E315414
VDE Approval	40023195
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691323300002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691323300002_1 (rev1).pdf \| 147.4 KB IGS 691323300002 (rev1).igs \| 930.2 KB STP 691323300002 (rev1).stp \| 343.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	PCB Header	Cable	No	PCB Header	–
691323300003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691323300003_1 (rev1).pdf \| 169.9 KB IGS 691323300003 (rev1).igs \| 1.2 MB STP 691323300003 (rev1).stp \| 443.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	Cable	No	PCB Header	691002
691323300004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691323300004_1 (rev1).pdf \| 198.9 KB IGS 691323300004 (rev1).igs \| 1.4 MB STP 691323300004 (rev1).stp \| 544.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	Cable	No	PCB Header	–
691323300005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691323300005_1 (rev1).pdf \| 217.8 KB IGS 691323300005 (rev1).igs \| 1.7 MB STP 691323300005 (rev1).stp \| 646 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	Cable	No	PCB Header	–
691323300006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691323300006_1 (rev1).pdf \| 240 KB IGS 691323300006 (rev1).igs \| 1.9 MB STP 691323300006 (rev1).stp \| 749.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	Cable	No	PCB Header	–
691323300007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691323300007 (rev1).pdf \| 261.3 KB IGS Downloads_IGES_691323300007 (rev1).iges \| 2.2 MB STP Downloads_STP_691323300007 (rev1).stp \| 853.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	PCB Header	Cable	No	PCB Header	–
691323300008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691323300008_1 (rev1).pdf \| 287.7 KB IGS 691323300008 (rev1).igs \| 2.4 MB STP 691323300008 (rev1).stp \| 957.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	PCB Header	Cable	No	PCB Header	–
691323300012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691323300012 (rev1).pdf \| 390.1 KB IGS Downloads_IGES_691323300012 (rev1).iges \| 3.4 MB STP Downloads_STP_691323300012 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	PCB Header	Cable	No	PCB Header	–

Order Code	Datasheet
691323300002	SPEC
691323300003	SPEC
691323300004	SPEC
691323300005	SPEC
691323300006	SPEC
691323300007	SPEC
691323300008	SPEC
691323300012	SPEC
