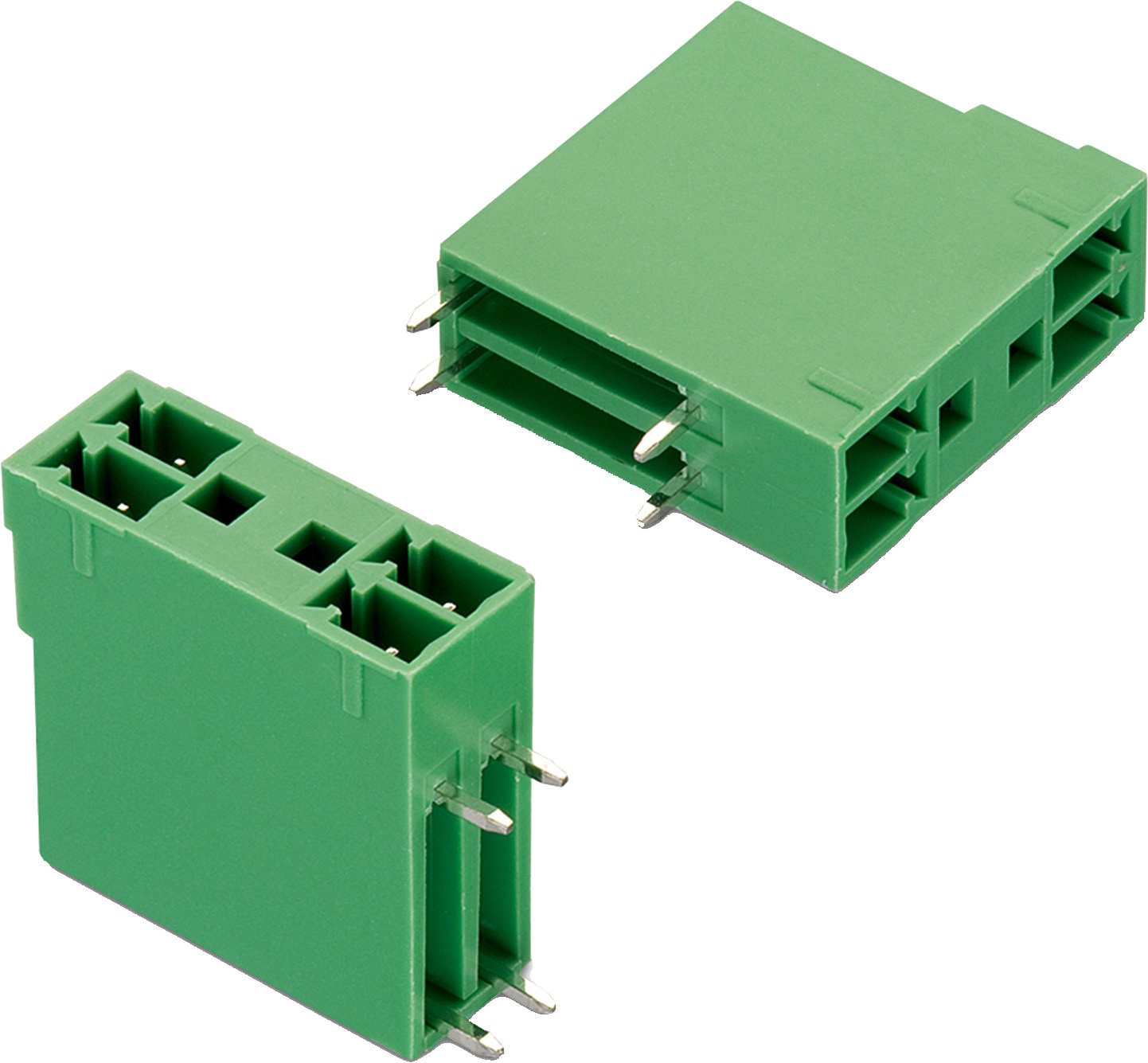

WR-TBL Series 3273 - 3.81 mm Double Level Horizontal Male PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	10 A
I_R[cULus]	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691327310004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691327310004_1 (rev1).pdf \| 149.3 KB IGS 691327310004 (rev1).igs \| 2 MB STP 691327310004 (rev1).stp \| 465.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal	691002
691327310006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691327310006_1 (rev1).pdf \| 204.2 KB IGS 691327310006 (rev1).igs \| 2.7 MB STP 691327310006 (rev1).stp \| 630.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal	–
691327310008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691327310008_1 (rev1).pdf \| 267.5 KB IGS 691327310008 (rev1).igs \| 3.6 MB STP 691327310008 (rev1).stp \| 837.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal	–
691327310010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691327310010_1 (rev1).pdf \| 323.5 KB IGS 691327310010 (rev1).igs \| 4.4 MB STP 691327310010 (rev1).stp \| 1002.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Horizontal	–
691327310012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691327310012 (rev1).pdf \| 378.9 KB IGS 691327310012 (rev1).igs \| 5.1 MB STP Downloads_STP_ConTBL3_691327310012 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal	–
691327310016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691327310016_1 (rev1).pdf \| 499.1 KB IGS 691327310016 (rev1).igs \| 6.7 MB STP 691327310016 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Horizontal	–
