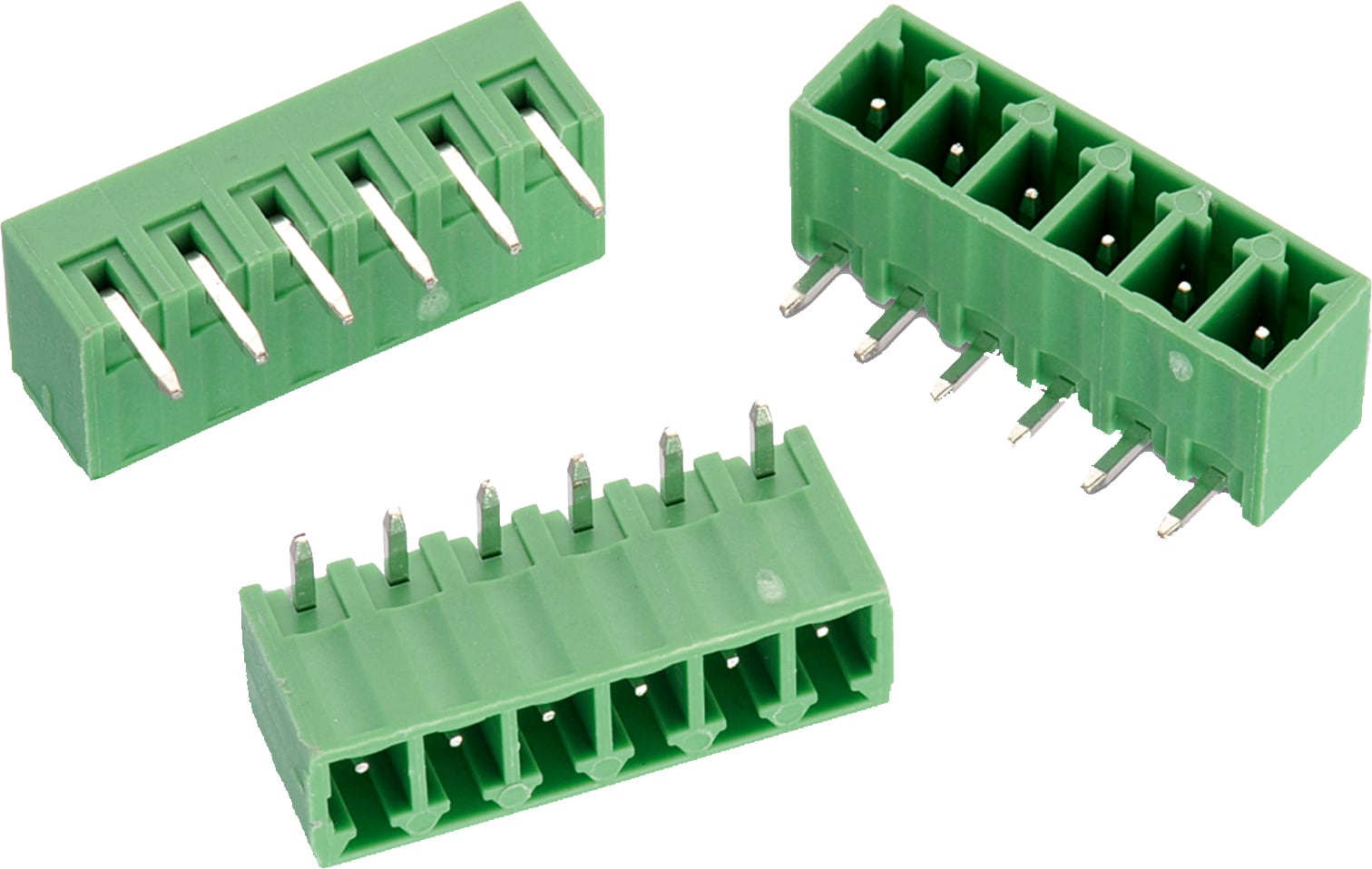

WR-TBL Series 322 - 3.81 mm Horizontal PCB Header

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
Electrical Properties
IR10 A; 10.5 A
IR cULus10 A
IR VDE10.5 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Certification
cULus ApprovalE315414
VDE Approval40023195

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples
691322310002SPEC
6 files 2 Pluggable PCB No Horizontal
691322310003SPEC
6 files 3 Pluggable PCB No Horizontal
691322310004SPEC
6 files 4 Pluggable PCB No Horizontal
691322310005SPEC
6 files 5 Pluggable PCB No Horizontal
691322310006SPEC
6 files 6 Pluggable PCB No Horizontal
691322310007SPEC
7 files 7 Pluggable PCB No Horizontal
691322310008SPEC
6 files 8 Pluggable PCB No Horizontal
691322310009SPEC
6 files 9 Pluggable PCB No Horizontal
691322310010SPEC
6 files 10 Pluggable PCB No Horizontal
691322310011SPEC
6 files 11 Pluggable PCB No Horizontal
691322310012SPEC
7 files 12 Pluggable PCB No Horizontal
691322310013SPEC
6 files 13 Pluggable PCB No Horizontal
691322310014SPEC
6 files 14 Pluggable PCB No Horizontal
691322310015SPEC
6 files 15 Pluggable PCB No Horizontal
691322310016SPEC
6 files 16 Pluggable PCB No Horizontal
691322310017SPEC
6 files 17 Pluggable PCB No Horizontal
691322310018SPEC
6 files 18 Pluggable PCB No Horizontal
691322310019SPEC
6 files 19 Pluggable PCB No Horizontal
691322310020SPEC
6 files 20 Pluggable PCB No Horizontal
691322310021SPEC
6 files 21 Pluggable PCB No Horizontal
691322310022SPEC
6 files 22 Pluggable PCB No Horizontal
691322310023SPEC
6 files 23 Pluggable PCB No Horizontal
691322310024SPEC
6 files 24 Pluggable PCB No Horizontal
Order Code Data­sheet
691322310002SPEC
691322310003SPEC
691322310004SPEC
691322310005SPEC
691322310006SPEC
691322310007SPEC
691322310008SPEC
691322310009SPEC
691322310010SPEC
691322310011SPEC
691322310012SPEC
691322310013SPEC
691322310014SPEC
691322310015SPEC
691322310016SPEC
691322310017SPEC
691322310018SPEC
691322310019SPEC
691322310020SPEC
691322310021SPEC
691322310022SPEC
691322310023SPEC
691322310024SPEC
Samples
