Characteristics

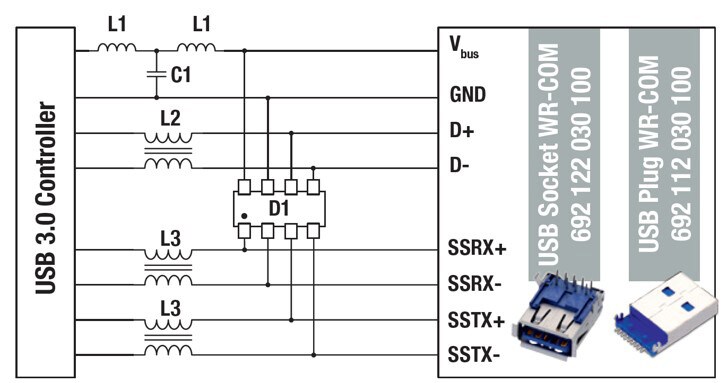

USB 3.0 filter circuit with all important components
Prevention of negative influence on the operating behavior due to interference emissions, electrostatic discharges (ESD) and fast transients (burst)
Straightforward design implementation through BOM and layout files
Data rate upto 5 Gbps
Up to 4.5 W (900 mA @ 5 V)

Applications

Universal Serial Bus (USB) 3.0 Type A application

Application Notes

ANP024 The USB Interface from EMC Point of View
PDF

PCB layout files

The USB 3.0 EMC and ESD solution can be easily integrated into designs. PCB layout files (Gerber) can be downloaded here.

Download Gerber File here

Products

Order Code	Datasheet	Simulation	Downloads	Status	Product series
742792040	SPEC		9 files EDA models: Components ZIP ALT WE-CBF (rev25b).IntLib \| 260.5 KB CDS Cadence_WE-CBF (rev25a).zip \| 897.1 KB EAG Eagle_WE-CBF (rev25a).lbr \| 153.9 KB KIC KiCad_WE-CBF (rev25a).zip \| 301.3 KB ZUK Cadstar_WE-CBF (rev21a).zip \| 17.5 KB CAD files ZIP IGS WE-CBF_0805_CBF (rev1).igs \| 158.2 KB STP WE-CBF_0805_CBF (rev1).stp \| 34.7 KB Electric models ZIP PSP PSpice_WE-CBF (rev24a).zip \| 26.9 KB S S-Parameter_WE-CBF (rev22a).zip \| 2.8 MB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-CBF SMT EMI Suppression Ferrite Bead
744232090	SPEC		10 files EDA models: Components ZIP ALT WE-CNSW (rev25a).IntLib \| 664.5 KB CDS Cadence_WE-CNSW (rev25b).zip \| 4.2 MB EAG Eagle_WE-CNSW (rev25b).lbr \| 47.2 KB KIC KiCad_WE-CNSW (rev25a).zip \| 1.7 MB ZUK Cadstar_WE-CNSW (rev19a).zip \| 7.4 KB CAD files ZIP 3D 3D_WE-CNSW-1206 (rev1).pdf \| 331.4 KB IGS WE-CNSW_1206_CNSW (rev1).igs \| 1.2 MB STP WE-CNSW_1206_CNSW (rev1).stp \| 244.1 KB Electric models ZIP PSP PSpice_WE-CNSW (rev25b).zip \| 12.9 KB S S-Parameter_WE-CNSW (rev25a).zip \| 2.8 MB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-CNSW SMT Common Mode Line Filter
744233670	SPEC		10 files EDA models: Components ZIP ALT WE-CNSW_HF (rev22a).IntLib \| 101.5 KB CDS Cadence_WE-CNSW_HF (rev20a).zip \| 619.4 KB EAG Eagle_WE-CNSW HF (rev19a).lbr \| 19.3 KB KIC KiCad_WE-CNSW-HF (rev25a).zip \| 222.6 KB ZUK Cadstar_WE-CNSW-HF (rev19a).zip \| 5.6 KB CAD files ZIP IGS WE-CNSW_HF_0805_CNSWHF (rev1).igs \| 2.2 MB STP WE-CNSW_HF_0805_CNSWHF (rev1).stp \| 567.8 KB Electric models ZIP ADS ADS_WE-CNSW-HF (rev24a).zip \| 1.7 MB PSP PSpice_WE-CNSW_HF (rev22a).zip \| 5.1 KB S S-PARAMETER_WE-CNSW_HF (rev19a).zip \| 460.8 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-CNSW HF SMT Common Mode Line Filter
82401646	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Super_Speed_MSOP-8L (rev1).igs \| 846.5 KB STP WE-TVS_Super_Speed_MSOP-8L (rev1).stp \| 287.4 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TVS TVS Diode – Super Speed Series
885012206051	SPEC		9 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev25b).IntLib \| 912.5 KB CDS Cadence_WCAP-CSGP (rev25d).zip \| 707.7 KB EAG Eagle_WCAP-CSGP (rev25c).lbr \| 1.2 MB KIC KiCad_WCAP-CSGP (rev25a).zip \| 277.3 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CAD files ZIP 3D 1.6x0.8x0.8x0 (rev1).pdf \| 12.3 KB IGS 1.6x0.8x0.8x0 (rev1).igs \| 76.4 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev25b).zip \| 336.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSGP MLCCs 16 V(DC)
692622420101	SPEC	–	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev25a).IntLib \| 12 MB CDS Cadence_WR-COM_USB (rev25b).zip \| 61.6 MB EAG Eagle_WR-USB (rev25c).lbr \| 473.1 KB CAD files ZIP 3D 3D_692622420101 (rev1).pdf \| 356.4 KB IGS Download_IGES_692622420101 (rev1).iges \| 5.3 MB STP Download_STP_692622420101 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WR-USB Mini/Micro Connectors
692112030100	SPEC	–	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev25a).IntLib \| 12 MB CDS Cadence_WR-COM_USB (rev25b).zip \| 61.6 MB EAG Eagle_WR-USB (rev25c).lbr \| 473.1 KB CAD files ZIP 3D 3D_692112030100 (rev1).pdf \| 257.4 KB IGS Download_IGS_692112030100 (rev1).iges \| 4.1 MB STP Download_STP_692112030100 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WR-USB Standard Connectors
692122030100	SPEC	–	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev25a).IntLib \| 12 MB CDS Cadence_WR-COM_USB (rev25b).zip \| 61.6 MB EAG Eagle_WR-USB (rev25c).lbr \| 473.1 KB CAD files ZIP 3D 3D_692122030100 (rev1).pdf \| 353.6 KB IGS Download_IGS_692122030100 (rev1).igs \| 5.8 MB STP Download_STP_692122030100 (rev1).stp \| 2.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WR-USB Standard Connectors

Order Code	Datasheet	Simulation
742792040	SPEC
744232090	SPEC
744233670	SPEC
82401646	SPEC
885012206051	SPEC
692622420101	SPEC	–
692112030100	SPEC	–
692122030100	SPEC	–

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Product series	Samples

Ready to implement

Due to the steadily growing number of applications that are based on networked communication through data lines, it is becoming increasingly importan to ensure trouble-free operation and protection of electrical systems and devices.

To avoid reduced integrity of the data transfer due to interference and to pass EMC tests, components matched to the data lines are necessary. Implementation is greatly simplified by the filter bags, which contain filter components specially selected for the respective application.

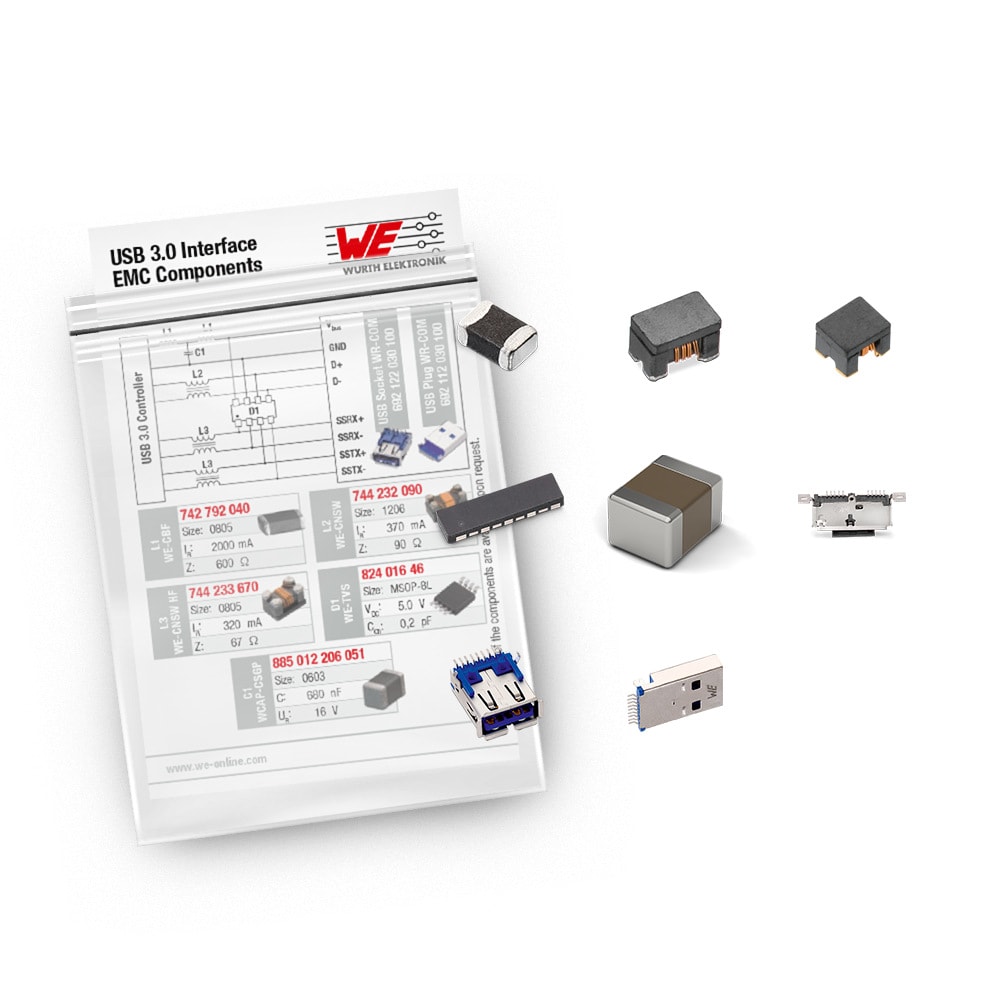

Filter Bag USB 3.0 Typ A EMV Ready to implement

Filterperformance

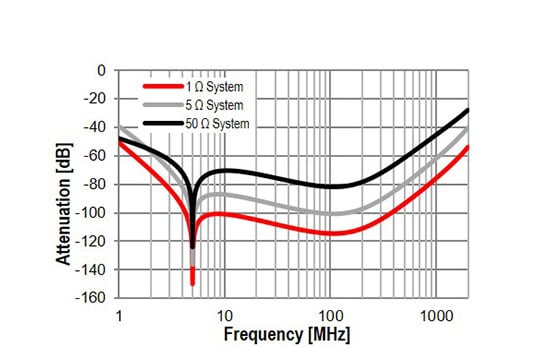

Power Line Attenuation

T-filter (WE-CBF and WCAP-CSGP) for optimal impedance adjustment
Suppression of Vcc line noise

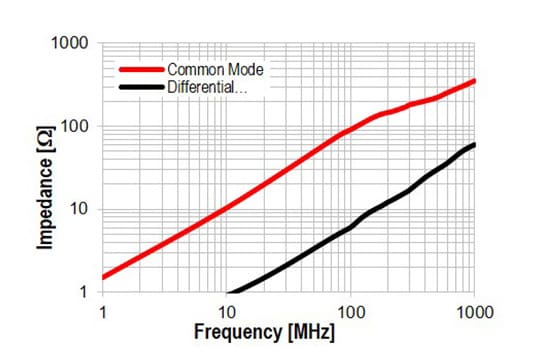

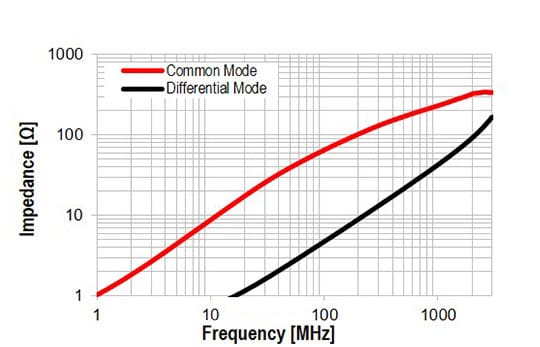

Low Speed Data Impedance

High common mode impedance for suppression of common mode interference by common mode choke (WE-CNSW)
No influence on the data signal due to the low impedance at low frequencies
