OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyInput/Output ConnectorsProduct sub-familyWR-DSUB ConnectorsOrientationCableGenderMaleProduct seriesWR-DSUB Male IDC

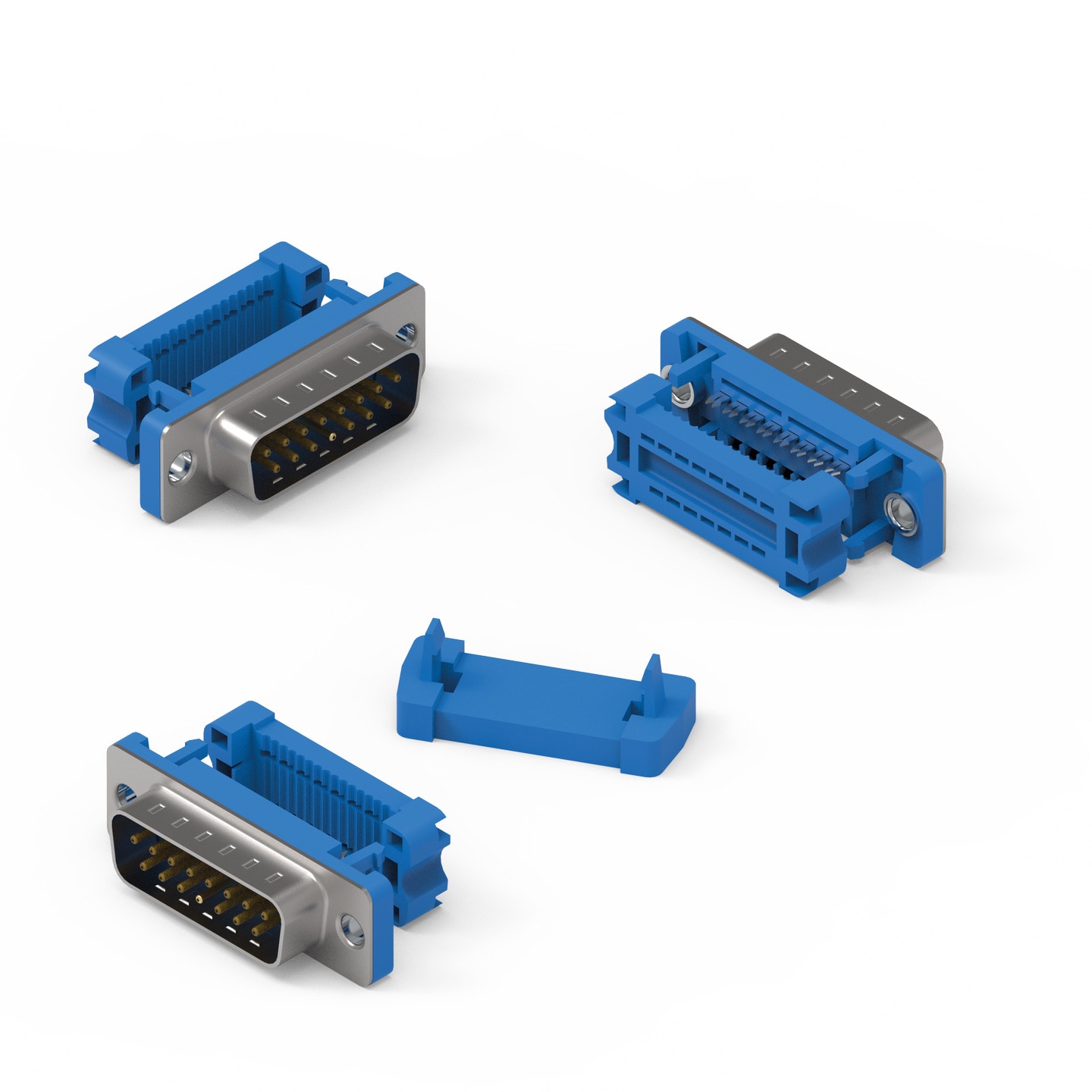

WR-DSUB Male IDC

Kind Properties
Quality Class3 as per IEC 60 603-13
GenderMale
TypeIDC
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
ColorBlue
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingTin
General Information
Operating Temperature-55 up to +105 °C
ComplianceRoHS
Electrical Properties
IR3 A
Working Voltage125 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance30 mΩ
