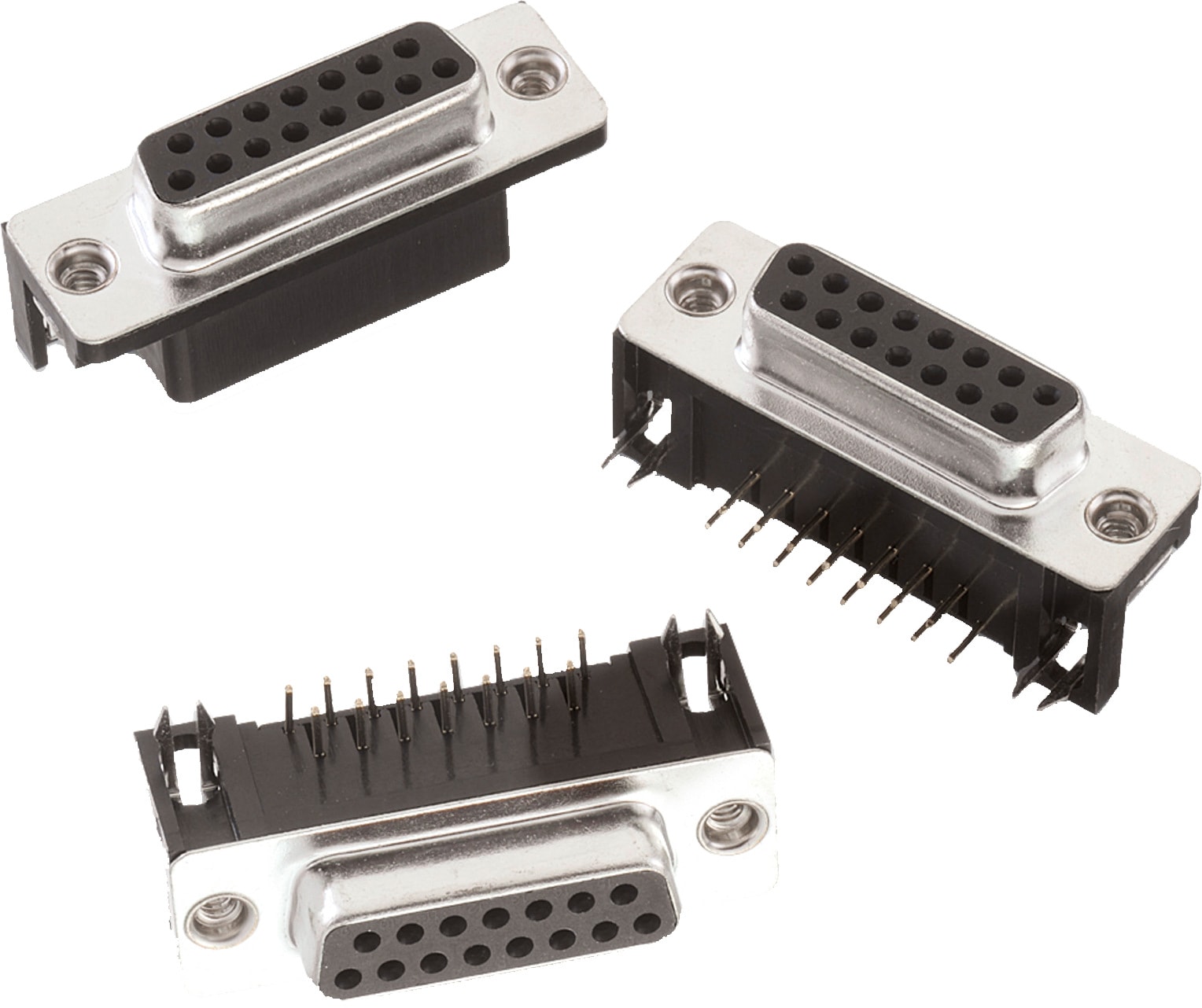

WR-DSUB 8.08 mm Female Angled PCB Connector w/o Hex Screw

General Information
Operating Temperature	-55 °C up to +105 °C
Gender	Female
Type	Angled
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Nickel (Ni)

Electrical Properties
Working Voltage	125 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))
618009211821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618009211821 (rev1).pdf \| 370.6 KB IGS 618009211821 (rev1).iges \| 3.7 MB STP 618009211821 (rev1).stp \| 813.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Female	Angled	-55 °C up to +105 °C	125
618015211821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618015211821 (rev1).pdf \| 420.1 KB IGS 618015211821 (rev1).iges \| 4.4 MB STP 618015211821 (rev1).stp \| 978.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	15	Female	Angled	-55 °C up to +105 °C	125
618025211821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618025211821 (rev1).pdf \| 509.1 KB IGS 618025211821 (rev1).iges \| 5.7 MB STP 618025211821 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Female	Angled	-55 °C up to +105 °C	125
618037211821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618037211821 (rev1).pdf \| 625.9 KB IGS 618037211821 (rev1).iges \| 7.2 MB STP 618037211821 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Female	Angled	-55 °C up to +105 °C	125
