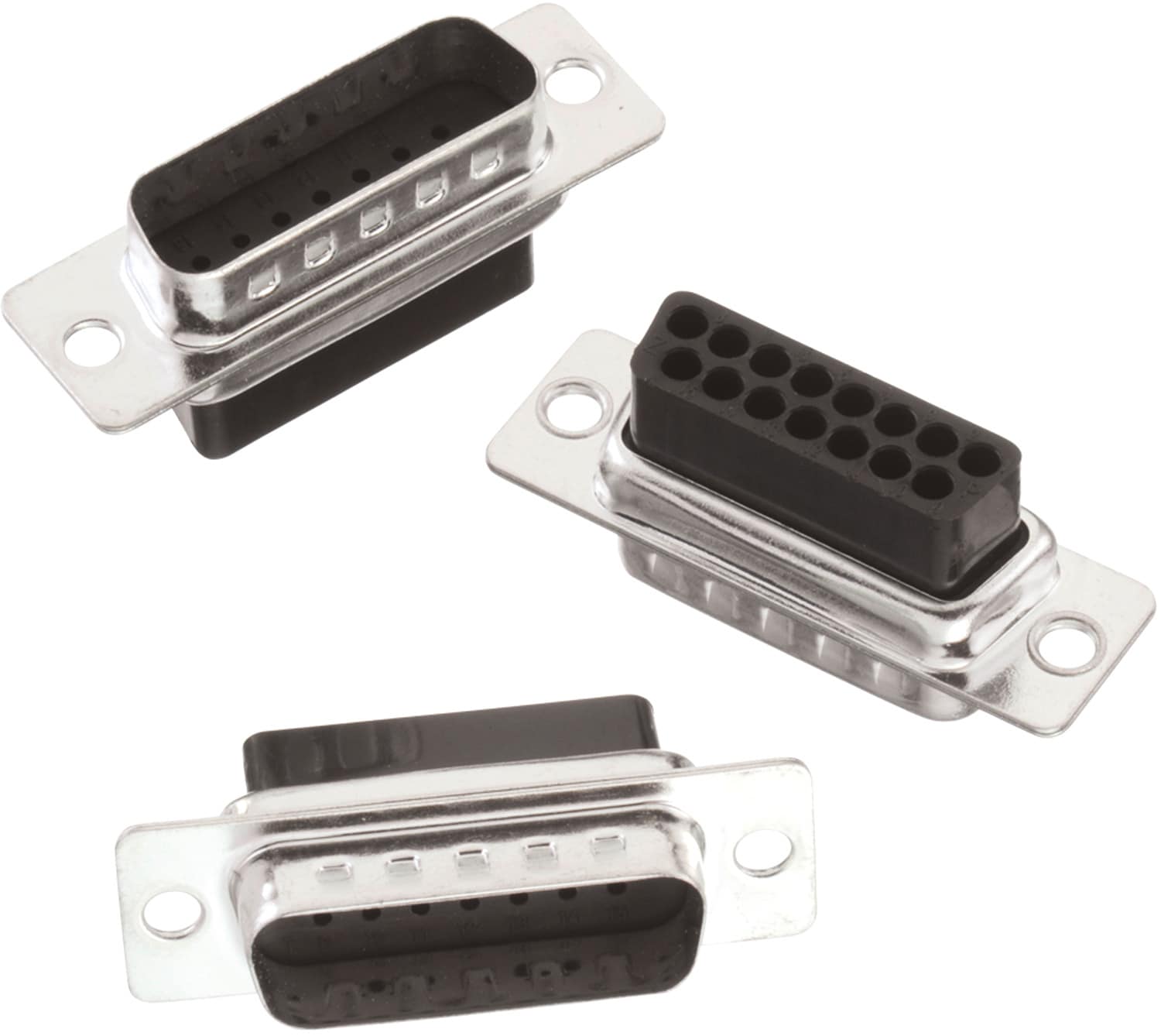

WR-DSUB Female Terminal Housing | Electromechanical Components | Würth Elektronik Product Catalog

: Products Reference Designs Applications & Industries

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyInput/Output Connectors Product sub-familyWR-DSUB Connectors OrientationCable GenderFemale Product seriesWR-DSUB Female Terminal Housing

Kind Properties
Gender	Female
Type	Crimp Housing
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Color	Black
Shielding Material	Steel
Shielding Plating	Tin

General Information
Operating Temperature	-55 up to +105 °C
Compliance	RoHS

Electrical Properties
I_R	3 A
Working Voltage	125 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

Order Code	Datasheet	Downloads	Pins	Gender	Packaging	Design Kit	Samples
618009217222	SPEC	3 files CAD files ZIP 3D 618009217222_1 (rev1).pdf \| 633.4 KB IGS 618009217222 (rev1).iges \| 3.7 MB STP 618009217222 (rev1).stp \| 967.3 KB Download all 3 files as zip archive ZIP	9	Female	Tray	612690 614001
618015217222	SPEC	3 files CAD files ZIP 3D 618015217222 (rev1).pdf \| 751.8 KB IGS 618015217222 (rev1).iges \| 5 MB STP 618015217222 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	15	Female	Tray	–
618025217222	SPEC	3 files CAD files ZIP 3D 618025217222 (rev1).pdf \| 1019.6 KB IGS 618025217222 (rev1).iges \| 7.1 MB STP 618025217222 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	25	Female	Tray	–
618037217222	SPEC	3 files CAD files ZIP 3D 618037217222 (rev1).pdf \| 1.4 MB IGS 618037217222 (rev1).iges \| 9.7 MB STP 618037217222 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	37	Female	Tray	–
