OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyInput/Output ConnectorsProduct sub-familyWR-DSUB ConnectorsOrientationCableGenderFemaleProduct seriesWR-DSUB Female Solder Bucket

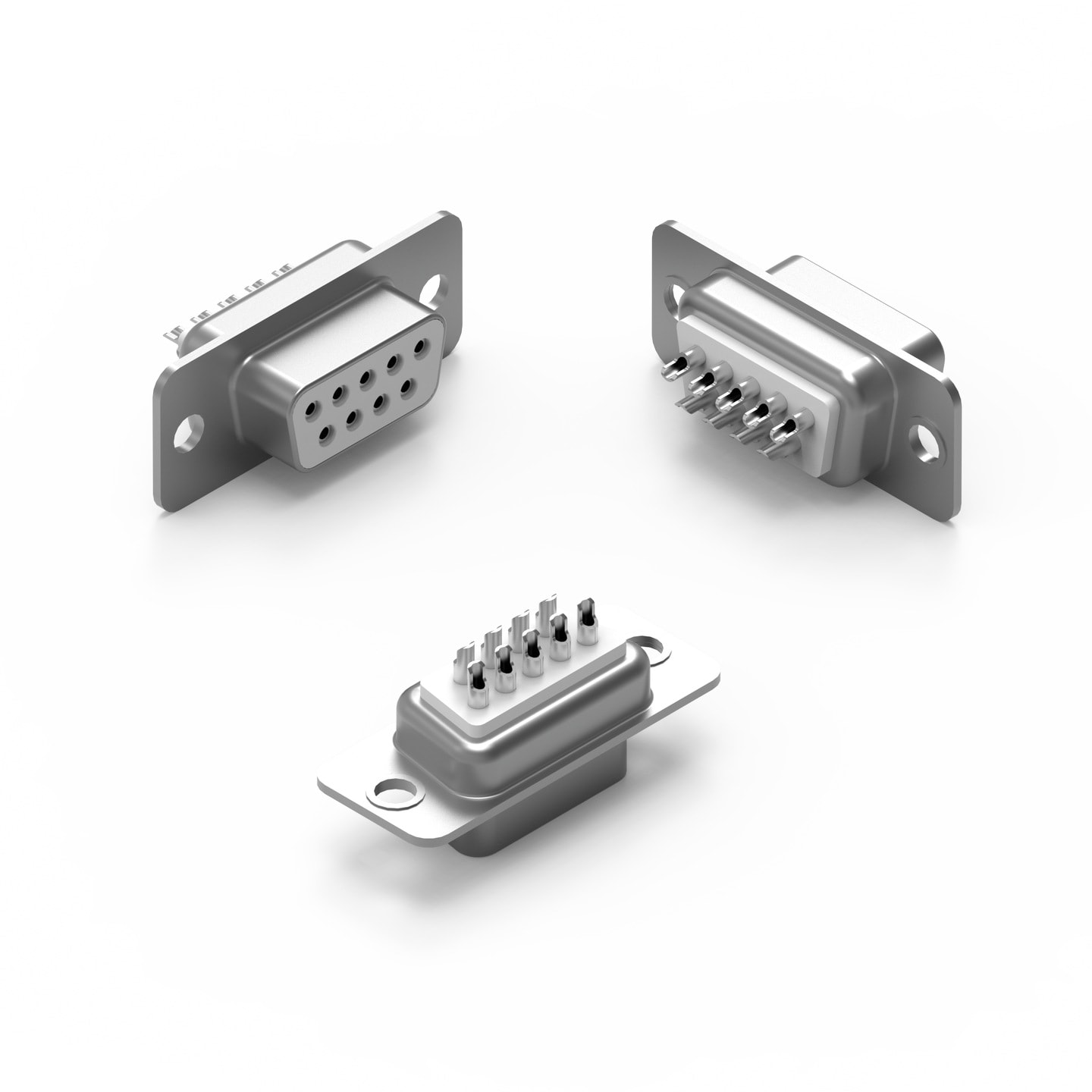

WR-DSUB Female Solder Bucket

Kind Properties
GenderFemale
TypeSolder bucket
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
Cover MaterialSteel
Cover PlatingNickel (Ni)
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingNickel (Ni)
General Information
Operating Temperature-55 up to +105 °C
Electrical Properties
Working Voltage125 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance30 mΩ

Products

Order Code Data­sheet DownloadsPinsGenderTypeOperating TemperatureWorking Voltage
(V (AC))
Samples
61800924923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 9 Female Solder bucket -55 up to +105 °C 125
61801524923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 15 Female Solder bucket -55 up to +105 °C 125
61802524923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 25 Female Solder bucket -55 up to +105 °C 125
61803724923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 37 Female Solder bucket -55 up to +105 °C 125
Order Code Data­sheet
61800924923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

61801524923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

61802524923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

61803724923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.
