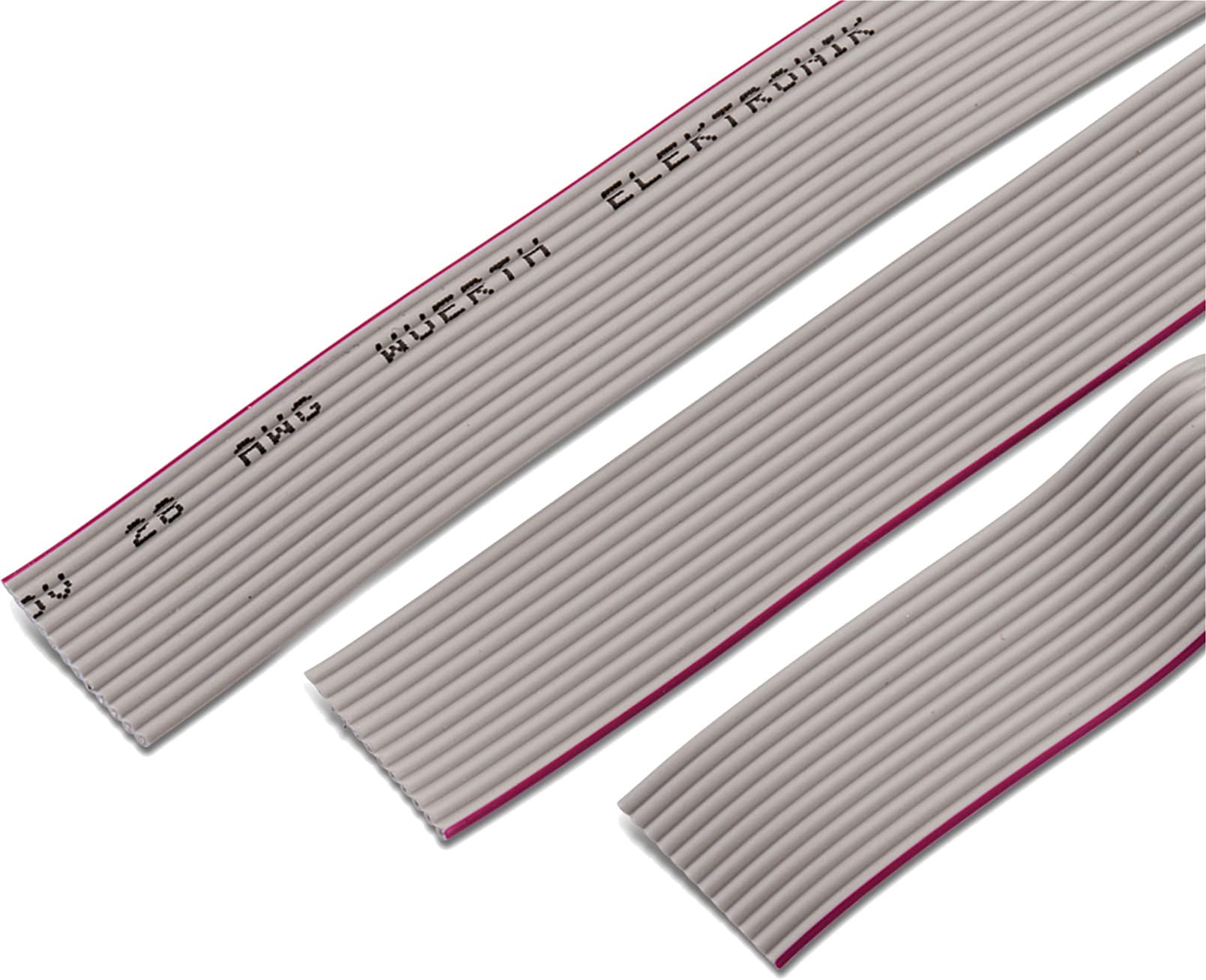

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces. Operating temperature -25 °C up to 105 °C. Dielectric strength 2000 V (AC)
Material Properties
Insulator MaterialPVC
Insulator ColorGrey with Red Marking on 1st Conductor
General Information
Operating Temperature-25 °C up to +105 °C
Withstanding Voltage2000 V (AC)
RISO100 MΩ
Unbalanced Impedance105 Ω
Pitch1.27 mm
Certification
cULus ApprovalE328849
Wire Properties
Stranded Wire Section (AWG)28 (AWG)
Stranded Wire Section (Metric)0.089 (mm²)
Packaging Properties
PackagingBag

Products

Order Code Data­sheet Downloads StatusPins
(pcs)		Pitch
(mm)		L
(mm)		IR
(A)		Stranded Wire Section (AWG)PackagingDesign Kit Samples
63910415521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 4 1.27 5.08 1 28 (AWG) Bag –
63910615521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 6 1.27 7.62 1 28 (AWG) Bag690001
63910815521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 8 1.27 10.16 1 28 (AWG) Bag690001
63910915521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 9 1.27 11.43 1 28 (AWG) Bag –
63911015521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 10 1.27 12.7 1 28 (AWG) Bag612001
612690
690001
63911215521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 12 1.27 15.24 1 28 (AWG) Bag690001
63911415521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 14 1.27 17.78 1 28 (AWG) Bag612001
690001
63911515521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 15 1.27 19.05 1 28 (AWG) Bag –
63911615521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 16 1.27 20.32 1 28 (AWG) Bag612001
690001
63912015521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 20 1.27 25.4 1 28 (AWG) Bag612001
690001
63912415521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 24 1.27 30.48 1 28 (AWG) Bag690001
63912515521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 25 1.27 31.75 1 28 (AWG) Bag –
63912615521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 26 1.27 33.02 1 28 (AWG) Bag612001
690001
63913415521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 34 1.27 43.18 1 28 (AWG) Bag612001
63914015521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 40 1.27 50.8 1 28 (AWG) Bag –
63915015521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 50 1.27 63.5 1 28 (AWG) Bag –
63916015521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 60 1.27 76.2 1 28 (AWG) Bag –
63916415521CABSPEC
 – Active i| Production is active. Expected lifetime: >10 years. 64 1.27 81.28 1 28 (AWG) Bag –
Order Code Data­sheet
63910415521CABSPEC
63910615521CABSPEC
63910815521CABSPEC
63910915521CABSPEC
63911015521CABSPEC
63911215521CABSPEC
63911415521CABSPEC
63911515521CABSPEC
63911615521CABSPEC
63912015521CABSPEC
63912415521CABSPEC
63912515521CABSPEC
63912615521CABSPEC
63913415521CABSPEC
63914015521CABSPEC
63915015521CABSPEC
63916015521CABSPEC
63916415521CABSPEC
Samples
Order Code Data­sheet Downloads StatusPins
(pcs)		Pitch
(mm)		L
(mm)		IR
(A)		Stranded Wire Section (AWG)PackagingDesign Kit Samples
