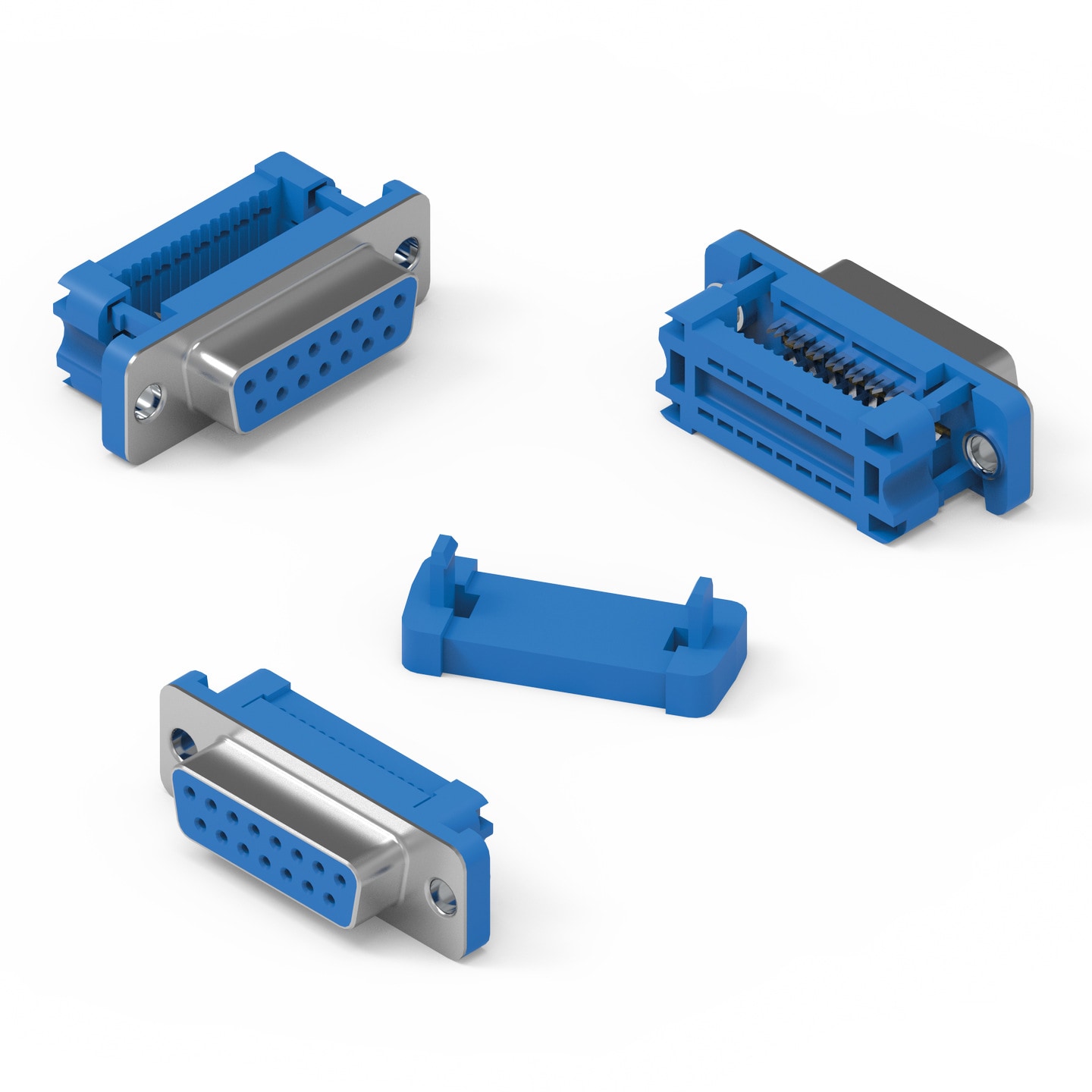

WR-DSUB Female IDC

Kind Properties
GenderFemale
TypeIDC
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
ColorBlue
Cover MaterialSteel
Cover PlatingTin
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingTin
General Information
Operating Temperature-55 up to +105 °C
ComplianceRoHS
Electrical Properties
IR3 A
Working Voltage125 V (AC)
Withstanding Voltage1 V (AC)
Contact Resistance30 mΩ

Products

Order Code Data­sheet DownloadsPinsGenderTypeOperating TemperatureWorking Voltage
(V (AC))
Samples
618009221923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 9 Female IDC -55 up to +105 °C 125
618015221923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 15 Female IDC -55 up to +105 °C 125
618025221923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 25 Female IDC -55 up to +105 °C 125
618037221923SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

4 files 37 Female IDC -55 up to +105 °C 125
