WR-CAB 1.27 mm Ribbon Flat Cable | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-Cable Ribbon Flat Cable Product seriesWR-CAB 1.27 mm Ribbon Flat Cable

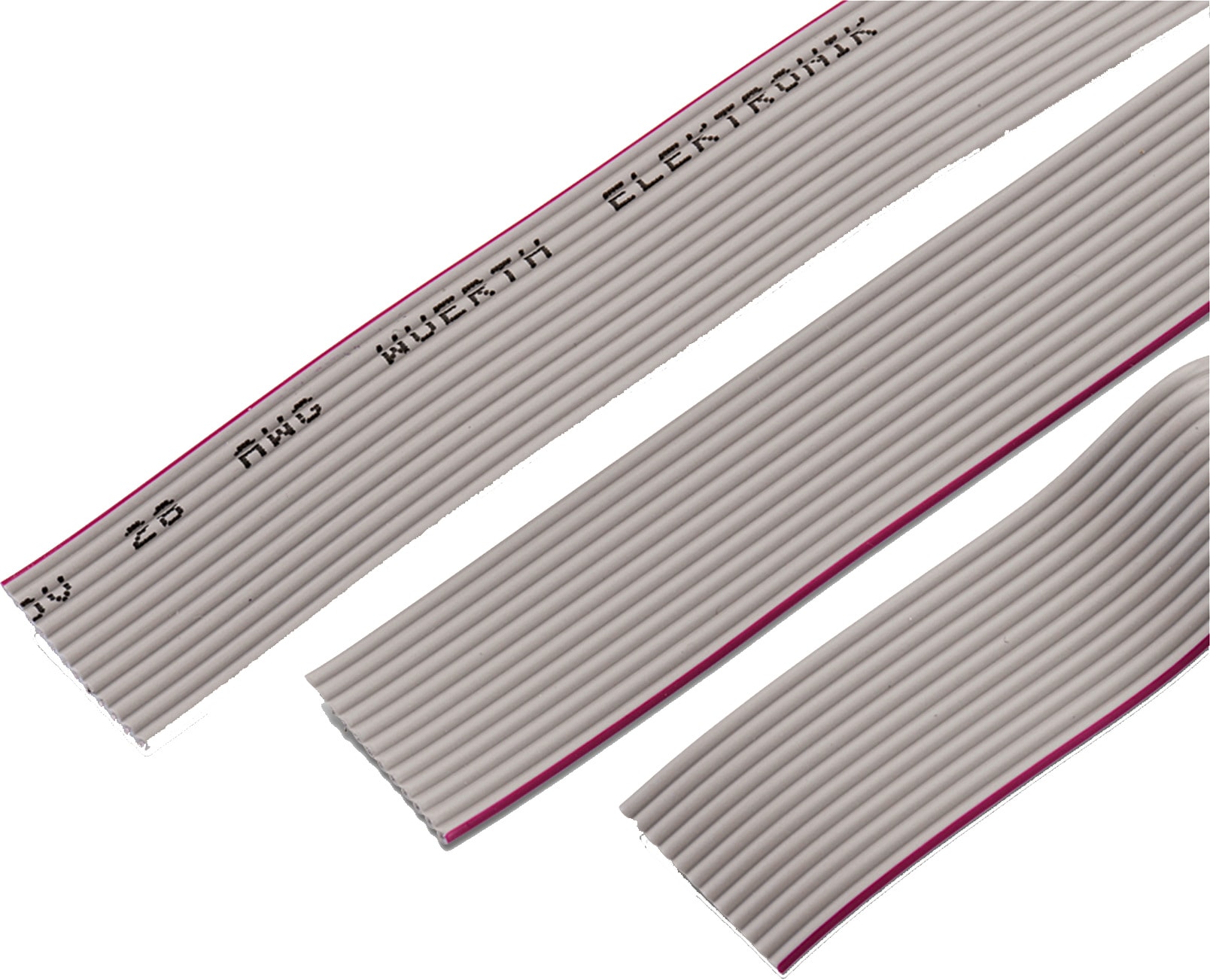

WR-CAB 1.27 mm Ribbon Flat Cable. Operating temperature -25 °C up to 105 °C. Dielectric strength 2000V (AC)

General Information
Operating Temperature	-25 °C up to +105 °C
Flame Test	VW-1 IEC 332-1
Style	UL 2651
Pitch	1.27 mm
Conductor Material	Copper
Conductor Plating	Tin

Electrical Properties
V_R	300 V (RMS)
Withstanding Voltage	2000 V (AC)
R_ISO	100 MΩ
R	237 Ω
Unbalanced Impedance	105 Ω

Wire Properties
Stranded Wire Section (AWG)	28 (AWG)
Stranded Wire Section (Metric)	0.089 (mm²)

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	V_R (V (RMS))	R (Ω)	Test Condition R	Style	Insulator Material	Stranded Wire Section (AWG)	Packaging	Design Kit	Samples
63910415521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63910615521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63910815521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63910915521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63911015521	SPEC	5 files CAD files ZIP 3D 3D_63911015521 (rev1).pdf \| 360.3 KB IGS 6391xx15521 (rev1).igs \| 3.2 MB IGS Download_IGS_63911015521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB STP Download_STP_63911015521 (rev1).stp \| 678.3 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	612690
63911215521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63911415521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63911515521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63911615521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63912015521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63912415521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63912515521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63912615521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63913415521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63914015521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63915015521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63916015521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
63916415521	SPEC	2 files CAD files ZIP IGS 6391xx15521 (rev1).igs \| 3.2 MB STP 6391xx15521 (rev1).stp \| 678.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	64	1.27	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel	–
