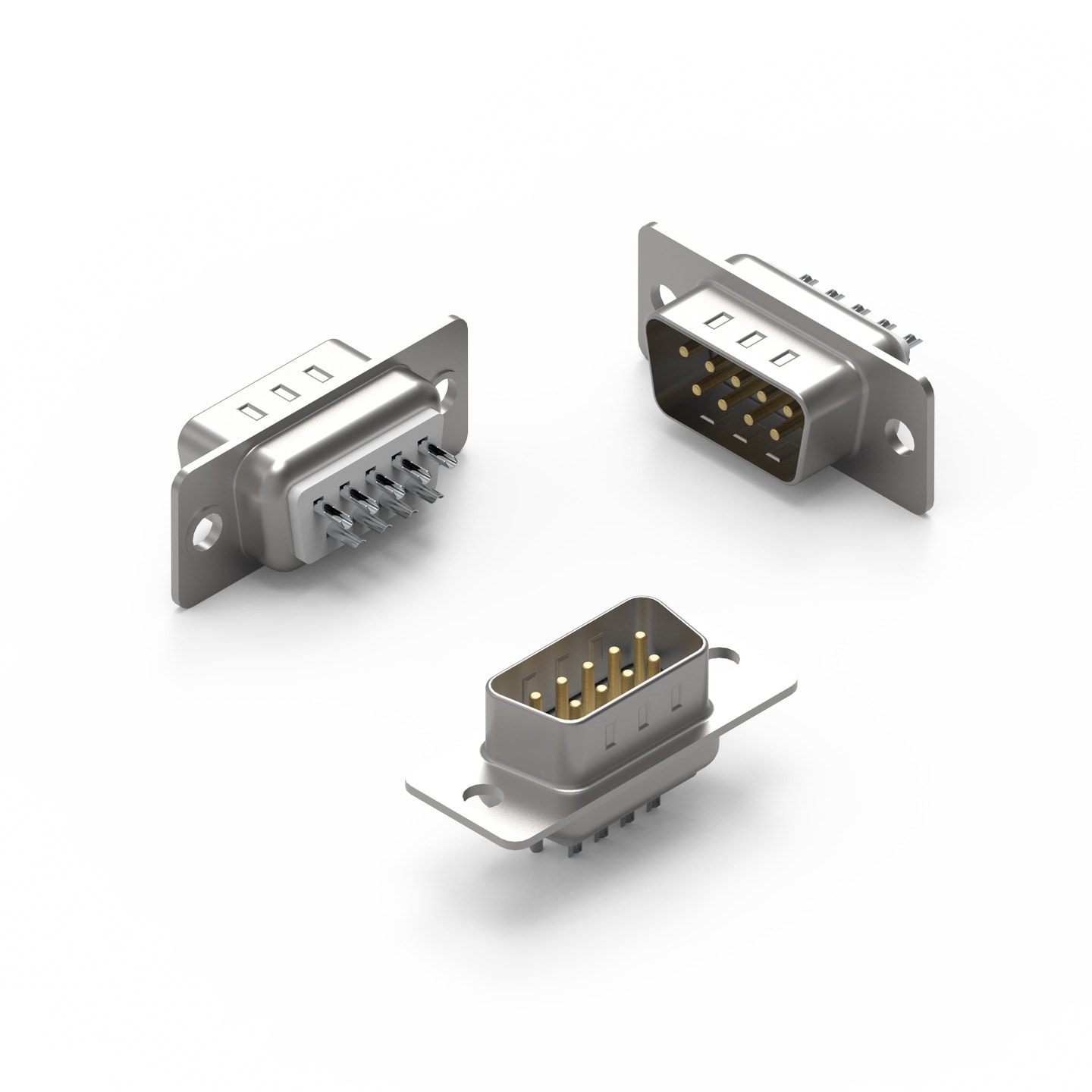

WR-DSUB Male Solder Bucket

Kind Properties
Quality Class3 as per IEC 60 603-13
GenderMale
TypeSolder bucket
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack; White
ColorWhite
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingNickel (Ni)
General Information
Operating Temperature-55 up to +105 °C
Electrical Properties
Working Voltage125 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance30 mΩ
