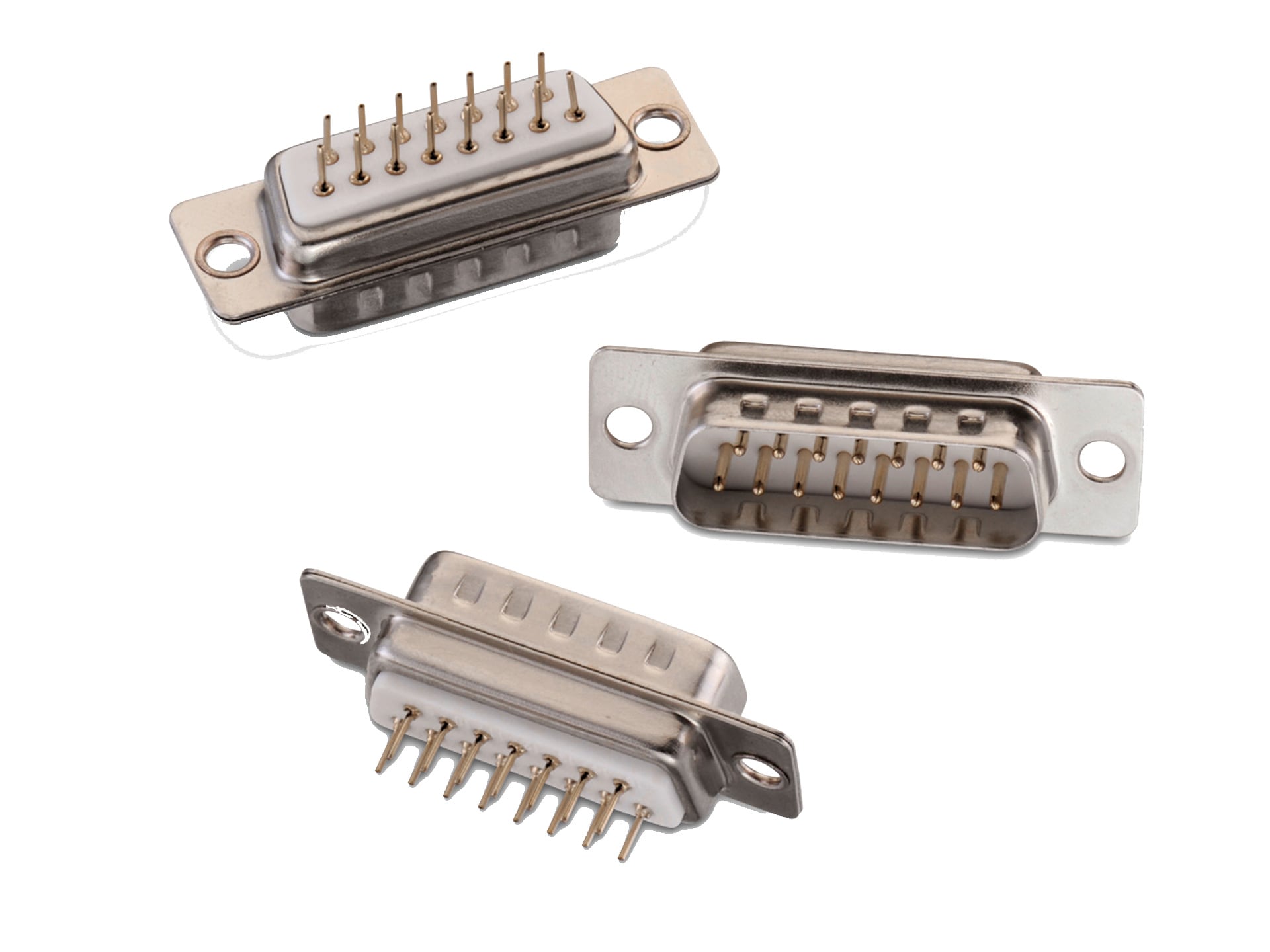

WR-DSUB Male PCB Connector

General Information
Operating Temperature	-40 °C up to +85 °C
Gender	Male
Type	Straight
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	White
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Tin

Electrical Properties
I_R	3 A
Working Voltage	125 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))
61801525023	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 06/07/2025 SPEC Datasheet valid from 07/07/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61801525023_1 (rev1).pdf \| 512.5 KB IGS 61801525023 (rev1).iges \| 3.8 MB STP 61801525023 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	Straight	-40 °C up to +85 °C	125
61802525023	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 06/07/2025 SPEC Datasheet valid from 07/07/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61802525023_1 (rev1).pdf \| 628.5 KB IGS 61802525023 (rev1).iges \| 5.1 MB STP 61802525023 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	Straight	-40 °C up to +85 °C	125
61803725023	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 06/07/2025 SPEC Datasheet valid from 07/07/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61803725023_1 (rev1).pdf \| 827.9 KB IGS 61803725023 (rev1).iges \| 6.7 MB STP 61803725023 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	Straight	-40 °C up to +85 °C	125
61800925023	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 06/07/2025 SPEC Datasheet valid from 07/07/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61800925023_1 (rev1).pdf \| 472.1 KB IGS 61800925023 (rev1).iges \| 3 MB STP 61800925023 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	Straight	-40 °C up to +85 °C	125
