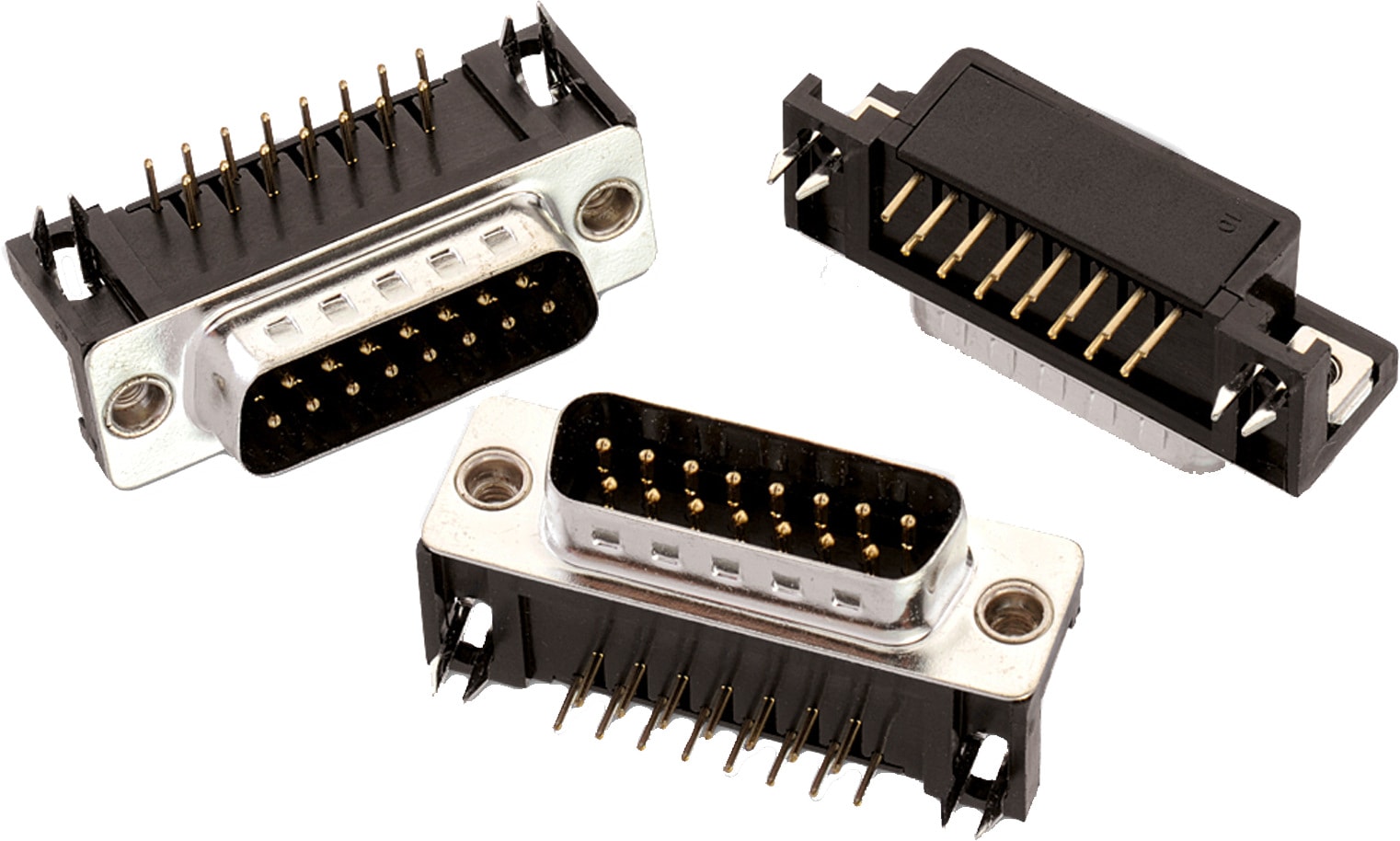

WR-DSUB 8.08 mm Male Angled PCB Connector w/o Hex Screw

Kind Properties
Quality Class	3 as per CECC 75 301-802
Gender	Male
Type	Angled
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Nickel

General Information
Operating Temperature	-55 up to +105 °C
Compliance	RoHS

Order Code	Datasheet	Downloads	Pins	Gender	Type	Operating Temperature	Working Voltage (V (AC))
618009211721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618009211721 (rev1).pdf \| 404.4 KB IGS 618009211721 (rev1).iges \| 3 MB STP 618009211721 (rev1).stp \| 887.1 KB	9	Male	Angled	-55 up to +105 °C	125
618015211721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618015211721 (rev1).pdf \| 462.6 KB IGS 618015211721 (rev1).iges \| 3.8 MB STP 618015211721 (rev1).stp \| 1 MB	15	Male	Angled	-55 up to +105 °C	125
618025211721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618025211721 (rev1).pdf \| 563.2 KB IGS 618025211721 (rev1).iges \| 5.2 MB STP 618025211721 (rev1).stp \| 1.3 MB	25	Male	Angled	-55 up to +105 °C	125
618037211721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618037211721 (rev1).pdf \| 696 KB IGS 618037211721 (rev1).iges \| 6.8 MB STP 618037211721 (rev1).stp \| 1.6 MB	37	Male	Angled	-55 up to +105 °C	125
