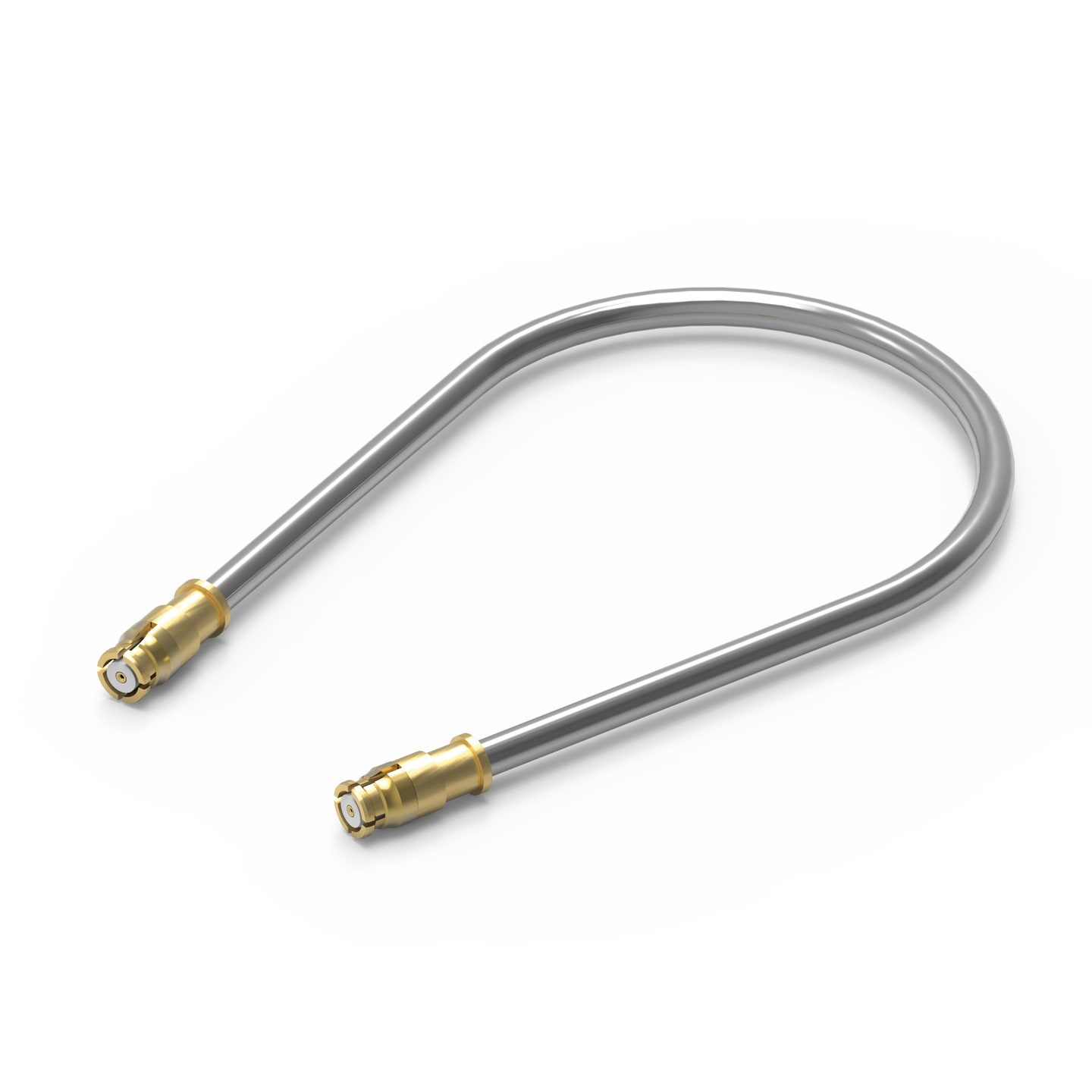

WR-CXASY SMP Straight Jack to SMP Straight Jack / .085'' Hand-Formable Cable / 152.4 mm length

WR-CXASY SMP Straight Jack to SMP Straight Jack / .085'' Hand-Formable Cable / 152.4 mm length
Material Properties
Cable.085"
General Information
Operating Temperature-65 °C up to +165 °C
InterfaceMIL-STD-348
Cable TypeHand-Formable
Cable ShieldingTin-soaked
Connector Type 1SMP
Connector Type 2SMP
Gender 1Jack
Gender 2Jack
Orientation Type 1Straight
Orientation Type 2Straight
Mechanical Properties
Min. Bend Radius6 mm

Didn't find the right cable? Configure and request directly

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Connector Type 2
Cable
Nominal Cable Length(mm)
f
Z(Ω)
Ingress Protection Code
Samples
65503320815301
SMP, SMP, .085"
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1SMP
Connector Type 2SMP
Cable.085"
Nominal Cable Length152.4 mm
Frequency RangeDC~18 GHz
Impedance50 Ω
Ingress Protection CodeNone

Mates with

WR-SMP PCB THT/ THR/ SMT Connectors
WR-SMP PCB End Launch
