WR-CXASY SMP Right Angle Jack to SMP Right Angle Jack / .085'' Hand-Formable Cable / 152.4 mm length
| Material Properties | |
|---|---|
| Cable | .085" |
| General Information | |
|---|---|
| Operating Temperature | -65 °C up to +165 °C |
| Interface | MIL-STD-348 |
| Cable Type | Hand-Formable |
| Cable Shielding | Tin-soaked |
| Connector Type 1 | SMP |
| Connector Type 2 | SMP |
| Gender 1 | Jack |
| Gender 2 | Jack |
| Orientation Type 1 | Right Angle |
| Orientation Type 2 | Right Angle |
| Mechanical Properties | |
|---|---|
| Min. Bend Radius | 6 mm |
Products

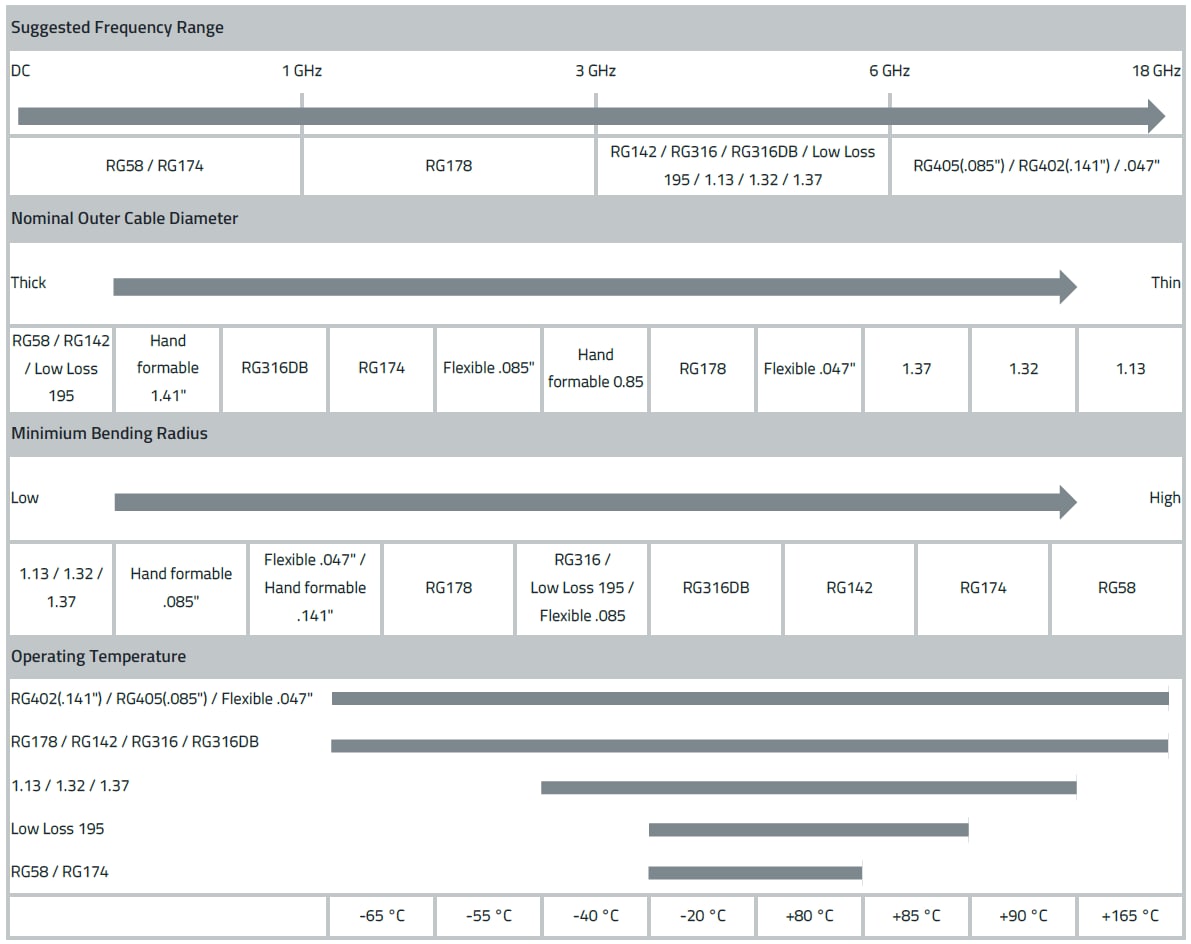

Coax Cable Properties Overview

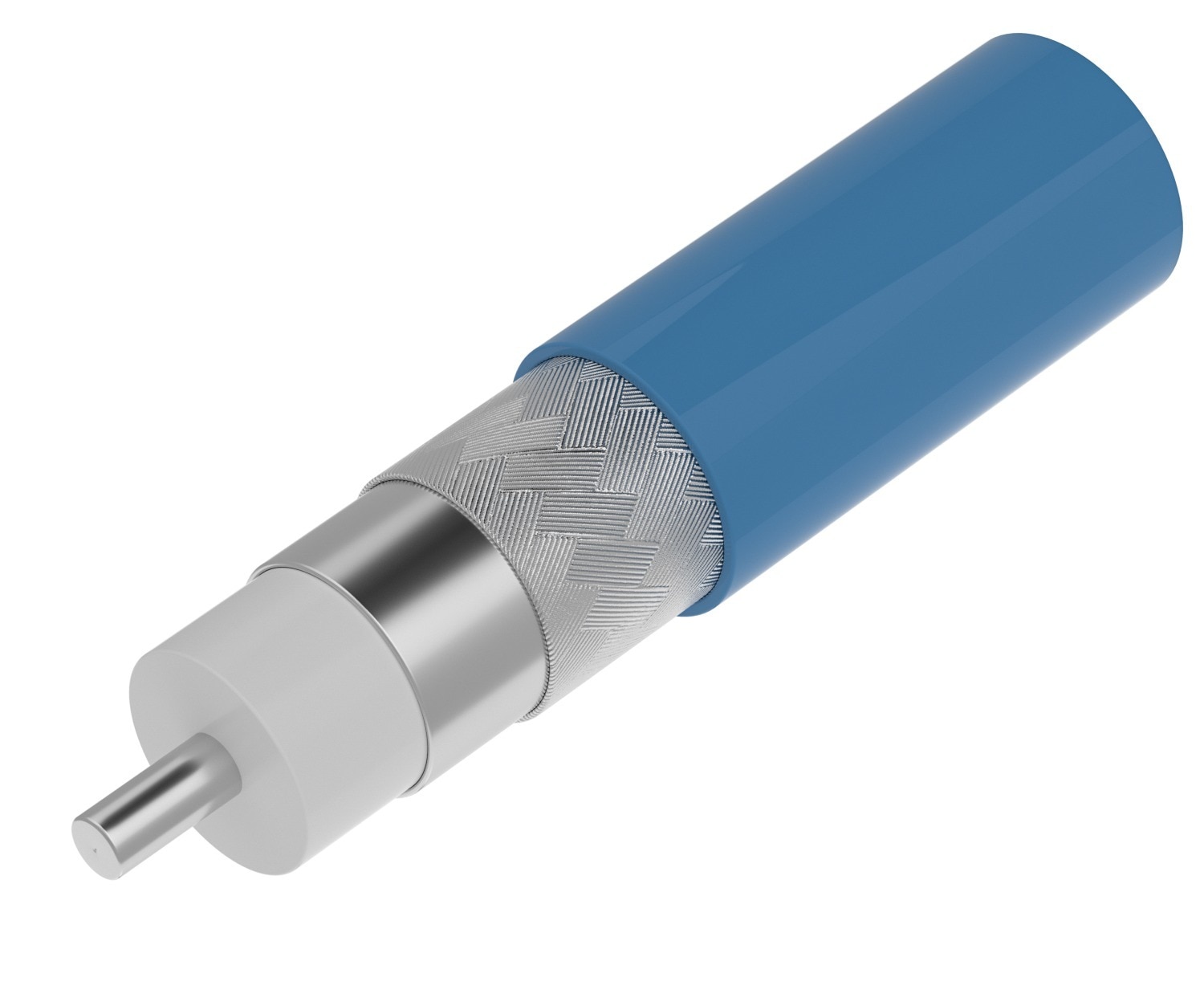

Typical Coaxial Cable Structure
Jacket:
Provide environmental protection for cable
Shielding:
Prevent and minimize RF leakage with braided wires or metal foil
Dielectric:
Main path for signal transmission
Insulating matrial that could separate cable center conductor and the shielding
Center Conductor:
Composed by multiple strands of twisted copper wire or a solid copper wire
