Texas Instruments TPS23730 | Demoboard TPS23730EVM-093
IEEE 802.3bt type-3 class 1-6 PoE 2 PD with high efficiency DC-DC controller
Overview
| Topology | LAN / POE |
| Input voltage | 37-57 V |
| Output 1 | 12 V / 5 A |
Description

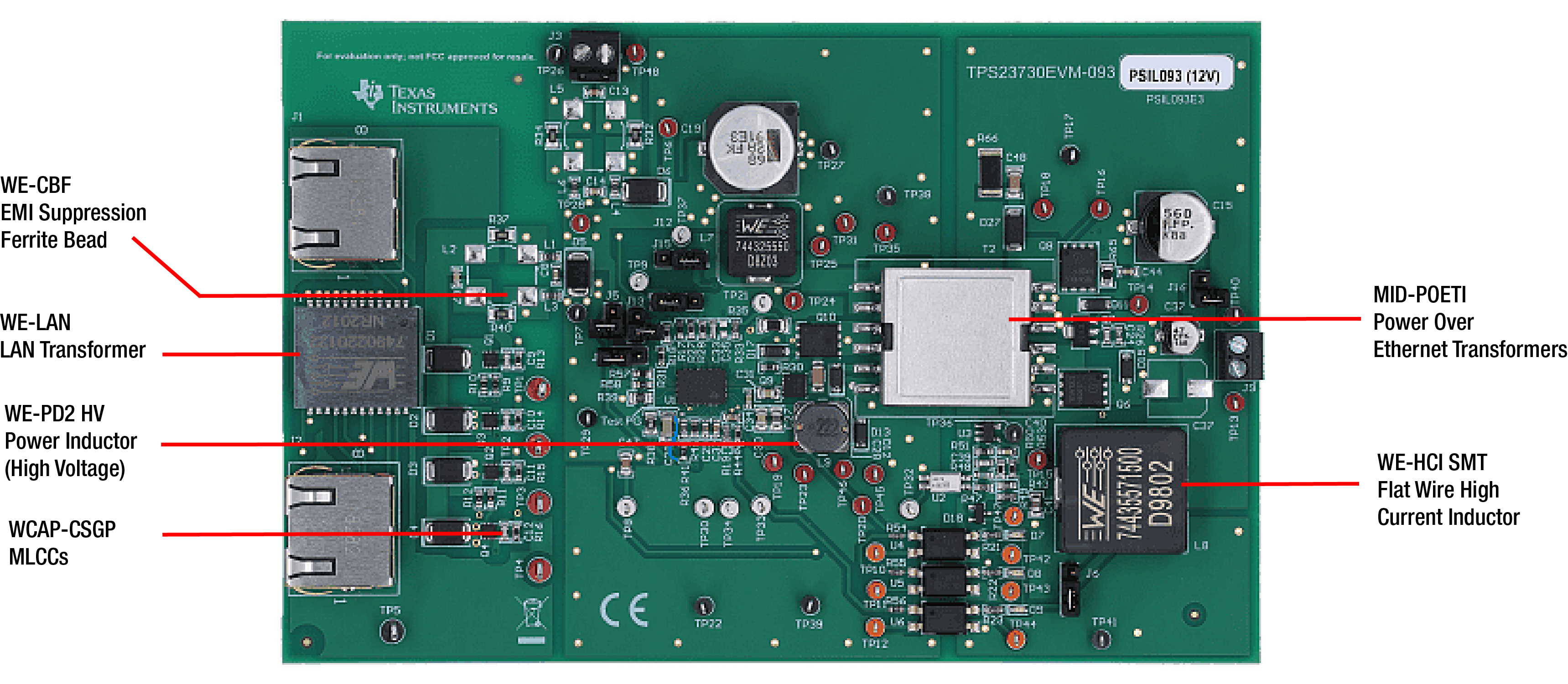

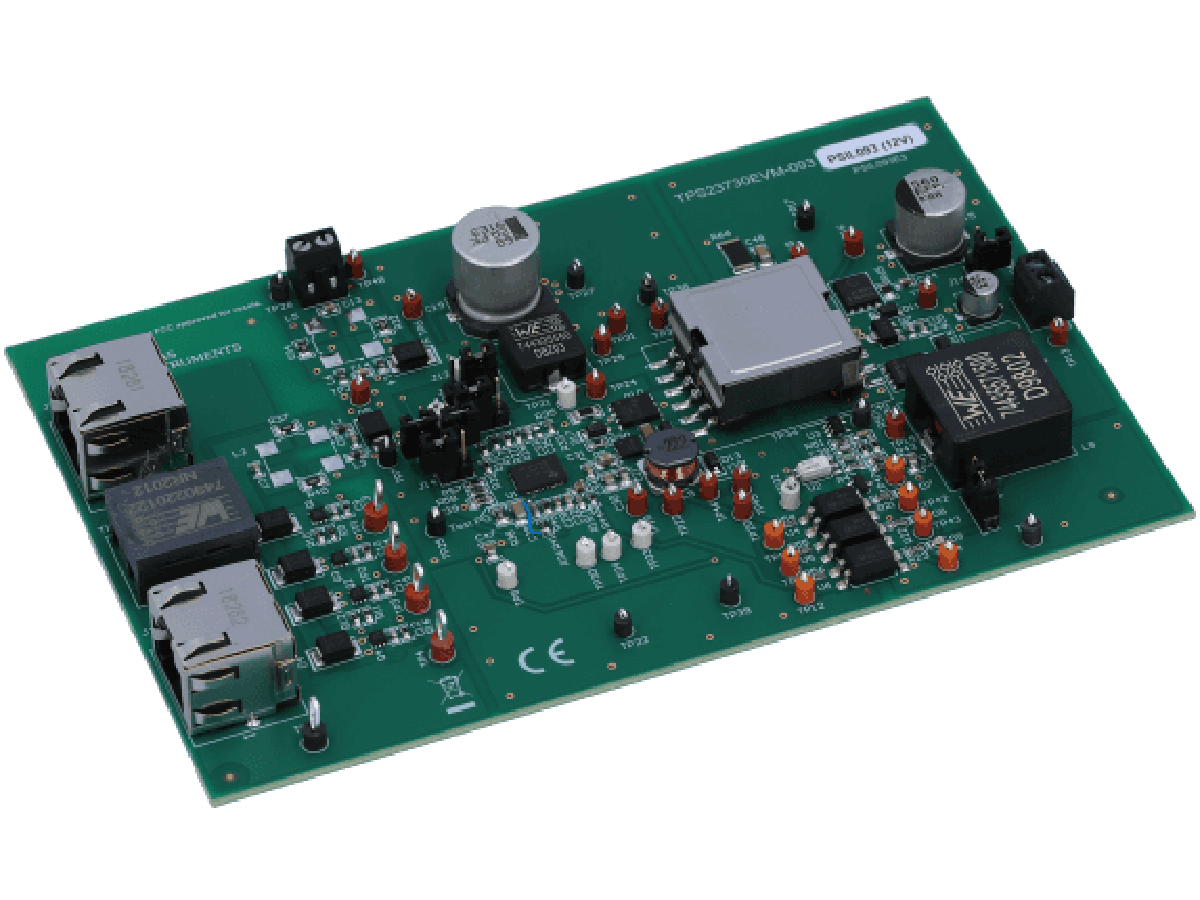

The TPS23730 evaluation module (TPS23730EVM-093) contains evaluation and reference circuitry for the TPS23730, which is a IEEE802.3bt Type 3 PoE PD, EA Gen 2 ready, controller suitable for Type 3 (51W) PoE PD applications.
Features
- IEEE802.3bt Type 3 compliant PoE PD
- Integrated PWM controller for flyback or active clamp forward congifuration
- Frequency dithering for EMI reduction
- Soft-start control with advanced startup and hiccup mode overload protection
- Soft-stop shutdown
Typical applications
- PoE PD applications
More information
All technical functions in detail
Products
