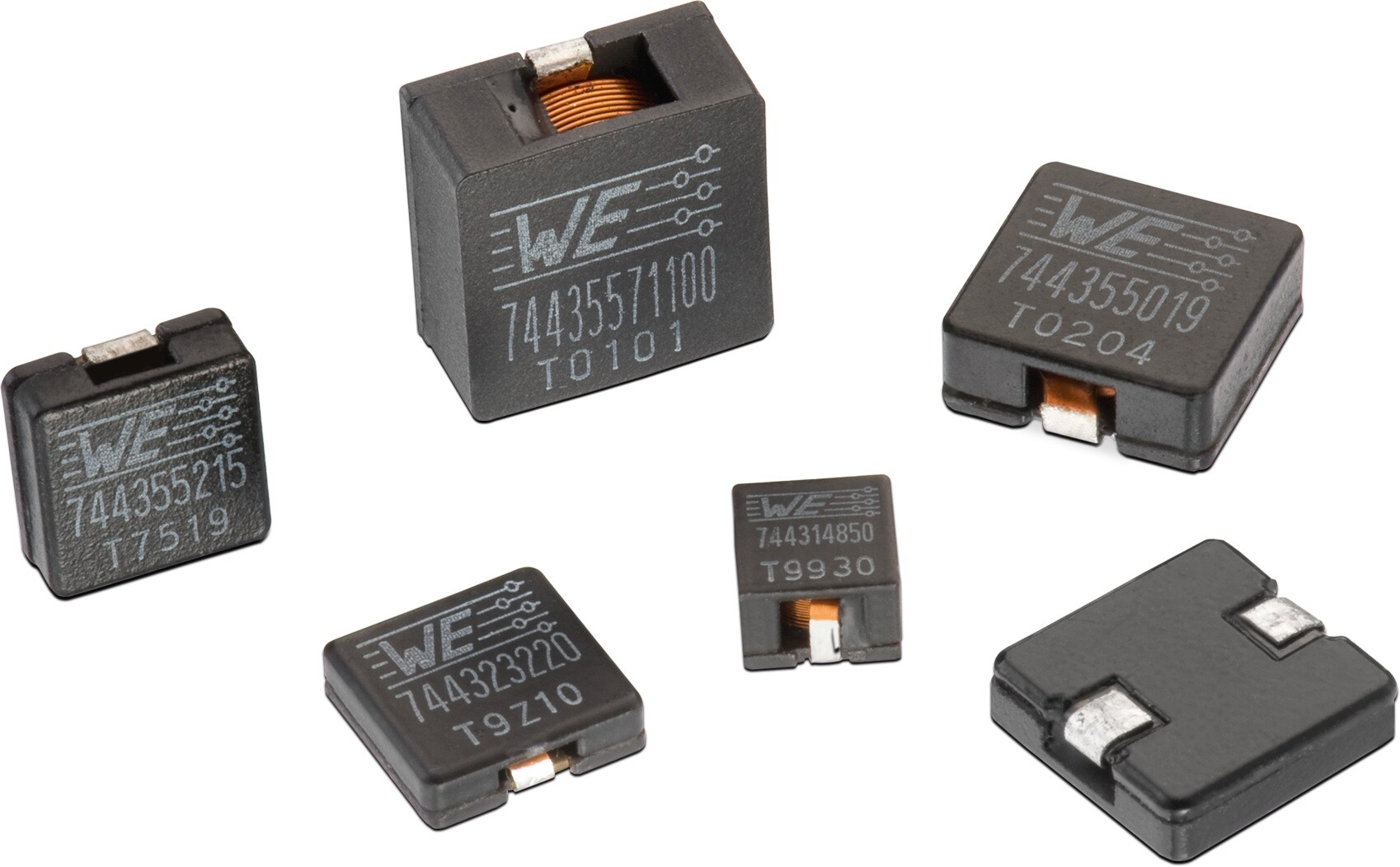

WE-HCI SMT Flat Wire High Current Inductor
Shielded
| Size | Dimensions | L (mm) | W (mm) | H (mm) | Material | Mount | |
|---|---|---|---|---|---|---|---|
5040 | 5.5 | 5.3 | 4 | Superflux | SMT | ||
7030 | 7 | 6.9 | 3 | Superflux | SMT | ||
7040 | 7 | 6.9 | 3.8 | Superflux | SMT | ||
7050 | 7 | 6.9 | 4.8 | Superflux | SMT | ||
1030 | 10.6 | 10.6 | 2.8 | Superflux | SMT | ||
1040 | 10.5 | 10.2 | 4 | WE-PERM | SMT | ||
1050 | 10.5 | 10.2 | 4.7 | Superflux | SMT | ||
1335 | - | 12.8 | 3.3 | Superflux | SMT | ||
1350 | 13 | 12.8 | 4.7 | WE-PERM | SMT | ||
1365 | - | 12.8 | 6.2 | WE-PERM | SMT | ||
2212 | 22.5 | 22 | 12 | MnZn | SMT | ||
1890 | 18.3 | 18.2 | 8.9 | WE-PERM 2 | SMT | ||
1890 | 18.3 | 18.2 | 8.9 | MnZn | SMT |
LTSpice files
Characteristics
- AECQ 200 qualified
- Magnetically shielded
- Flat wire coil for low losses at high frequency
- Low stray field
- Operating temperature: –40 °C to +125°C / +150 °C / +155°C
- Recommended solder profile: Reflow
Applications
- Graphic cards
- Laptops
- Industrial computers
- Motherboards
- High current switching regulators
- DC/DC converter
- Polyphase-switching regulators
- Filter
Application Notes
- ANP032 High Power Wireless Power Transfer for the Industrial Environment
- ANP039 Power Inductors - 8 Design Tips
- ANP044 Impact of the layout, components, and filters on the EMC of modern DC/DC switching controllers
- ANP118 Acoustic noise & Coil whine effect
- ANP135 The SEPIC with coupled and uncoupled inductors
- ANP138 Custom Rated Current Calculator
