WE-PD2 HV SMT Power Inductor (High Voltage)

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

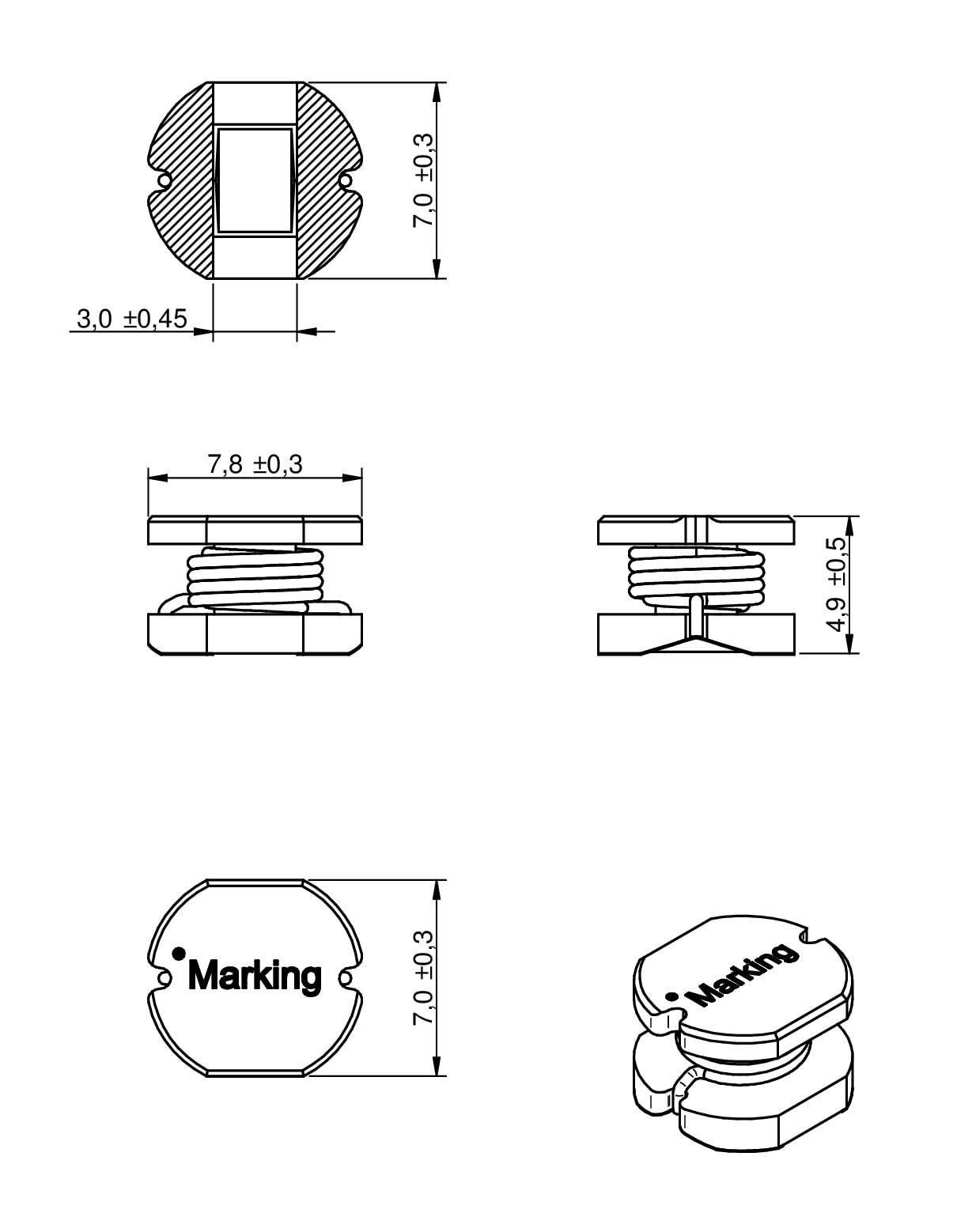

7850		7	7.8	5	SMT

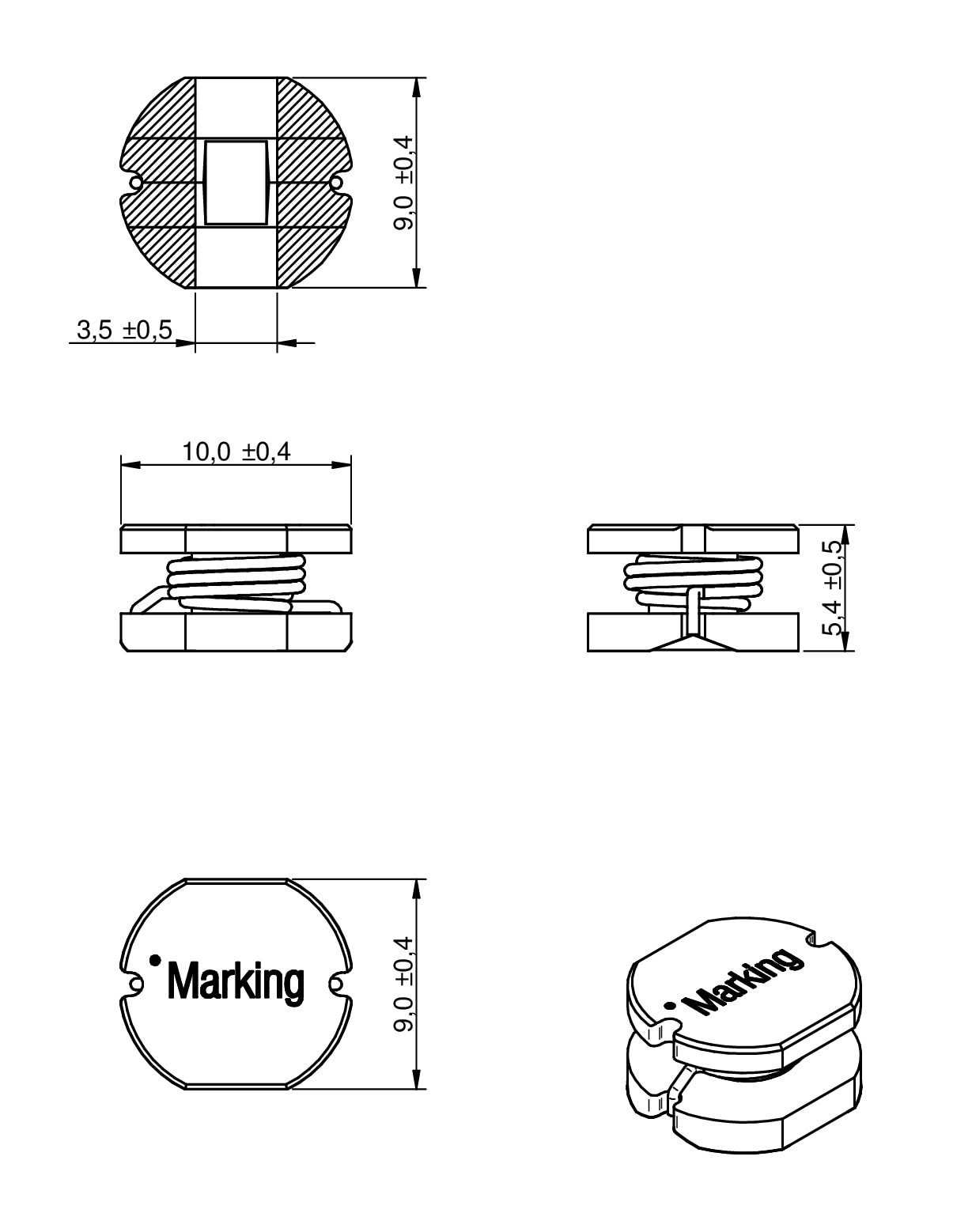

1054		9	10	5.4	SMT

LTSpice files

LT
LTSpice_WE-PD2-HV (rev24a).zip
|
1.7 KB

Characteristics

unshielded construction
Designed for 400 VDC
Operating temperature: –40°C to +125°C
Recommended solder profile: Reflow

Applications

Non-isolated buck or Buck-Boost Converter like PI LinkSwitch-TN
constant current LED Driver
Utility metering
Filter for power supply

Application Notes

Products

All

7850

1054

Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (Ω)	f_res (MHz)	Design Kit
768775256	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_7850 (rev1).igs \| 1.8 MB STP WE-PD2_HV_7850 (rev1).stp \| 594.1 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560	0.41	0.41	2.08	2.8	–
768775268	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_7850 (rev1).igs \| 1.8 MB STP WE-PD2_HV_7850 (rev1).stp \| 594.1 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.38	0.38	2.4	2.7	768771
768775282	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_7850 (rev1).igs \| 1.8 MB STP WE-PD2_HV_7850 (rev1).stp \| 594.1 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	820	0.35	0.35	2.77	2.6	–
76877530	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_7850 (rev1).igs \| 1.8 MB STP WE-PD2_HV_7850 (rev1).stp \| 594.1 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.3	0.3	3.3	2.4	768771
76877630	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_1060 (rev1).igs \| 1.3 MB STP WE-PD2_HV_1060 (rev1).stp \| 638.9 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.38	0.38	2.6	1.9	768771
768775312	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_7850 (rev1).igs \| 1.8 MB STP WE-PD2_HV_7850 (rev1).stp \| 594.1 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1200	0.28	0.28	4.5	2.1	–
768776312	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_1060 (rev1).igs \| 1.3 MB STP WE-PD2_HV_1060 (rev1).stp \| 638.9 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1200	0.35	0.35	3	1.8	–
768775322	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_7850 (rev1).igs \| 1.8 MB STP WE-PD2_HV_7850 (rev1).stp \| 594.1 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	0.15	0.2	7.2	1.6	–
768776322	SPEC	9 files EDA models: Components ZIP ALT WE-PD2HV (rev25a).IntLib \| 288 KB CDS Cadence_WE-PD2 HV (rev25a).zip \| 2.3 MB EAG Eagle_WE-PD2 HV (rev19a).lbr \| 36.1 KB KIC KiCad_WE-PD2HV (rev25a).zip \| 371.5 KB ZUK Download_CadStar_WE-PD2-HV (rev19a).zip \| 8.2 KB CAD files ZIP IGS WE-PD2_HV_1060 (rev1).igs \| 1.3 MB STP WE-PD2_HV_1060 (rev1).stp \| 638.9 KB Electric models ZIP PSP PSpice_WE-PD2-HV (rev24a).zip \| 5 KB SCS Spectre_WE-PD2_HV (rev24a).mod \| 3.3 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	0.18	0.26	5.3	1.3	768771

Order Code	Datasheet
768775256	SPEC
768775268	SPEC
768775282	SPEC
76877530	SPEC
76877630	SPEC
768775312	SPEC
768776312	SPEC
768775322	SPEC
768776322	SPEC

Samples

Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (Ω)	f_res (MHz)	Design Kit	Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Learn more

Schematic representations of the REDEXPERT loss simulator

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Single Inductor High Voltage WE-PD HV, WE-PD2 HV, WE-TI HV

Comments

With effect 7th January 2010 the so-called standby regulation came into force within the European Union. Reducing the power consumption until 2020 by 75% in the standby mode is the aim of this regulation. Due to that regulation electrical home appliance, communication and office equipment aren’t allowed to spend more than 2 Watt in the standby mode. For devices which are simply reactivated only 1 Watt is allowed. From 2014 on the values will reduce further on.
For those standby applications SMPS are needed that are compact and efficient but don’t exceed the requested consumption either. The high voltage version of the power inductors WE-PD2 is especially designed for such applications. A special layout combined with a complex test setup guarantees the requested withstand voltage of the rectified supply voltage of 400 VDC.
