Onsemi NFAQ1060L36T | Demoboard SECO-1KW-MDK-GEVK EVBUM2775/D

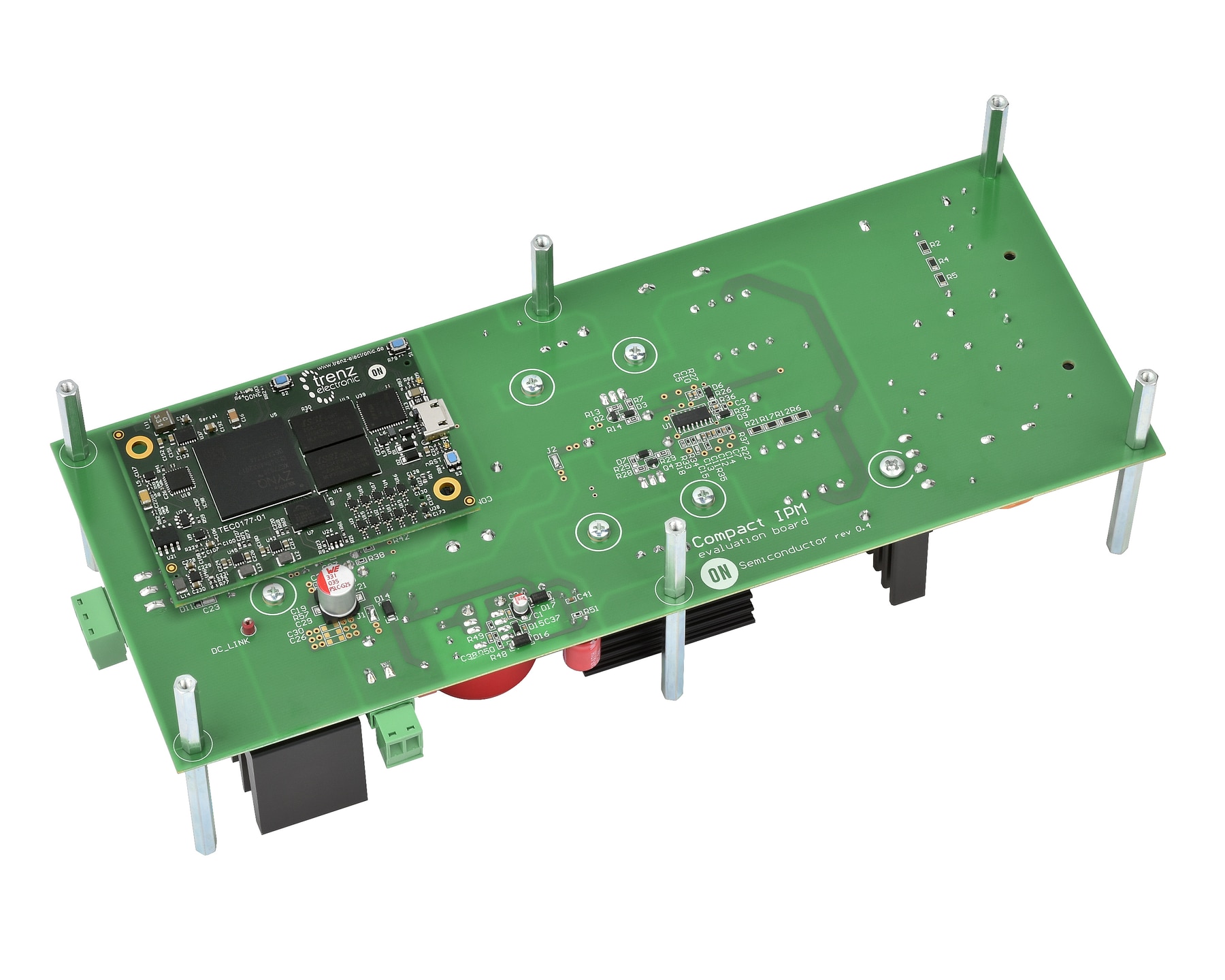

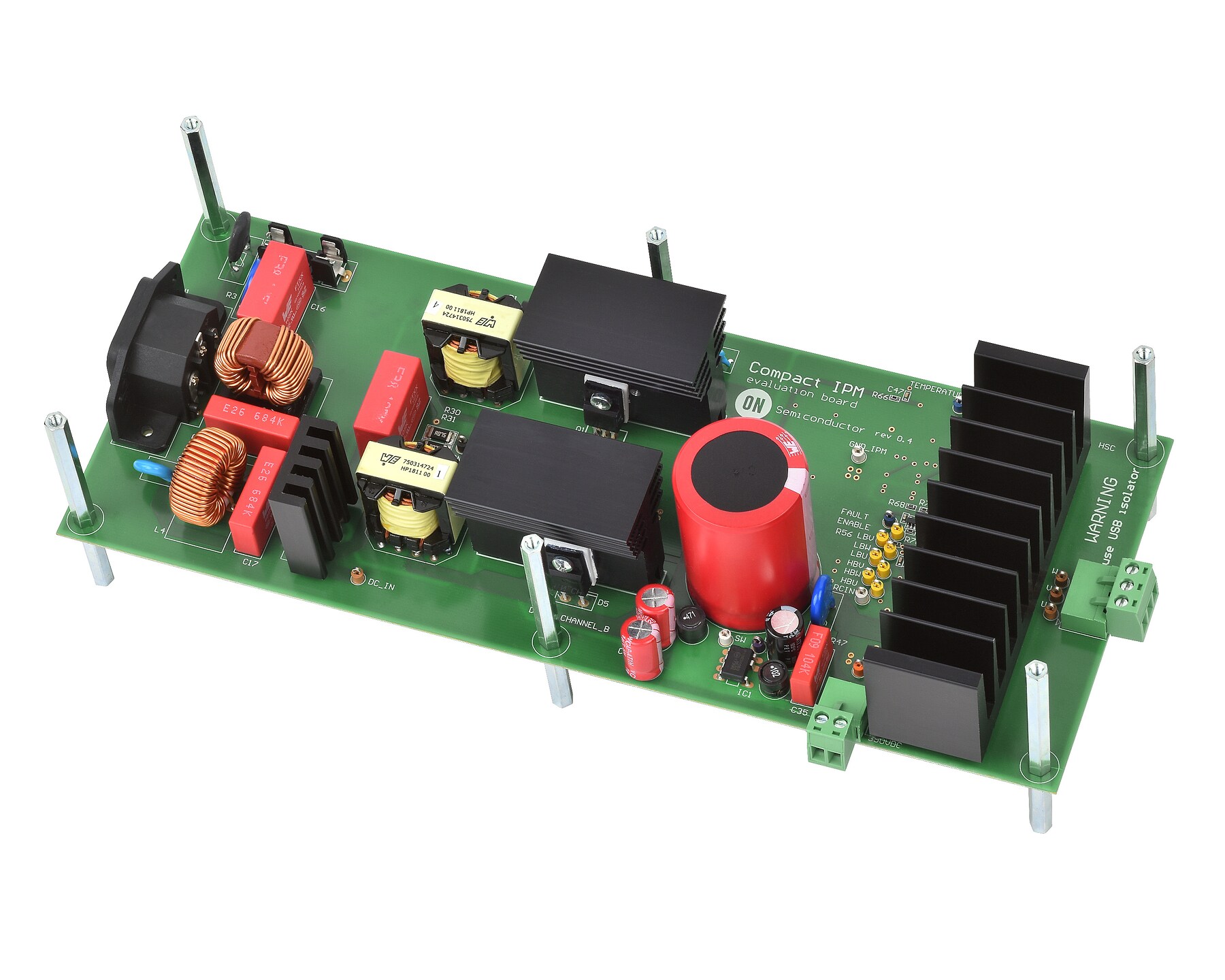

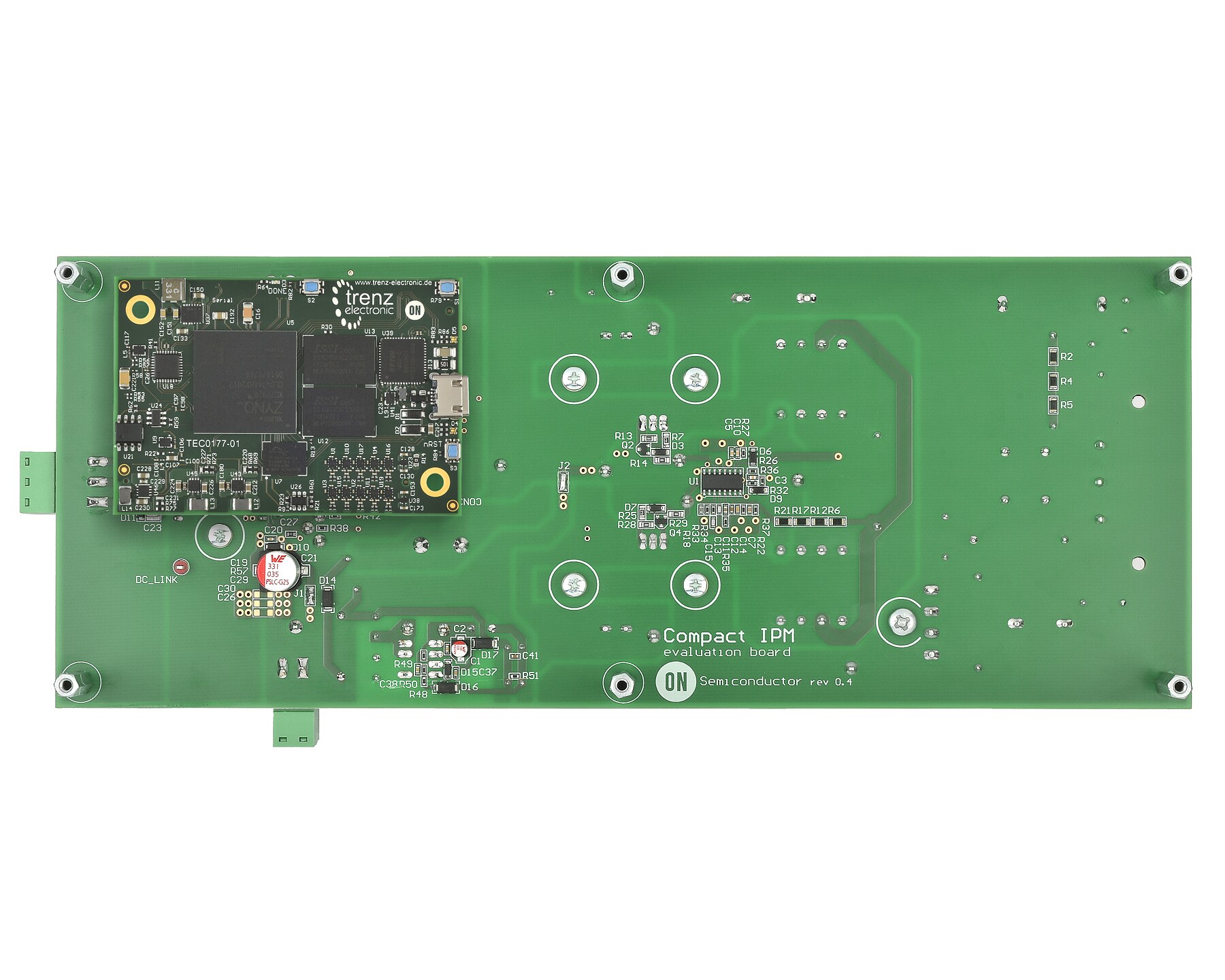

1kW 600V Industrial Motor Development Kit (MDK) with Compact Intelligent Power Module (IPM) board and Universal Controller Board (UCB)
Overview
| Topology | Power Factor Correction |
| IC revision | 2 |
Description
The SECO-1KW-MDK-GEVK is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package, and part of the Motor Development Kit (MDK). Rated for 230 Vac input and delivering up to 850W. All the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter and measurement and protection. The graphical user interface ensures an easy startup for evaluation purposes running voltage/frequency control. As part of the MDK the Compact IPM power module motor drive is compatible with the powerful Universal Controller Board (UCB) enabling high-end control strategies and AI capabilities for industrial motor control.
Features
Motor Development Kit (MDK):
- Compatible with the Universal Controller Board (UCB) FPGA/ARM
- Fully compatible with Xilinx® development tools for Zynq®-7000
- Downloadable V/f and FOC control use cases for the UCB 850W Intelligent Power Module (IPM) three-phase motor driver
- VIN: 230 Vac,rms ± 15% (single-phase)
- IOUT: Irms 10 ARMS per phase
- Compatible with three-phase motors: PMSM, BLDC or ACIM
- DIP/6 IPM NFAQ1060L36T, three-phase/10A with integrated gate drivers
- Cross-conduction, overcurrent and thermal protection embedded in DIPS6 module
- Plug-in connector interface for MCU cards (Arduino DUE footprint)
- Voltage/frequency control strategy implemented
- NCS2250SN2T3G: Push Pull Output Comparator implemented in ITRIP protection system
- Use case pre-loaded and GUI available for a quick-start evaluation
- Xilinx® development tools and environments are available for the MDK, such as Vitis and Vivado to program the FPGA
Typical applications
- Industrial Automation
- Industrial Fans
- Industrial Motor Control
- White Goods (Washing Machines)
More information
All technical functions in detail

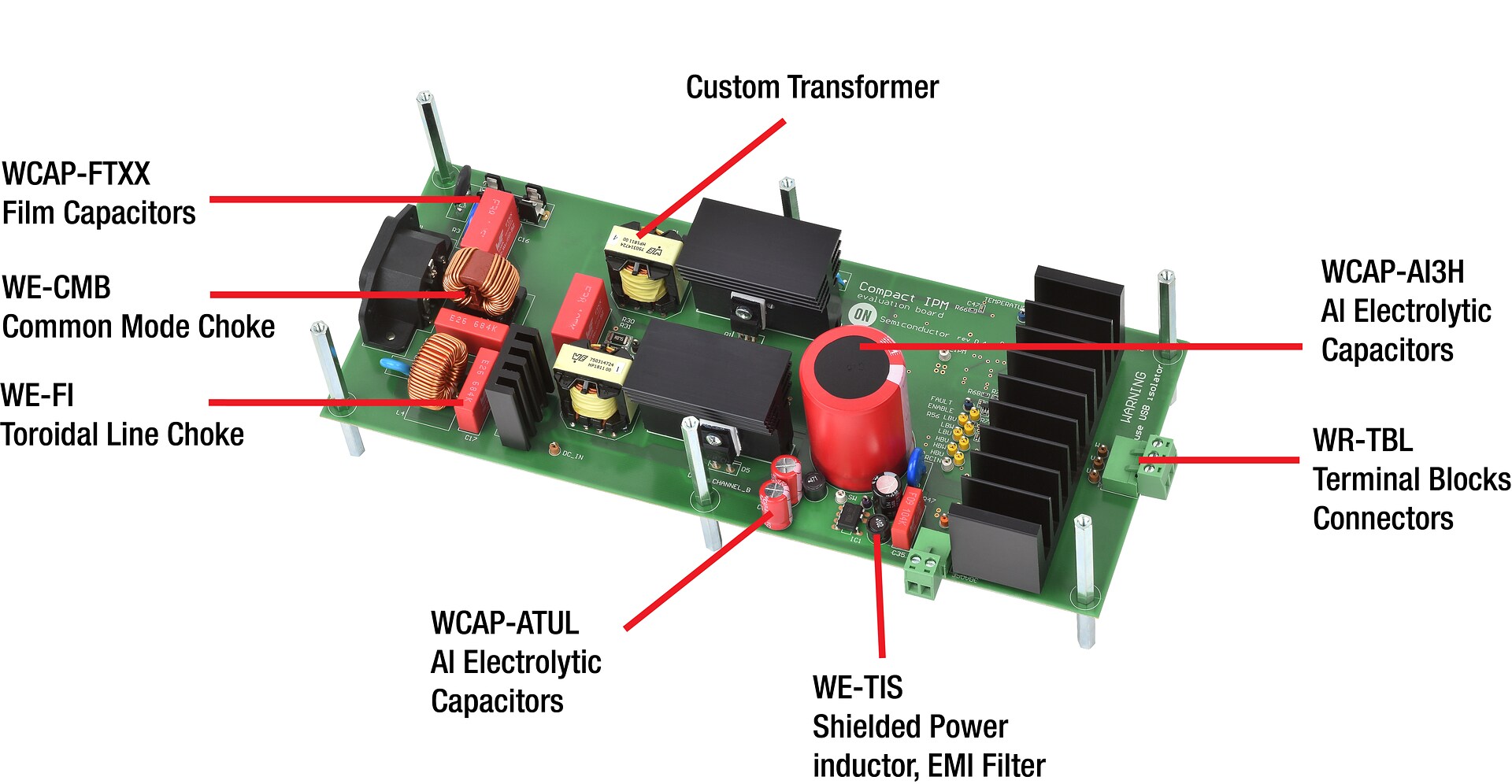

Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Safety Class | dV/dt(V/µs) | DF @ 1 kHz(%) | RISO | Pitch(mm) | Packaging | Tol. C | Size | Operating Temperature | Q | DF(%) | Ceramic Type | Fl(mm) | ISAT(A) | fres(MHz) | Ø ID(mm) | Ø OD(mm) | Endurance(h) | IRIPPLE(mA) | ILeak(µA) | Ø D(mm) | Z(mΩ) | RESR(Ω) | G(mm) | Working Voltage(V (AC)) | IR(A) | L(mH) | RDC max.(mΩ) | VR(V (DC)) | VT(V (AC)) | Material | L(mm) | W(mm) | H(mm) | Mount | Pins | PCB/Cable/Panel | Modularity | Type | Wire Section | SamplesAvailability & Sample | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECWCAP-CSGP MLCCs 50 V(DC), 100 pF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance100 pF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±5% | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 | – | Ceramic TypeNP0 Class I | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 470 pF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance470 pF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±5% | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 | – | Ceramic TypeNP0 Class I | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 25 V(DC), 1 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance1 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±5% | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 | – | Ceramic TypeNP0 Class I | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage25 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 1 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance1 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±5% | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 | – | Ceramic TypeNP0 Class I | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 1 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance1 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor2.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 25 V(DC), 10 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance10 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage25 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 10 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance10 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor2.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 15 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance15 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor2.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 47 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance47 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
 | SPECWCAP-FTXX Film Capacitors, 100 nF, X2 | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTXX Film Capacitors | Capacitance100 nF | Safety ClassX2 | Rate of Voltage Rise300 V/µs | Dissipation Factor0.1 % | Insulation Resistance30 GΩ | Pitch15 mm | PackagingCarton | Capacitance±10% | SizePitch 15 mm | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Pin length4 mm | – | – | – | – | Rated Voltage310 V (DC) | – | – | Length18 mm | Width6 mm | Height12 mm | MountBoxed THT | – | – | – | – | – | –Check availability | |||
SPECWCAP-CSGP MLCCs 25 V(DC), 100 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance100 nF | – | – | – | Insulation Resistance5 GΩ | – | Packaging7" Tape & Reel | Capacitance±20% | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Ceramic TypeX5R Class II | Pad Dimension0.25 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage25 V (DC) | – | – | Length1 mm | Width0.5 mm | Height0.5 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 16 V(DC), 100 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 16 V(DC) | Capacitance100 nF | – | – | – | Insulation Resistance5 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage16 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 25 V(DC), 100 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance100 nF | – | – | – | Insulation Resistance5 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage25 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 100 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance100 nF | – | – | – | Insulation Resistance5 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 25 V(DC), 100 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance100 nF | – | – | – | Insulation Resistance5 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Ceramic TypeX7R Class II | Pad Dimension0.5 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage25 V (DC) | – | – | Length2 mm | Width1.25 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
SPECWCAP-CSGP MLCCs 50 V(DC), 330 nF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance330 nF | – | – | – | Insulation Resistance1.5 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3 % | Ceramic TypeX7R Class II | Pad Dimension0.5 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage50 V (DC) | – | – | Length2 mm | Width1.25 mm | Height1.25 mm | – | – | – | – | – | – | –Check availability | ||||
| SPECWCAP-FTXX Film Capacitors, 680 nF, X2 PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTXX Film Capacitors | Capacitance680 nF | Safety ClassX2 | Rate of Voltage Rise130 V/µs | Dissipation Factor0.1 % | Insulation Resistance14.71 GΩ | Pitch22.5 mm | PackagingCarton | Capacitance±10% | SizePitch 22.5 mm | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Pin length4 mm | – | – | – | – | Rated Voltage310 V (DC) | – | – | Length26 mm | Width7.5 mm | Height15 mm | MountBoxed THT | – | – | – | – | – | –Check availability | |||
| SPECWCAP-FTXX Film Capacitors, 1 µF, X2 | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTXX Film Capacitors | Capacitance1 µF | Safety ClassX2 | Rate of Voltage Rise170 V/µs | Dissipation Factor0.1 % | Insulation Resistance10 GΩ | Pitch22.5 mm | PackagingCarton | Capacitance±10% | SizePitch 22.5 mm | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Pin length4 mm | – | – | – | – | Rated Voltage310 V (DC) | – | – | Length26 mm | Width11 mm | Height20 mm | MountBoxed THT | – | – | – | – | – | –Check availability | |||
SPECWCAP-CSGP MLCCs 10 V(DC), 2.2 µF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 10 V(DC) | Capacitance2.2 µF | – | – | – | Insulation Resistance0.05 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage10 V (DC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | – | – | – | – | – | –Check availability | ||||
 | SPECWCAP-ASLI Aluminum Electrolytic Capacitors, 10 µF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ASLI Aluminum Electrolytic Capacitors | Capacitance10 µF | – | – | – | Insulation Resistance10 MΩ | – | Packaging15" Tape & Reel | Capacitance±20% | Size4.0 x 5.5 | Operating Temperature -55 °C up to +105 °C | – | Dissipation Factor14 % | – | – | – | – | – | – | Endurance 2000 | Ripple Current90 mA | Leakage Current3.5 µA | Diameter4 mm | Impedance2000 mΩ | ESR1.8844 Ω | – | – | – | – | – | Rated Voltage35 V (DC) | – | – | Length5.5 mm | Width4.3 mm | – | MountV-Chip SMT | – | – | – | – | – | –Check availability | |||
 | SPECWCAP-PSHP Aluminum Polymer Capacitors, 100 µF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-PSHP Aluminum Polymer Capacitors | Capacitance100 µF | – | – | – | – | Pitch3.1 mm | Packaging15" Tape & Reel | Capacitance±20% | Size8.0 x 8.7 | Operating Temperature -55 °C up to +105 °C | – | Dissipation Factor12 % | – | – | – | – | – | – | Endurance 2000 | Ripple Current3000 mA | Leakage Current700 µA | Diameter8 mm | – | ESR0.03 Ω | – | – | – | – | – | Rated Voltage35 V (DC) | – | – | Length8.7 mm | Width8.3 mm | – | MountV-Chip SMT | – | – | – | – | – | –Check availability | |||
 | SPECWCAP-ATUL Aluminum Electrolytic Capacitors, 220 µF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATUL Aluminum Electrolytic Capacitors | Capacitance220 µF | – | – | – | – | Pitch3.5 mm | PackagingAmmopack | Capacitance±20% | – | – | – | Dissipation Factor14 % | – | – | – | – | – | – | Endurance 7000 | Ripple Current590 mA | Leakage Current55 µA | Diameter8 mm | – | – | – | – | – | – | – | Rated Voltage25 V (DC) | – | – | Length11.5 mm | – | – | – | – | – | – | – | – | –Check availability | |||
 | SPECWCAP-PSLC Aluminum Polymer Capacitors, 330 µF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-PSLC Aluminum Polymer Capacitors | Capacitance330 µF | – | – | – | – | – | Packaging15" Tape & Reel | Capacitance±20% | Size10.0 x 12.4 | Operating Temperature -55 °C up to +105 °C | – | Dissipation Factor12 % | – | – | – | – | – | – | Endurance 2000 | Ripple Current4400 mA | Leakage Current2310 µA | Diameter10 mm | – | ESR0.02 Ω | – | – | – | – | – | Rated Voltage35 V (DC) | – | – | Length12.4 mm | Width10.3 mm | – | MountV-Chip SMT | – | – | – | – | – | –Check availability | |||
 | SPECWCAP-AI3H Aluminum Electrolytic Capacitors, 470 µF, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-AI3H Aluminum Electrolytic Capacitors | Capacitance470 µF | – | – | – | – | Pitch10 mm | PackagingTray | Capacitance±20 | Size35.0 x 50.0 | Operating Temperature -25 °C up to +105 °C | – | Dissipation Factor20 % | – | – | – | – | – | – | Endurance 3000 | Ripple Current2210 mA | Leakage Current1380 µA | Diameter35 mm | – | ESR0.56 Ω | – | – | – | – | – | Rated Voltage450 V (DC) | – | – | Length50 mm | – | – | MountSnap-In | – | – | – | – | – | –Check availability | |||
 | SPECWE-CMB Common Mode Power Line Choke, –, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-CMB Common Mode Power Line Choke | – | – | – | – | – | – | – | – | SizeL | Operating Temperature -40 °C up to +125 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Pin length5 mm | – | Rated Current6 A | Inductance2.2 mH | DC Resistance20 mΩ | Rated Voltage250 V (DC) | Insulation Test Voltage1500 V (AC) | MaterialMnZn | Length27.5 mm | Width18.5 mm | Height33 mm | MountTHT | Pins4 | – | – | – | – | –Check availability | |||
 | SPECWE-FI Leaded Toroidal Line Choke, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-FI Leaded Toroidal Line Choke | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Pin length15 mm | – | Rated Current6.1 A | Inductance0.15 mH | DC Resistance45 mΩ | – | – | – | Length27.5 mm | Width13.6 mm | – | MountTHT | – | – | – | – | – | –Check availability | ||
 | SPECWE-TIS Radial Leaded Wire Wound Inductor, –, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TIS Radial Leaded Wire Wound Inductor | – | – | – | – | – | – | – | – | Size8075 | Operating Temperature -40 °C up to +125 °C | – | – | – | – | Saturation Current0.4 A | Self Resonant Frequency2.3 MHz | – | – | – | – | – | – | – | – | – | – | Rated Current0.6 A | Inductance0.47 mH | DC Resistance1300 mΩ | – | – | MaterialNiZn | Length7.8 mm | Width7.8 mm | Height7.5 mm | MountTHT | – | – | – | – | – | –Check availability | |||
| SPECWE-TIS Radial Leaded Wire Wound Inductor, –, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TIS Radial Leaded Wire Wound Inductor | – | – | – | – | – | – | – | – | Size8075 | Operating Temperature -40 °C up to +125 °C | – | – | – | – | Saturation Current0.25 A | Self Resonant Frequency1.7 MHz | – | – | – | – | – | – | – | – | – | – | Rated Current0.35 A | Inductance1 mH | DC Resistance2300 mΩ | – | – | MaterialNiZn | Length7.8 mm | Width7.8 mm | Height7.5 mm | MountTHT | – | – | – | – | – | –Check availability | |||
 | SPECWR-PHD Socket Header - Dual, –, – | Simulation– | Availability – | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Dual | – | – | – | – | Insulation Resistance1000 MΩ | Pitch2.54 mm | PackagingTube | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Working Voltage250 V (AC) | Rated Current3 A | – | – | – | – | – | Length46.22 mm | – | – | MountSMT | Pins36 | – | – | TypeStraight | – | –Check availability | |
 | SPECWR-TBL Series 313 - 5.08 mm Close Horizontal PCB Header, –, – | Simulation– | Availability – | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-TBL Series 313 - 5.08 mm Close Horizontal PCB Header | – | – | – | – | – | Pitch5.08 mm | PackagingBox | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Working Voltage320 V (AC) | Rated Current15 A | – | – | – | – | – | Length11.56 mm | – | – | MountTHT | Pins2 | PCB/Cable/PanelPCB | ModularityNo | TypeClosed Horizontal Plug entry | – | –Check availability | |
 | SPECWR-TBL Series 3137 - 5.00 mm Close Horizontal PCB Header, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-TBL Series 3137 - 5.00 mm Close Horizontal PCB Header | – | – | – | – | – | Pitch5 mm | PackagingBox | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Working Voltage320 V (AC) | Rated Current15 A | – | – | – | – | – | Length16.4 mm | – | – | MountTHT | Pins3 | PCB/Cable/PanelPCB | ModularityNo | TypeClosed Horizontal Plug entry | – | –Check availability | ||
 | SPECWR-TBL Series 351 - 5.08 mm Vertical, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-TBL Series 351 - 5.08 mm Vertical | – | – | – | – | – | Pitch5.08 mm | PackagingBox | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Working Voltage320 V (AC) | Rated Current15 A | – | – | – | – | – | Length10.16 mm | – | – | MountCable | Pins2 | PCB/Cable/PanelCable | ModularityNo | TypeVertical Cable Entry | Wire Section 28 to 12 (AWG) 0.2 to 2.5 (mm²) | –Check availability | ||
| SPECWR-TBL Series 351 - 5.08 mm Vertical, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-TBL Series 351 - 5.08 mm Vertical | – | – | – | – | – | Pitch5.08 mm | PackagingBox | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Working Voltage320 V (AC) | Rated Current15 A | – | – | – | – | – | Length15.24 mm | – | – | MountCable | Pins3 | PCB/Cable/PanelCable | ModularityNo | TypeVertical Cable Entry | Wire Section 28 to 12 (AWG) 0.2 to 2.5 (mm²) | –Check availability | ||
 | SPECWR-PHD Socket Header - Single, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Single | – | – | – | – | Insulation Resistance1000 MΩ | Pitch2.54 mm | PackagingTube | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Working Voltage250 V (AC) | Rated Current3 A | – | – | – | – | – | Length20.82 mm | – | – | MountSMT | Pins8 | – | – | TypeStraight Type 2 | – | –Check availability | ||
750314724 | SPECPower Inductor, –, – | Simulation– | Availability – | Downloads– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series Power Inductor | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | –Check availability | |
 | SPECWA-SBRRO Round Brass Spacers, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWA-SBRRO Round Brass Spacers | – | – | – | – | – | – | PackagingBulk | – | – | Operating Temperature -55 °C up to +150 °C | – | – | – | – | – | – | Inner Diameter3.2 mm | Outer Diameter6 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | MaterialBrass | Length3 mm | – | – | – | – | – | – | – | – | –Check availability |
