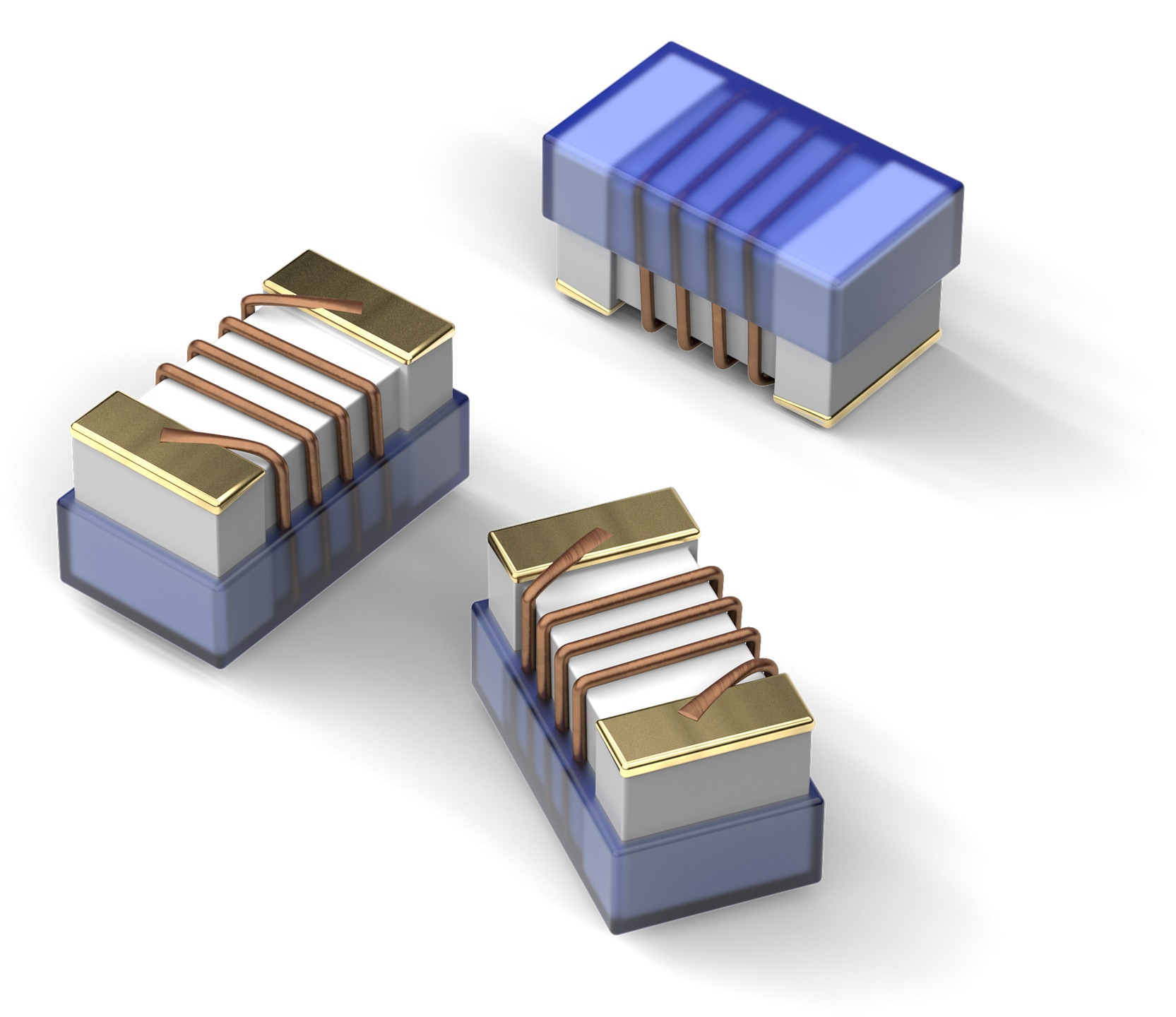

WE-KI SMT Wire Wound Ceramic Inductor EXTENDED

 SizeL
(mm)
W
(mm)
H
(mm)
Mount

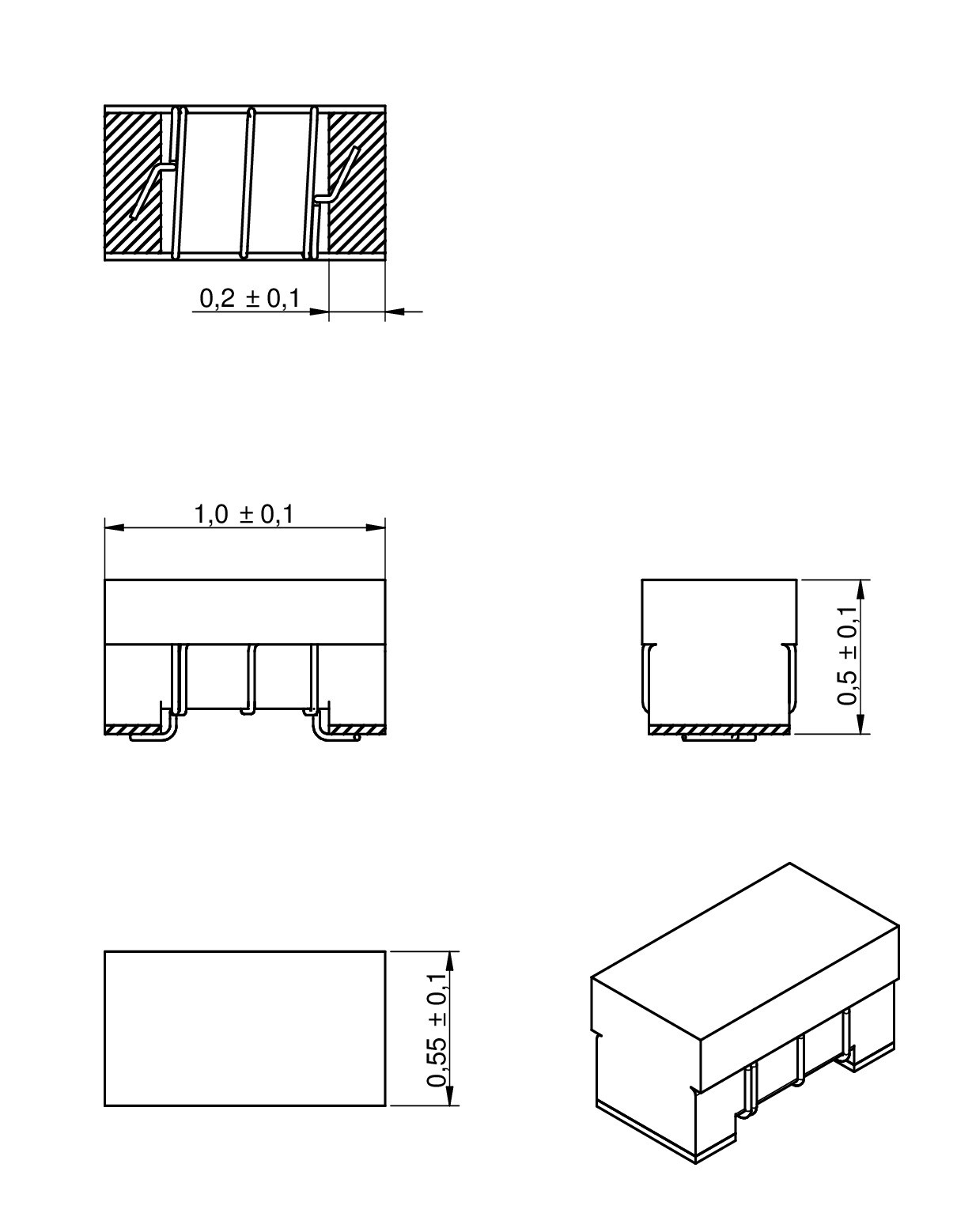

0402 1 0.55 0.5 SMT

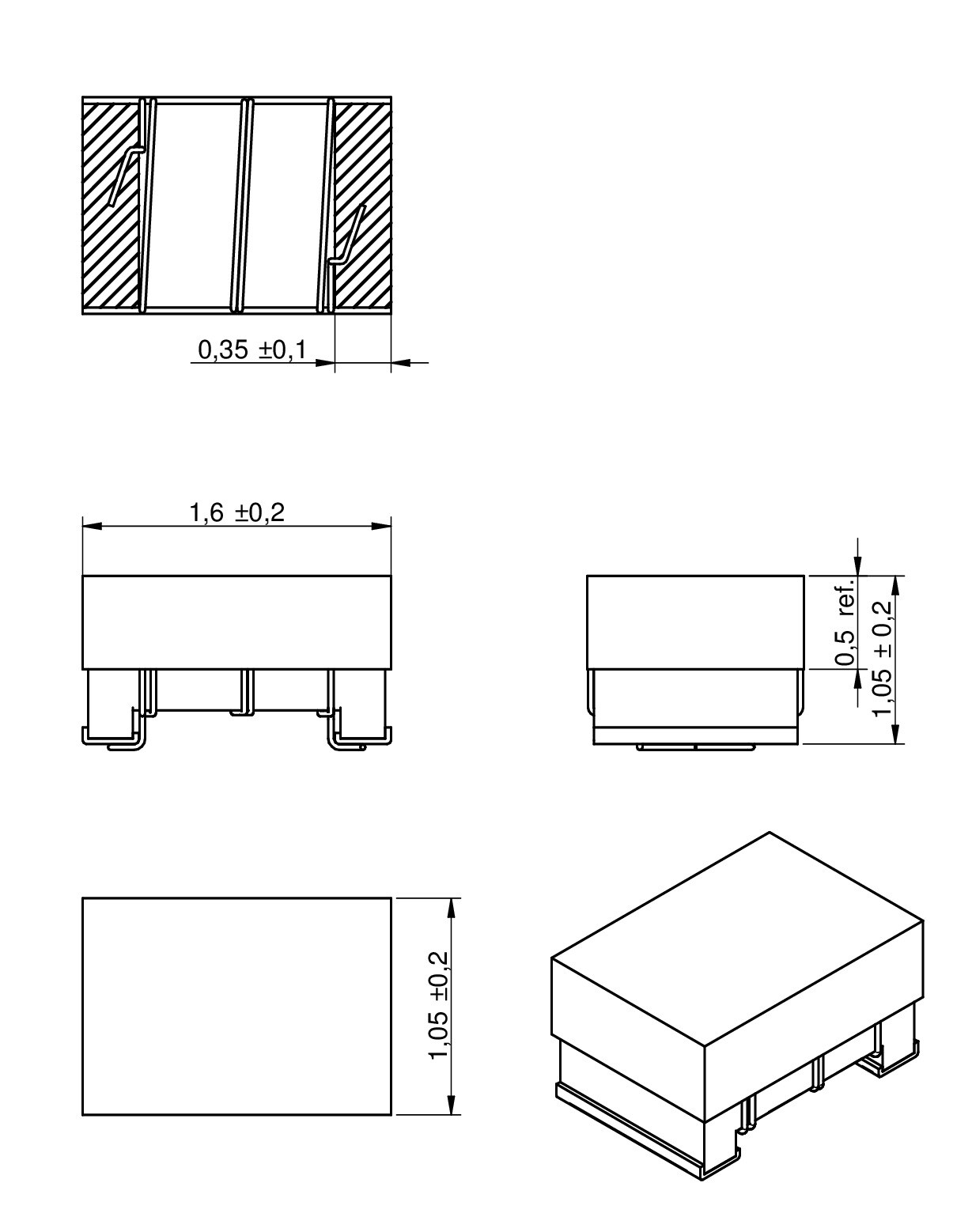

EXT. 0603 1.6 1.05 1.05 SMT

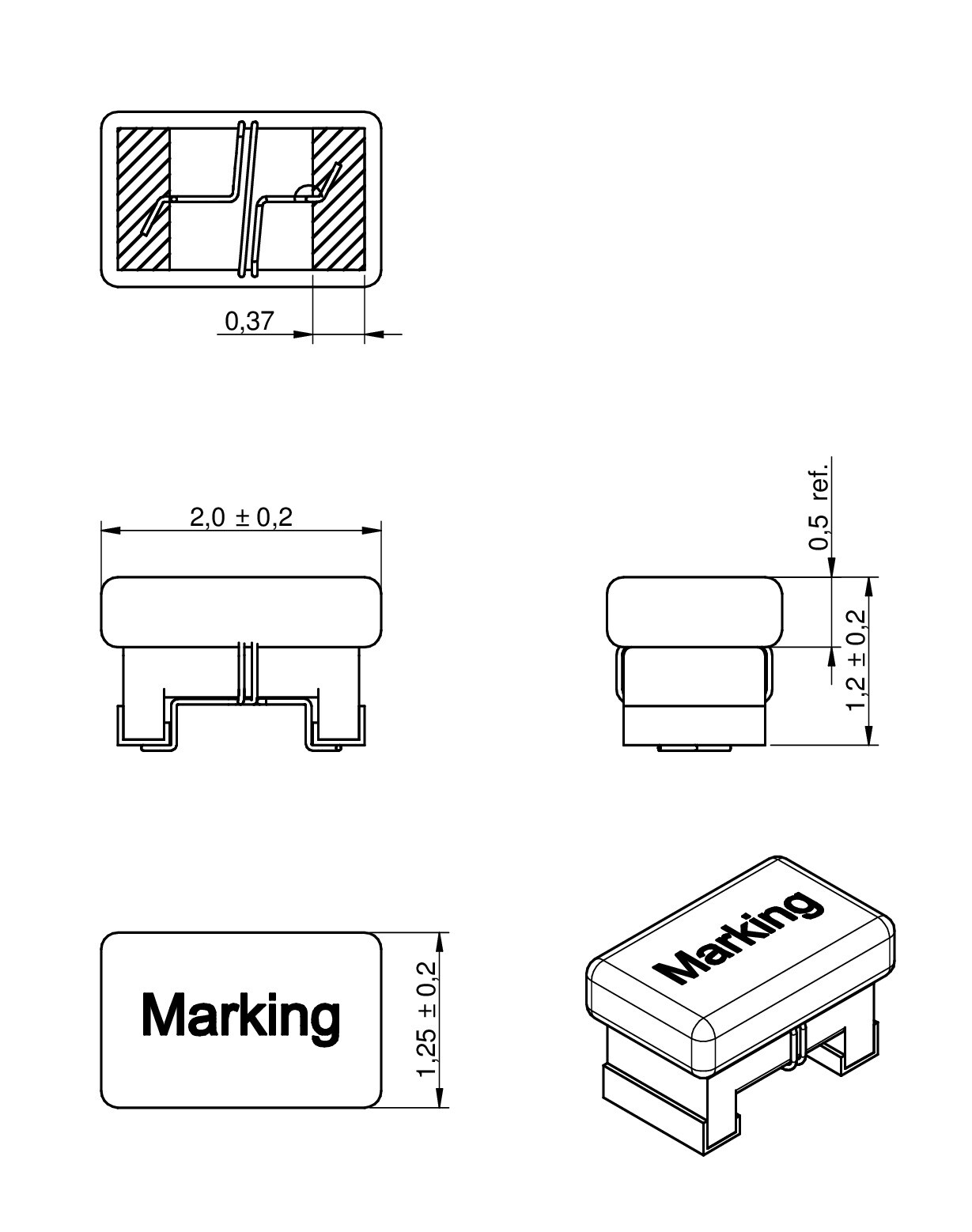

EXT. 0805 2 1.25 1.2 SMT

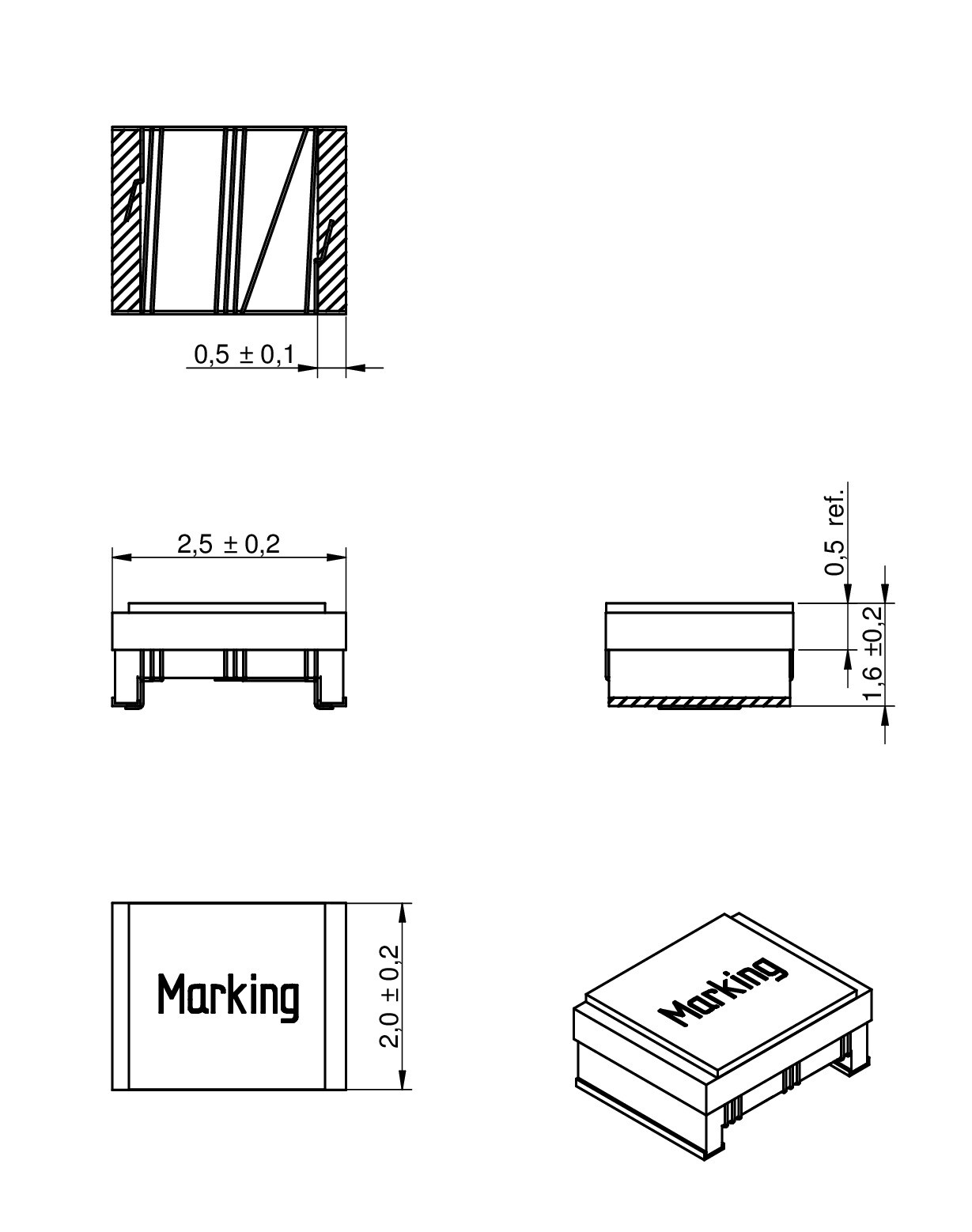

1008 2.5 2 1.6 SMT

Characteristics

  • WE-KI series offers you an excellent Q factor and highest possible self resonant frequencies up to 12.5 GHz
  • High quality
  • Inductance tolerances: 2% and 5%
  • High thermal stability
  • Recommended soldering: Reflow
  • Operating temperature: –40°C to +125°C
  • Custom designs on request

Applications

  • Especially developed for high frequency applications
  • RF transceiver/communications
  • SAT-Receiver
  • Set Top Box
  • Broadband signal transmission
  • Bluetooth
  • Wireless LAN

Modelithics Simulation Models

Incorporate this part into your design with Modelithics’ highly accurate measurement-based simulation models. Request a 90-day FREE trail! Modelithics libraries are available for Keysight Technologies’ Advanced Design System (ADS), NI/AWR Design Environment/Microwave Office™, Keysight Technologies’ Gensys, ASYSS® HFSS™, Sonnet® and Cadence.

Request a FREE 90-Day Trial!

Products

All
0402
0603
0805
1008
Order Code Data­sheet Simu­lation DownloadsL
(nH)
Tol. LTest Condition LTest Condition QRDC max.
(Ω)
IR
(mA)
fres
(MHz)
Design Kit Samples
744765010ASPEC
9 files 1 ±0.2nH 250 MHz 250 MHz 0.045 1360 6000744765A
744765G
744761016ASPEC
9 files 1.6 ±0.2nH 250 MHz 250 MHz 0.03 700 12500744761G
744761
744761018ASPEC
9 files 1.8 ±0.2nH 250 MHz 250 MHz 0.05 700 12500744761G
744761
744765019ASPEC
9 files 1.9 ±0.2nH 250 MHz 250 MHz 0.07 1040 6000
744765020ASPEC
9 files 2 ±0.2nH 250 MHz 250 MHz 0.07 1040 6000744765A
744765G
744761020ASPEC
9 files 2 ±0.2nH 250 MHz 250 MHz 0.08 700 6900744761G
744761
744765022ASPEC
9 files 2.2 ±0.2nH 250 MHz 250 MHz 0.07 960 6000744765A
744765G
744760022ASPEC
9 files 2.2 ±0.2nH 250 MHz 1000 MHz 0.06 800 6000744762G
744762
744765024ASPEC
9 files 2.4 ±0.2nH 250 MHz 250 MHz 0.068 790 6000
744765027ASPEC
9 files 2.7 ±0.2nH 250 MHz 250 MHz 0.12 640 6000744765A
744765G
744760027ASPEC
9 files 2.7 ±0.2nH 250 MHz 1000 MHz 0.08 800 6000
744765033ASPEC
9 files 3.3 ±5% 250 MHz 250 MHz 0.066 840 6000744765A
744765G
744761033ASPEC
9 files 3.3 ±0.2nH 250 MHz 250 MHz 0.06 700 5800744761G
744761
744760033ASPEC
9 files 3.3 ±0.2nH 250 MHz 1000 MHz 0.08 800 6000744762G
744762
744762033ASPEC
9 files 3.3 ±0.3nH 100 MHz 1000 MHz 0.06 1000 6000
744765036ASPEC
9 files 3.6 ±5% 250 MHz 250 MHz 0.066 840 6000
744761036ASPEC
9 files 3.6 ±0.2nH 250 MHz 250 MHz 0.06 700 5900744761G
744761
744765039ASPEC
9 files 3.9 ±5% 250 MHz 250 MHz 0.066 840 5800
744760039ASPEC
9 files 3.9 ±0.2nH 250 MHz 1000 MHz 0.06 600 6000
744761039ASPEC
9 files 3.9 ±0.2nH 250 MHz 250 MHz 0.08 700 6000
744762039ASPEC
9 files 3.9 ±0.3nH 100 MHz 1000 MHz 0.1 1000 5500
744765043ASPEC
9 files 4.3 ±5% 250 MHz 250 MHz 0.091 700 6000
744761043ASPEC
9 files 4.3 ±0.2nH 250 MHz 250 MHz 0.08 700 5900
744765047ASPEC
9 files 4.7 ±5% 250 MHz 250 MHz 0.13 640 4775744765A
744765G
744760047ASPEC
9 files 4.7 ±0.2nH 250 MHz 1000 MHz 0.06 600 5800
744761047ASPEC
9 files 4.7 ±0.2nH 250 MHz 250 MHz 0.13 700 5800744761G
744761
744765051ASPEC
9 files 5.1 ±5% 250 MHz 250 MHz 0.083 800 5800744765A
744761051ASPEC
9 files 5.1 ±5% 250 MHz 250 MHz 0.14 700 5700
744761051GASPEC
9 files 5.1 ±2% 250 MHz 250 MHz 0.14 700 5700
744765051GASPEC
9 files 5.1 ±0.2nH 250 MHz 250 MHz 0.083 800 5800744765G
744760051ASPEC
9 files 5.1 ±5% 250 MHz 1000 MHz 0.08 600 5800
744765056ASPEC
9 files 5.6 ±5% 250 MHz 250 MHz 0.083 760 5800744765A
744761056ASPEC
9 files 5.6 ±5% 250 MHz 250 MHz 0.15 700 5500744761
744761056GASPEC
9 files 5.6 ±2% 250 MHz 250 MHz 0.15 700 5500744761G
744765056GASPEC
9 files 5.6 ±0.2nH 250 MHz 250 MHz 0.083 760 5800744765G
744760056ASPEC
9 files 5.6 ±5% 250 MHz 1000 MHz 0.08 600 5800744762
744760056GASPEC
9 files 5.6 ±0.2nH 250 MHz 1000 MHz 0.08 600 5800744762G
744765062ASPEC
9 files 6.2 ±5% 250 MHz 250 MHz 0.083 760 5800
744765062GASPEC
9 files 6.2 ±0.2nH 250 MHz 250 MHz 0.083 750 5800
744765068ASPEC
9 files 6.8 ±5% 250 MHz 250 MHz 0.083 680 4800744765A
744761068ASPEC
9 files 6.8 ±5% 250 MHz 250 MHz 0.11 700 5800744761
744762068ASPEC
9 files 6.8 ±5% 100 MHz 1000 MHz 0.06 1000 5500744762
744765068GASPEC
9 files 6.8 ±0.2nH 250 MHz 250 MHz 0.083 680 4800744765G
744761068GASPEC
9 files 6.8 ±2% 250 MHz 250 MHz 0.11 700 5800744761G
744760068ASPEC
9 files 6.8 ±5% 250 MHz 1000 MHz 0.06 600 5600
744760068GASPEC
9 files 6.8 ±0.2nH 250 MHz 1000 MHz 0.06 600 5600
744762068GASPEC
9 files 6.8 ±0.2nH 100 MHz 1000 MHz 0.06 1000 5500744762G
744765075ASPEC
9 files 7.5 ±5% 250 MHz 250 MHz 0.104 680 5800744765A
744761075ASPEC
9 files 7.5 ±5% 250 MHz 250 MHz 0.11 700 4800744761
744765075GASPEC
9 files 7.5 ±0.2nH 250 MHz 250 MHz 0.104 680 5800744765G
744761075GASPEC
9 files 7.5 ±2% 250 MHz 250 MHz 0.106 700 4800744761G
744765082ASPEC
9 files 8.2 ±5% 250 MHz 250 MHz 0.104 680 4400744765A
744760082ASPEC
9 files 8.2 ±5% 250 MHz 1000 MHz 0.06 600 5500744762
744762082ASPEC
9 files 8.2 ±5% 100 MHz 1000 MHz 0.06 1000 5500
744765082GASPEC
9 files 8.2 ±0.2nH 250 MHz 250 MHz 0.104 680 4400744765G
744761082ASPEC
9 files 8.2 ±5% 250 MHz 250 MHz 0.1 700 4600744761
744761082GASPEC
9 files 8.2 ±2% 250 MHz 250 MHz 0.1 700 4600744761G
744760082GASPEC
9 files 8.2 ±0.2nH 250 MHz 1000 MHz 0.06 600 5500744762G
744762082GASPEC
9 files 8.2 ±0.2nH 100 MHz 1000 MHz 0.06 1000 5500
744765087ASPEC
9 files 8.7 ±5% 250 MHz 250 MHz 0.2 480 4100
744761087GASPEC
9 files 8.7 ±2% 250 MHz 250 MHz 0.109 700 4600
744761087ASPEC
9 files 8.7 ±5% 250 MHz 250 MHz 0.109 700 4600
744765090ASPEC
9 files 9 ±5% 250 MHz 250 MHz 0.104 680 4160744765A
744765090GASPEC
9 files 9 ±0.2nH 250 MHz 250 MHz 0.104 680 4160744765G
744761091ASPEC
9 files 9.1 ±5% 250 MHz 250 MHz 0.135 700 4000
744761091GASPEC
9 files 9.1 ±2% 250 MHz 250 MHz 0.135 700 4000
744765095ASPEC
9 files 9.5 ±5% 250 MHz 250 MHz 0.2 680 4000
744761095ASPEC
9 files 9.5 ±5% 250 MHz 250 MHz 0.135 700 4500
744761095GASPEC
9 files 9.5 ±2% 250 MHz 250 MHz 0.135 700 4500
744765095GASPEC
9 files 9.5 ±0.2nH 250 MHz 250 MHz 0.2 680 4000
744765110ASPEC
9 files 10 ±5% 250 MHz 250 MHz 0.195 480 3900744765A
744761110ASPEC
9 files 10 ±5% 250 MHz 250 MHz 0.13 700 4800744761
744760110ASPEC
9 files 10 ±5% 250 MHz 500 MHz 0.08 600 4800744762
744762110ASPEC
9 files 10 ±5% 100 MHz 1000 MHz 0.08 1000 4300744762
744765110GASPEC
9 files 10 ±2% 250 MHz 250 MHz 0.195 480 3900744765G
744761110GASPEC
9 files 10 ±2% 250 MHz 250 MHz 0.13 700 4800744761G
744760110GASPEC
9 files 10 ±2% 250 MHz 500 MHz 0.08 600 4800744762G
744762110GASPEC
9 files 10 ±2% 100 MHz 1000 MHz 0.08 1000 4300744762G
744765111ASPEC
9 files 11 ±5% 250 MHz 250 MHz 0.12 640 3680
744765111GASPEC
9 files 11 ±2% 250 MHz 250 MHz 0.12 640 3680
744761111ASPEC
9 files 11 ±5% 250 MHz 250 MHz 0.09 700 4000744761
744761111GASPEC
9 files 11 ±2% 250 MHz 250 MHz 0.09 700 4000744761G
744765112ASPEC
9 files 12 ±5% 250 MHz 250 MHz 0.12 640 3600744765A
744761112ASPEC
9 files 12 ±5% 250 MHz 250 MHz 0.13 700 4000744761
744762112ASPEC
9 files 12 ±5% 100 MHz 500 MHz 0.08 1000 3600
744765112GASPEC
9 files 12 ±2% 250 MHz 250 MHz 0.12 640 3600744765G
744761112GASPEC
9 files 12 ±2% 250 MHz 250 MHz 0.13 700 4000744761G
744760112ASPEC
9 files 12 ±5% 250 MHz 500 MHz 0.08 600 4100744762
744760112GASPEC
9 files 12 ±2% 250 MHz 500 MHz 0.08 600 4100744762G
744762112GASPEC
9 files 12 ±2% 100 MHz 500 MHz 0.08 1000 3600
744765113ASPEC
9 files 13 ±5% 250 MHz 250 MHz 0.21 560 3450744765A
744765113GASPEC
9 files 13 ±2% 250 MHz 250 MHz 0.21 560 3450744765G
744761113ASPEC
9 files 13 ±5% 250 MHz 250 MHz 0.106 700 4000
744761113GASPEC
9 files 13 ±2% 250 MHz 250 MHz 0.106 700 4000
744765115ASPEC
9 files 15 ±5% 250 MHz 250 MHz 0.172 560 3280744765A
744761115ASPEC
9 files 15 ±5% 250 MHz 250 MHz 0.17 700 4000744761
744762115ASPEC
9 files 15 ±5% 100 MHz 500 MHz 0.08 1000 2700744762
744765115GASPEC
9 files 15 ±2% 250 MHz 250 MHz 0.172 560 3280744765G
744761115GASPEC
9 files 15 ±2% 250 MHz 250 MHz 0.17 700 4000744761G
744760115ASPEC
9 files 15 ±5% 250 MHz 500 MHz 0.08 600 3600744762
744760115GASPEC
9 files 15 ±2% 250 MHz 500 MHz 0.08 600 3600744762G
744762115GASPEC
9 files 15 ±2% 100 MHz 500 MHz 0.08 1000 2700744762G
744765116ASPEC
9 files 16 ±5% 250 MHz 250 MHz 0.22 560 3100
744761116ASPEC
9 files 16 ±5% 250 MHz 250 MHz 0.17 700 3300744761
744765116GASPEC
9 files 16 ±2% 250 MHz 250 MHz 0.22 460 3100
744761116GASPEC
9 files 16 ±2% 250 MHz 250 MHz 0.17 700 3300744761G
744765118ASPEC
9 files 18 ±5% 250 MHz 250 MHz 0.23 420 3100744765A
744762118ASPEC
9 files 18 ±5% 100 MHz 350 MHz 0.1 1000 2700744762
744765118GASPEC
9 files 18 ±2% 250 MHz 250 MHz 0.23 420 3100744765G
744761118ASPEC
9 files 18 ±5% 250 MHz 250 MHz 0.17 700 3100744761
744761118GASPEC
9 files 18 ±2% 250 MHz 250 MHz 0.17 700 3100744761G
744760118ASPEC
9 files 18 ±5% 250 MHz 500 MHz 0.08 600 3400
744760118GASPEC
9 files 18 ±2% 250 MHz 500 MHz 0.08 600 3400
744762118GASPEC
9 files 18 ±2% 100 MHz 350 MHz 0.1 1000 2700744762G
744765119ASPEC
9 files 19 ±5% 250 MHz 250 MHz 0.202 480 3040744765A
744765119GASPEC
9 files 19 ±2% 250 MHz 250 MHz 0.202 480 3040744765G
744765120ASPEC
9 files 20 ±5% 250 MHz 250 MHz 0.25 420 3000744765A
744761120ASPEC
9 files 20 ±5% 250 MHz 250 MHz 0.22 700 3000744761
744761120GASPEC
9 files 20 ±2% 250 MHz 250 MHz 0.22 700 3000744761G
744765120GASPEC
9 files 20 ±2% 250 MHz 250 MHz 0.25 420 3000744765G
744765122ASPEC
9 files 22 ±5% 250 MHz 250 MHz 0.3 400 2800744765A
744761122ASPEC
9 files 22 ±5% 250 MHz 250 MHz 0.22 700 3000744761
744760122ASPEC
9 files 22 ±5% 250 MHz 500 MHz 0.1 600 3300744762
744762122ASPEC
9 files 22 ±5% 100 MHz 350 MHz 0.1 1000 2500
744765122GASPEC
9 files 22 ±2% 250 MHz 250 MHz 0.3 400 2800744765G
744761122GASPEC
9 files 22 ±2% 250 MHz 250 MHz 0.22 700 3000744761G
744760122GASPEC
9 files 22 ±2% 250 MHz 500 MHz 0.1 600 3300744762G
744762122GASPEC
9 files 22 ±2% 100 MHz 350 MHz 0.1 1000 2500
744765123ASPEC
9 files 23 ±5% 250 MHz 250 MHz 0.214 400 2720
744765123GASPEC
9 files 23 ±2% 250 MHz 250 MHz 0.214 400 2720
744765124ASPEC
9 files 24 ±5% 250 MHz 250 MHz 0.3 400 2700744765A
744761124GASPEC
9 files 24 ±2% 250 MHz 250 MHz 0.14 700 2650
744765124GASPEC
9 files 24 ±2% 250 MHz 250 MHz 0.3 400 2700744765G
744761124ASPEC
9 files
