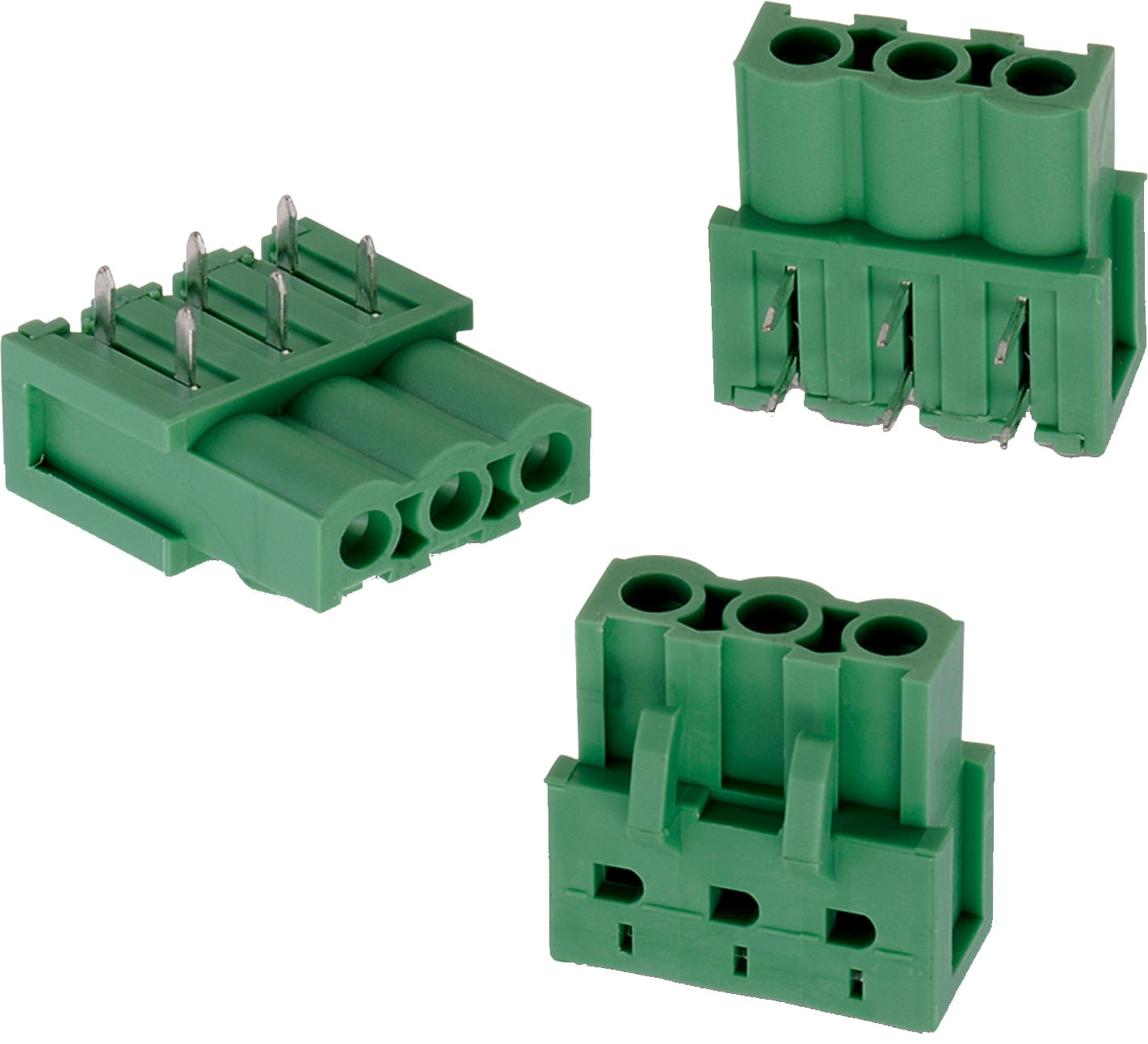

WR-TBL Series 3095 - 5.08 mm Reversed Gender Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit
691309510002	2, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691309510002_1 (rev1).pdf \| 197.4 KB IGS 691309510002 (rev1).igs \| 1.7 MB STP 691309510002 (rev1).stp \| 650.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit 691001 691002
691309510003	3, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691309510003_1 (rev1).pdf \| 263.2 KB IGS 691309510003 (rev1).igs \| 2.3 MB STP 691309510003 (rev1).stp \| 868.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
691309510004	4, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691309510004_1 (rev1).pdf \| 307.4 KB IGS 691309510004 (rev1).igs \| 2.8 MB STP 691309510004 (rev1).stp \| 1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
691309510005	5, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691309510005_1 (rev1).pdf \| 352.1 KB IGS 691309510005 (rev1).igs \| 3.3 MB STP 691309510005 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
691309510006	6, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691309510006_1 (rev1).pdf \| 405.6 KB IGS 691309510006 (rev1).igs \| 3.7 MB STP 691309510006 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
691309510007	7, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691309510007 (rev1).pdf \| 492.7 KB IGS Downloads_IGES_691309510007 (rev1).iges \| 4.2 MB STP Downloads_STP_691309510007 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
691309510008	8, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691309510008_1 (rev1).pdf \| 543.8 KB IGS 691309510008 (rev1).igs \| 4.7 MB STP 691309510008 (rev1).stp \| 1.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
691309510012	12, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691309510012 (rev1).pdf \| 739.2 KB IGS Downloads_IGES_691309510012 (rev1).iges \| 6.6 MB STP Downloads_STP_691309510012 (rev1).stp \| 2.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –
