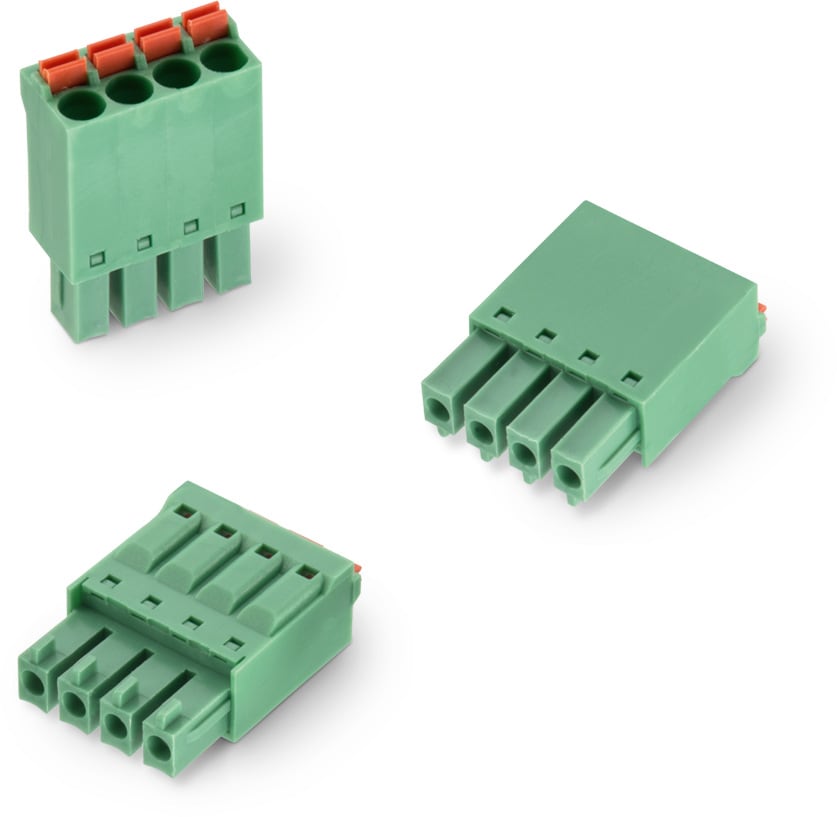

WR-TBL Series 3043 - 3.81 mm Screwless Plug Vertical Entry Low Profile

Kind Properties
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen/Orange
Contact MaterialCopper Alloy
Contact PlatingTin
Terminal MaterialCopper Alloy
Terminal PlatingTin-plated surface
Spring MaterialStainless Steel
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
IR cULus12 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length7 up to 9 (mm)
Wire Properties
Solid Wire Section (AWG)16 to 24 (AWG)
Solid Wire Section (Metric)1.31 to 0.205 (mm²)
Stranded Wire Section (AWG)16 to 24 (AWG)
Stranded Wire Section (Metric)1.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691304300002SPEC
3 files 2 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300003SPEC
3 files 3 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300004SPEC
3 files 4 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300005SPEC
3 files 5 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300006SPEC
3 files 6 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300007SPEC
3 files 7 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300008SPEC
3 files 8 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300009SPEC
3 files 9 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
691304300010SPEC
3 files 10 Pluggable Cable No Vertical 16 to 24 (AWG) 1.31 to 0.205 (mm²)
Order Code Data­sheet
691304300002SPEC
691304300003SPEC
691304300004SPEC
691304300005SPEC
691304300006SPEC
691304300007SPEC
691304300008SPEC
691304300009SPEC
691304300010SPEC
