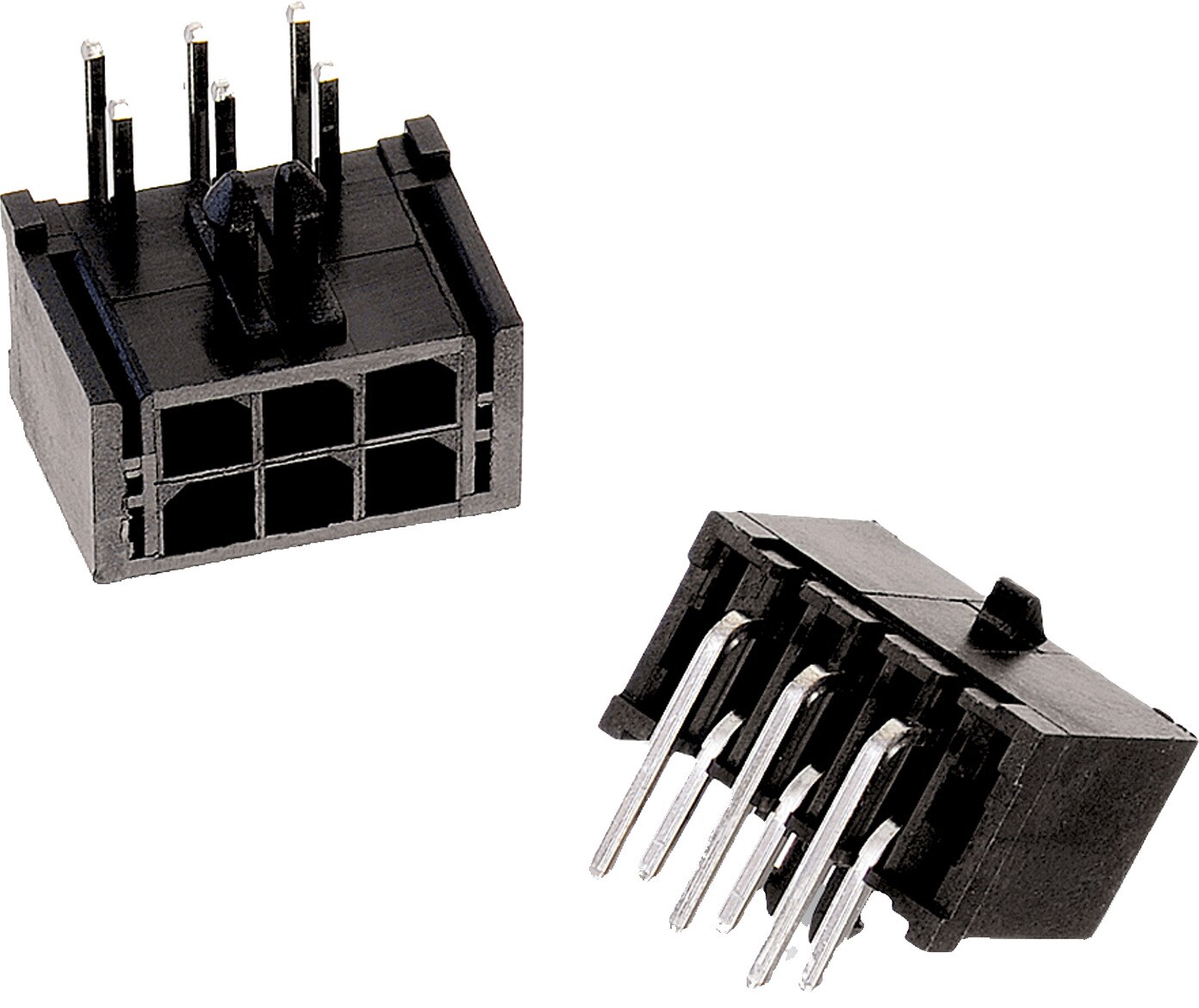

WR-MPC3 3.00 mm Male Dual Row Angled Header w. Plastic Pegs

Kind Properties
Pitch 3 mm
Gender Male
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 1500 V (AC)
Contact Resistance 10 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Wire Properties
Packaging Tube

Products

Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Rows Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
66200221022
STE ALT EAG IGS CAD 2 3 Male Right Angled Dual THT 5 250 PCB 10 max. 6.7 Tube 662001
66200421022
STE ALT EAG IGS CAD 4 3 Male Right Angled Dual THT 5 250 PCB 10 max. 9.7 Tube 662001
66200621022
STE ALT EAG IGS CAD 6 3 Male Right Angled Dual THT 5 250 PCB 10 max. 12.7 Tube 662001
66200821022
STE ALT EAG IGS CAD 8 3 Male Right Angled Dual THT 5 250 PCB 10 max. 15.7 Tube 612690
662001
66201021022
STE ALT EAG IGS CAD 10 3 Male Right Angled Dual THT 5 250 PCB 10 max. 18.7 Tube 662001
66201221022
STE ALT EAG IGS CAD 12 3 Male Right Angled Dual THT 5 250 PCB 10 max. 21.7 Tube 662001
66201421022
STE ALT EAG IGS CAD 14 3 Male Right Angled Dual THT 5 250 PCB 10 max. 24.7 Tube 662001
66201621022
STE ALT EAG IGS CAD 16 3 Male Right Angled Dual THT 5 250 PCB 10 max. 27.7 Tube 662001
66201821022
STE ALT EAG IGS CAD 18 3 Male Right Angled Dual THT 5 250 PCB 10 max. 30.7 Tube 662001
66202021022
STE ALT EAG IGS CAD 20 3 Male Right Angled Dual THT 5 250 PCB 10 max. 33.7 Tube 662001
66202221022
STE ALT EAG IGS CAD 22 3 Male Right Angled Dual THT 5 250 PCB 10 max. 36.7 Tube 662001
66202421022
STE ALT EAG IGS CAD 24 3 Male Right Angled Dual THT 5 250 PCB 10 max. 39.7 Tube 662001
Order Code Data­sheet
66200221022
66200421022
66200621022
66200821022
66201021022
66201221022
66201421022
66201621022
66201821022
66202021022
66202221022
66202421022
Samples
Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Rows Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
