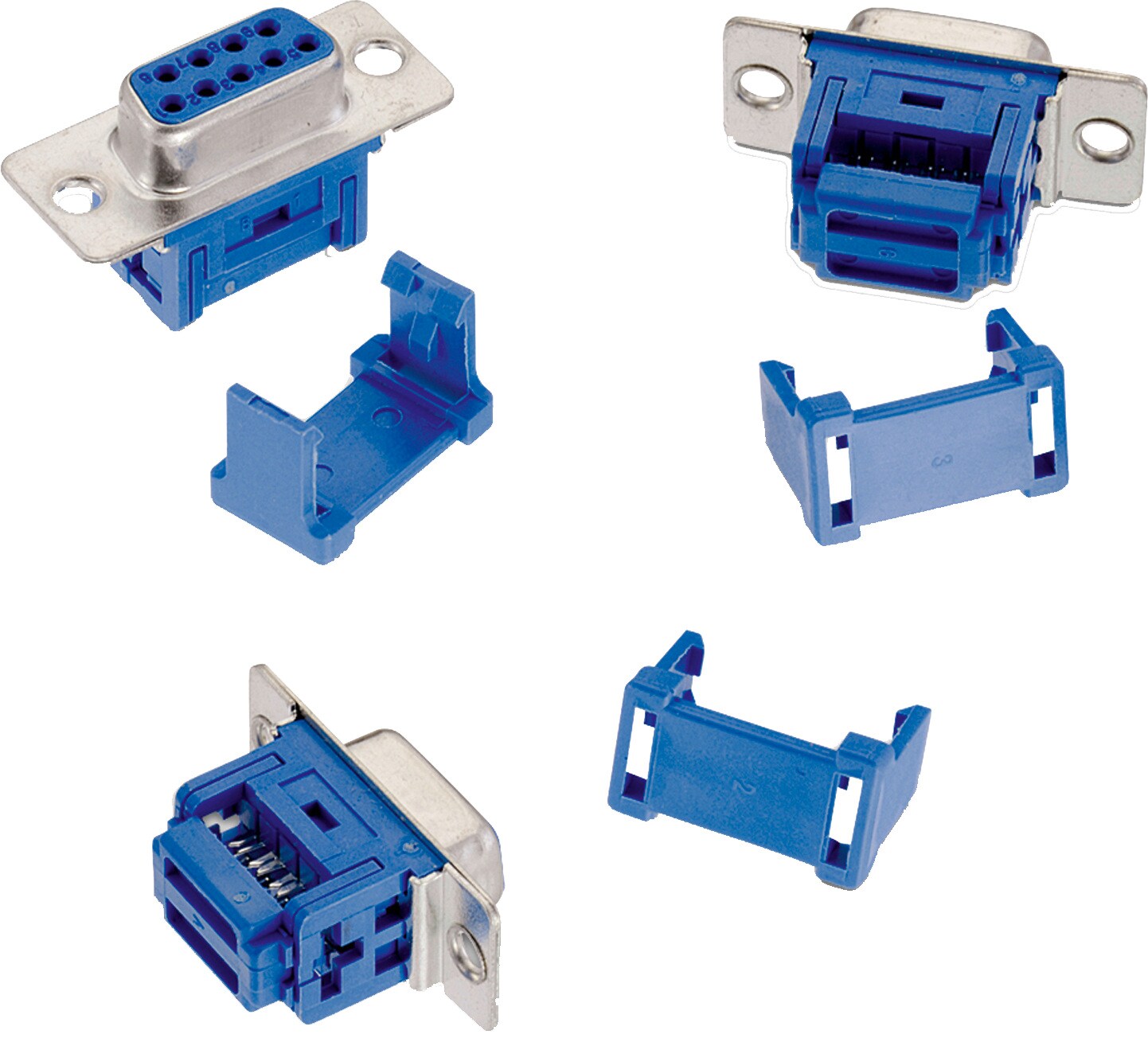

WR-DSUB Female IDC

Kind Properties
Gender Female
Type IDC
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Color Blue
Cover Material Steel
Cover Plating Tin
Contact Material Copper Alloy
Contact Plating Selective Gold
Contact Type Stamped
General Information
Operating Temperature -55 up to +105 °C
Compliance RoHS
Electrical Properties
IR 1 3 A
Working Voltage 125 V (AC)
Withstanding Voltage 1 V (AC)
Contact Resistance 30 mΩ

Products

Order Code Data­sheet Downloads Pins
(mm)
Gender Type Samples
618009221923
IGE STE 3D IGS 9 Female IDC
618015221923
IGE STE 3D IGS 15 Female IDC
618025221923
IGE STE 3D IGS 25 Female IDC
618037221923
IGE STE 3D IGS 37 Female IDC
Order Code Data­sheet
618009221923
618015221923
618025221923
618037221923
