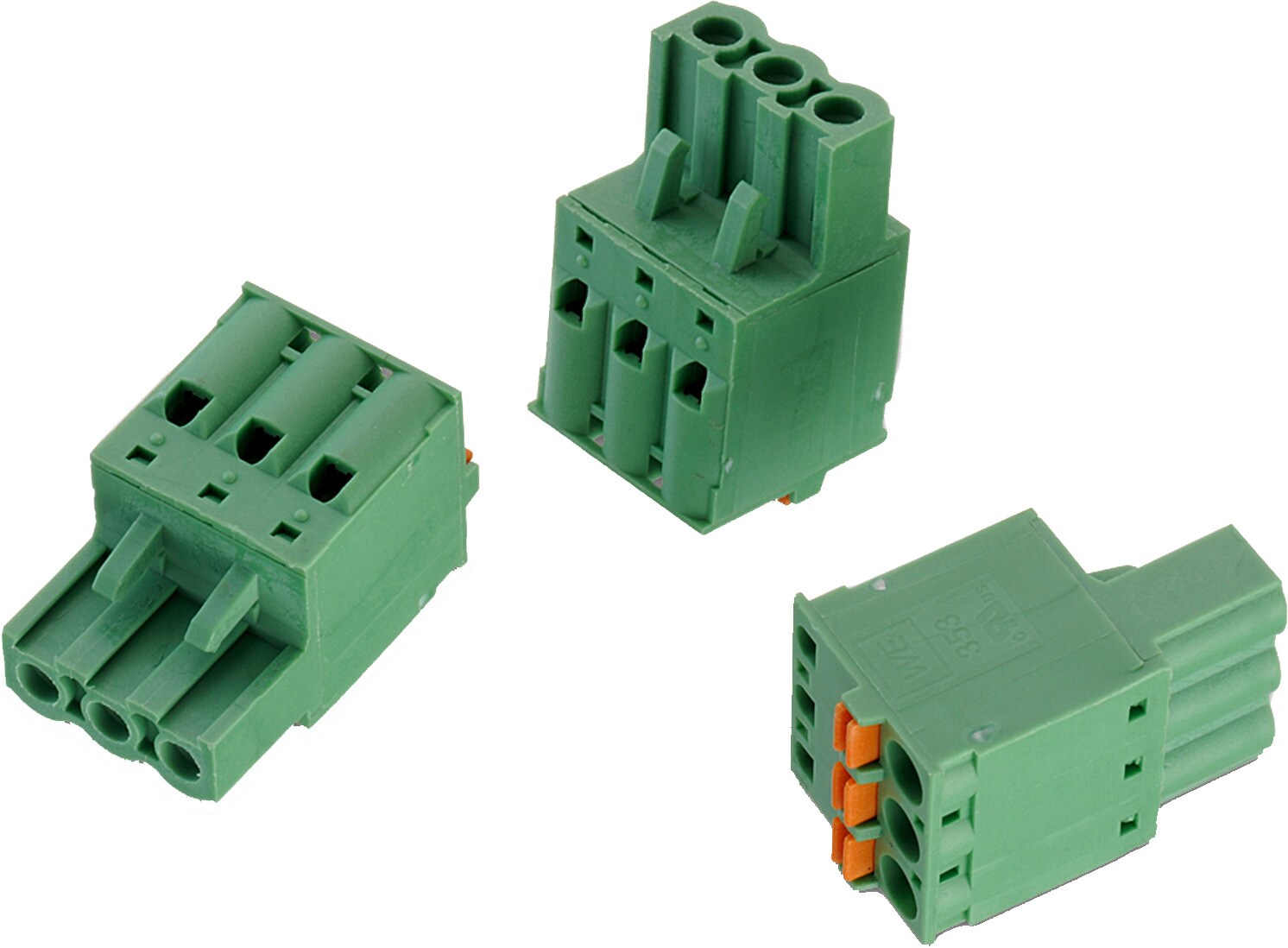

WR-TBL Series 353 - 5.08 mm Vertical Screwless | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Contact Plating	Tin
Wire Guard Material	Stainless Steel

Electrical Properties
I_R	10 A
I_R[cULus]	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	12 to 26 (AWG)
Solid Wire Section (Metric)	3.31 to 0.129 (mm²)
Stranded Wire Section (AWG)	12 to 26 (AWG)
Stranded Wire Section (Metric)	3.31 to 0.129 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section
691353500002	2, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500002_1 (rev1).pdf \| 217.2 KB IGS Download_IGES_691353500002 (rev1).iges \| 2.7 MB STP 691353500002 (rev1).stp \| 615 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500003	3, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500003_1 (rev1).pdf \| 300.5 KB IGS 691353500003 (rev1).iges \| 3.6 MB STP 691353500003 (rev1).stp \| 826.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500004	4, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500004_1 (rev1).pdf \| 371.7 KB IGS 691353500004 (rev1).iges \| 4.4 MB STP 691353500004 (rev1).stp \| 1015.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500005	5, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500005_1 (rev1).pdf \| 428.8 KB IGS 691353500005 (rev1).iges \| 5.2 MB STP 691353500005 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500006	6, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500006_1 (rev1).pdf \| 516.7 KB IGS 691353500006 (rev1).iges \| 6 MB STP 691353500006 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500007	7, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500007_1 (rev1).pdf \| 569.9 KB IGS 691353500007 (rev1).iges \| 6.9 MB STP 691353500007 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500008	8, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500008_1 (rev1).pdf \| 642.3 KB IGS 691353500008 (rev1).iges \| 7.7 MB STP 691353500008 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500009	9, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500009_1 (rev1).pdf \| 694.2 KB IGS 691353500009 (rev1).iges \| 8.5 MB STP 691353500009 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500010	10, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500010_1 (rev1).pdf \| 721.9 KB IGS 691353500010 (rev1).iges \| 9.3 MB STP 691353500010 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500011	11, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500011_1 (rev1).pdf \| 785 KB IGS 691353500011 (rev1).iges \| 10.1 MB STP 691353500011 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500012	12, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500012_1 (rev1).pdf \| 849.8 KB IGS 691353500012 (rev1).iges \| 10.9 MB STP 691353500012 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500013	13, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500013_1 (rev1).pdf \| 962.8 KB IGS 691353500013 (rev1).iges \| 11.7 MB STP 691353500013 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins13	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500014	14, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500014_1 (rev1).pdf \| 1 MB IGS 691353500014 (rev1).iges \| 12.6 MB STP 691353500014 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins14	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500015	15, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500015_1 (rev1).pdf \| 1.1 MB IGS 691353500015 (rev1).iges \| 13.4 MB STP 691353500015 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500016	16, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500016_1 (rev1).pdf \| 1.2 MB IGS 691353500016 (rev1).iges \| 14.2 MB STP 691353500016 (rev1).stp \| 3.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500017	17, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500017_1 (rev1).pdf \| 1.2 MB IGS 691353500017 (rev1).iges \| 15 MB STP 691353500017 (rev1).stp \| 3.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins17	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500018	18, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500018_1 (rev1).pdf \| 1.2 MB IGS 691353500018 (rev1).iges \| 15.8 MB STP 691353500018 (rev1).stp \| 3.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins18	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500019	19, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500019_1 (rev1).pdf \| 1.3 MB IGS 691353500019 (rev1).iges \| 16.6 MB STP 691353500019 (rev1).stp \| 3.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500020	20, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500020_1 (rev1).pdf \| 1.3 MB IGS 691353500020 (rev1).iges \| 17.4 MB STP 691353500020 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins20	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500021	21, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500021_1 (rev1).pdf \| 1.7 MB IGS 691353500021 (rev1).iges \| 18.3 MB STP 691353500021 (rev1).stp \| 4.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins21	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500022	22, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500022_1 (rev1).pdf \| 1.8 MB IGS 691353500022 (rev1).iges \| 19.1 MB STP 691353500022 (rev1).stp \| 4.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins22	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500023	23, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500023_1 (rev1).pdf \| 1.9 MB IGS 691353500023 (rev1).iges \| 19.9 MB STP 691353500023 (rev1).stp \| 4.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins23	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
691353500024	24, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691353500024_1 (rev1).pdf \| 1.9 MB IGS 691353500024 (rev1).iges \| 20.7 MB STP 691353500024 (rev1).stp \| 4.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins24	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 26 (AWG) 3.31 to 0.129 (mm²)
