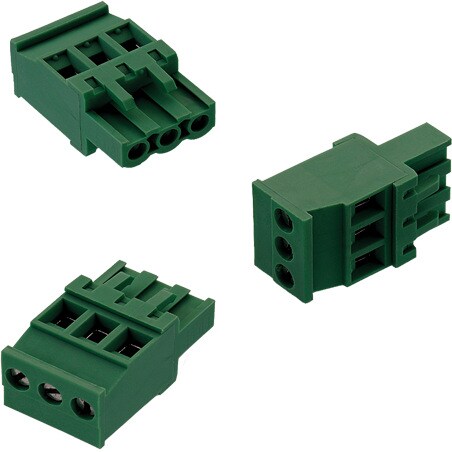

WR-TBL Series 352 - 5.08 mm Horizontal with Hook on Wire Side | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin over Nickel
Cage Material	Brass
Cage Plating	nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	15 A; 17 A
I_R[cULus]	15 A
I_R[VDE]	17 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M3

Wire Properties
Solid Wire Section (AWG)	12 to 24 (AWG)
Solid Wire Section (Metric)	3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	12 to 24 (AWG)
Stranded Wire Section (Metric)	3.31 to 0.205 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023402

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691352510002	SPEC	3 files CAD files ZIP 3D 691352510002_1 (rev1).pdf \| 223.8 KB IGS 691352510002 (rev1).igs \| 2.1 MB STP 691352510002 (rev1).stp \| 812 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	612690 691002
691352510003	SPEC	3 files CAD files ZIP 3D 691352510003_1 (rev1).pdf \| 273.6 KB IGS 691352510003 (rev1).igs \| 2.8 MB STP 691352510003 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510004	SPEC	3 files CAD files ZIP 3D 691352510004_1 (rev1).pdf \| 314.7 KB IGS 691352510004 (rev1).igs \| 3.4 MB STP 691352510004 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510005	SPEC	3 files CAD files ZIP 3D 691352510005_1 (rev1).pdf \| 355.8 KB IGS 691352510005 (rev1).igs \| 4 MB STP 691352510005 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510006	SPEC	3 files CAD files ZIP 3D 691352510006_1 (rev1).pdf \| 404.9 KB IGS 691352510006 (rev1).igs \| 4.6 MB STP 691352510006 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510007	SPEC	4 files CAD files ZIP 3D 691352510007_1 (rev1).pdf \| 440.7 KB IGS 691352510007 (rev1).iges \| 5.2 MB IGS 691352510007 (rev1).igs \| 5.2 MB STP 691352510007 (rev1).stp \| 2 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510008	SPEC	3 files CAD files ZIP 3D 691352510008_1 (rev1).pdf \| 484.2 KB IGS 691352510008 (rev1).igs \| 5.7 MB STP 691352510008 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510009	SPEC	3 files CAD files ZIP 3D 691352510009_1 (rev1).pdf \| 522.6 KB IGS 691352510009 (rev1).igs \| 6.3 MB STP 691352510009 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510010	SPEC	3 files CAD files ZIP 3D 691352510010_1 (rev1).pdf \| 548.8 KB IGS 691352510010 (rev1).igs \| 6.9 MB STP 691352510010 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510011	SPEC	3 files CAD files ZIP 3D 691352510011_1 (rev1).pdf \| 589.8 KB IGS 691352510011 (rev1).igs \| 7.5 MB STP 691352510011 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510012	SPEC	4 files CAD files ZIP 3D 691352510012_1 (rev1).pdf \| 659.2 KB IGS 691352510012 (rev1).iges \| 8.1 MB IGS 691352510012 (rev1).igs \| 8.1 MB STP 691352510012 (rev1).stp \| 3.2 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510013	SPEC	3 files CAD files ZIP 3D 691352510013_1 (rev1).pdf \| 689.7 KB IGS 691352510013 (rev1).igs \| 8.7 MB STP 691352510013 (rev1).stp \| 3.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510014	SPEC	3 files CAD files ZIP 3D 691352510014_1 (rev1).pdf \| 733.3 KB IGS 691352510014 (rev1).igs \| 9.3 MB STP 691352510014 (rev1).stp \| 3.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510015	SPEC	3 files CAD files ZIP 3D 691352510015_1 (rev1).pdf \| 775.3 KB IGS 691352510015 (rev1).igs \| 9.9 MB STP 691352510015 (rev1).stp \| 3.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510016	SPEC	3 files CAD files ZIP 3D 691352510016_1 (rev1).pdf \| 829.4 KB IGS 691352510016 (rev1).igs \| 10.5 MB STP 691352510016 (rev1).stp \| 4.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510017	SPEC	3 files CAD files ZIP 3D 691352510017_1 (rev1).pdf \| 872.4 KB IGS 691352510017 (rev1).igs \| 11.1 MB STP 691352510017 (rev1).stp \| 4.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	17	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510018	SPEC	3 files CAD files ZIP 3D 691352510018_1 (rev1).pdf \| 887.4 KB IGS 691352510018 (rev1).igs \| 11.7 MB STP 691352510018 (rev1).stp \| 4.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510019	SPEC	3 files CAD files ZIP 3D 691352510019_1 (rev1).pdf \| 926.5 KB IGS 691352510019 (rev1).igs \| 12.3 MB STP 691352510019 (rev1).stp \| 4.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	19	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510020	SPEC	3 files CAD files ZIP 3D 691352510020_1 (rev1).pdf \| 967.3 KB IGS 691352510020 (rev1).igs \| 12.8 MB STP 691352510020 (rev1).stp \| 5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510021	SPEC	3 files CAD files ZIP 3D 691352510021_1 (rev1).pdf \| 1009.7 KB IGS 691352510021 (rev1).igs \| 13.4 MB STP 691352510021 (rev1).stp \| 5.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	21	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510022	SPEC	3 files CAD files ZIP 3D 691352510022_1 (rev1).pdf \| 1 MB IGS 691352510022 (rev1).igs \| 14 MB STP 691352510022 (rev1).stp \| 5.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510023	SPEC	3 files CAD files ZIP 3D 691352510023_1 (rev1).pdf \| 1.1 MB IGS 691352510023 (rev1).igs \| 14.6 MB STP 691352510023 (rev1).stp \| 5.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	23	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–
691352510024	SPEC	3 files CAD files ZIP 3D 691352510024_1 (rev1).pdf \| 1.1 MB IGS 691352510024 (rev1).igs \| 15.2 MB STP 691352510024 (rev1).stp \| 6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	Pluggable	Cable	No	Horizontal	12 to 24 (AWG) 3.31 to 0.205 (mm²)	–

Order Code	Datasheet
691352510002	SPEC
691352510003	SPEC
691352510004	SPEC
691352510005	SPEC
691352510006	SPEC
691352510007	SPEC
691352510008	SPEC
691352510009	SPEC
691352510010	SPEC
691352510011	SPEC
691352510012	SPEC
691352510013	SPEC
691352510014	SPEC
691352510015	SPEC
691352510016	SPEC
691352510017	SPEC
691352510018	SPEC
691352510019	SPEC
691352510020	SPEC
691352510021	SPEC
691352510022	SPEC
691352510023	SPEC
691352510024	SPEC
