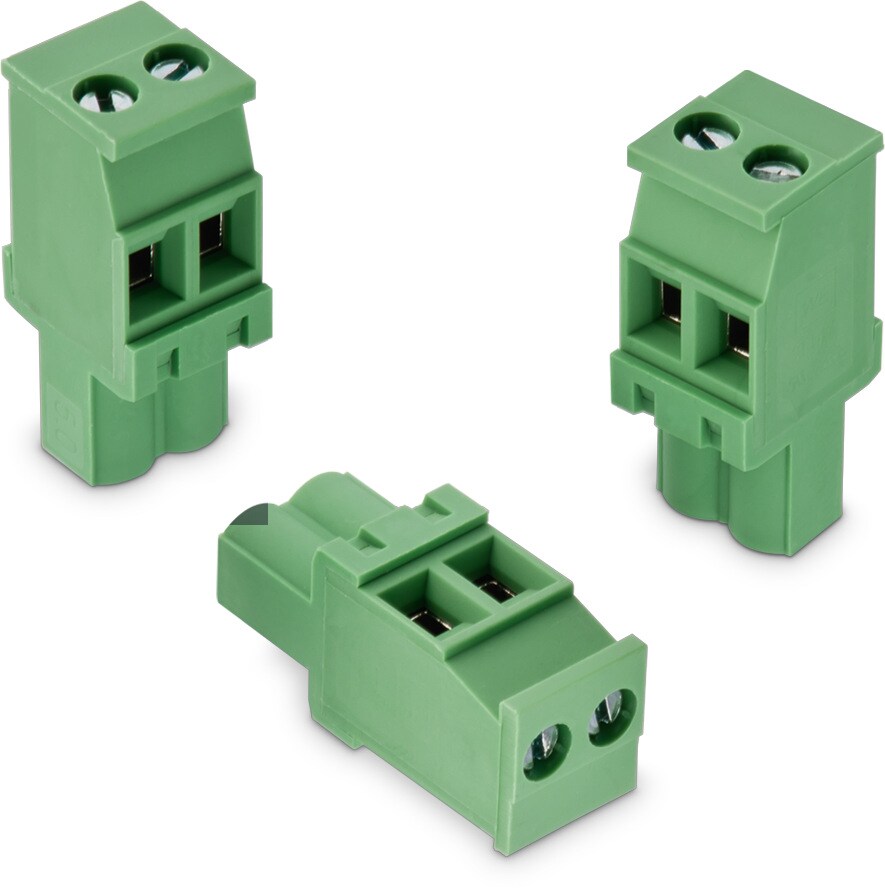

WR-TBL Series 3447 - 5.00 mm Horizontal CAB Entry Plug with Hook on Back Side

Kind Properties
Pitch5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus15 A
IR VDE17 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023402

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691344710002SPEC
3 files 2 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)612690
691344710003SPEC
3 files 3 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691344710004SPEC
3 files 4 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691344710005SPEC
3 files 5 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691344710006SPEC
3 files 6 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691344710007SPEC
3 files 7 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691344710008SPEC
3 files 8 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691344710012SPEC
3 files 12 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
Order Code Data­sheet
691344710002SPEC
691344710003SPEC
691344710004SPEC
691344710005SPEC
691344710006SPEC
691344710007SPEC
691344710008SPEC
691344710012SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
